Mesh

Collaboration diagram for Mesh:

Modules
	Hybrid Mesh Module
Defines
#define	MMC_MAXELFAC 5
#define	MMC_MAXFAVNO 4
#define	MMC_MAXELVNO 6
#define	MMC_MAXELSONS 8
#define	MMC_MAXELEDGES 9
Enumerations
enum	mmt_file_type { MMC_MOD_FEM_MESH_DATA = 0, MMC_MOD_FEM_PRISM_DATA = 1, MMC_MOD_FEM_TETRA_DATA = 2, MMC_MOD_FEM_HYBRID_DATA = 3, MMC_GRADMESH_DATA = 10, MMC_HP_FEM_MESH_DATA = 1, MMC_NASTRAN_DATA = (int)'n', MMC_NASTRAN_FREE_DATA = MMC_NASTRAN_DATA, MMC_NASTRAN_SHORT_DATA = (int)'s', MMC_NASTRAN_LONG_DATA = (int)'l', MMC_BINARY_DATA = (int)'b', MMC_BOUND_VERTS_DATA = (int)'m', MMC_IN_ANSYS_DATA = (int)'i', MMC_PARAVIEW_VTK_DATA = (int)'v', MMC_MSH_DATA = (int)'f', MMC_MAX_FILE_TYPE = 126 }
enum	mmt_mesh_entity { MMC_NODE = 0, MMC_EDGE = 1, MMC_FACE = 2, MMC_ELEMENT = 3, MMC_ALL_N_TYPES }
enum	mmt_mesh_entity_types { MMC_QUAD = 4, MMC_TRIA = 3, MMC_TETRA = 7, MMC_PRISM = 5, MMC_BRICK = 6, MMC_ENTITY_UNKNOWN = -1 }
Functions
int	mmr_module_introduce (char *Mesh_name)
void *	mmr_module_internals (int Mesh_id)
int	mmr_init_mesh (int Control, char Filename, FILE interactive_output)
int	mmr_init_mesh2 (FILE *Interactive_output, const int N_nodes, const int N_edges, const int N_faces, const int N_elems)
int	mmr_export_mesh (int Mesh_id, int Control, char *Filename)
int	mmr_test_mesh (int Mesh_id)
int	mmr_mesh_i_params (int Mesh_id, int Num)

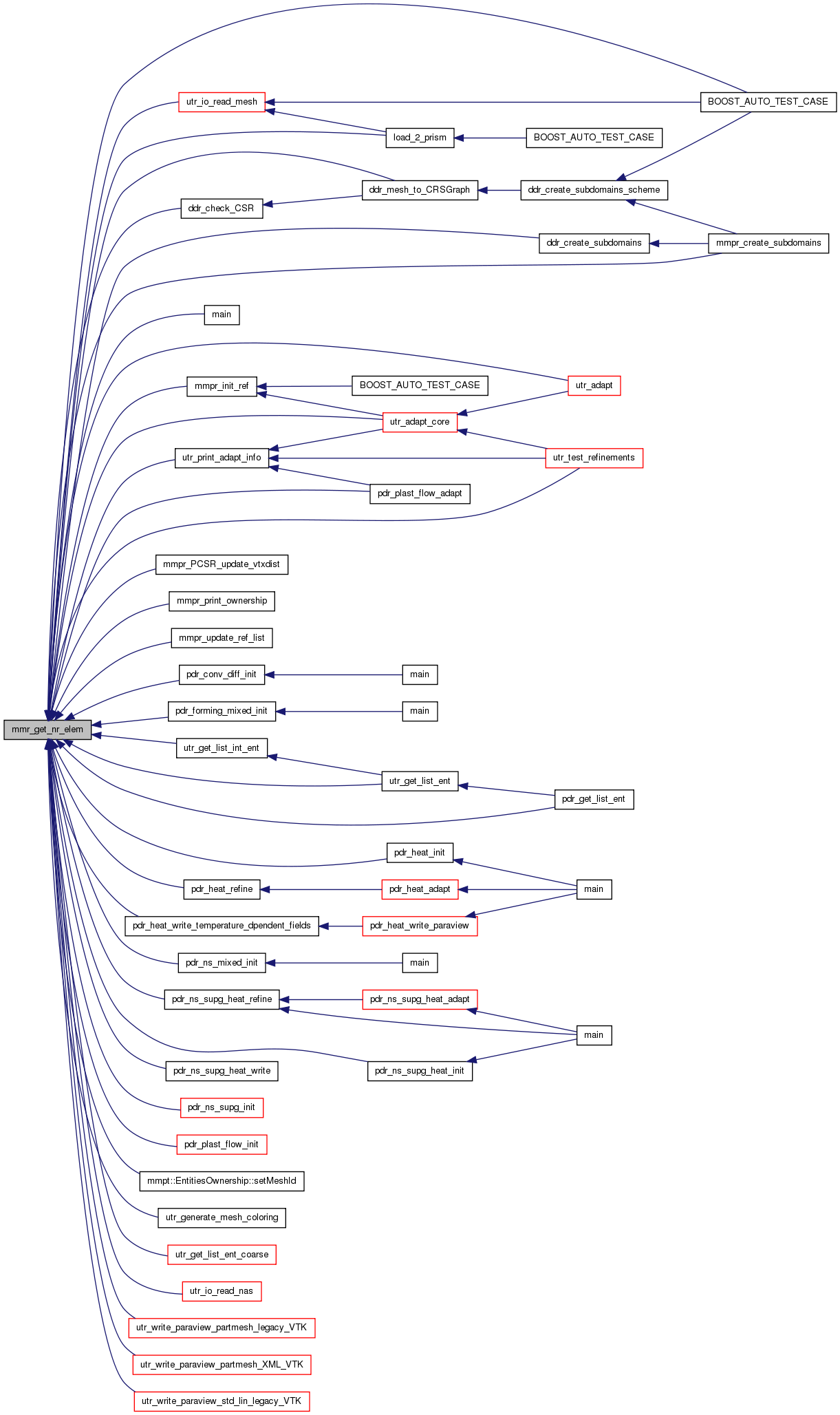

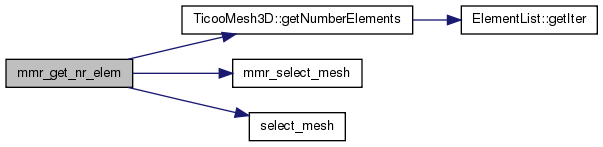

int	mmr_get_nr_elem (int Mesh_id)

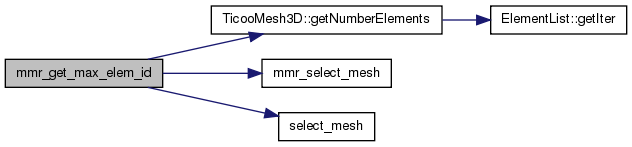

int	mmr_get_max_elem_id (int Mesh_id)

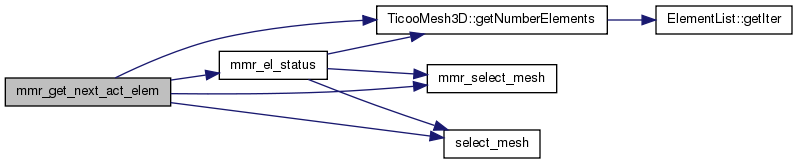

int	mmr_get_next_act_elem (int Mesh_id, int Nel)

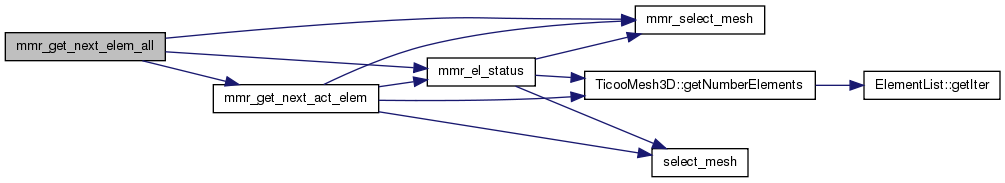

int	mmr_get_next_elem_all (int Mesh_id, int Nel)

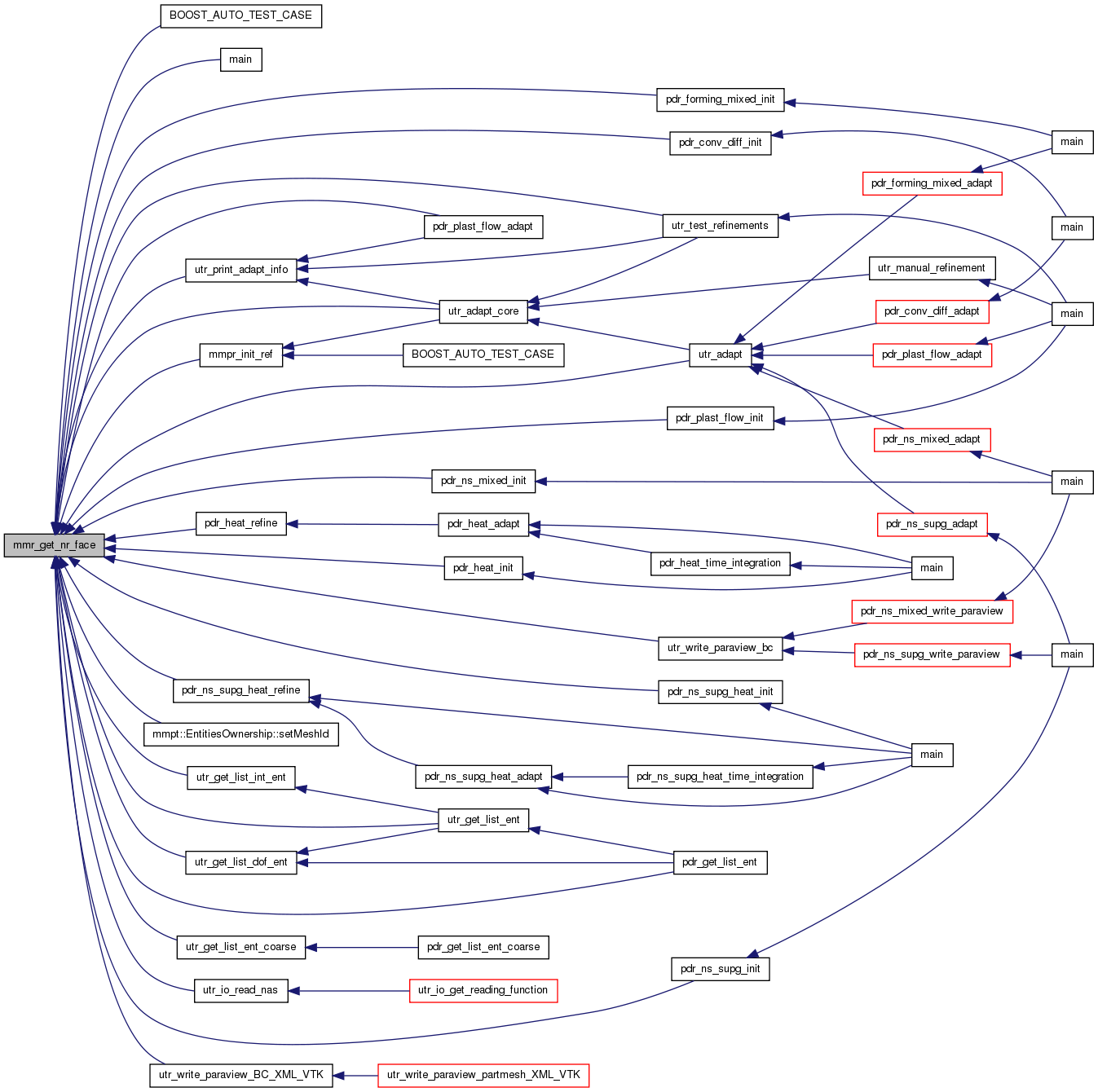

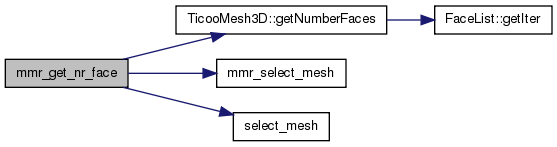

int	mmr_get_nr_face (int Mesh_id)
int	mmr_get_max_face_id (int Mesh_id)
int	mmr_get_next_act_face (int Mesh_id, int Nfa)
int	mmr_get_next_face_all (int Mesh_id, int Nfa)
int	mmr_get_nr_edge (int Mesh_id)

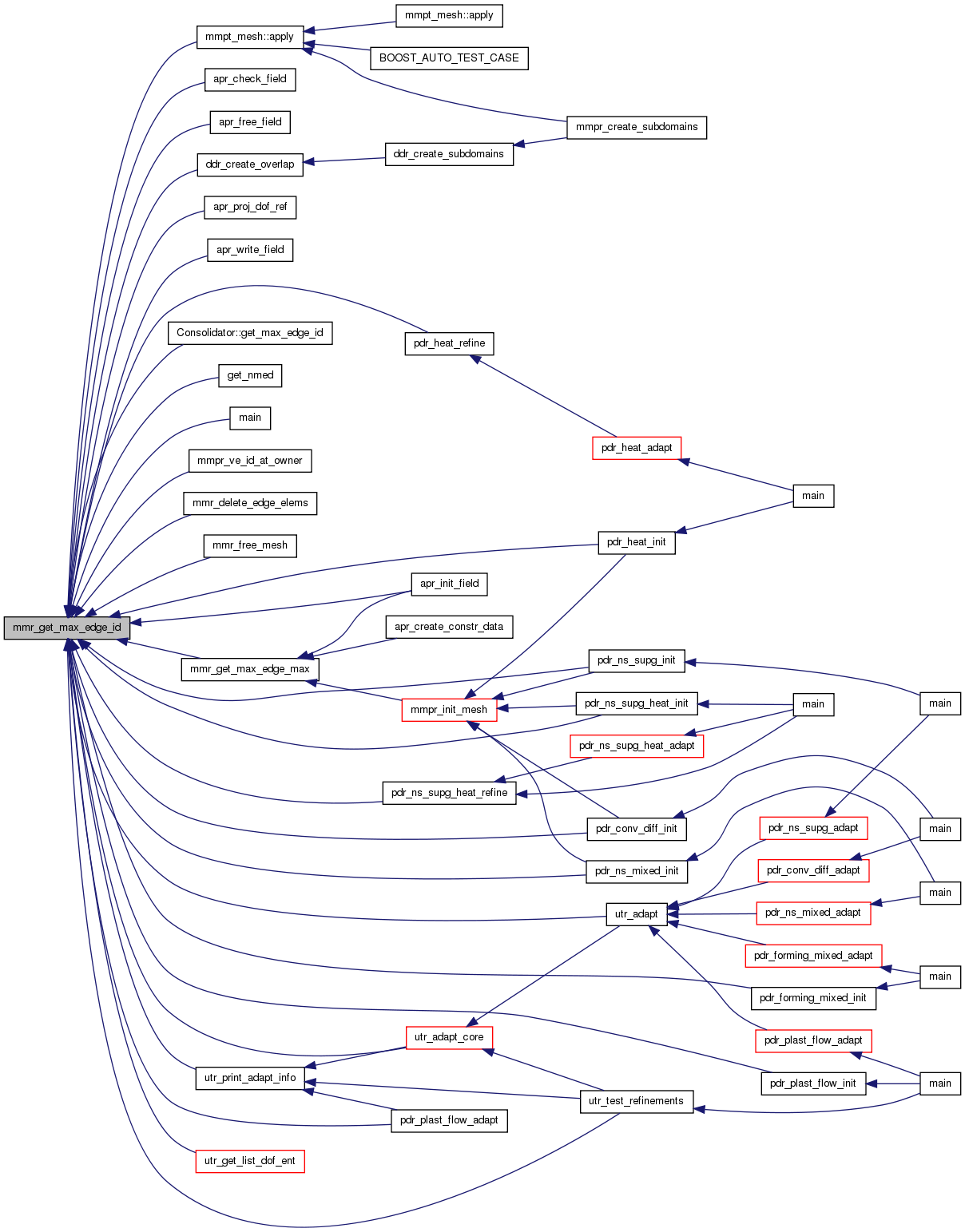

int	mmr_get_max_edge_id (int Mesh_id)

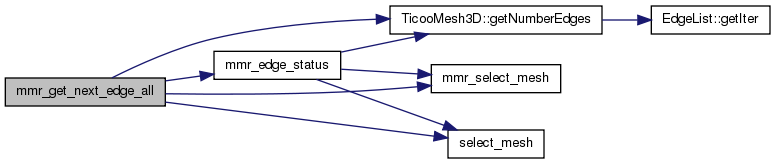

int	mmr_get_next_edge_all (int Mesh_id, int Ned)

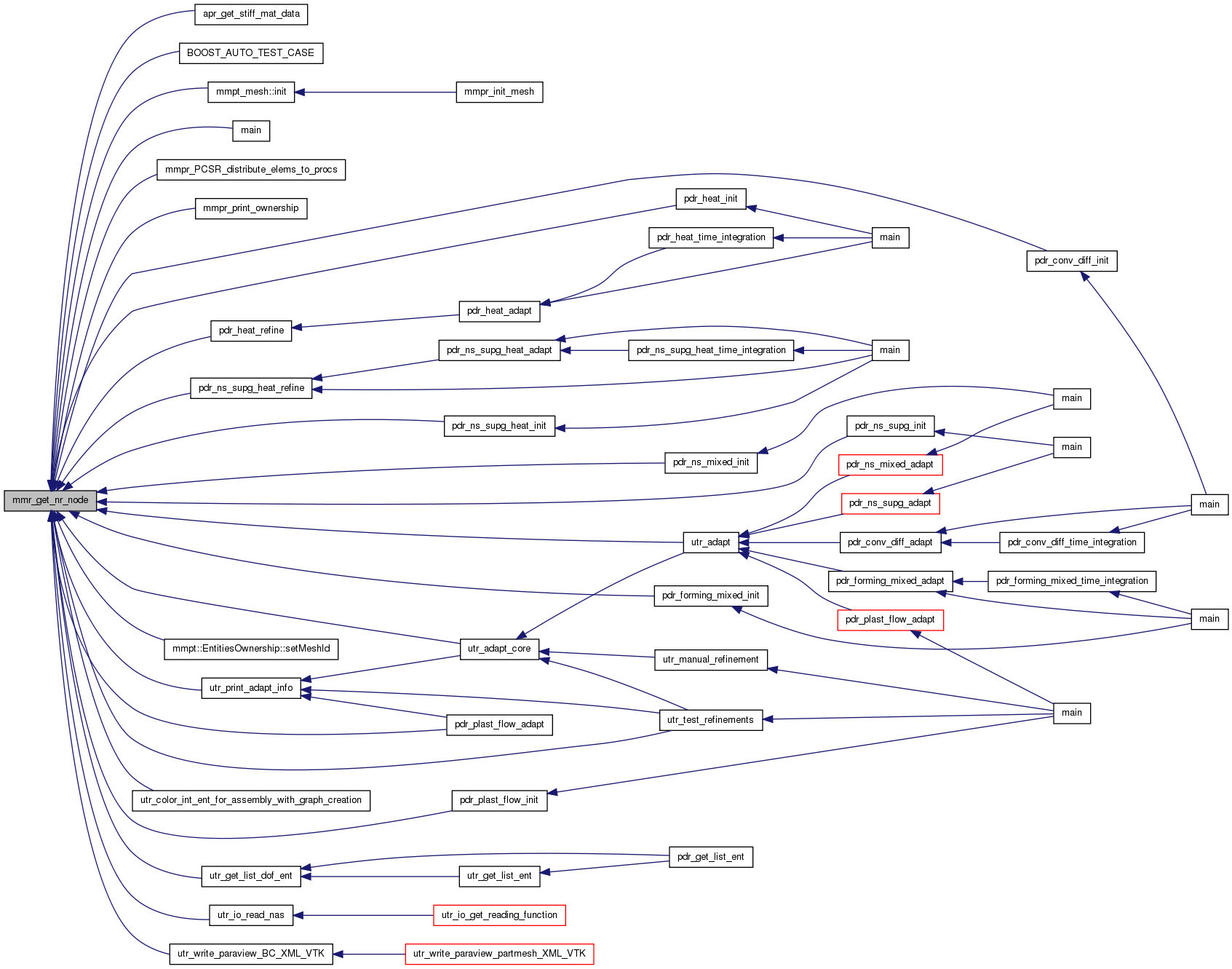

int	mmr_get_nr_node (int Mesh_id)

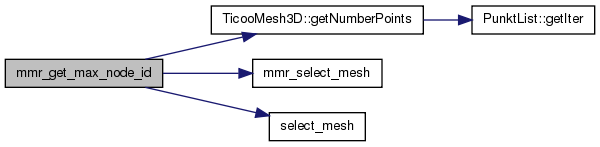

int	mmr_get_max_node_id (int Mesh_id)

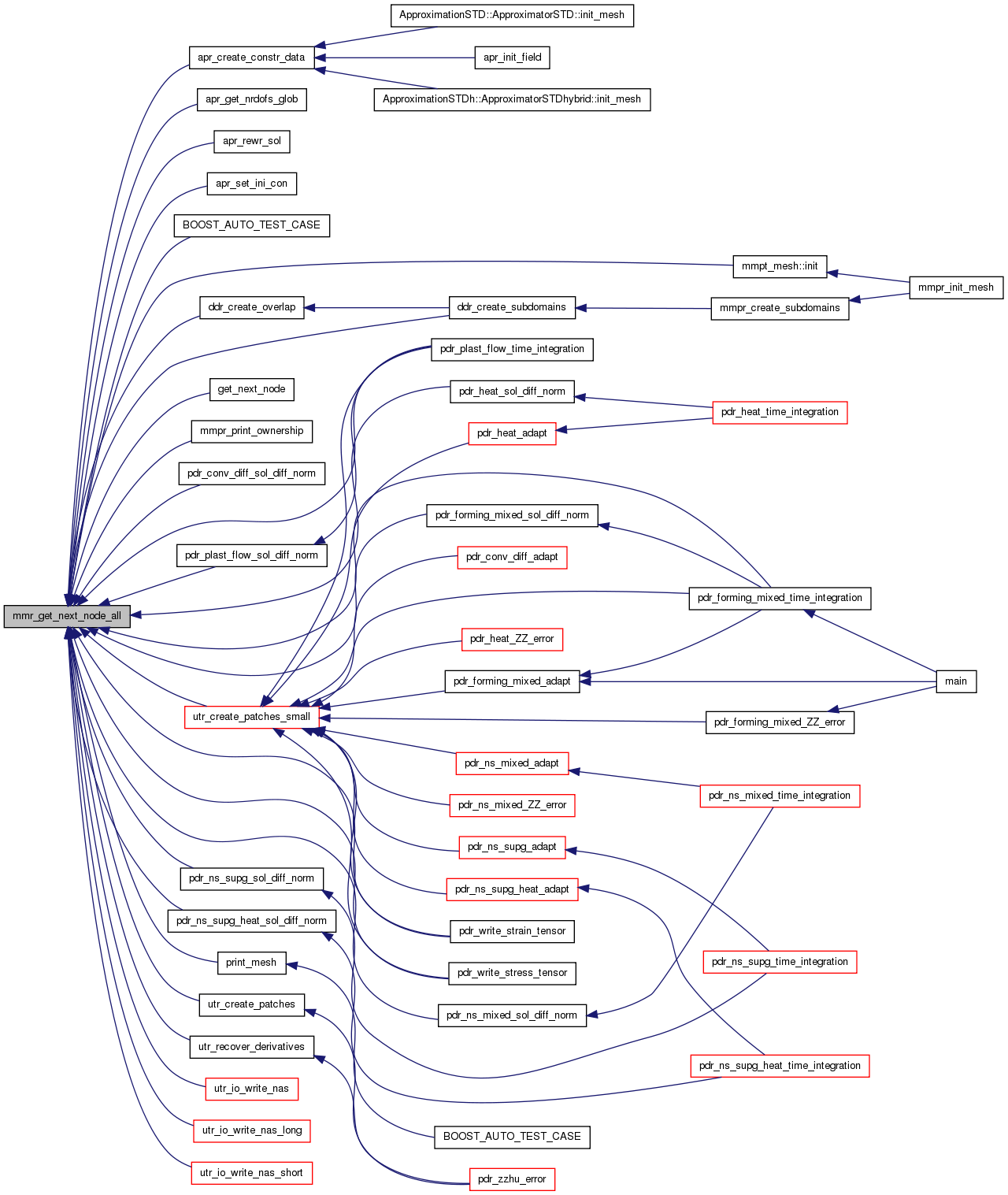

int	mmr_get_next_node_all (int Mesh_id, int Nno)
int	mmr_get_max_gen (int Mesh_id)
int	mmr_set_max_gen (int Mesh_id, int Max_gen)

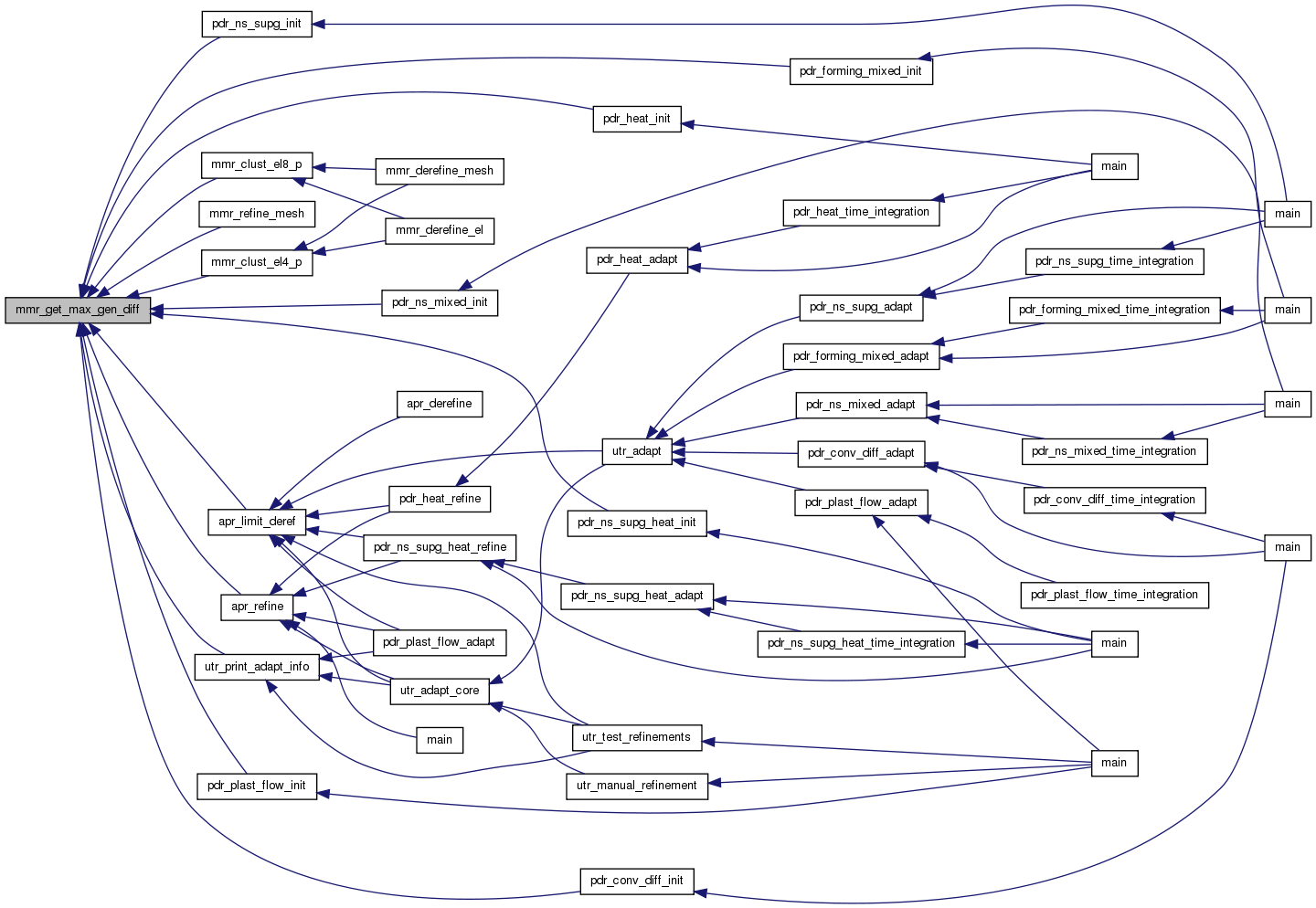

int	mmr_get_max_gen_diff (int Mesh_id)
int	mmr_set_max_gen_diff (int Mesh_id, int Max_gen_diff)
int	mmr_init_ref (int Mesh_id)

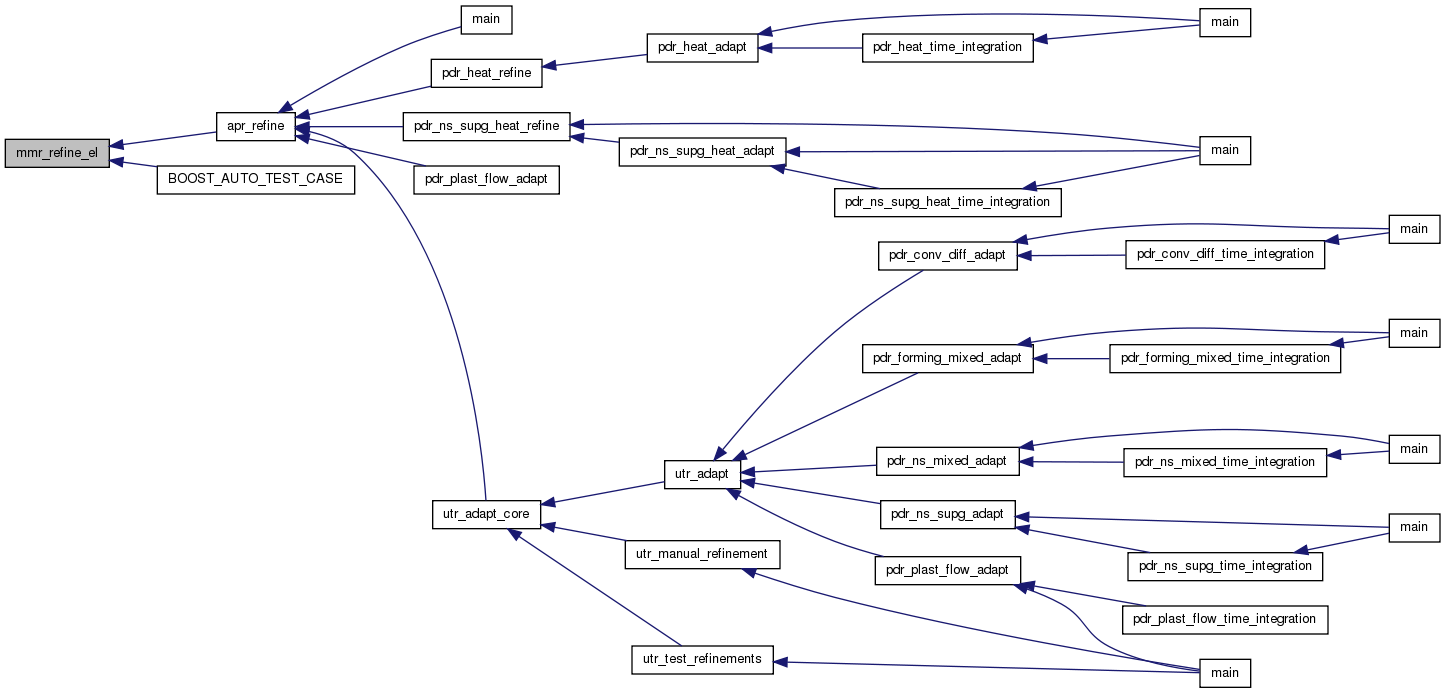

int	mmr_refine_el (int Mesh_id, int El)
int	mmr_derefine_el (int Mesh_id, int El)
int	mmr_refine_mesh (int Mesh_id)
int	mmr_derefine_mesh (int Mesh_id)

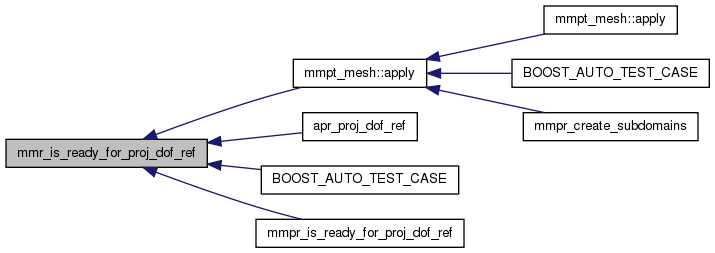

int	mmr_is_ready_for_proj_dof_ref (int Mesh_id)
int	mmr_r_refine (int Mesh_id, int Bc, void(reallocation_func)(double x, double y, double z))
int	mmr_gen_boundary_layer (int Mesh_id, int Bc, int thicknessProc, int noLayers, int distribuiton, double *ignoreVect)
int	mmr_final_ref (int Mesh_id)

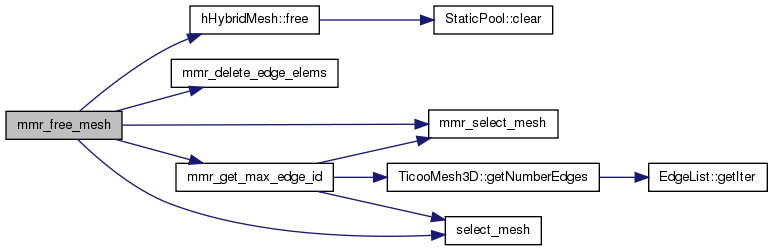

int	mmr_free_mesh (int Mesh_id)

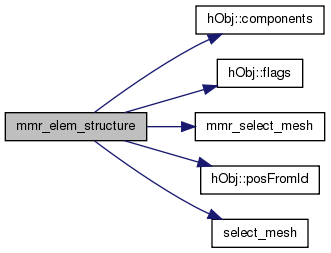

int	mmr_elem_structure (int Mesh_id, int El, int *Elem_struct)

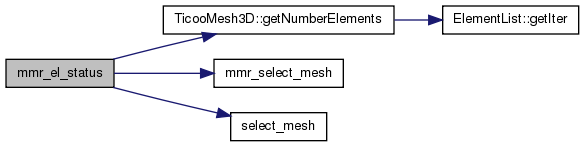

int	mmr_el_status (int Mesh_id, int El)

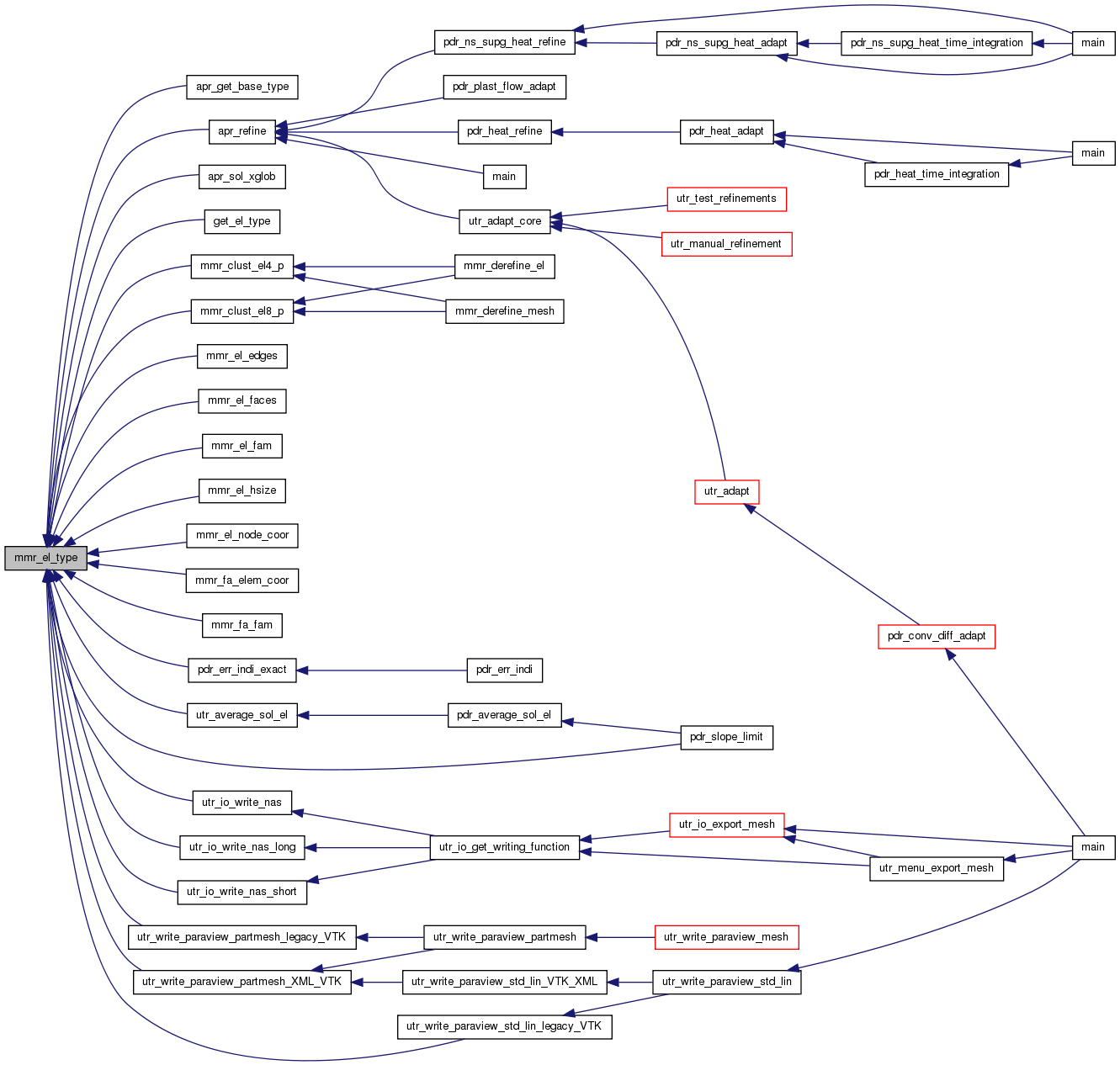

int	mmr_el_type (int Mesh_id, int El)
int	mmr_el_groupID (int Mesh_id, int El)
	Replaces old mmr_el_mat() routine. Returns ID of group for given element number. In order to get the material number, pass obtained groupID into utr_mat_get_matID. In order to get the block number, pass obtained groupID into utr_mat_get_blockID .
int	mmr_el_set_groupID (int Mesh_id, int El, int Group_id)
	Replaces old mmr_el_set_mat() routine. Assigns given element for group with given ID. Note, that this can effectively change element material number ( utr_mat_get_matID ), element block assignment ( utr_mat_get_blockID ), and is some circumstances also affects boundary conditions definitions ( utr_mesh_insert_BC_contact ).
int	mmr_el_type_ref (int Mesh_id, int El)

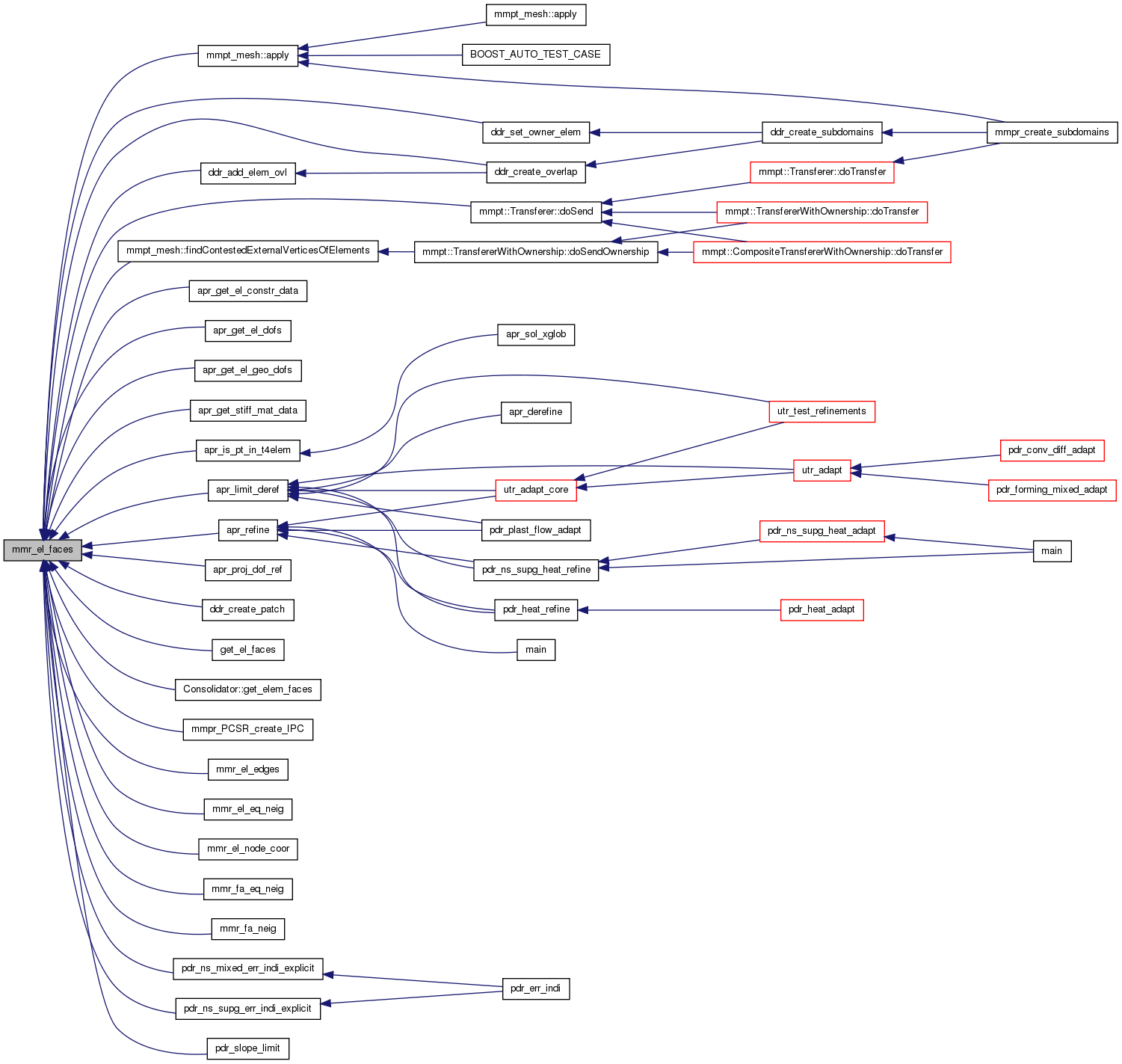

int	mmr_el_faces (int Mesh_id, int El, int Faces, int Orient)

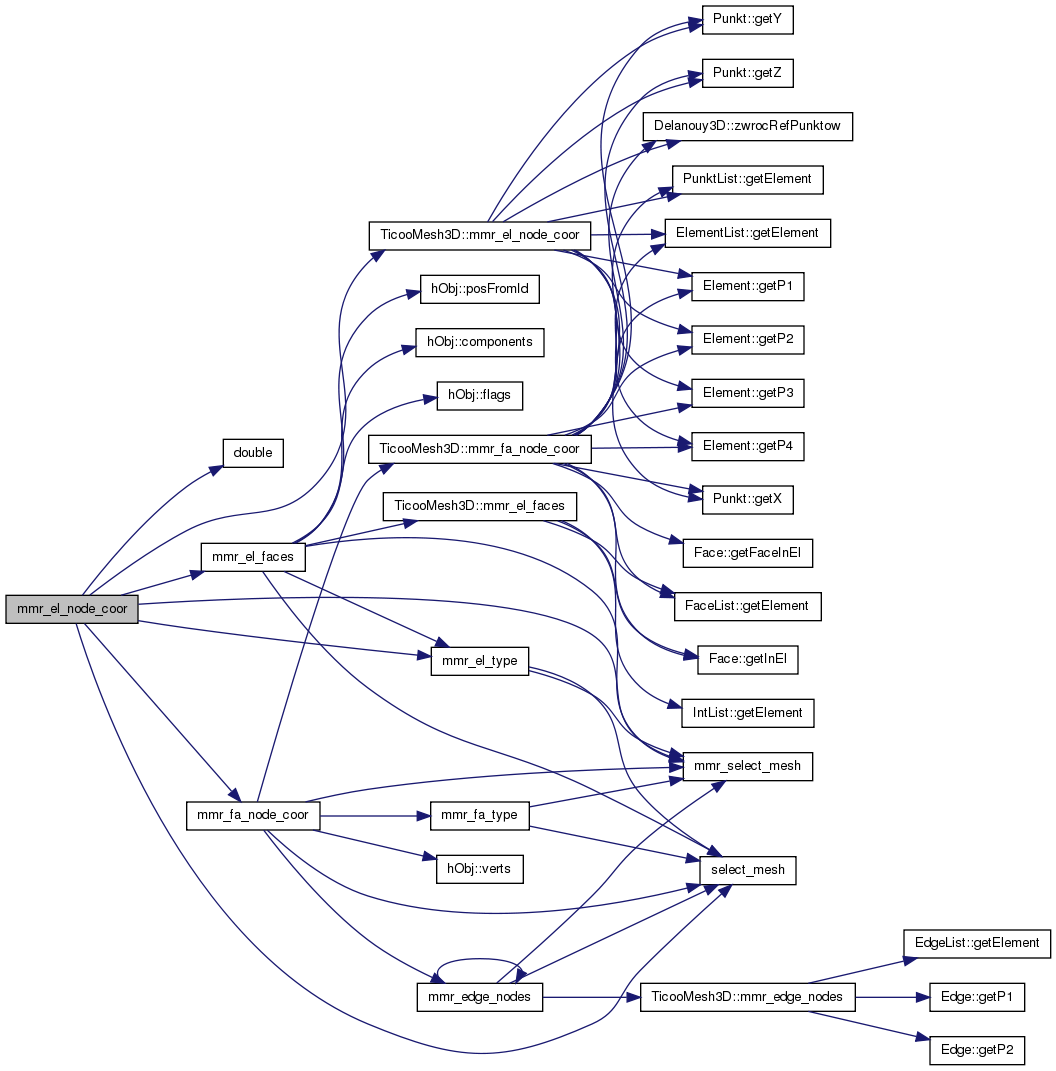

int	mmr_el_node_coor (int Mesh_id, int El, int Nodes, double Node_coor)

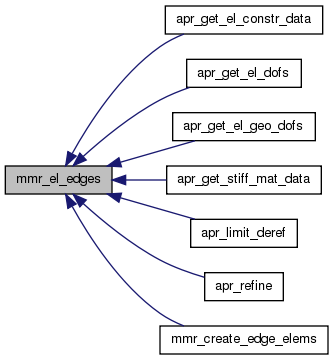

int	mmr_el_edges (int Mesh_id, int El, int *Edges)
int	mmr_el_fam (int Mesh_id, int El, int Elsons, int Type)

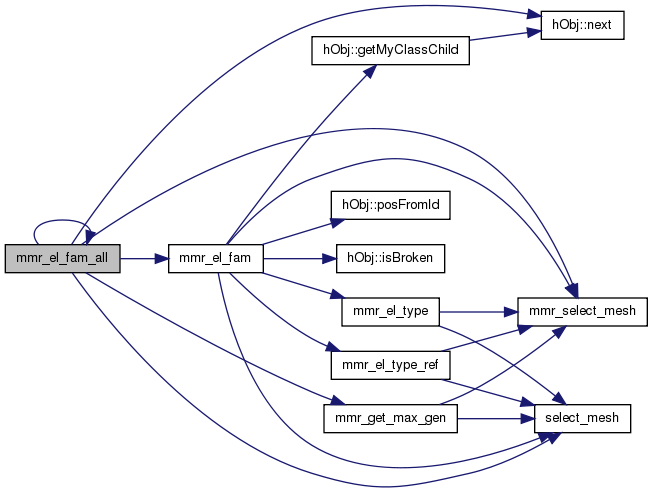

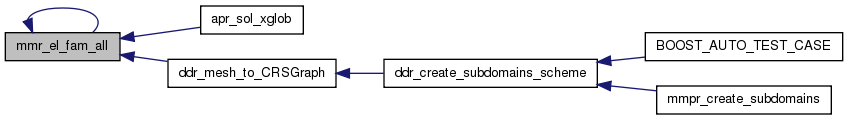

int	mmr_el_fam_all (int Mesh_id, int El, int *Elsonscd)

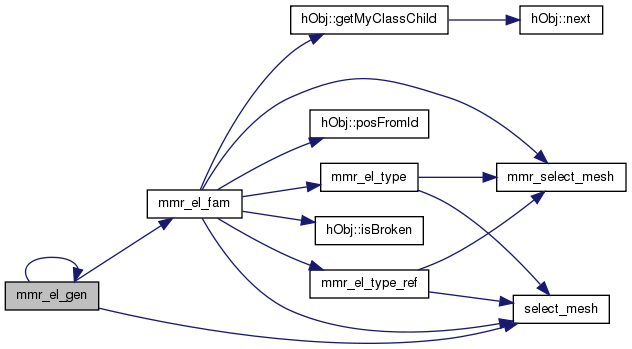

int	mmr_el_gen (int Mesh_id, int El)
int	mmr_el_ancestor (int Mesh_id, int El, int Ilev)

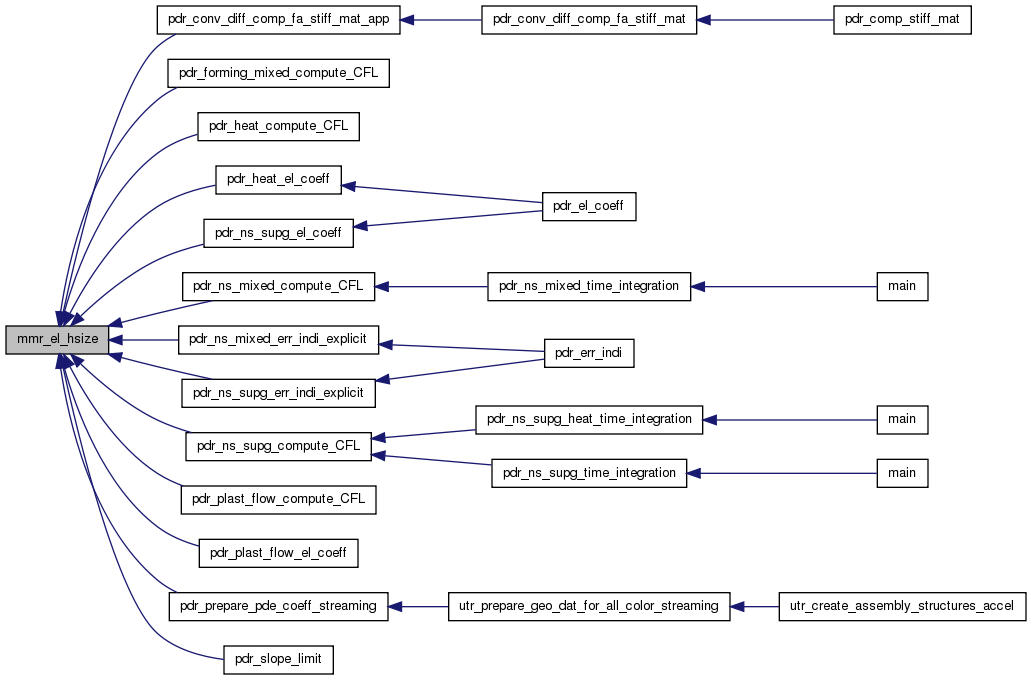

double	mmr_el_hsize (int Mesh_id, int El, double Size_x, double Size_y, double *Size_z)

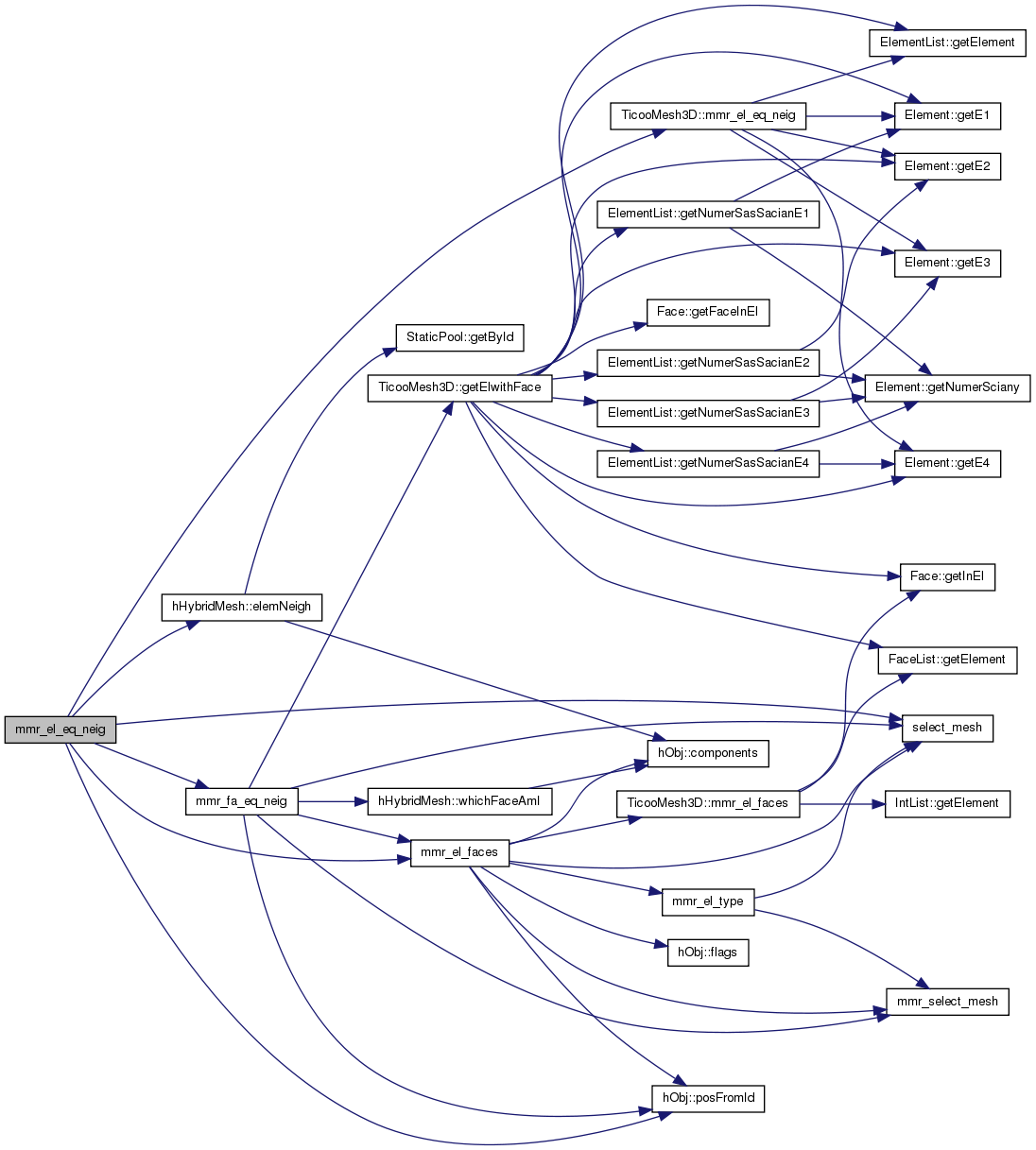

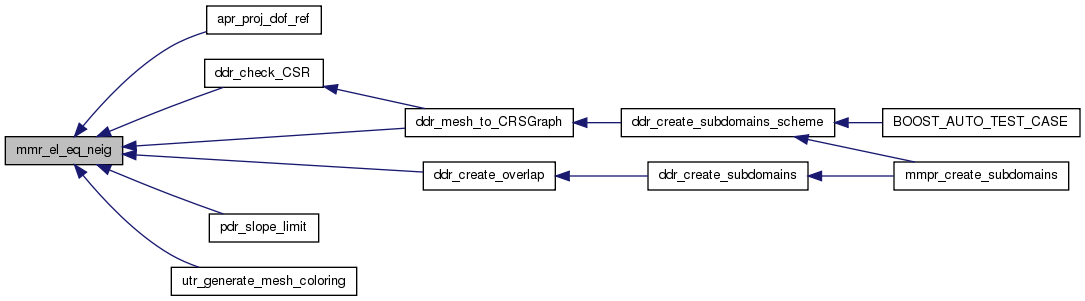

int	mmr_el_eq_neig (int Mesh_id, int El, int Neig, int Neig_sides)

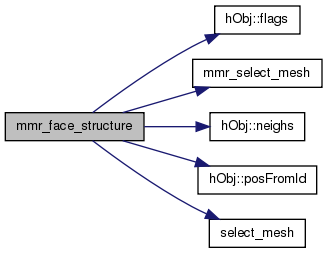

int	mmr_face_structure (int Mesh_id, int Fa, int *Face_struct)
int	mmr_fa_status (int Mesh_id, int Fa)
int	mmr_fa_type (int Mesh_id, int Fa)

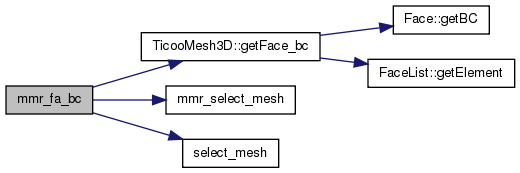

int	mmr_fa_bc (int Mesh_id, int Fa)
int	mmr_fa_set_bc (int Mesh_id, int Fa, int Bc_num)

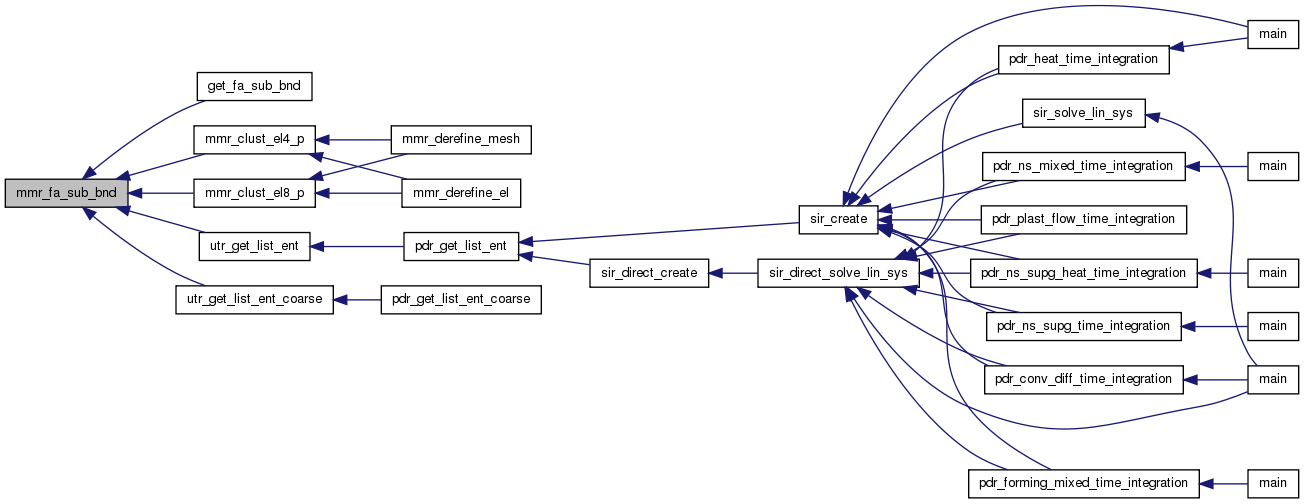

int	mmr_fa_sub_bnd (int Mesh_id, int Face_id)

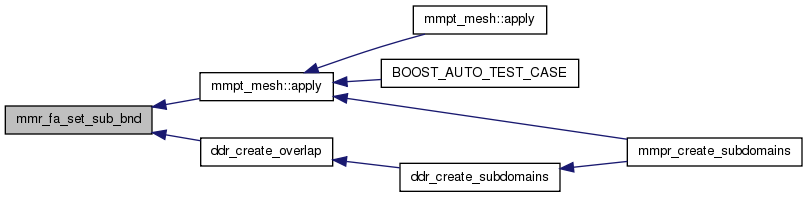

int	mmr_fa_set_sub_bnd (int Mesh_id, int Face_id, int Side_id)
int	mmr_fa_edges (int Mesh_id, int Fa, int Fa_edges, int Ed_orient)

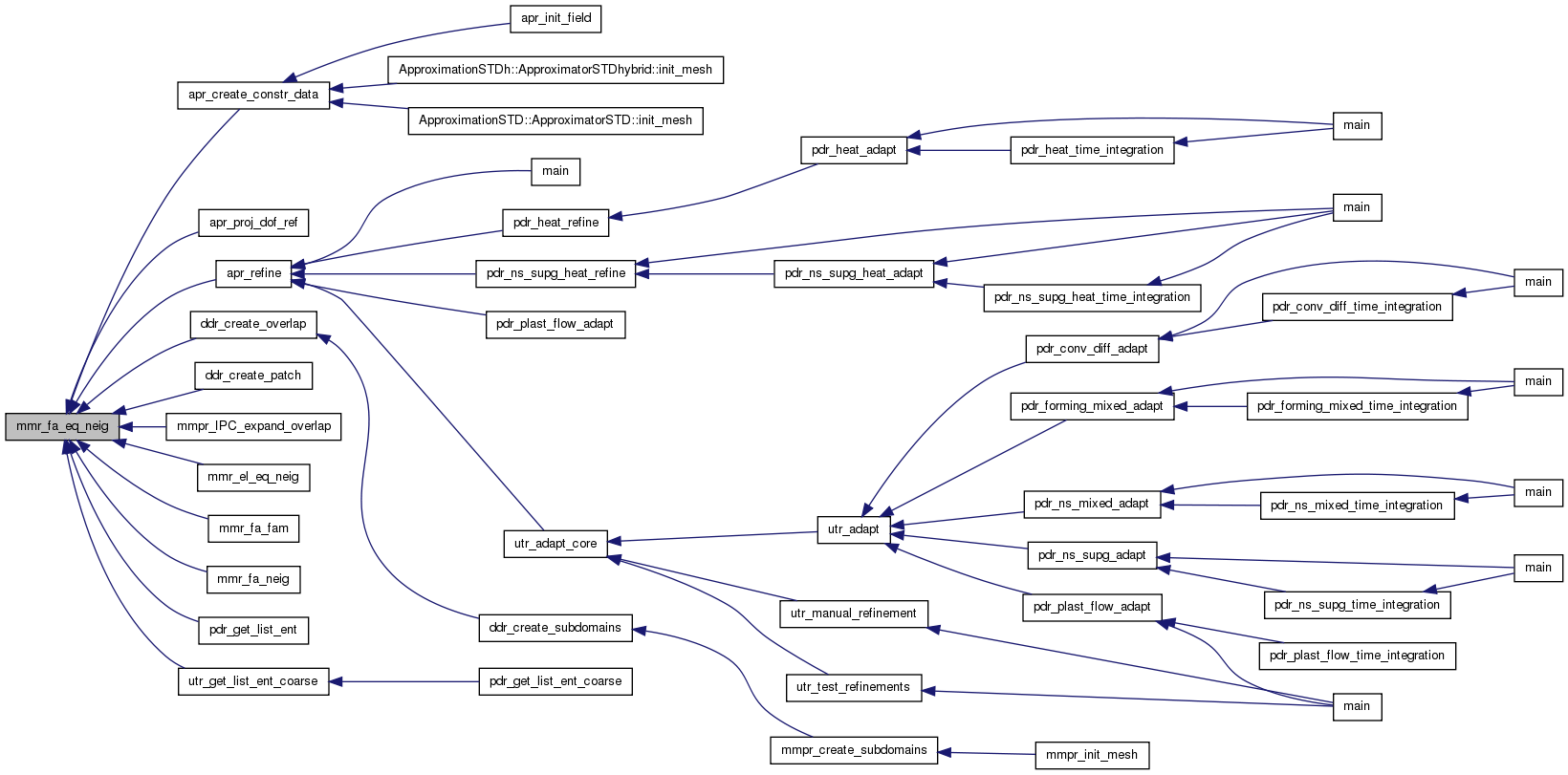

void	mmr_fa_eq_neig (int Mesh_id, int Fa, int Fa_neig, int Neig_sides, int *Node_shift)

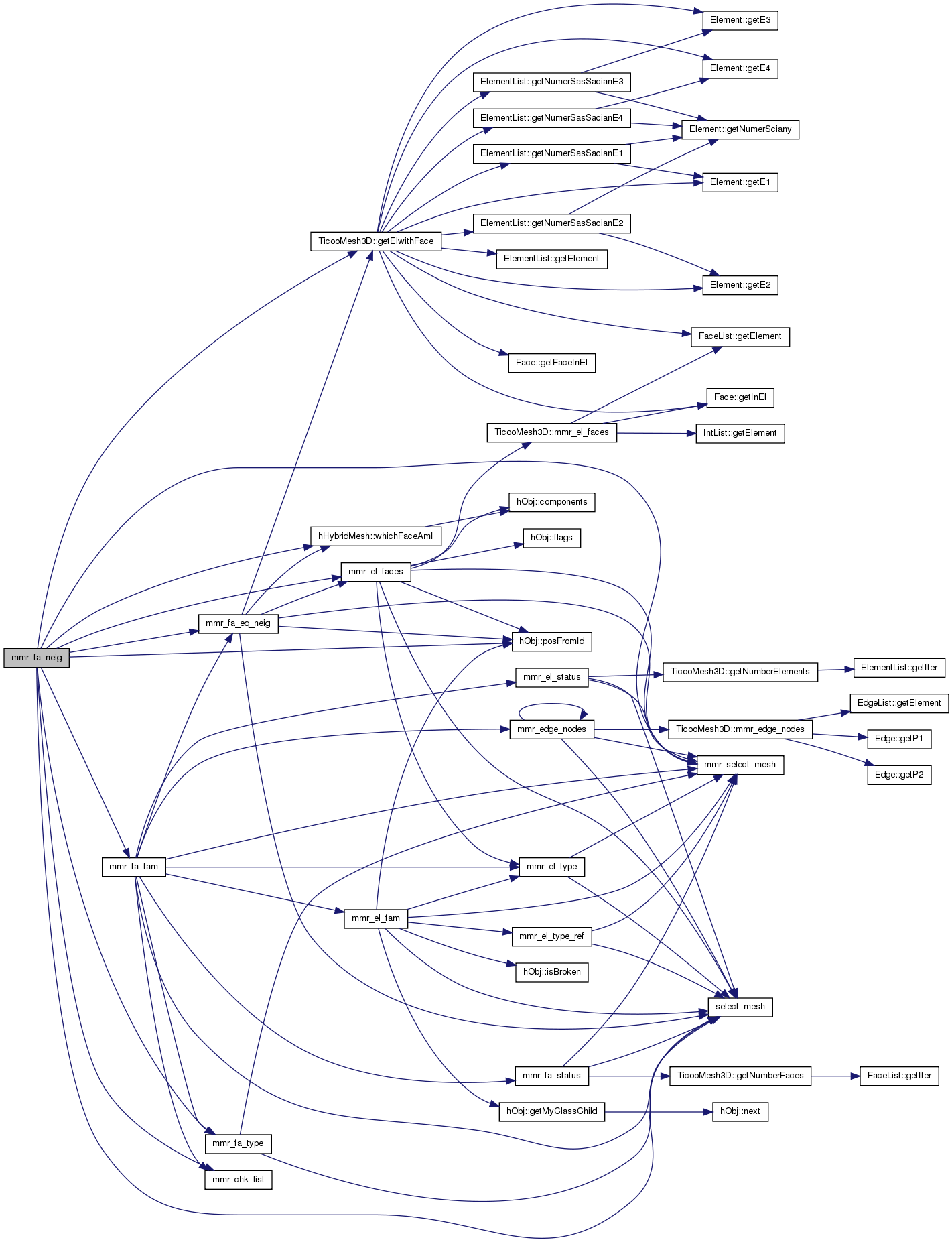

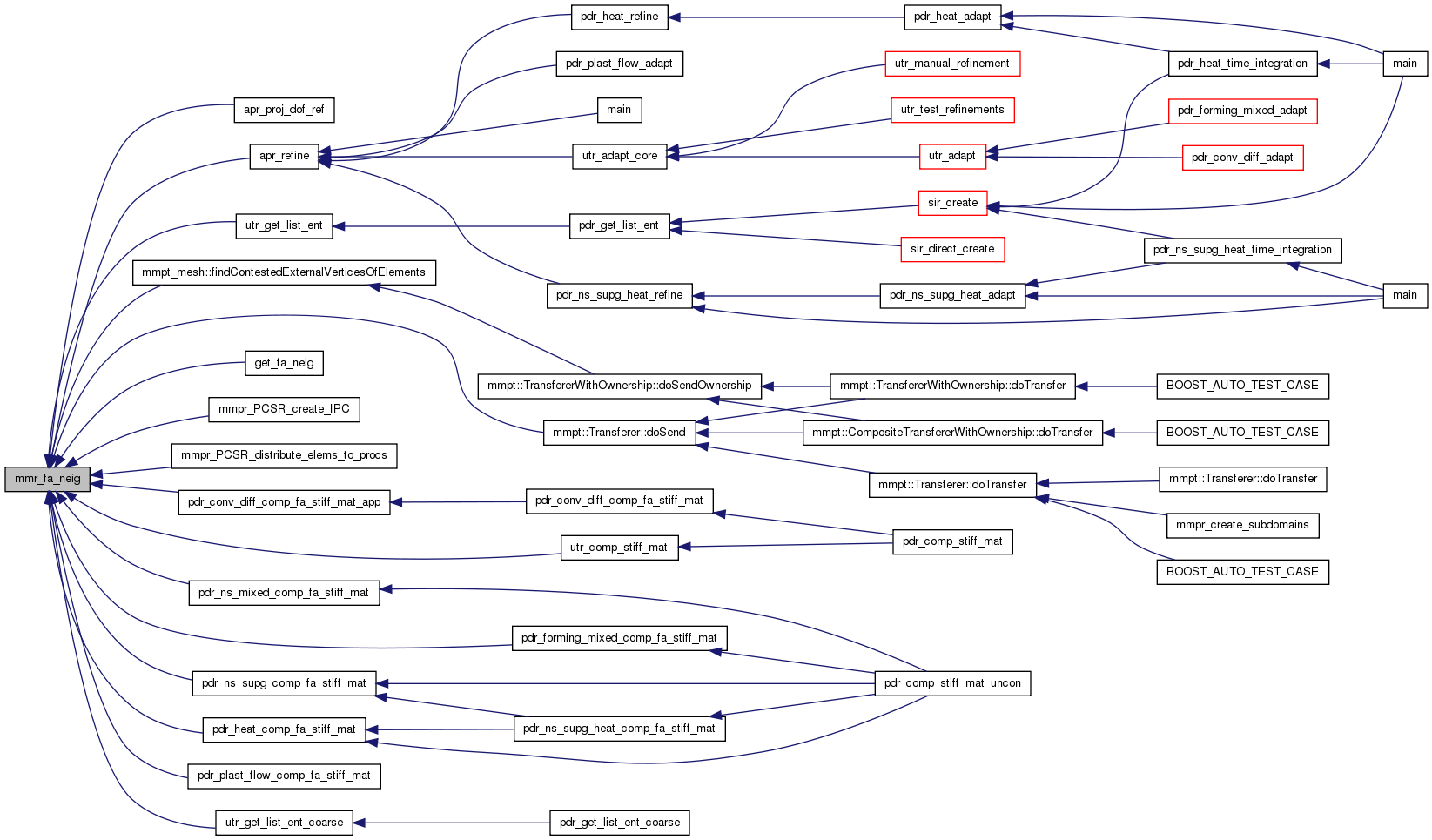

void	mmr_fa_neig (int Mesh_id, int Fa, int Fa_neig, int Neig_sides, int Node_shift, int Diff_gen, double Acoeff, double Bcoeff)
int	mmr_fa_fam (int Mesh_id, int Fa, int Fasons, int Node_mid)
int	mmr_fa_node_coor (int Mesh_id, int Fa, int Nodes, double Node_coor)
int	mmr_el_fa_nodes (int Mesh_id, int El, int Fa, int *Fa_nodes)

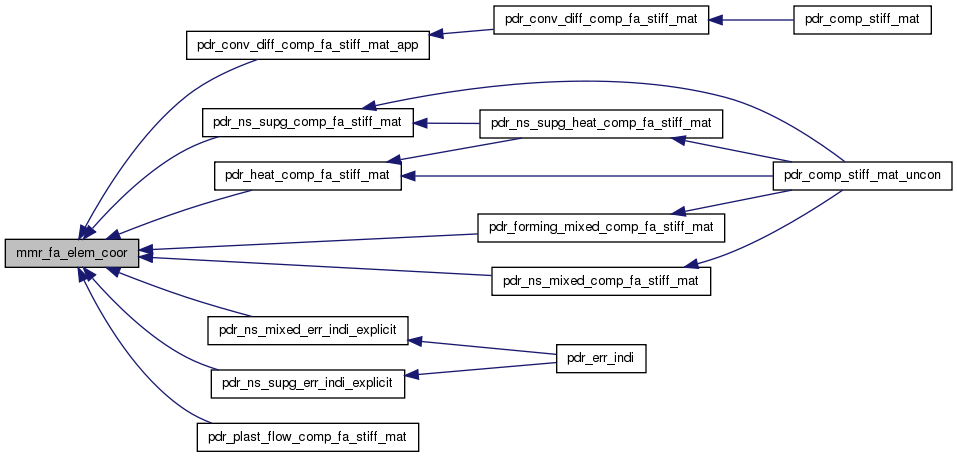

void	mmr_fa_elem_coor (int Mesh_id, double Xloc, int Fa_neig, int Neig_sides, int Node_shift, double Acoeff, double Bcoeff, double Xneig)

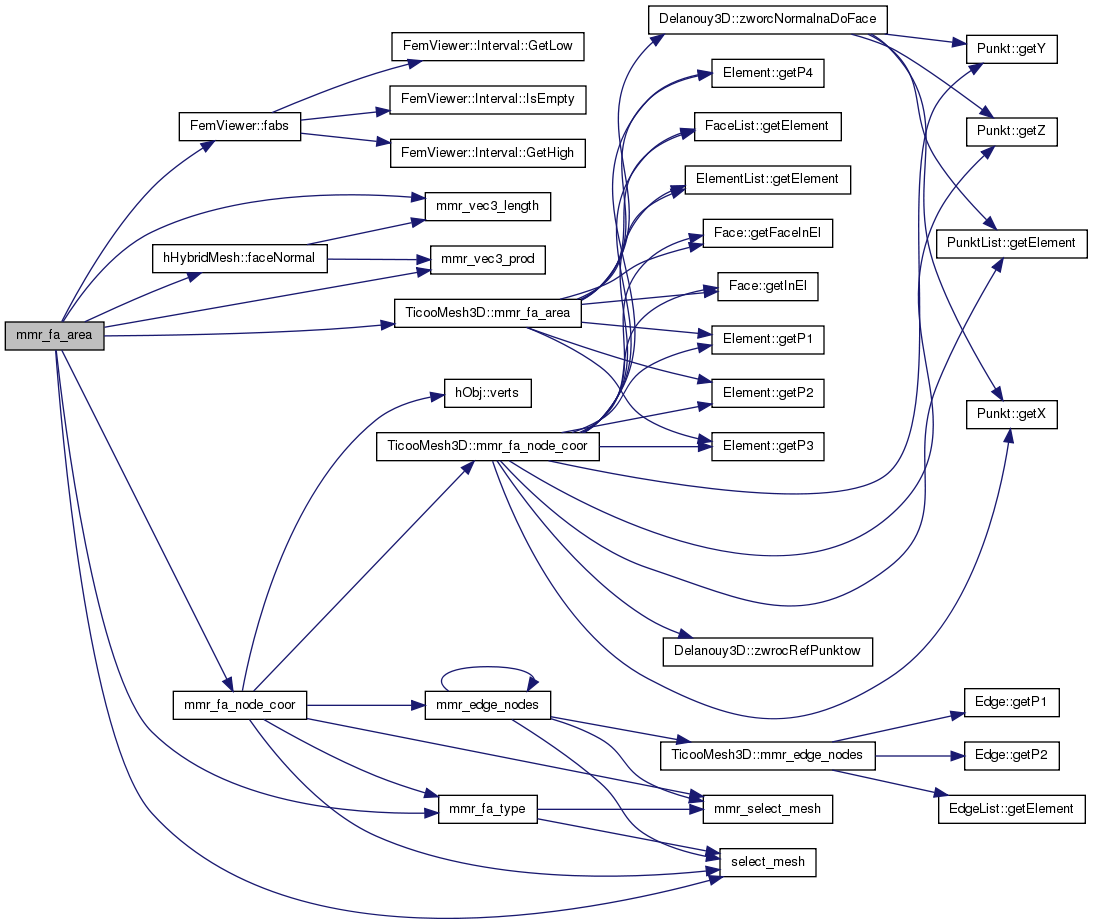

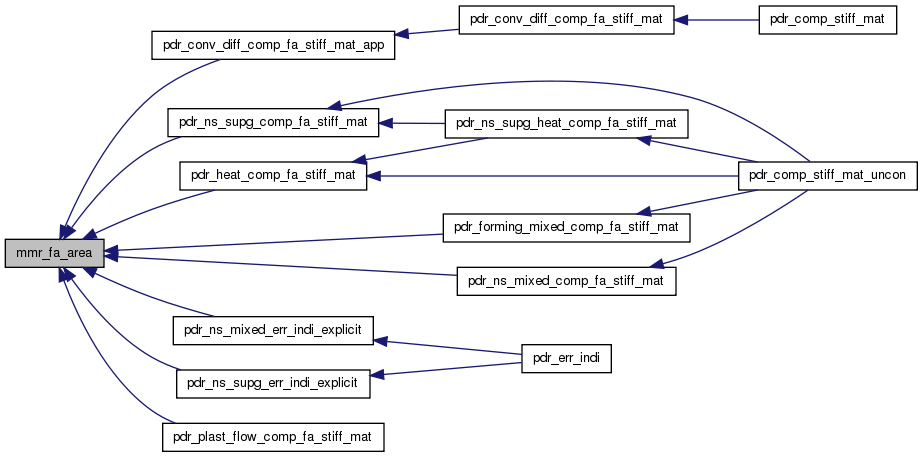

void	mmr_fa_area (int Mesh_id, int Fa, double Area, double Vec_norm)
int	mmr_edge_status (int Mesh_id, int Ed)

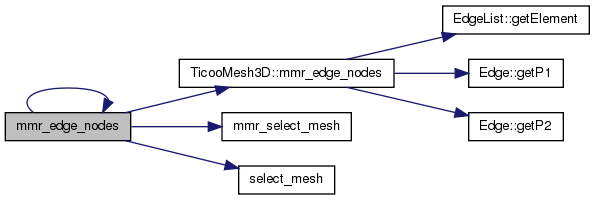

int	mmr_edge_nodes (int Mesh_id, int Ed, int *Edge_nodes)

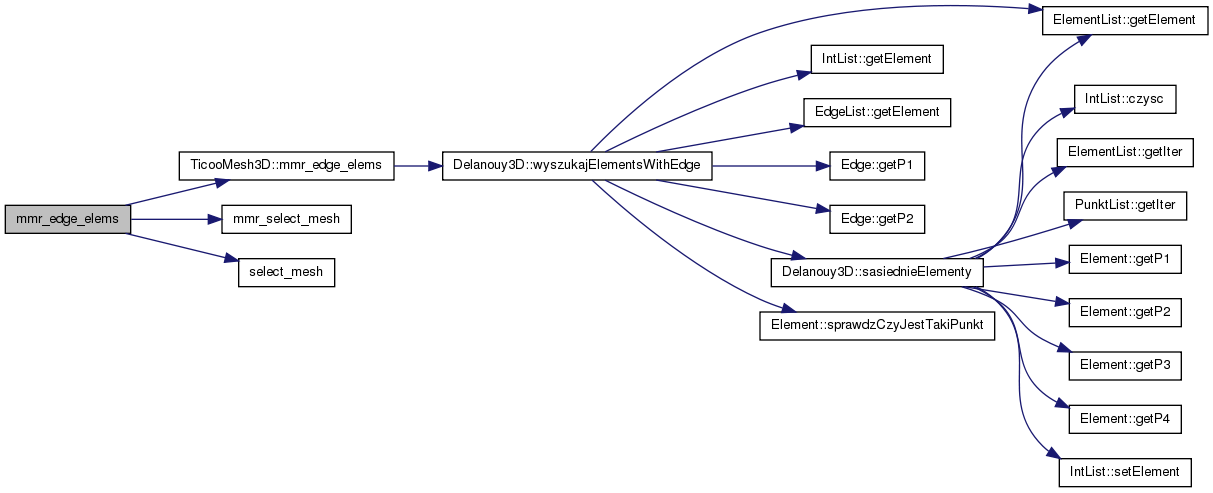

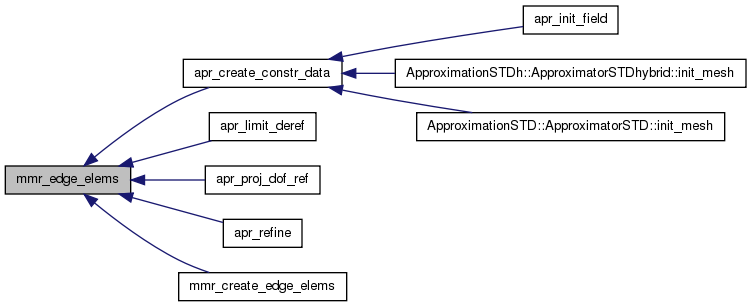

int	mmr_edge_elems (int Mesh_id, int Ed, int *Edge_elems)
int	mmr_create_edge_elems (int Mesh_id, int Max_edge_id)

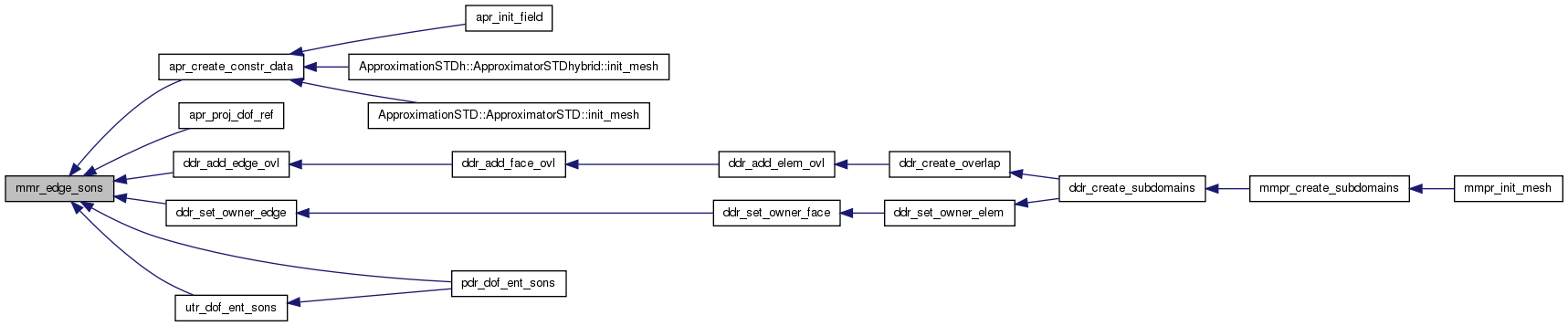

int	mmr_edge_sons (int Mesh_id, int Ed, int Edge_sons, int Edge_mid_node)

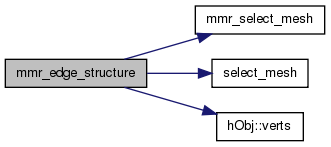

int	mmr_edge_structure (int Mesh_id, int Ed, int *Edge_struct)
int	mmr_set_edge_type (int Mesh_id, int Edge_id, int Type)
int	mmr_set_edge_fam (int Mesh_id, int Edge_id, int Son1, int Son2)
int	mmr_set_face_fam (int Mesh_id, int Face_id, int *Sons)
int	mmr_set_face_neig (int Mesh_id, int Face_id, int Neig1, int Neig2, int Neig1Type, int Neig2Type)
int	mmr_set_elem_fath (int Mesh_id, int Elem_id, int Fath)
int	mmr_set_elem_fam (int Mesh_id, int Elem_id, int Fath, int *Sons)

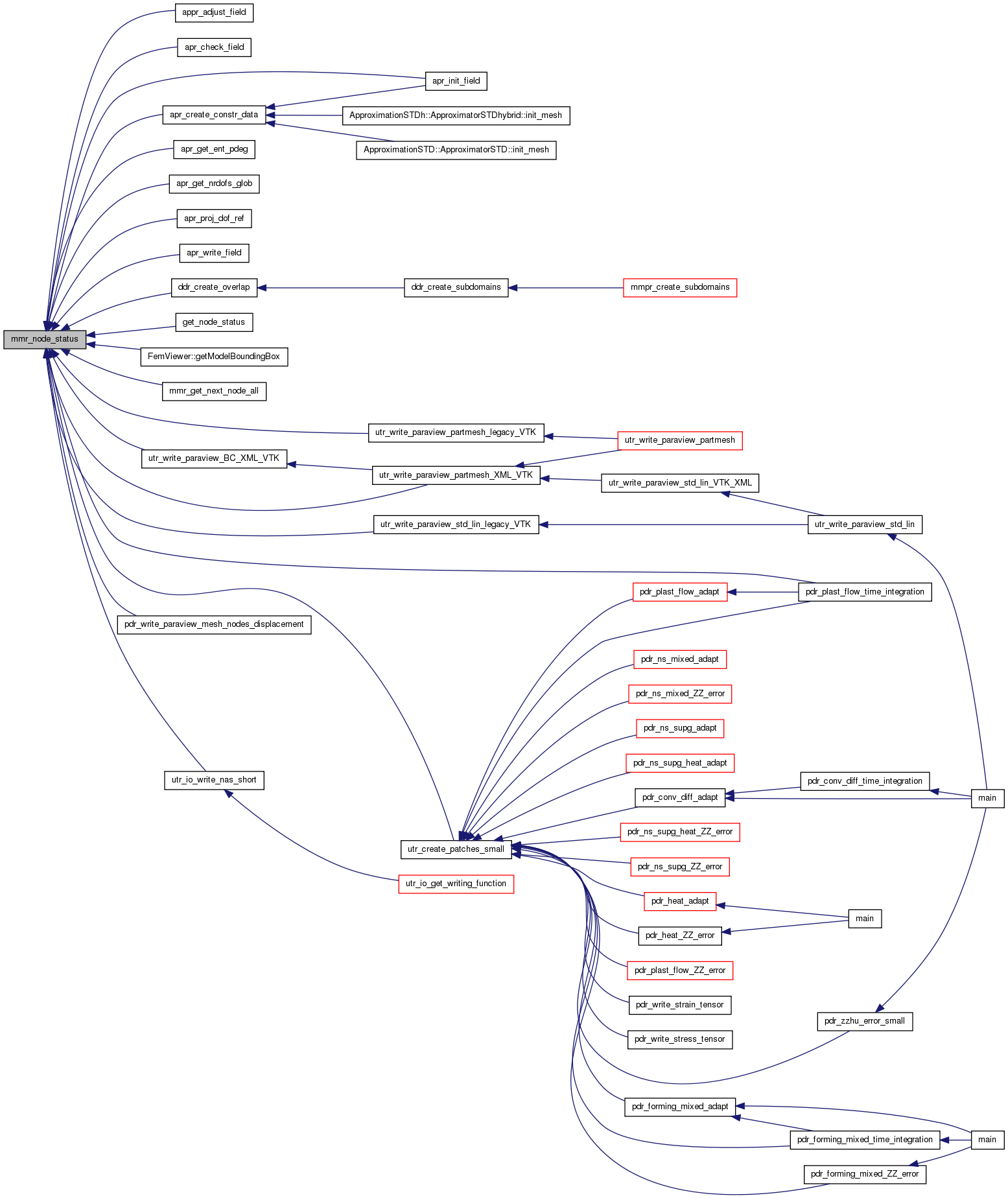

int	mmr_node_status (int Mesh_id, int Node)

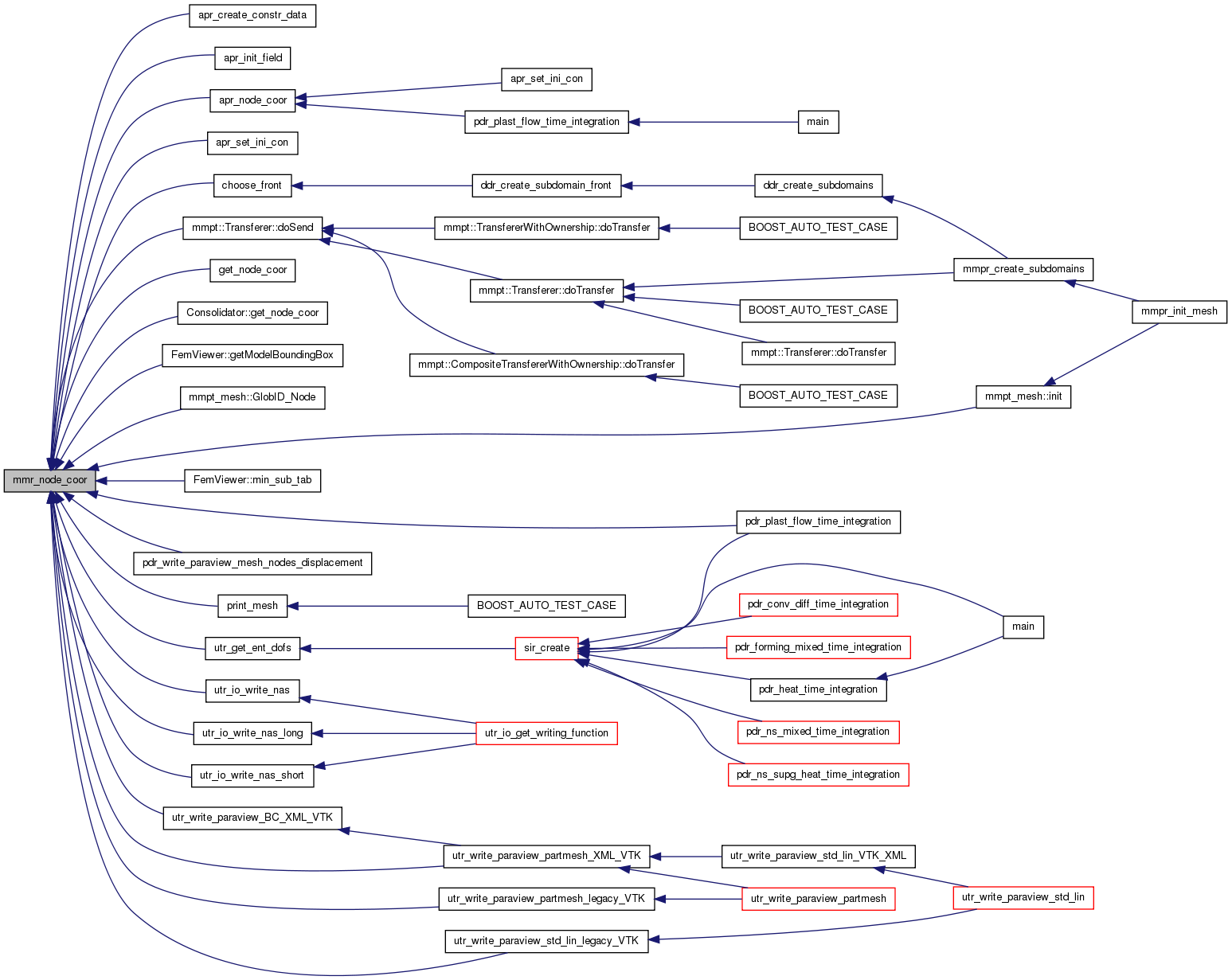

int	mmr_node_coor (int Mesh_id, int Node, double *Coor)
int	mmr_set_node_coor (int Mesh_id, int Node, double *Xcoor)
int	mmr_move_node (int Mesh_id, int Node, double *Dx)

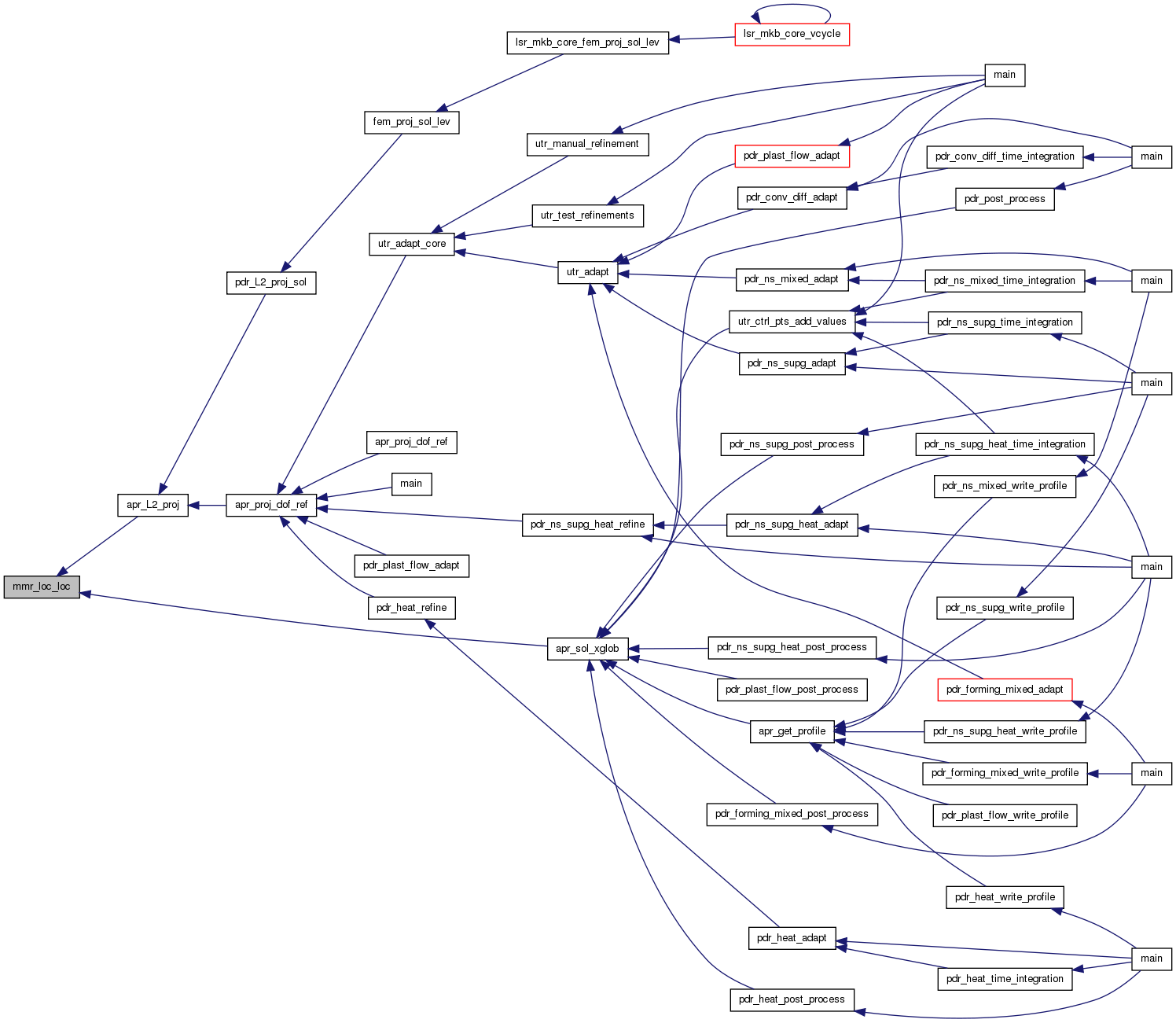

int	mmr_loc_loc (int Mesh_id, int El_from, double X_from, int El_to, double X_to)
int	mmr_create_element (int Mesh_id, int Type, int Mate, int Fath, int Refi, int Faces, int Sons)

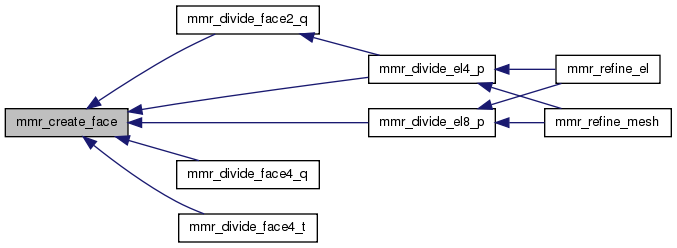

int	mmr_create_face (int Mesh_id, int Type, int Flag_bc, int Edges, int Neig, int *Sons)
int	mmr_create_edge (int Mesh_id, int Type, int Node1, int Node2)
int	mmr_create_node (int Mesh_id, double Xcoor, double Ycoor, double Zcoor)
int	mmr_clust_face (int Mesh_id, int Face, int *Face_sons)
int	mmr_clust_edge (int Mesh_id, int Edge_id)
int	mmr_divide_face (int Mesh_id, int Fa, int Face_sons, int Sons_edges, int *New_nodes)
int	mmr_divide_edge (int Mesh_id, int Edge, int Edge_sons, int Node_mid)

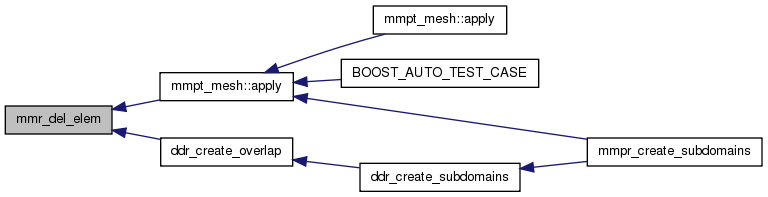

int	mmr_del_elem (int Mesh_id, int Elem)
int	mmr_del_face (int Mesh_id, int Face)

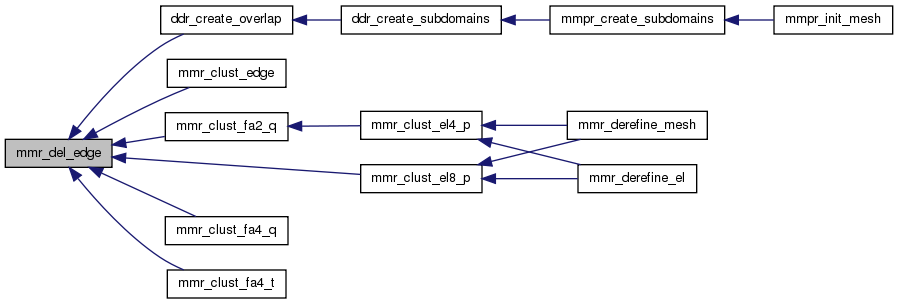

int	mmr_del_edge (int Mesh_id, int Edge)

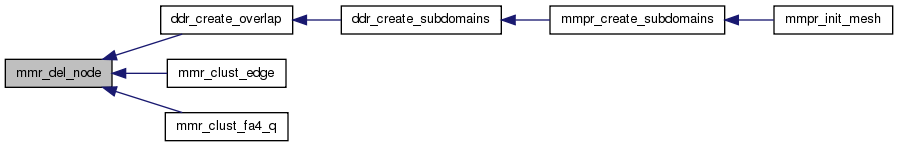

int	mmr_del_node (int Mesh_id, int Node)

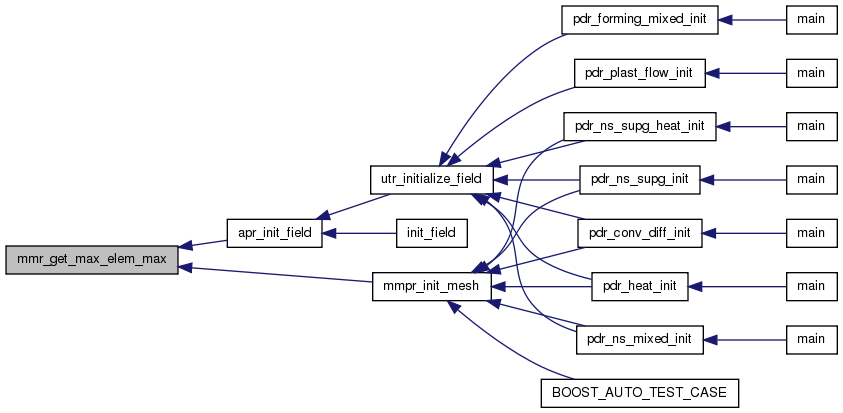

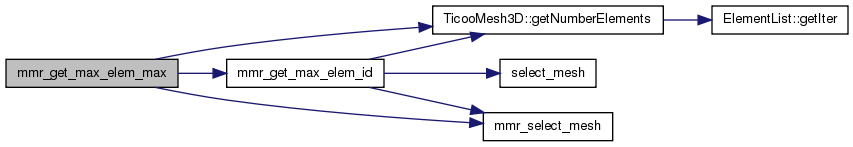

int	mmr_get_max_elem_max (int Mesh_id)

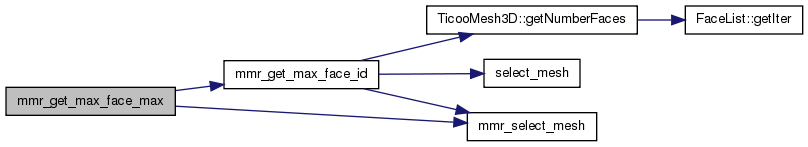

int	mmr_get_max_face_max (int Mesh_id)

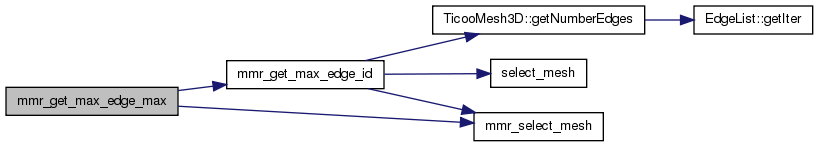

int	mmr_get_max_edge_max (int Mesh_id)
int	mmr_get_max_node_max (int Mesh_id)
int	mmr_init_read (const int Mesh_id, const int N_nodes, const int N_edges, const int N_faces, const int N_elems)

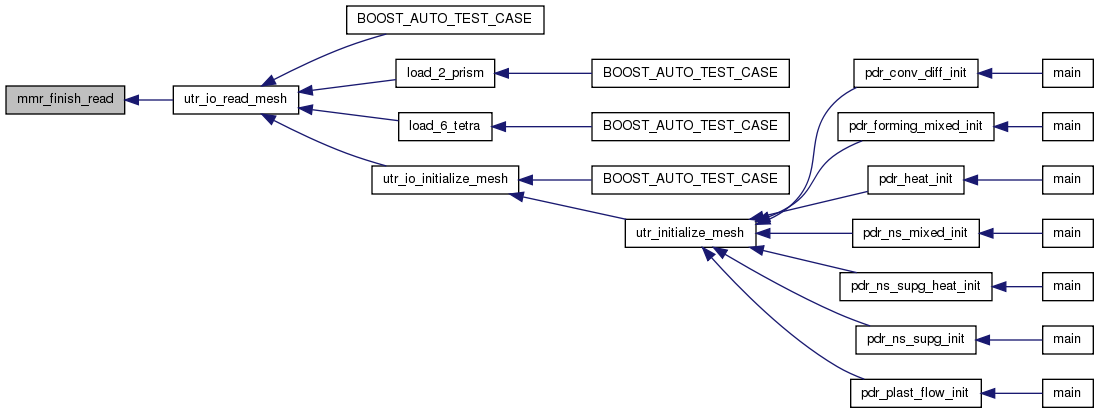

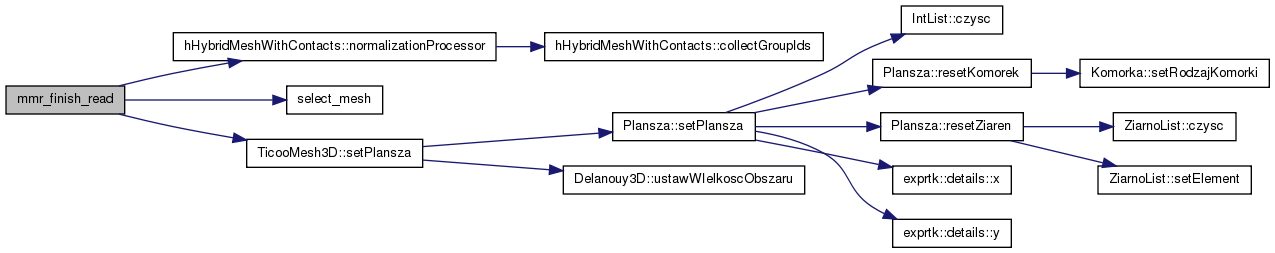

int	mmr_finish_read (const int Mesh_id)
int	mmr_add_elem (const int Mesh_id, const int Id, const int El_type, const int El_nodes[6], const int El_faces[5], const int Material_idx)
int	mmr_add_face (const int Mesh_id, const int Id, const int Fa_type, const int Fa_nodes[4], const int Fa_edges[4], const int Fa_neigs[2], const int B_cond_val)
int	mmr_add_edge (const int Mesh_id, const int Id, const int nodes[2])
int	mmr_add_node (const int Mesh_id, const int Id, const double Coords[3])

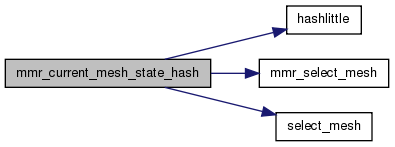

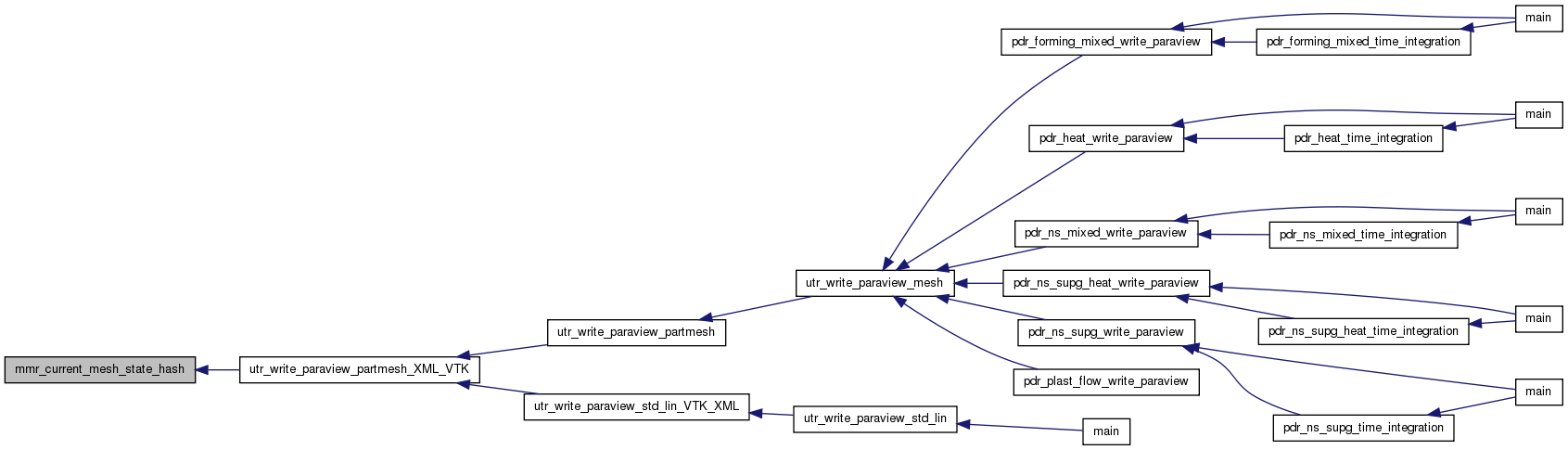

int	mmr_current_mesh_state_hash (const int Mesh_id)
	mmr_current_mesh_state_hash - returns an current unique value (state hash, state stamp) that can be used to compare with value returned from this function at other time. If values are different, then one can assume that mesh internal state has changed.
int	mmr_init_dist2bound (const int Mesh_id, const int *BCs, const int nBCs)
double	mmr_get_el_dist2boundary (const int Mesh_id, const int El_id, const double *Coord)
void	mmr_get_coor_from_motion_element (const int Mesh_id, int idEl, int idLP, double *coor, int flagaSiatki)
void	mmr_copyMESH (const int Mesh_id, int flaga)
void	mmr_create_mesh_Cube (const int Mesh_id, const char nazwa, int node_x, int node_y, int node_z, double size_x, double size_y, double size_z, double divide, int warunki)
void	mmr_init_all_change (const int Mesh_id, int a)
void	mmr_test_mesh_motion (const int Mesh_id, int ileWarstw, int obecny_krok, int od_krok, int ileKrok, double minPoprawy, double px0, double py0, double pz0, double px1, double py1, double pz1, double endX, double endY, double endZ)

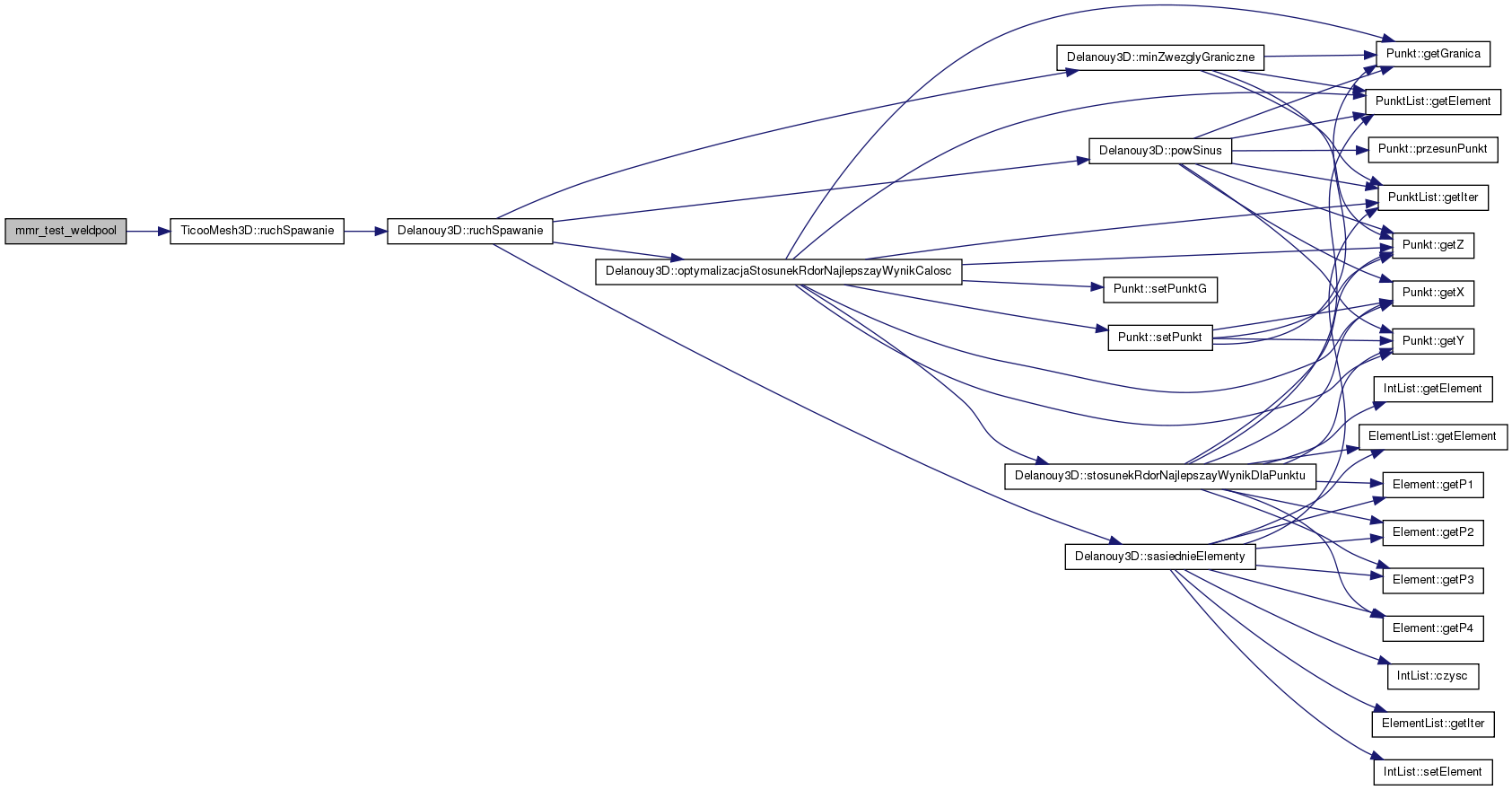

double	mmr_test_weldpool (const int Mesh_id, double obecnyKrok, double krok_start, double minPoprawy, double doX, double doY, double dl, double zmiejszaPrzes, double limit, double szerokosc)
int	mmr_groups_number (const int Mesh_id)
	*------------------------------------------------------------
int	mmr_groups_ids (const int Mesh_id, int *tab, int l_tab)

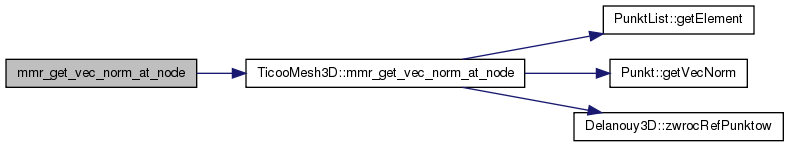

void	mmr_get_vec_norm_at_node (const int Mesh_id, int node_id, double *vec_norm)
	mmr_get_fa_el_bc_connect
int	mmr_get_fa_el_bc_connect (const int Mesh_id, int face_id, int *el_id)
Variables
const int	MMC_MAX_EDGE_ELEMS
const int	MMC_CUR_MESH_ID
const int	MMC_INIT_GEN_LEVEL
const int	MMC_AUTO_GENERATE_ID
const int	MMC_BOUNDARY
const int	MMC_BIG_NGB
const int	MMC_SUB_BND
const int	MMC_DO_UNI_REF
const int	MMC_DO_UNI_DEREF
const int	MMC_ACTIVE
const int	MMC_INACTIVE
const int	MMC_FREE
const int	MMC_PRINT_NOT
const int	MMC_PRINT_ERRORS
const int	MMC_PRINT_INFO
const int	MMC_PRINT_ALLINFO
const int	MMC_NOT_REF
const int	MMC_REF_ISO
const int	MMC_REF_ANI
const int	MMC_NO_FATH
const int	MMC_FACE_NODES_FOR_TETRA [4][3]
const int	MMC_FACE_NODES_FOR_PRISM [5][4]
const int	MMC_IS_SUPPORTING_NEW_MPI

Define Documentation

#define MMC_MAXELEDGES 9

#define MMC_MAXELFAC 5

Constants

#define MMC_MAXELSONS 8

#define MMC_MAXELVNO 6

#define MMC_MAXFAVNO 4

Enumeration Type Documentation

enum mmt_file_type

Data file types for mesh I/O data

Enumerator:

MMC_MOD_FEM_MESH_DATA
MMC_MOD_FEM_PRISM_DATA	generic mesh for mesh module
MMC_MOD_FEM_TETRA_DATA	prism mesh read from dump files
MMC_MOD_FEM_HYBRID_DATA	tetra mesh read from dump files
MMC_GRADMESH_DATA	hybrid mesh read from dump files
MMC_HP_FEM_MESH_DATA	mesh produced by 2D GRADMESH generator
MMC_NASTRAN_DATA	mesh read from dump files
MMC_NASTRAN_FREE_DATA
MMC_NASTRAN_SHORT_DATA
MMC_NASTRAN_LONG_DATA
MMC_BINARY_DATA
MMC_BOUND_VERTS_DATA	for binary dump
MMC_IN_ANSYS_DATA	'm' like prof. Milenin :)
MMC_PARAVIEW_VTK_DATA	.in files
MMC_MSH_DATA	Paraview .vtk files.
MMC_MAX_FILE_TYPE	ANSYS meshing, TGrid .msh files.

enum mmt_mesh_entity

inter-subdomain boundary indicator Identifiers of mesh entities

Enumerator:

MMC_NODE
MMC_EDGE
MMC_FACE
MMC_ELEMENT
MMC_ALL_N_TYPES

enum mmt_mesh_entity_types

Types of mesh entities

Enumerator:

MMC_QUAD
MMC_TRIA	quadrilateral element or face
MMC_TETRA	triangular element or face
MMC_PRISM	tetrahedral element
MMC_BRICK	prismatic element
MMC_ENTITY_UNKNOWN	hexahedral element

Function Documentation

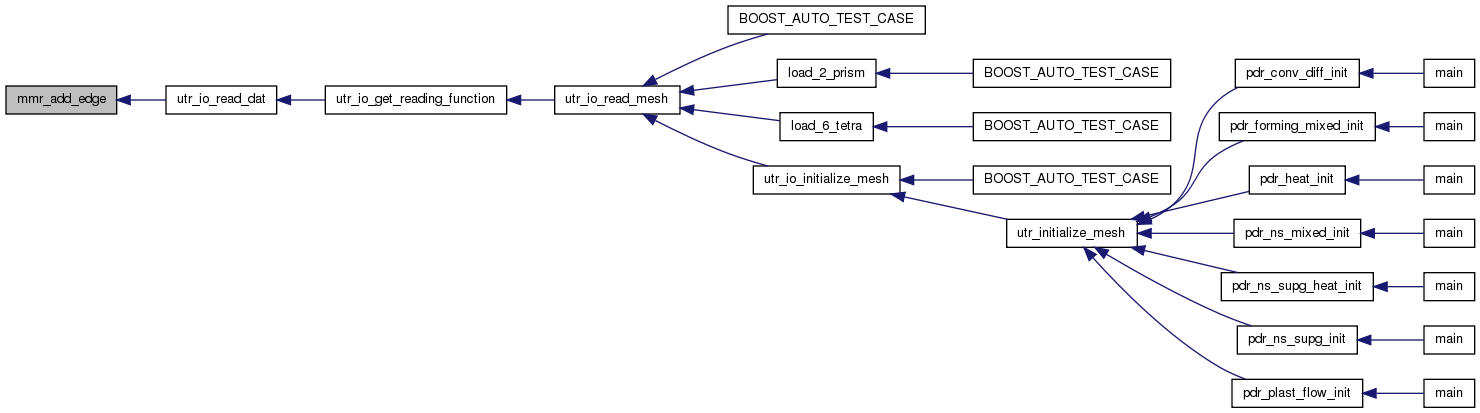

int mmr_add_edge	(	const int	Mesh_id,
		const int	Id,
		const int	nodes[2]
	)

Here is the call graph for this function:

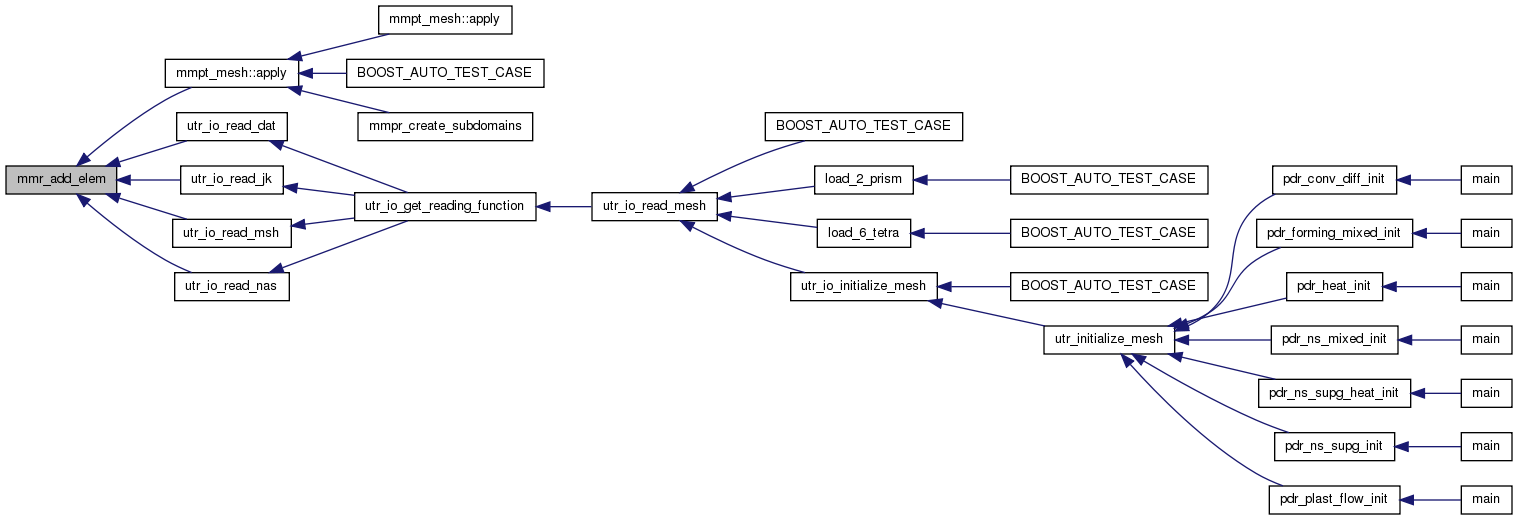

Here is the caller graph for this function:

int mmr_add_elem	(	const int	Mesh_id,
		const int	Id,
		const int	El_type,
		const int	El_nodes[6],
		const int	El_faces[5],
		const int	Material_idx
	)

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_add_face	(	const int	Mesh_id,
		const int	Id,
		const int	Fa_type,
		const int	Fa_nodes[4],
		const int	Fa_edges[4],
		const int	Fa_neigs[2],
		const int	B_cond_val
	)

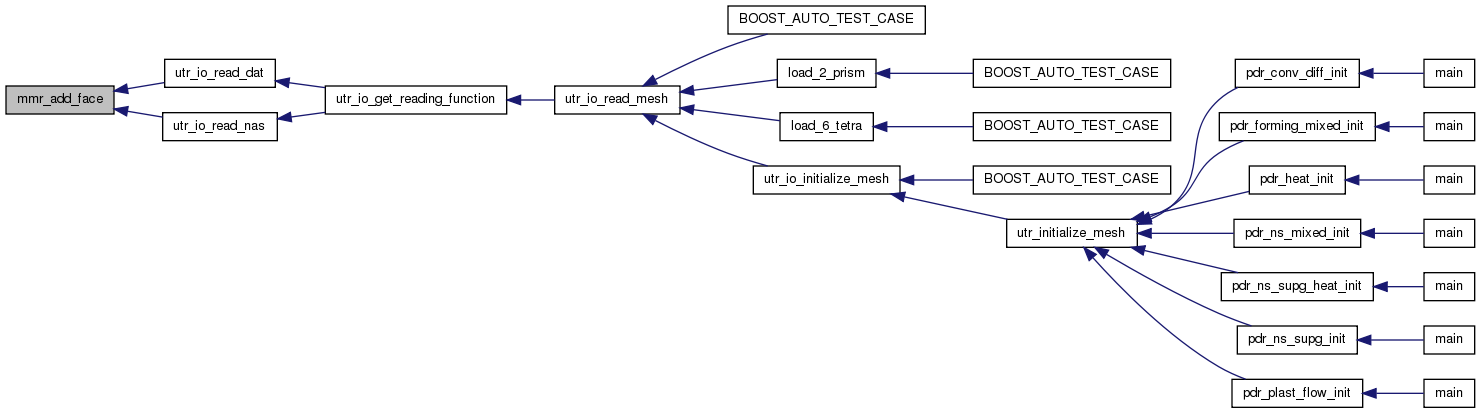

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_add_node	(	const int	Mesh_id,
		const int	Id,
		const double	Coords[3]
	)

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_clust_edge	(	int	Mesh_id,
		int	Edge_id
	)

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	Edge_id	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh in: clustered edge ID

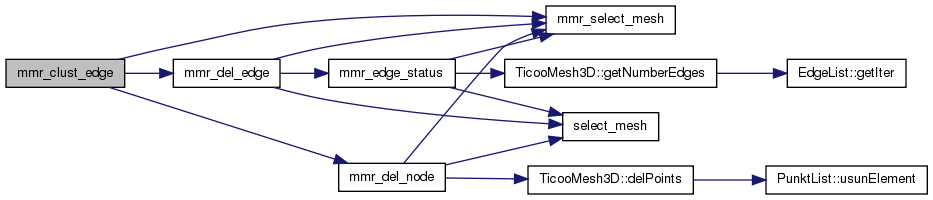

Here is the call graph for this function:

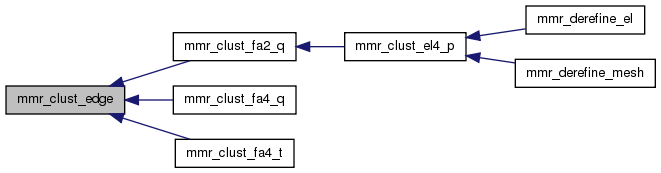

Here is the caller graph for this function:

int mmr_clust_face	(	int	Mesh_id,
		int	Face,
		int *	Face_sons
	)

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	Face	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Face_sons	in: face ID in (optional): face sons' IDs

void mmr_copyMESH	(	const int	Mesh_id,
		int	flaga
	)

----------------------------------------------------------- mmr_copyMESH ------------------------------------------------------------

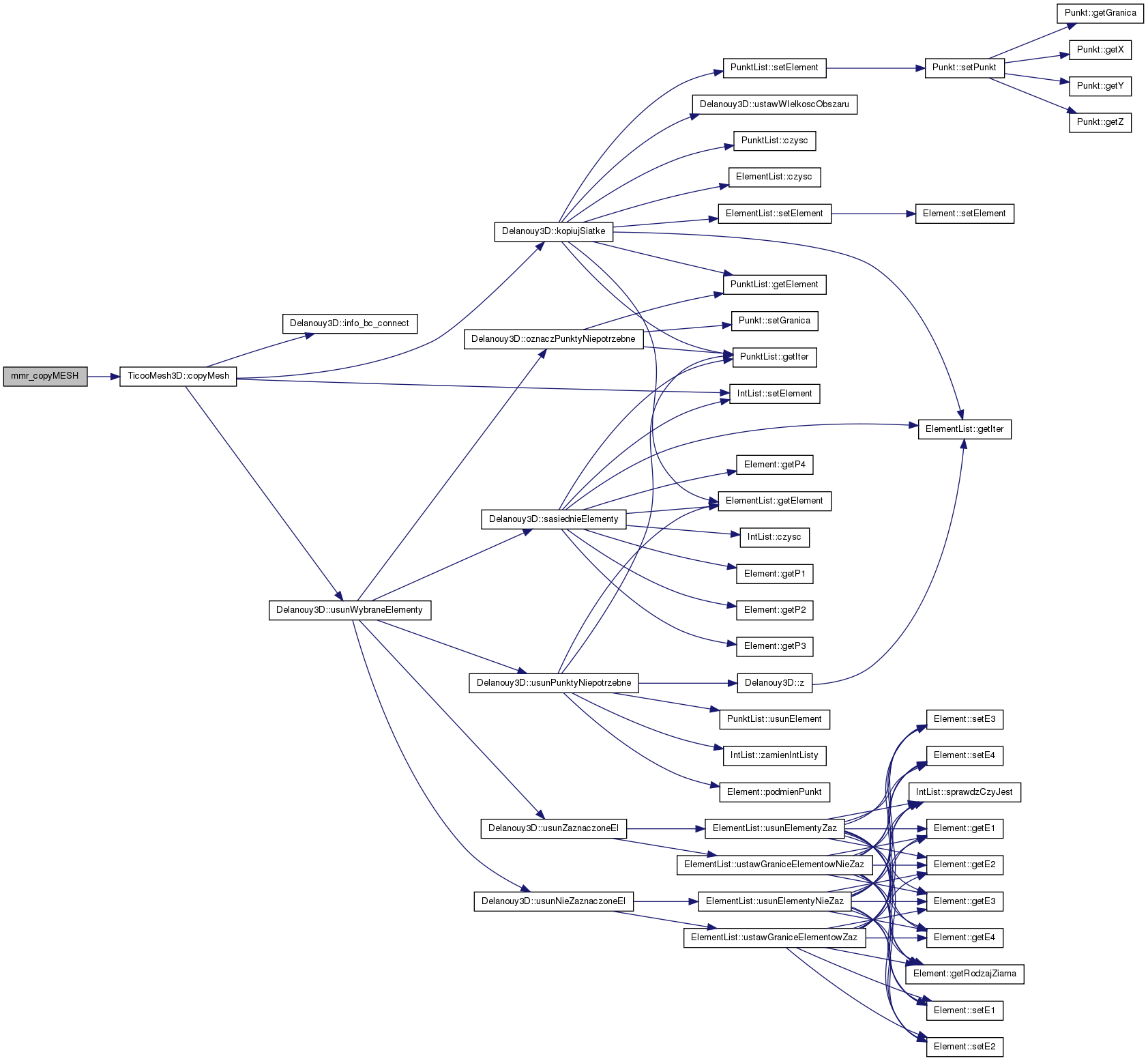

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_create_edge	(	int	Mesh_id,
		int	Type,
		int	Node1,
		int	Node2
	)

Parameters:

	Mesh_id	returns: ID of a new edge (<0 - error code)
	Type	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Node1	in: type indicator (MMC_EDGE or number of attempted divisions for inactive edges0
	Node2	in: nodes for a new edge

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_create_edge_elems	(	int	Mesh_id,
		int	Max_edge_id
	)

----------------------------------------------------------- mmr_create_edge_elems - to create (or recreate if Max_edge_id > 0) for each edge a list of elements to which it belongs ------------------------------------------------------------

Parameters:

	Mesh_id	returns: 1-success, <=0-failure
	Max_edge_id	in: ID of the mesh to be used or 0 for the current mesh in: the range of edge IDs to consider or 0 for default if Max_edge_id==0 it is assumed that there are no structures to free !!!

Here is the caller graph for this function:

int mmr_create_element	(	int	Mesh_id,
		int	Type,
		int	Mate,
		int	Fath,
		int	Refi,
		int *	Faces,
		int *	Sons
	)

Parameters:

	Mesh_id	returns: ID of the created element (<=0 - failure)
	Type	in: ID of the mesh to be used or 0 for the current mesh
	Mate	in: type for the face
	Fath	in: material indicator
	Refi	in: father element ID
	Faces	in: refinement type indicator
	Sons	in: list of faces' IDs in: list of sons (only for inactive elements, Type<0)

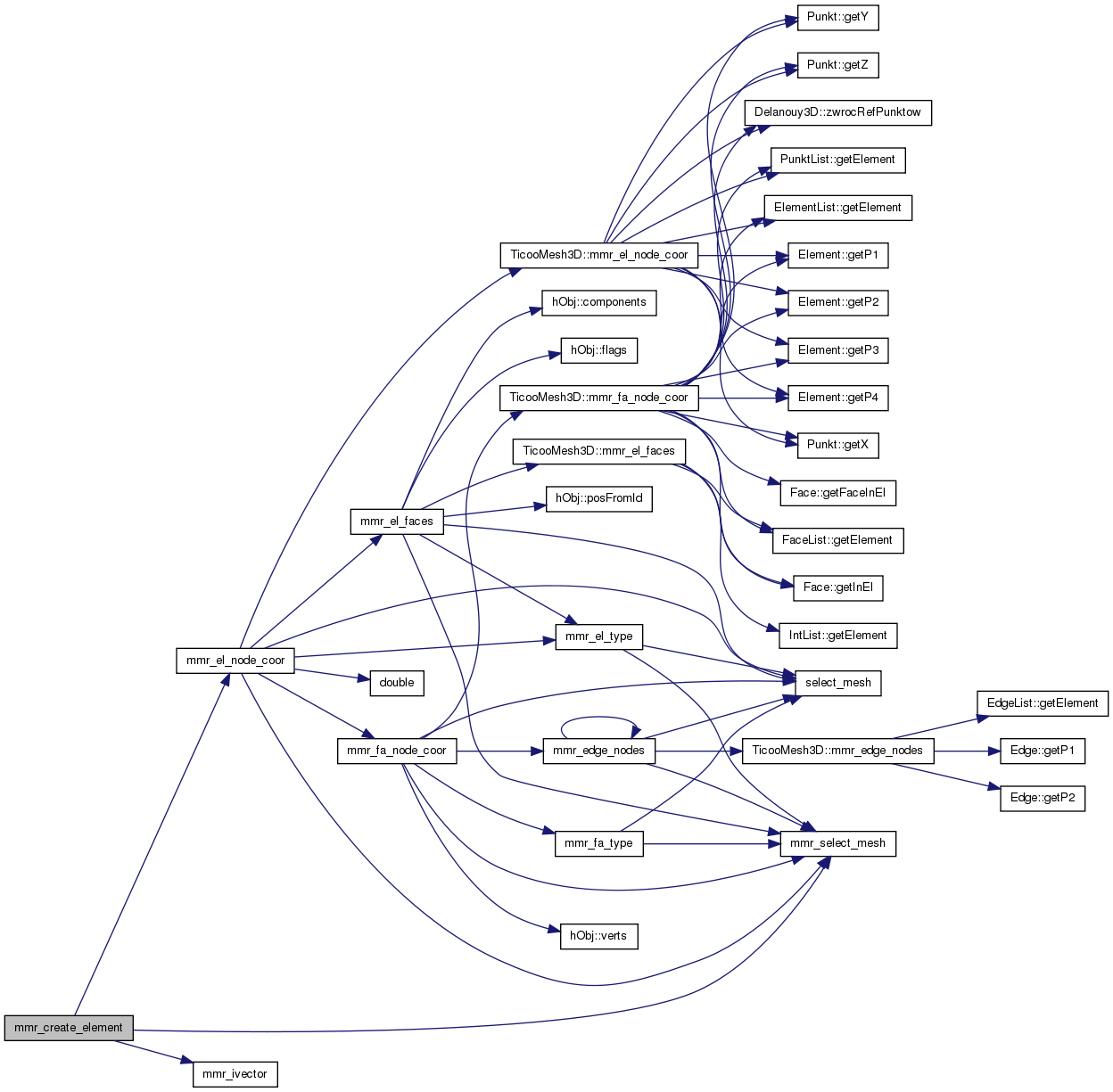

Here is the call graph for this function:

int mmr_create_face	(	int	Mesh_id,
		int	Type,
		int	Flag_bc,
		int *	Edges,
		int *	Neig,
		int *	Sons
	)

Parameters:

	Mesh_id	returns: ID of created face (<0 - error code)
	Type	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Flag_bc	in: type for the face
	Edges	in: bc flag for the face
	Neig	in: edges for the new face
	Sons	in (optional): neighbors (or NULL) in (optional): sons (if Type<0) or NULL

Here is the call graph for this function:

Here is the caller graph for this function:

void mmr_create_mesh_Cube	(	const int	Mesh_id,
		const char *	nazwa,
		int	node_x,
		int	node_y,
		int	node_z,
		double	size_x,
		double	size_y,
		double	size_z,
		double	divide,
		int *	warunki
	)

----------------------------------------------------------- mmr_create_mesh_Cube - test movement mesh ------------------------------------------------------------

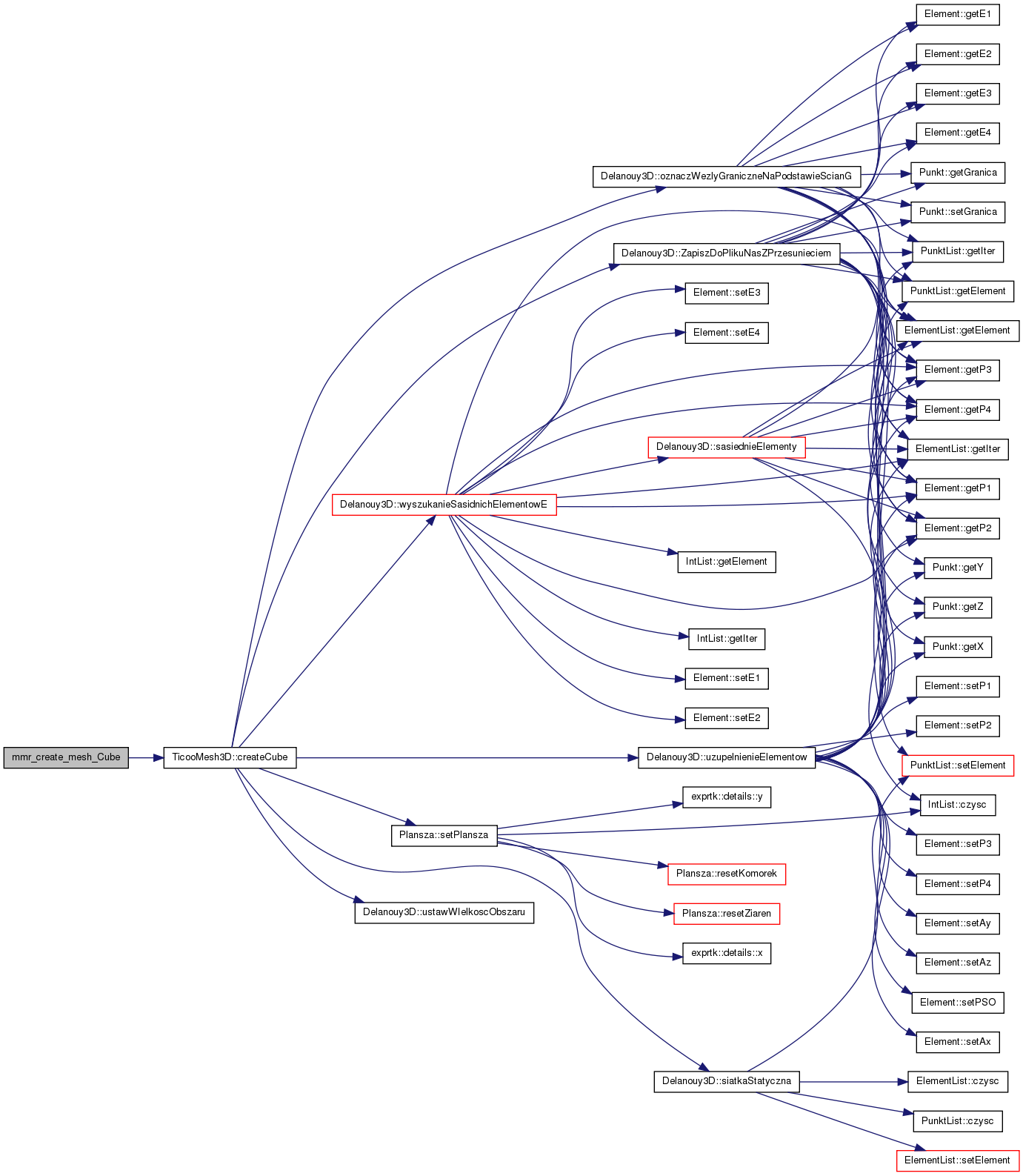

Here is the call graph for this function:

int mmr_create_node	(	int	Mesh_id,
		double	Xcoor,
		double	Ycoor,
		double	Zcoor
	)

Parameters:

	Mesh_id	returns: node ID of created node (<0 - error)
	Xcoor	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Ycoor	in: coordinates of new node

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_current_mesh_state_hash ( const int Mesh_id )

mmr_current_mesh_state_hash - returns an current unique value (state hash, state stamp) that can be used to compare with value returned from this function at other time. If values are different, then one can assume that mesh internal state has changed.

Parameters:

Mesh_id

Returns:

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_del_edge	(	int	Mesh_id,
		int	Edge
	)

----------------------------------------------------------- mmr_del_edge - to free an edge structure ------------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	Edge	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh in: edge ID

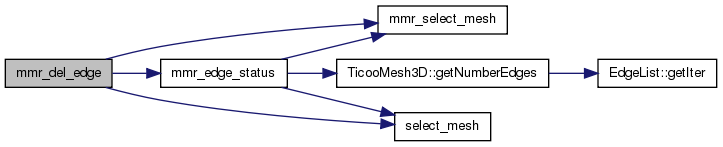

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_del_elem	(	int	Mesh_id,
		int	Elem
	)

----------------------------------------------------------- mmr_del_elem - to free an element structure ------------------------------------------------------------

Parameters:

	Mesh_id	returns: 1-success, <=0-failure
	Elem	in: ID of the mesh to be used or 0 for the current mesh in: element ID

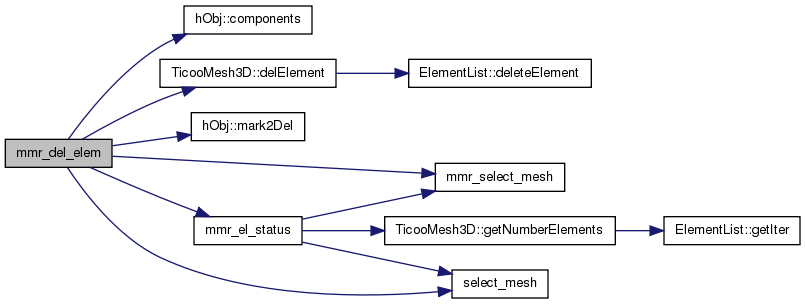

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_del_face	(	int	Mesh_id,
		int	Face
	)

----------------------------------------------------------- mmr_del_face - to free a face structure ------------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	Face	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh in: face ID

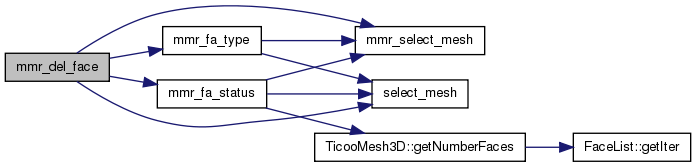

Here is the call graph for this function:

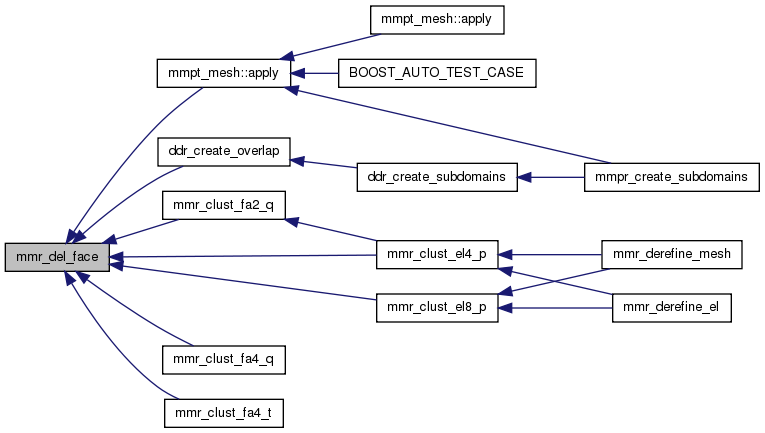

Here is the caller graph for this function:

int mmr_del_node	(	int	Mesh_id,
		int	Node
	)

----------------------------------------------------------- mmr_del_node - to free a node structure ------------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	Node	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh in: node ID

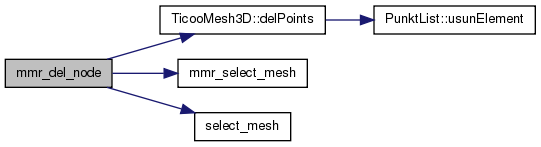

Here is the call graph for this function:

Here is the caller graph for this function:

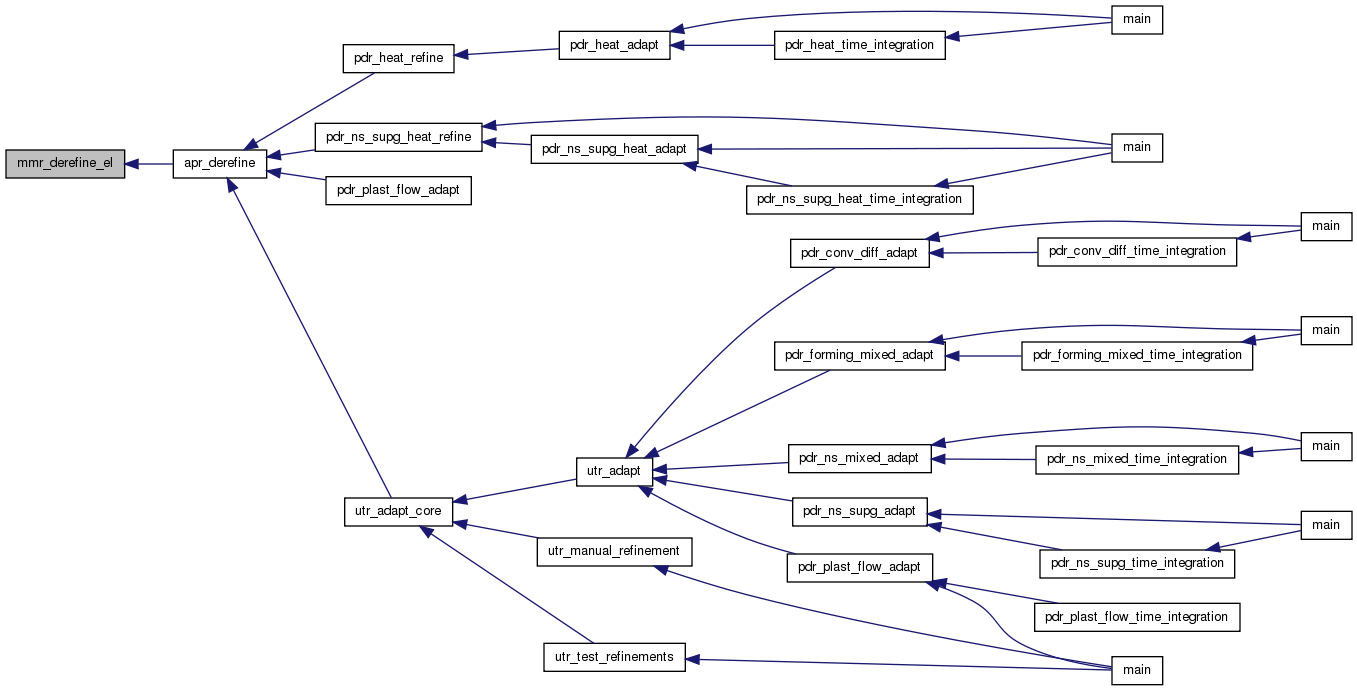

int mmr_derefine_el	(	int	Mesh_id,
		int	El
	)

----------------------------------------------------------- mmr_derefine_el - to derefine an element WITHOUT IRREGULARITY CHECK ------------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	El	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh in: element ID

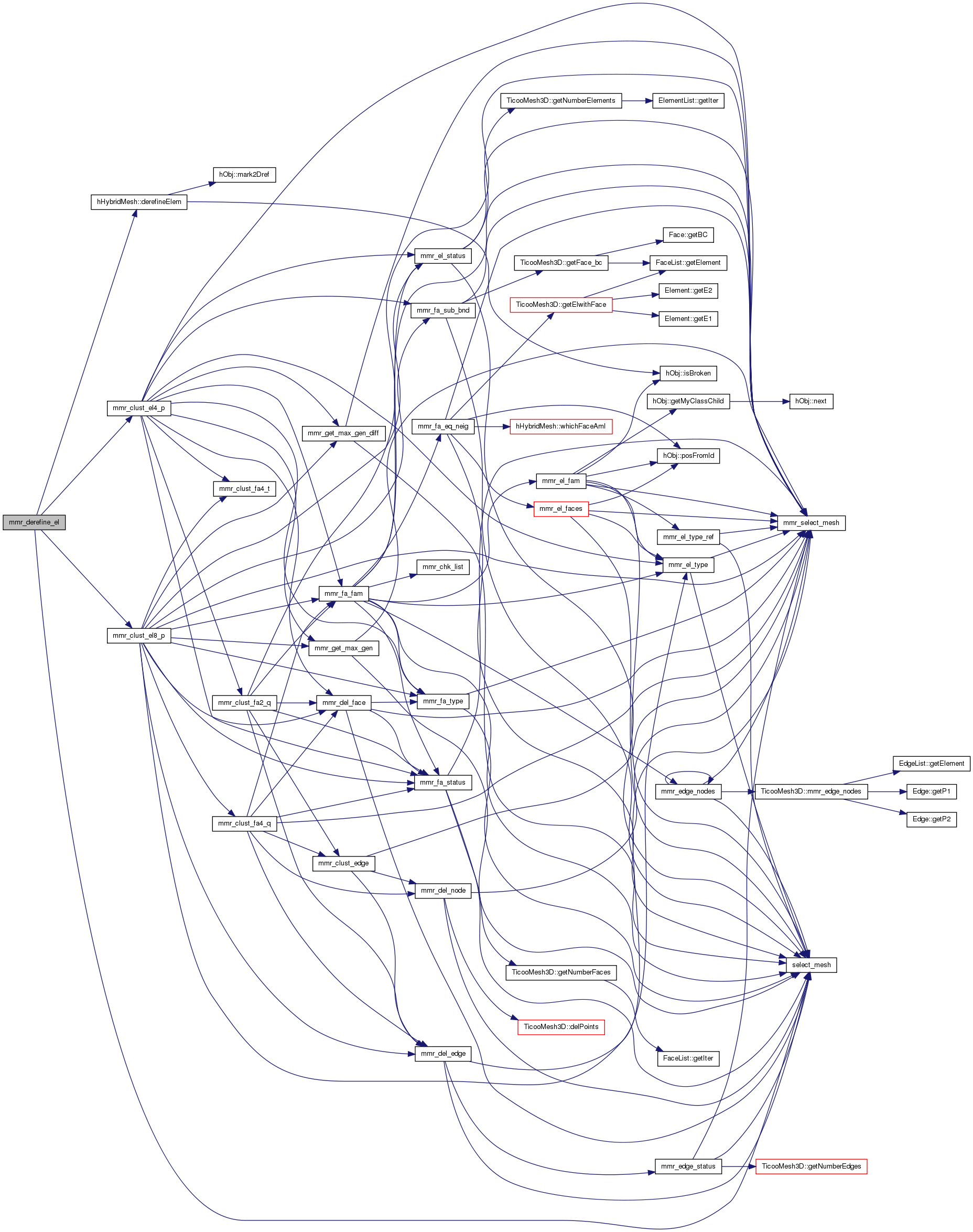

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_derefine_mesh ( int Mesh_id )

----------------------------------------------------------- mmr_derefine_mesh - to derefine the WHOLE mesh WITHOUT IRREGULARITY CHECK ------------------------------------------------------------

Parameters:

Mesh_id

returns: >=0 - success code, <0 - error code in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh

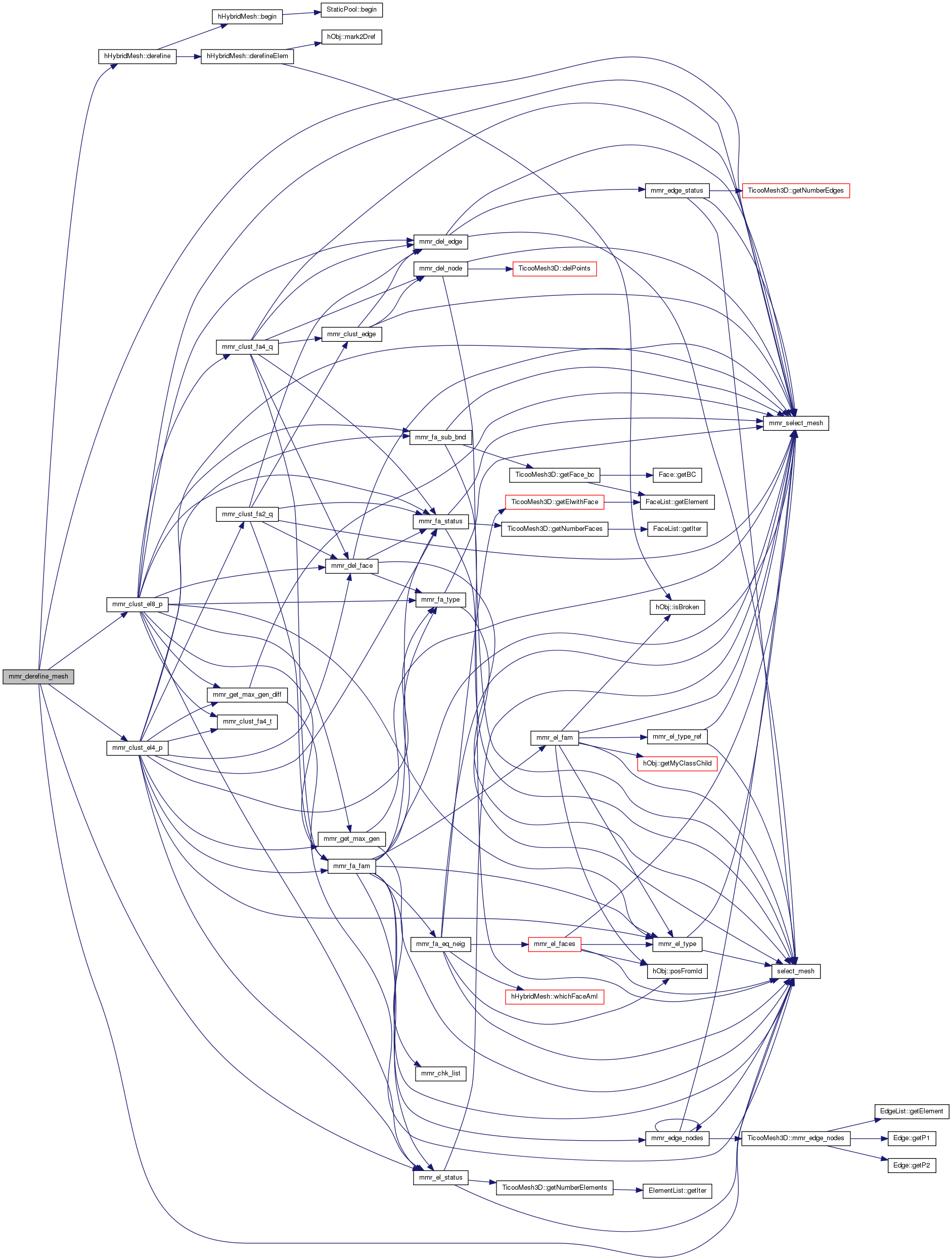

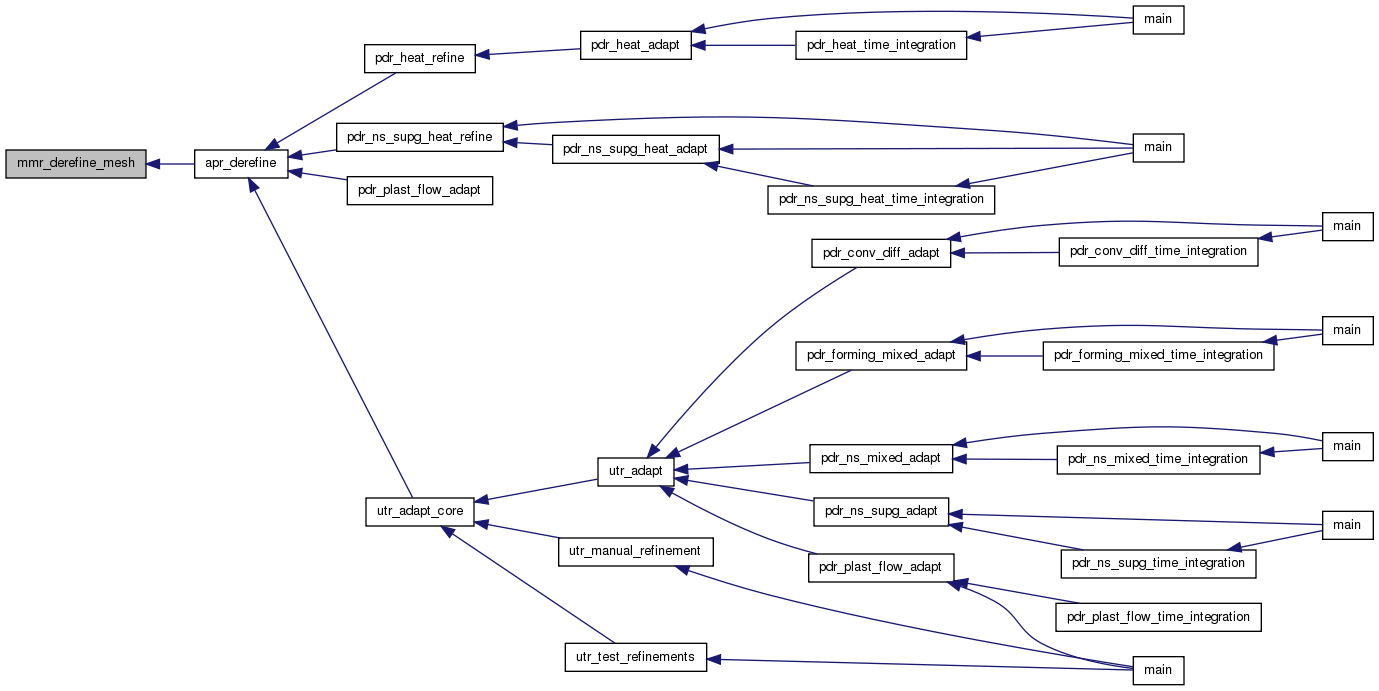

Here is the call graph for this function:

Here is the caller graph for this function:

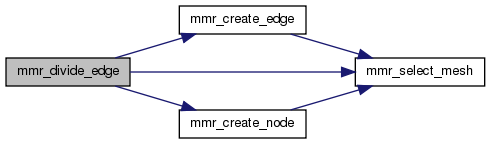

int mmr_divide_edge	(	int	Mesh_id,
		int	Edge,
		int *	Edge_sons,
		int *	Node_mid
	)

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	Edge	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Edge_sons	in: edge to be divided
	Node_mid	out: two sons out: node in the middle

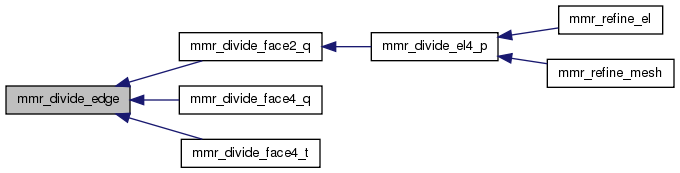

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_divide_face	(	int	Mesh_id,
		int	Fa,
		int *	Face_sons,
		int *	Sons_edges,
		int *	New_nodes
	)

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	Fa	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Face_sons	in: face to be divided
	Sons_edges	out: sons (sons[0] - the number of sons)
	New_nodes	out: created new edges (edges[0] - the number of edges) out: created new nodes (nodes[0] - the number of nodes)

int mmr_edge_elems	(	int	Mesh_id,
		int	Ed,
		int *	Edge_elems
	)

-------------------------------------------------------- mmr_edge_elems - to return IDs of elements containing the edge ---------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	Ed	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Edge_elems	in: edge ID out: IDs of elements containing the edge Edge_elems[0] - the number of elements

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_edge_nodes	(	int	Mesh_id,
		int	Ed,
		int *	Edge_nodes
	)

-------------------------------------------------------- mmr_edge_nodes - to return edge node's IDs ---------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	Ed	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Edge_nodes	in: edge ID out: IDs of edge nodes

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_edge_sons	(	int	Mesh_id,
		int	Ed,
		int *	Edge_sons,
		int *	Edge_mid_node
	)

-------------------------------------------------------- mmr_edge_sons - to return edge son's numbers ---------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	Ed	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Edge_sons	in: edge ID
	Edge_mid_node	out: IDs of edge sons out: IDs of edge mid-node son

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_edge_status	(	int	Mesh_id,
		int	Ed
	)

-------------------------------------------------------- mmr_edge_status - to return edge status (active, inactive, free space) ---------------------------------------------------------

Parameters:

	Mesh_id	returns edge status: +1 (MMC_ACTIVE) - active edge 0 (MMC_FREE) - free space -1 (MMC_INACTIVE) - inactive (refined) edge
	Ed	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh in: edge ID

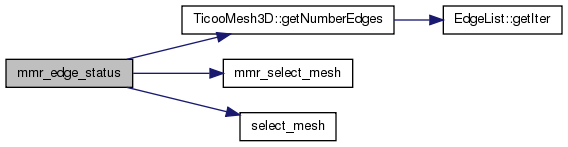

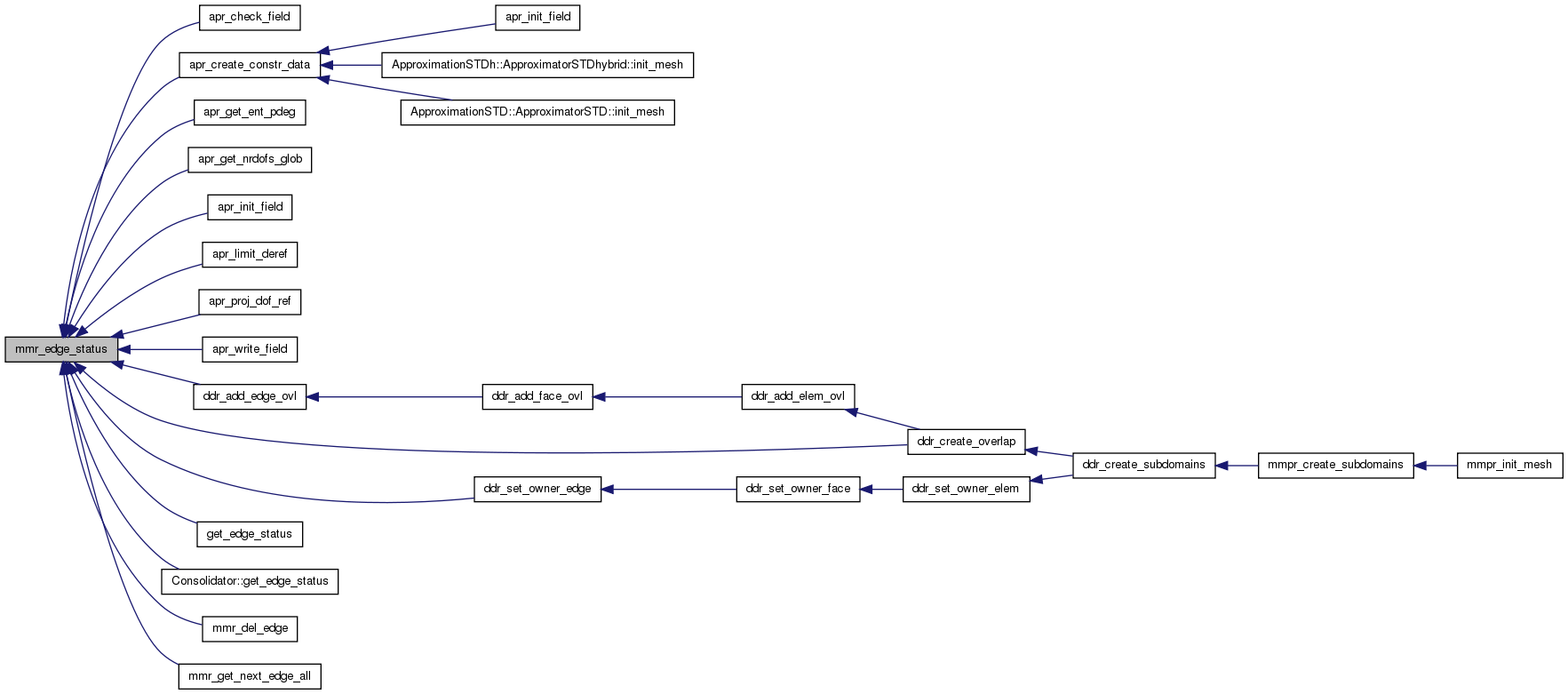

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_edge_structure	(	int	Mesh_id,
		int	Ed,
		int *	Edge_struct
	)

-------------------------------------------------------- mmr_edge_structure - to return edge structure (e.g. for sending) ---------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	Ed	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Edge_struct	in: edge ID out: edge structure in the form of integer array

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_el_ancestor	(	int	Mesh_id,
		int	El,
		int	Ilev
	)

-------------------------------------------------------- mmr_el_ancestor - to find the ancestor of an element with generation level Ilev ---------------------------------------------------------

Parameters:

	Mesh_id	returns: >0 - ancestor ID, <0 - error code
	El	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Ilev	in: element ID (1...) in: level ID

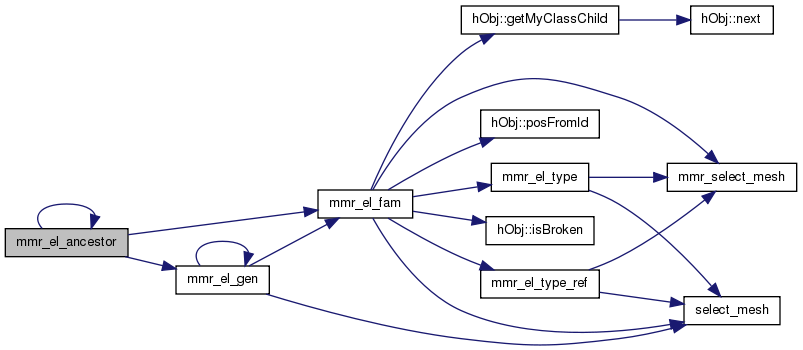

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_el_edges	(	int	Mesh_id,
		int	El,
		int *	Edges
	)

-------------------------------------------------------- mmr_el_edges - to get the list of element's edges ---------------------------------------------------------

Parameters:

	Mesh_id	returns the number of edges or error code
	El	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Edges	in: element ID out : list of edge IDs

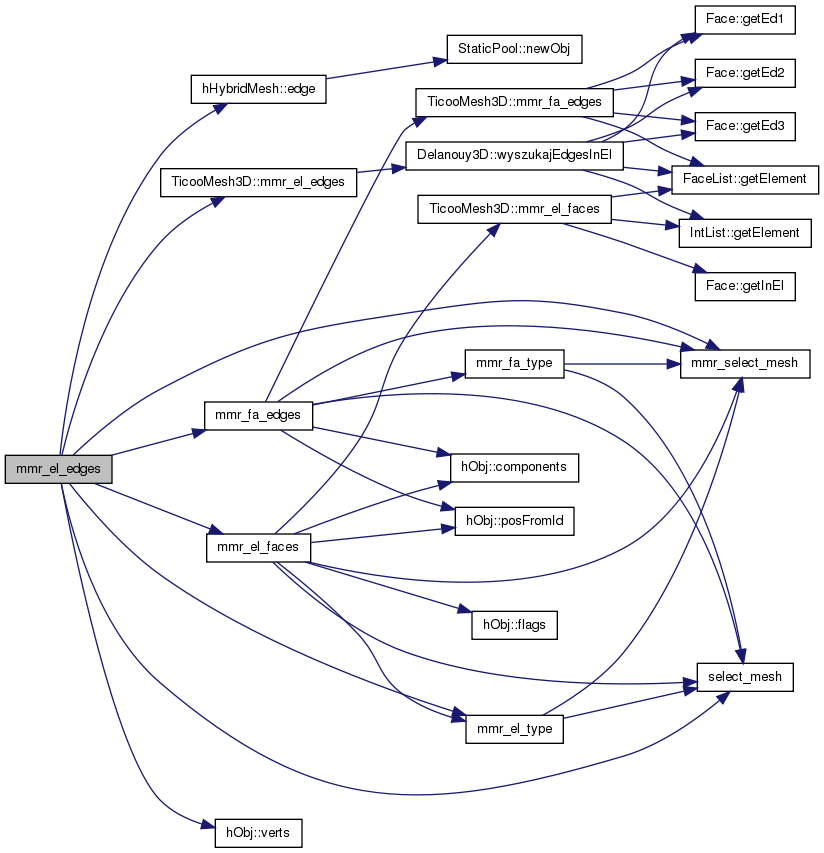

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_el_eq_neig	(	int	Mesh_id,
		int	El,
		int *	Neig,
		int *	Neig_sides
	)

-------------------------------------------------------- mmr_el_eq_neig - to get equal size neighbors of an element ---------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	El	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Neig	in: element ID
	Neig_sides	out: list of equal size neighbors >0 - equal size neighbor -1 (MMC_BIG_NGB) - big neighbor 0 (MMC_BOUNDARY) - boundary (always second neighbor) out: list of sides of neighbors

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_el_fa_nodes	(	int	Mesh_id,
		int	El,
		int	Fa,
		int *	Fa_nodes
	)

-------------------------------------------------------- mmr_el_fa_nodes - to get list local face nodes indexes in elem ---------------------------------------------------------

switch(Fa)

switch(neig..)

if(mmr_el_type)

Parameters:

	El	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Fa_nodes	in: local face number in elem El out: list of local indexes of face nodes

Here is the call graph for this function:

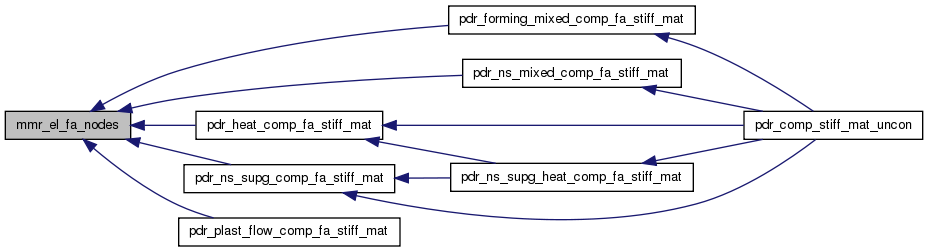

Here is the caller graph for this function:

int mmr_el_faces	(	int	Mesh_id,
		int	El,
		int *	Faces,
		int *	Orient
	)

-------------------------------------------------------- mmr_el_faces - to get faces of an element ---------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	El	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Faces	in: element ID
	Orient	out: list of faces out: orientation for each face

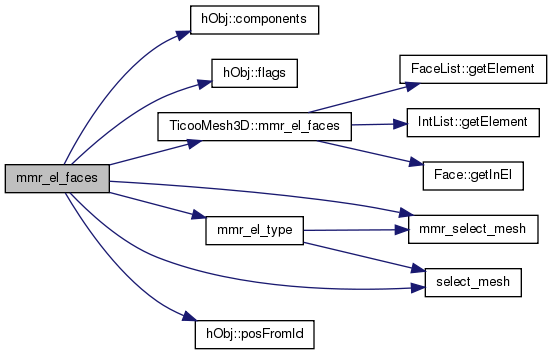

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_el_fam	(	int	Mesh_id,
		int	El,
		int *	Elsons,
		int *	Type
	)

-------------------------------------------------------- mmr_el_fam - to return family information for an element ---------------------------------------------------------

Parameters:

	Mesh_id	returns: element father ID or 0 (MMC_NO_FATH) for initial mesh element or <0 - error code
	El	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Elsons	in: element ID (1...)
	Type	out: list of element's sons Elsons[0] - number of sons out: type of refinement MMC_NOT_REF - not refined MMC_REF_ISO - isotropic refinement

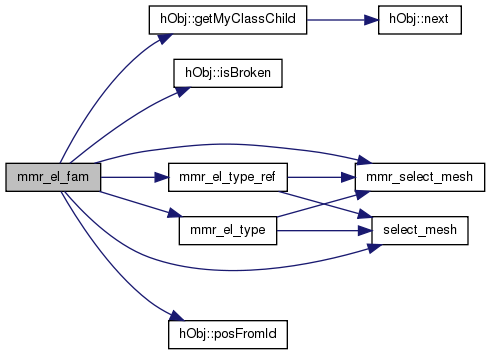

Here is the call graph for this function:

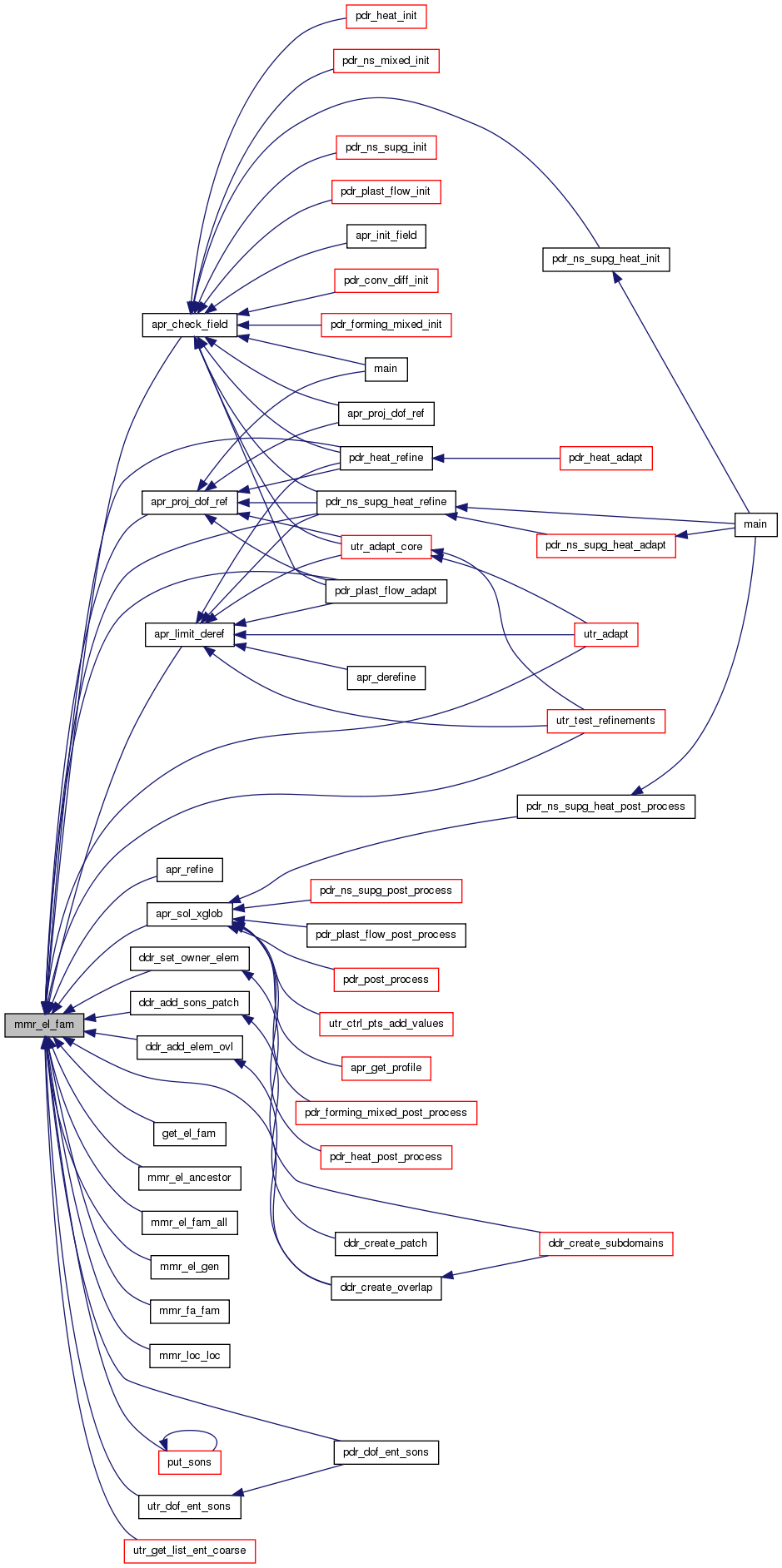

Here is the caller graph for this function:

int mmr_el_fam_all	(	int	Mesh_id,
		int	El,
		int *	Elsonscd
	)

Parameters:

	Mesh_id	returns: element father ID or 0 (MMC_NO_FATH) for initial mesh element or <0 - error code
	El	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Elsonscd	in: element ID (1...) out: list of all recursive element's sons Elsons[0] - number of sons

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_el_gen	(	int	Mesh_id,
		int	El
	)

-------------------------------------------------------- mmr_el_gen - to return generation level for an element ---------------------------------------------------------

Parameters:

	Mesh_id	returns: El's generation ID
	El	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh in: element ID (1...)

Here is the call graph for this function:

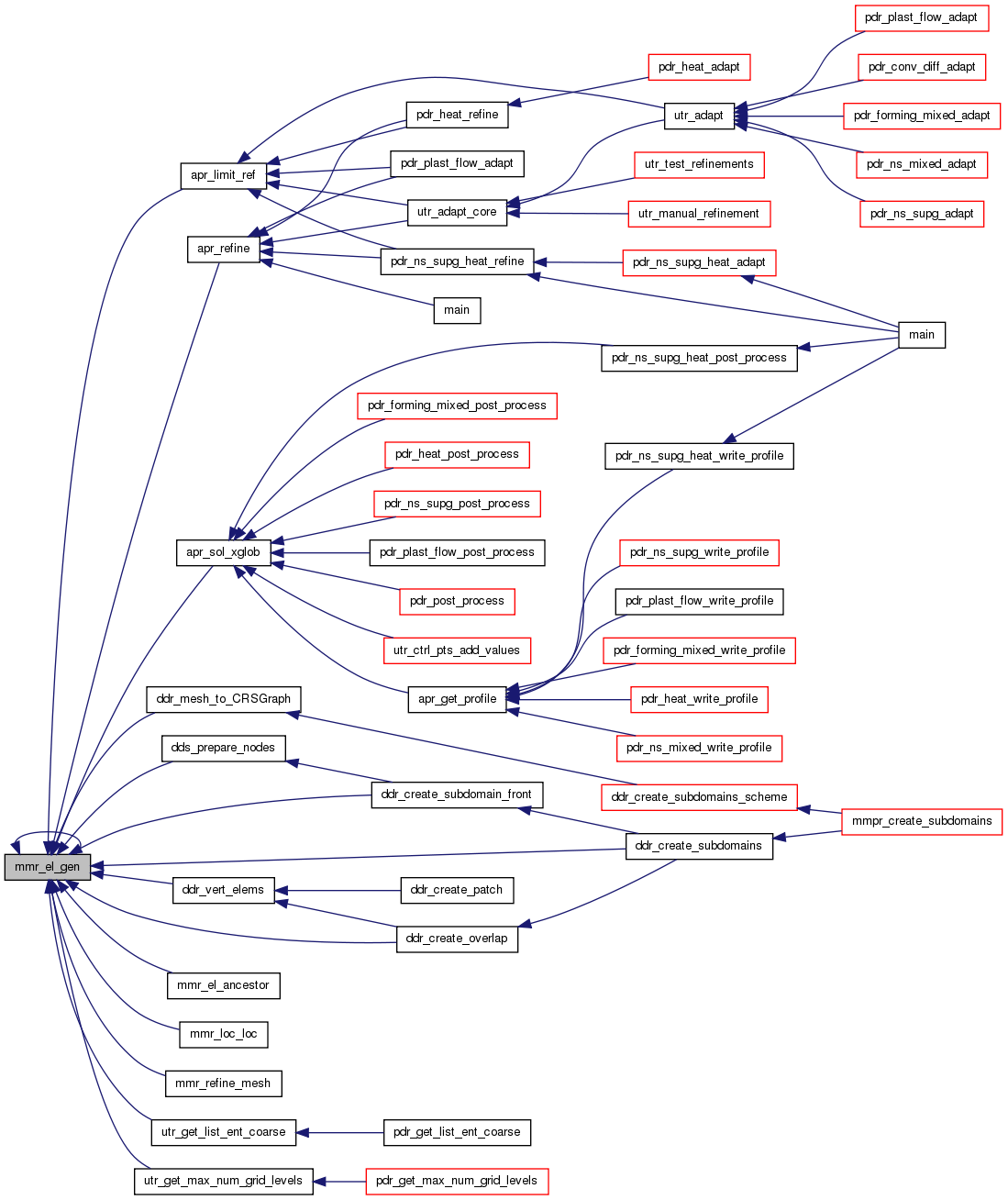

Here is the caller graph for this function:

int mmr_el_groupID	(	int	Mesh_id,
		int	El
	)

Replaces old mmr_el_mat() routine. Returns ID of group for given element number. In order to get the material number, pass obtained groupID into utr_mat_get_matID. In order to get the block number, pass obtained groupID into utr_mat_get_blockID .

-------------------------------------------------------- mmr_el_groupID - to return group ID for element ---------------------------------------------------------

Parameters:

	Mesh_id	mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	El	element ID

Returns:: returns group flag for element, <0 - error code

Parameters:

El

in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh in: element ID

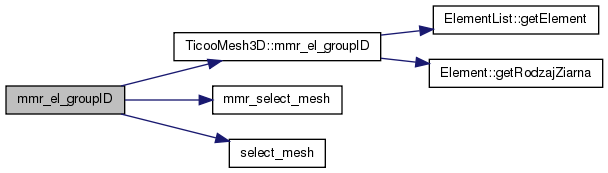

Here is the call graph for this function:

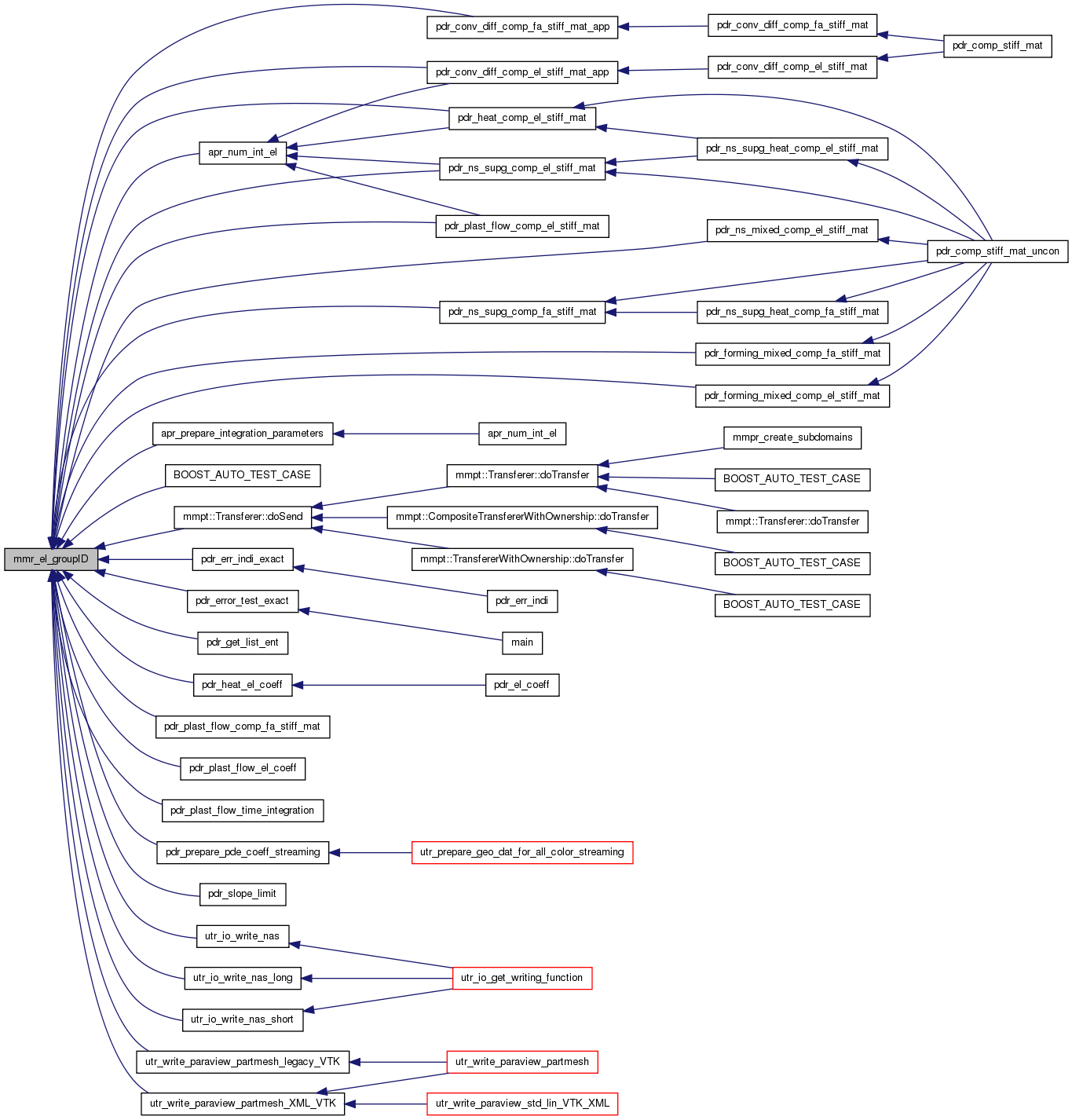

Here is the caller graph for this function:

double mmr_el_hsize	(	int	Mesh_id,
		int	El,
		double *	Size_x,
		double *	Size_y,
		double *	Size_z
	)

-------------------------------------------------------- mmr_el_hsize - to compute a characteristic linear size for an element (for linear and multi-linear 3D elements) ---------------------------------------------------------

Parameters:

	Mesh_id	returns: element size
	El	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Size_x	in: element ID (1...)
	Size_y	out: for anizotropic elements

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_el_node_coor	(	int	Mesh_id,
		int	El,
		int *	Nodes,
		double *	Node_coor
	)

-------------------------------------------------------- mmr_el_node_coor - to get the coordinates of element's nodes ---------------------------------------------------------

Parameters:

	Mesh_id	returns number of nodes
	El	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Nodes	in: element ID
	Node_coor	out: list of vertex node IDs out: coordinates of element vertices

Here is the call graph for this function:

int mmr_el_set_groupID	(	int	Mesh_id,
		int	El,
		int	Group_id
	)

Replaces old mmr_el_set_mat() routine. Assigns given element for group with given ID. Note, that this can effectively change element material number ( utr_mat_get_matID ), element block assignment ( utr_mat_get_blockID ), and is some circumstances also affects boundary conditions definitions ( utr_mesh_insert_BC_contact ).

-------------------------------------------------------- mmr_el_set_groupID - to set group number for element ---------------------------------------------------------

Parameters:

	Mesh_id	mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	El	element ID
	Group_id

Returns:: group ID

Parameters:

	Mesh_id	sets group flag for element
	El	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Group_id	in: element ID in: group ID

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_el_status	(	int	Mesh_id,
		int	El
	)

-------------------------------------------------------- mmr_el_status - to return element status (active, inactive, free space) ---------------------------------------------------------

Parameters:

	Mesh_id	returns element status: +1 (MMC_ACTIVE) - active element 0 (MMC_FREE) - free space -1 (MMC_INACTIVE) - inactive (refined) element
	El	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh in: element ID

Here is the call graph for this function:

int mmr_el_type	(	int	Mesh_id,
		int	El
	)

-------------------------------------------------------- mmr_el_type - to return element type ---------------------------------------------------------

Parameters:

	Mesh_id	returns element type or <0 - error code
	El	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh in: element ID

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_el_type_ref	(	int	Mesh_id,
		int	El
	)

-------------------------------------------------------- mmr_el_type_ref - to return element's type of refinement ---------------------------------------------------------

Parameters:

	Mesh_id	returns element's type of refinement, <0 - error code MMC_NOT_REF - not refined MMC_REF_ISO - isotropic refinement
	El	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh in: element ID

Here is the call graph for this function:

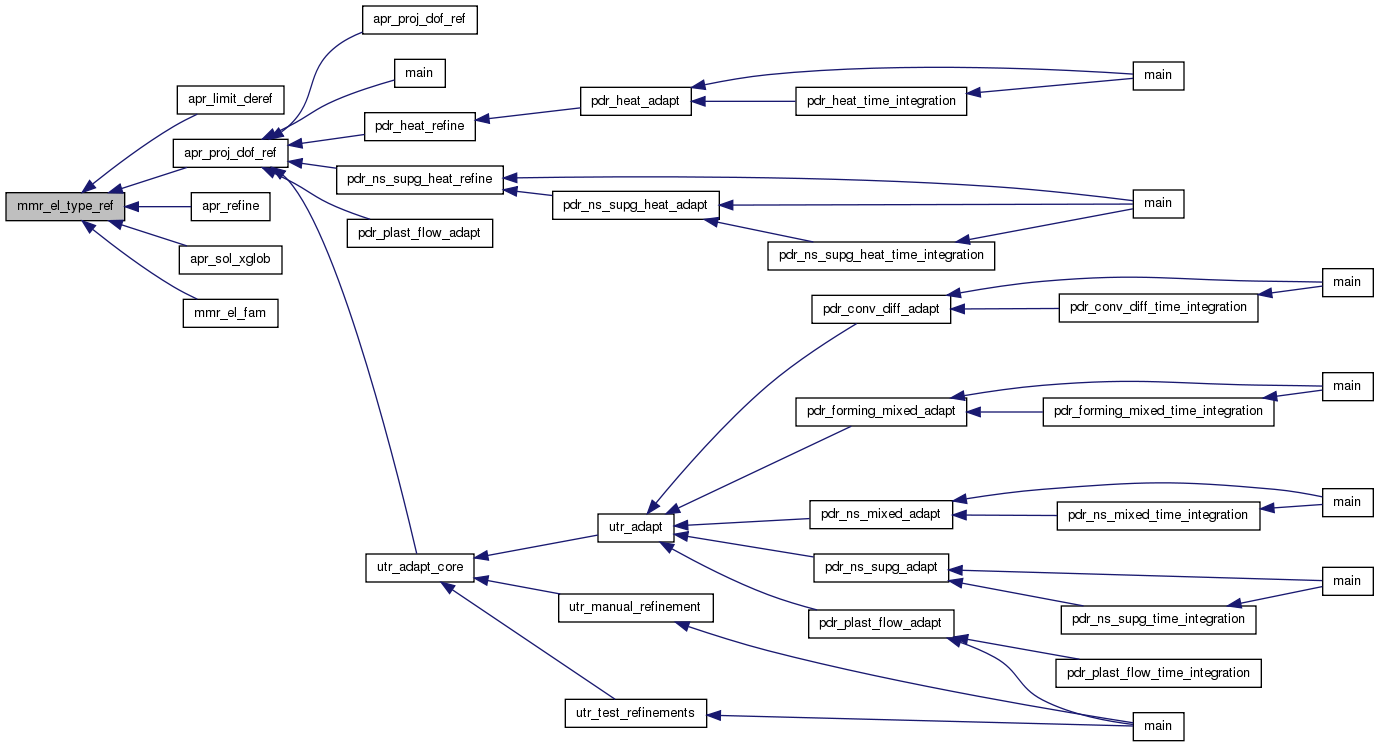

Here is the caller graph for this function:

int mmr_elem_structure	(	int	Mesh_id,
		int	El,
		int *	Elem_struct
	)

-------------------------------------------------------- mmr_elem_structure - to return elem structure (e.g. for sending) ---------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	El	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Elem_struct	in: elem ID out: elem structure in the form of integer array

Here is the call graph for this function:

Here is the caller graph for this function:

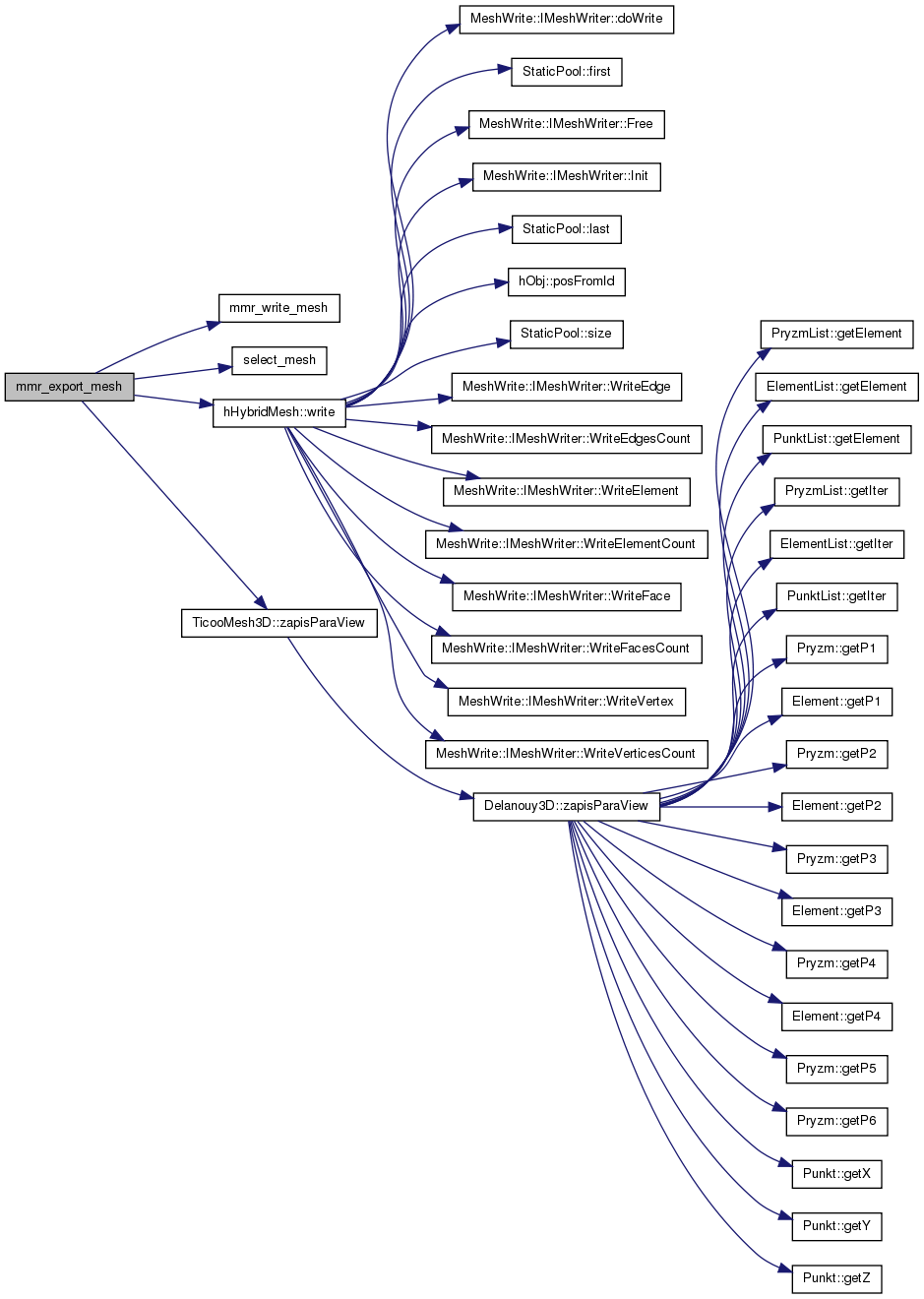

int mmr_export_mesh	(	int	Mesh_id,
		int	Control,
		char *	Filename
	)

-------------------------------------------------------- mmr_export_mesh - to export (write to a file) mesh data in a specified format ---------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	Control	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Filename	in: control variable to choose data format MMC_MOD_FEM_MESH_DATA = 1 - mesh written to standard dump files in: name of the file to write mesh data

Here is the call graph for this function:

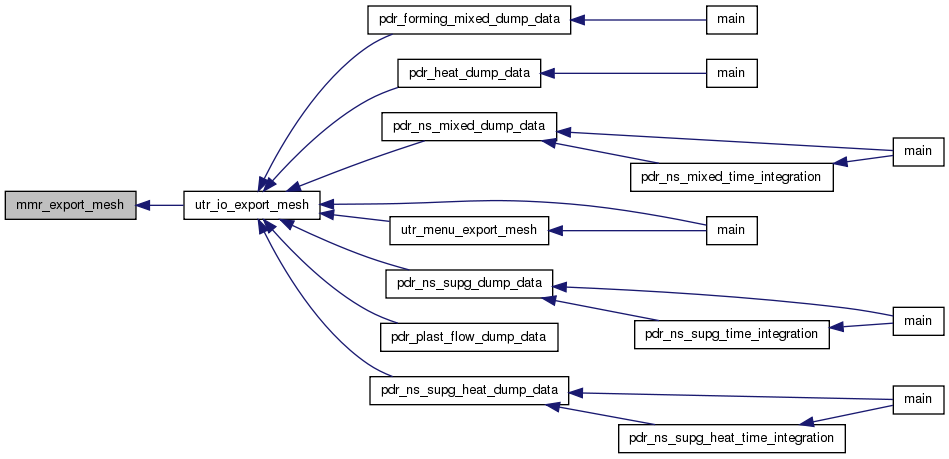

Here is the caller graph for this function:

void mmr_fa_area	(	int	Mesh_id,
		int	Fa,
		double *	Area,
		double *	Vec_norm
	)

-------------------------------------------------------- mmr_fa_area - to compute the area of face and vector normal ---------------------------------------------------------

Parameters:

	Fa	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Area	in: global face ID
	Vec_norm	out: face area out: normal vector

Here is the call graph for this function:

Here is the caller graph for this function:

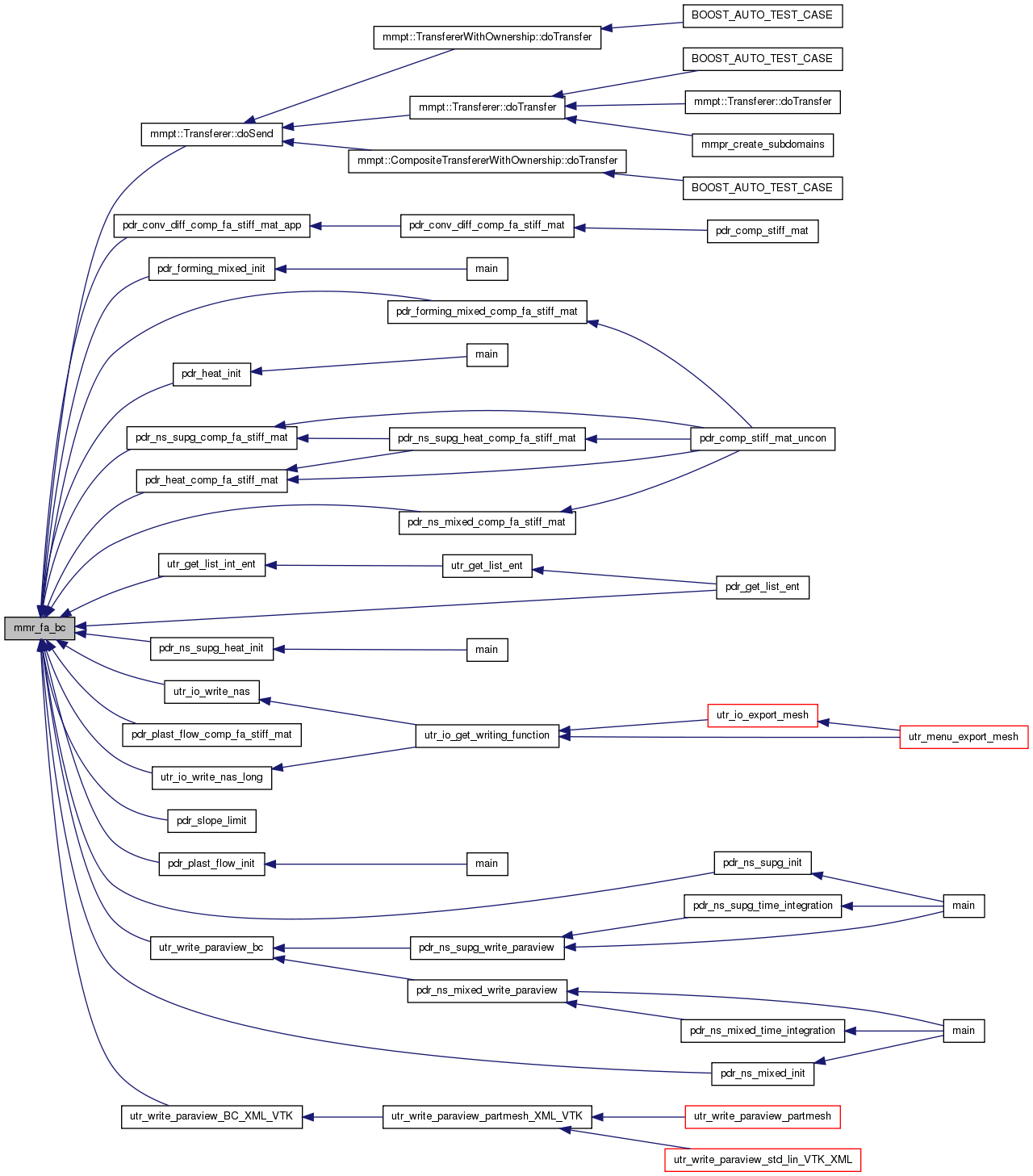

int mmr_fa_bc	(	int	Mesh_id,
		int	Fa
	)

------------------------------------------------------------------------- mmr_fa_bc - to get the boundary condition flag for a face ---------------------------------------------------------------------------

Parameters:

	Mesh_id	returns: bc flag for a face
	Fa	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh in: global face ID

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_fa_edges	(	int	Mesh_id,
		int	Fa,
		int *	Fa_edges,
		int *	Ed_orient
	)

-------------------------------------------------------- mmr_fa_edges - to return a list of face's edges ---------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - number of edges, <0 - error code
	Fa	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Fa_edges	in: global face ID
	Ed_orient	out: face edges out: edges orientation:

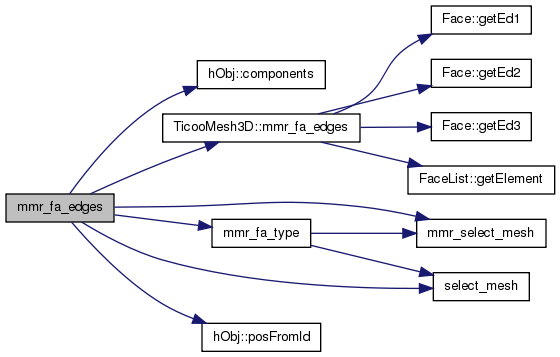

Here is the call graph for this function:

Here is the caller graph for this function:

void mmr_fa_elem_coor	(	int	Mesh_id,
		double *	Xloc,
		int *	Fa_neig,
		int *	Neig_sides,
		int	Node_shift,
		double *	Acoeff,
		double *	Bcoeff,
		double *	Xneig
	)

-------------------------------------------------------- mmr_fa_elem_coor - to find coordinates within neighboring elements for a point on face ---------------------------------------------------------

switch(Neig_sides[ineig]

switch(el_type)

if

for

switch(Neig_sides[ineig]

switch(el_type)

if

for

Parameters:

	Xloc	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Fa_neig	in: local coordinates on a face
	Neig_sides	in: face neighbors (<0 - big)
	Node_shift	in: which side face is for neighbors
	Acoeff	in: the difference in positions between neighbor (usage in mmr_fa_node_coor)
	Bcoeff	in: coefficients of transformation between...
	Xneig	in: ...face coord and big neighb face coord out: local coordinates for neighbors

Here is the call graph for this function:

Here is the caller graph for this function:

void mmr_fa_eq_neig	(	int	Mesh_id,
		int	Fa,
		int *	Fa_neig,
		int *	Neig_sides,
		int *	Node_shift
	)

-------------------------------------------------------- mmr_fa_eq_neig - to return a list of face's neighbors and corresponding neighbors' sides (only equal size neighbors considered) ---------------------------------------------------------

Parameters:

	Fa	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Fa_neig	in: global face ID
	Neig_sides	out: face neighbors (first neighbor has the same orientation as the face and ordering of its nodes defines ordering of nodes on the face) >0 - equal size neighbor ID -1 (MMC_BIG_NGB) - big neighbor 0 (MMC_BOUNDARY) - boundary (always second neighbor) -2 (MMC_SUB_BND) - inter-subdomain boundary <-10 - ghost face ID for contact boundary
	Node_shift	out: side local IDs for equal size neighbors out: the difference in positions between neighbor (usage in mmr_fa_node_coor)

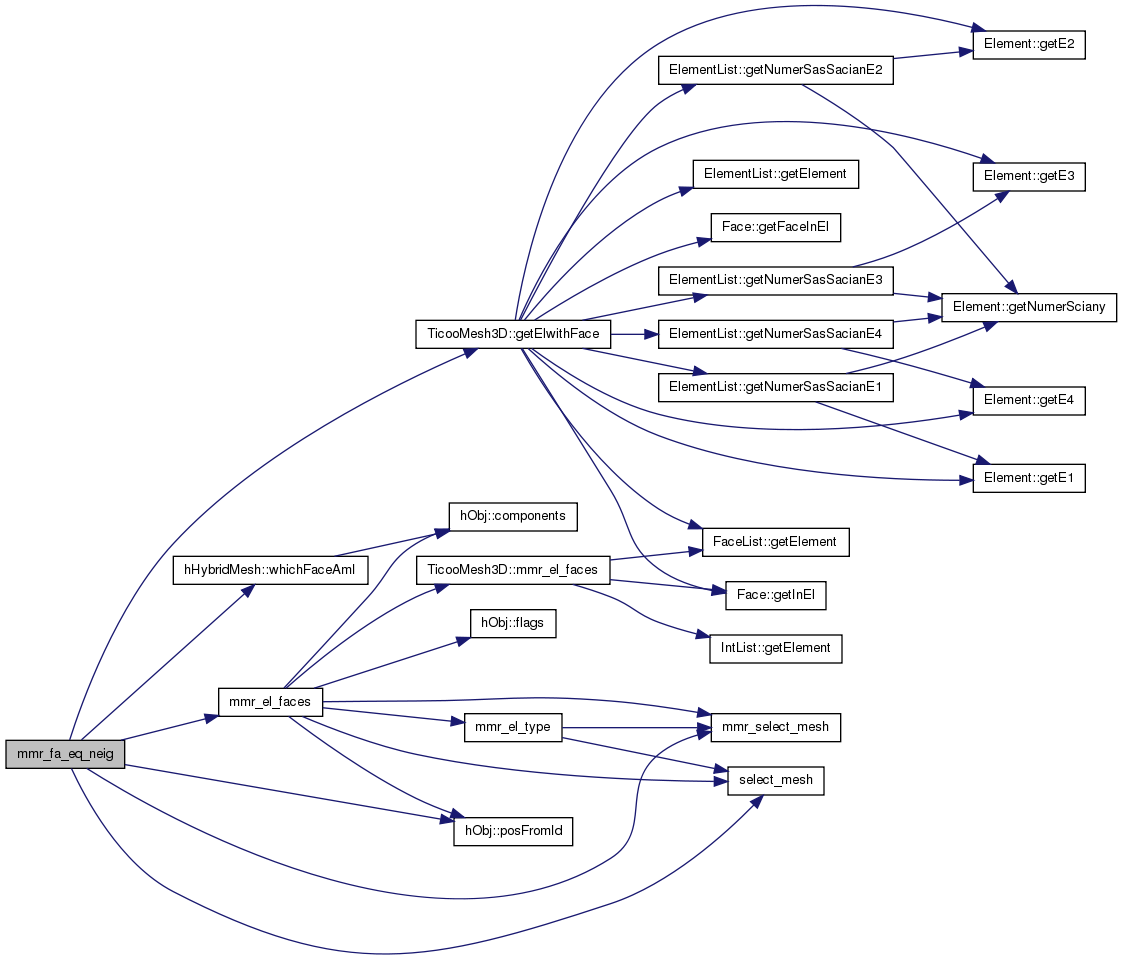

Here is the call graph for this function:

Here is the caller graph for this function:

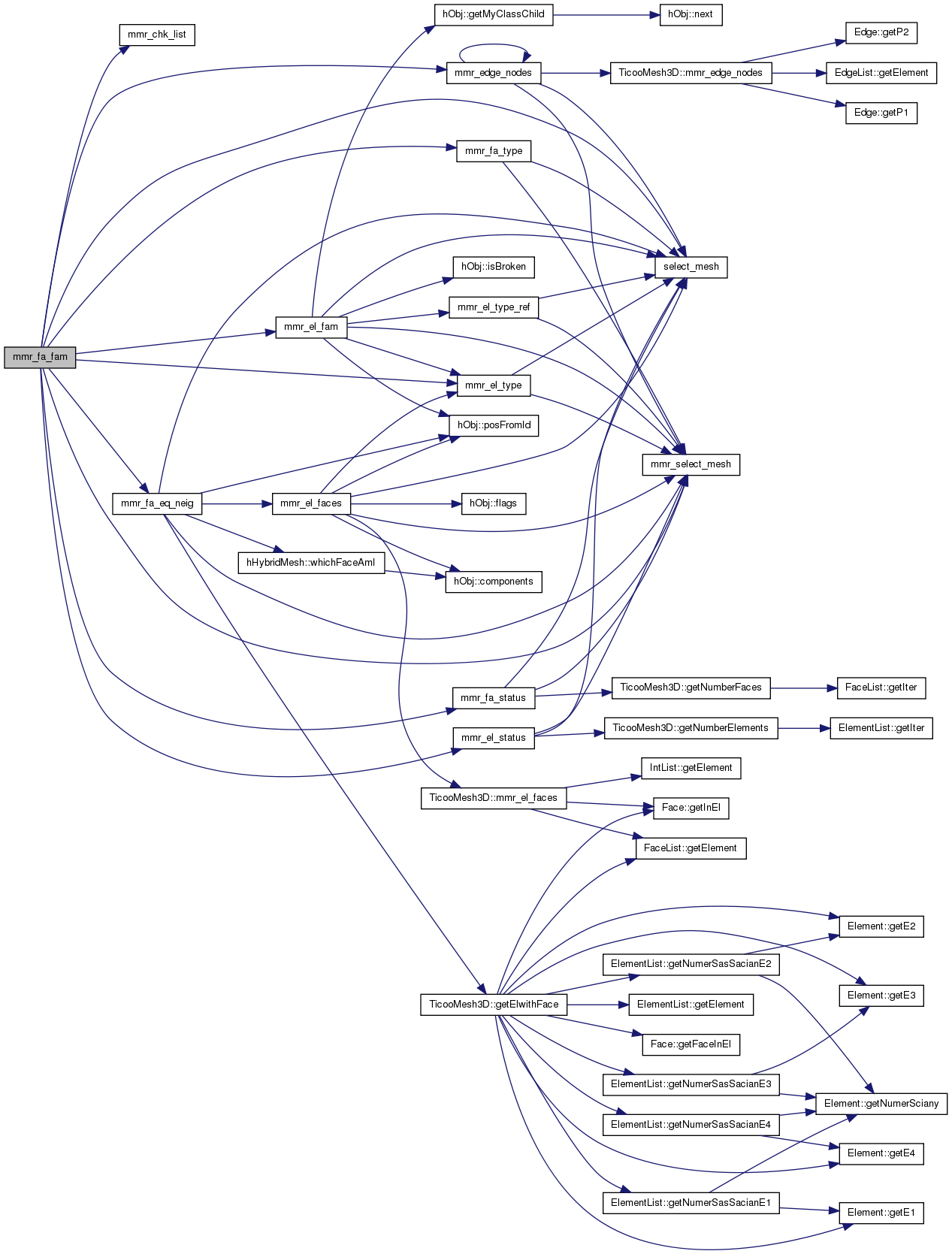

int mmr_fa_fam	(	int	Mesh_id,
		int	Fa,
		int *	Fasons,
		int *	Node_mid
	)

------------------------------------------------------------------------- mmr_fa_fam - to return face's family information ---------------------------------------------------------------------------

Parameters:

	Mesh_id	returns: face's father
	Fa	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Fasons	in: global face ID
	Node_mid	out: sons Fasons[0] - number of sons out: node in the middle (if any)

Here is the call graph for this function:

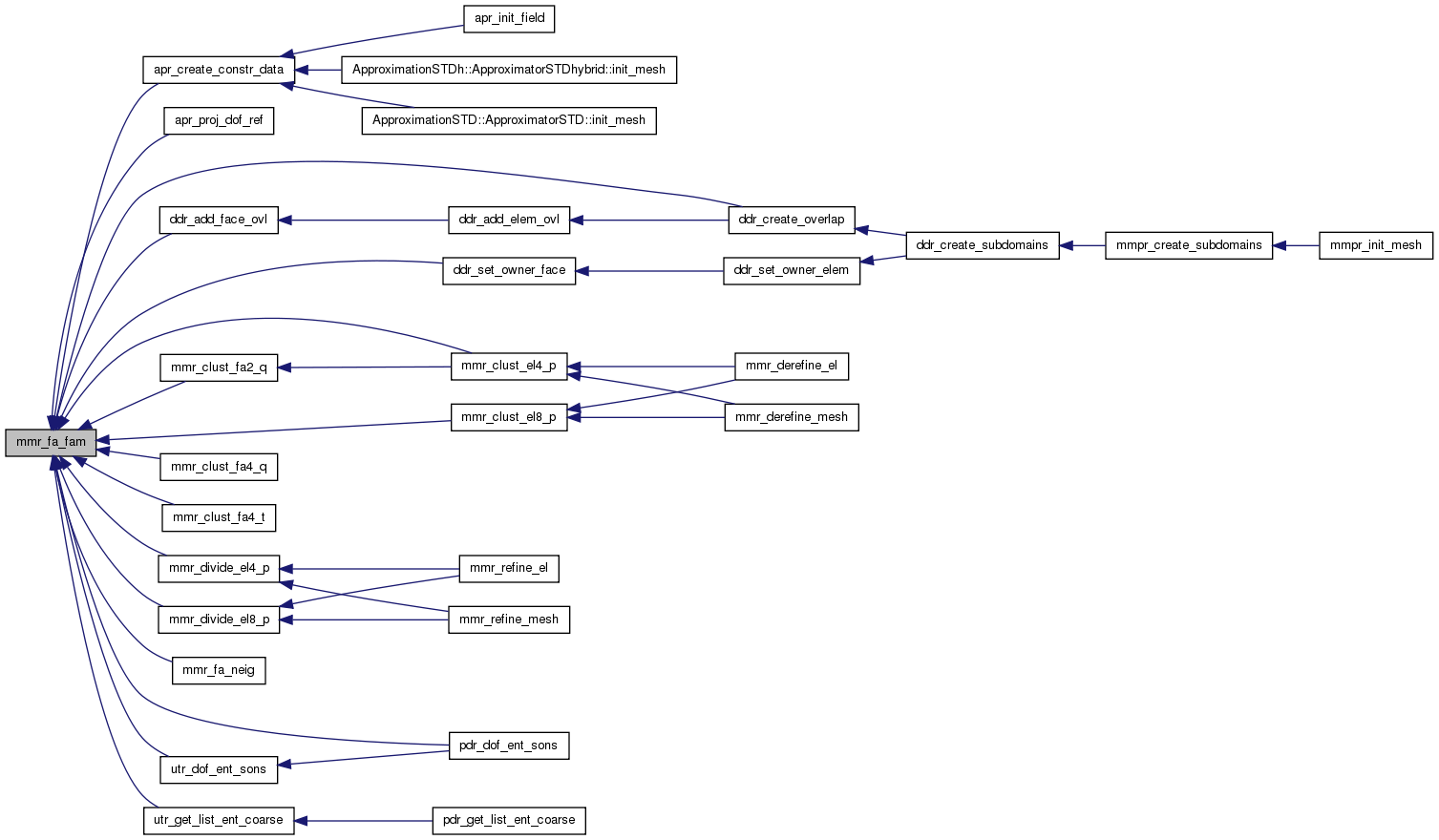

Here is the caller graph for this function:

void mmr_fa_neig	(	int	Mesh_id,
		int	Fa,
		int *	Fa_neig,
		int *	Neig_sides,
		int *	Node_shift,
		int *	Diff_gen,
		double *	Acoeff,
		double *	Bcoeff
	)

-------------------------------------------------------- mmr_fa_neig - to return a list of face's neighbors and corresponding neighbors' sides (for active faces all neighbors are active) ---------------------------------------------------------

Parameters:

	Fa	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Fa_neig	in: global face ID
	Neig_sides	out: face neighbors (first neighbor has the same orientation as the face and ordering of its nodes defines ordering of nodes on the face) >0 - equal size neighbor ID <0 - big neighbor ID 0 (MMC_BOUNDARY) - boundary (always 2nd neighbor)
	Node_shift	out: side IDs for neighbors
	Diff_gen	out: the difference in positions between neighbor (usage in mmr_fa_node_coor)
	Acoeff	out: generation difference between neighbors
	Bcoeff	out: coefficients of linear transformation... between face coordinates and coordinates on an ancestor face being a side of big neighbor

Here is the call graph for this function:

Here is the caller graph for this function:

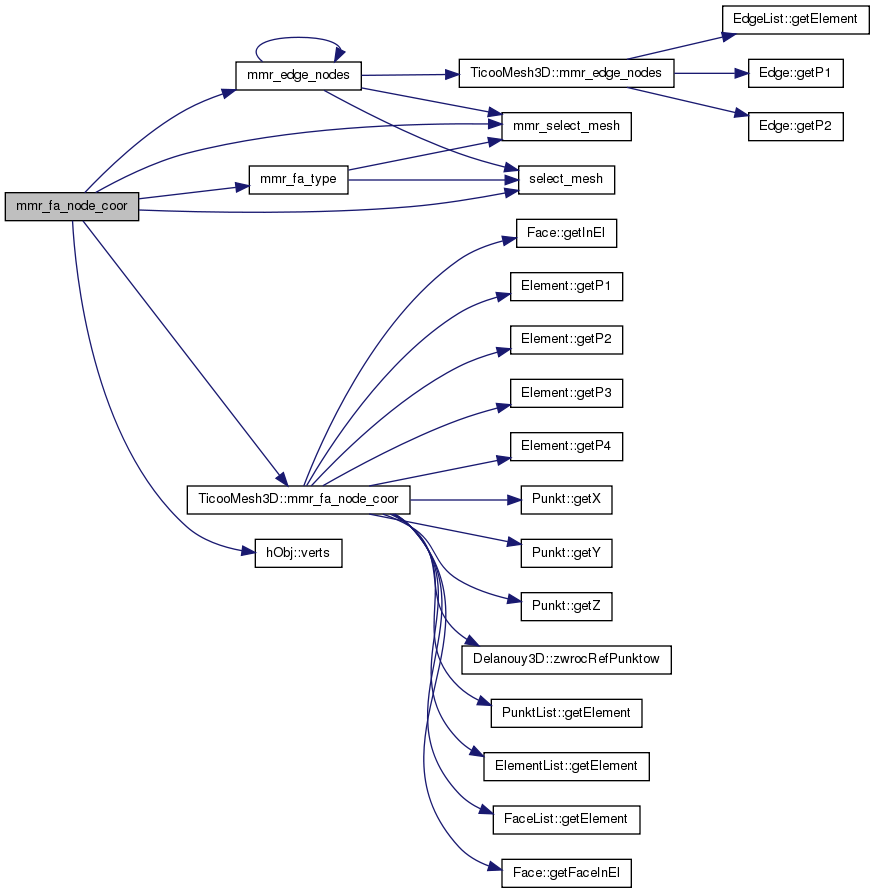

int mmr_fa_node_coor	(	int	Mesh_id,
		int	Fa,
		int *	Nodes,
		double *	Node_coor
	)

-------------------------------------------------------- mmr_fa_node_coor - to get the list and coordinates of faces's nodes ---------------------------------------------------------

Parameters:

	Mesh_id	returns: number of nodes for a face
	Fa	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Nodes	in: face ID
	Node_coor	out: list of vertex node IDs out: coordinates of face vertices

Here is the call graph for this function:

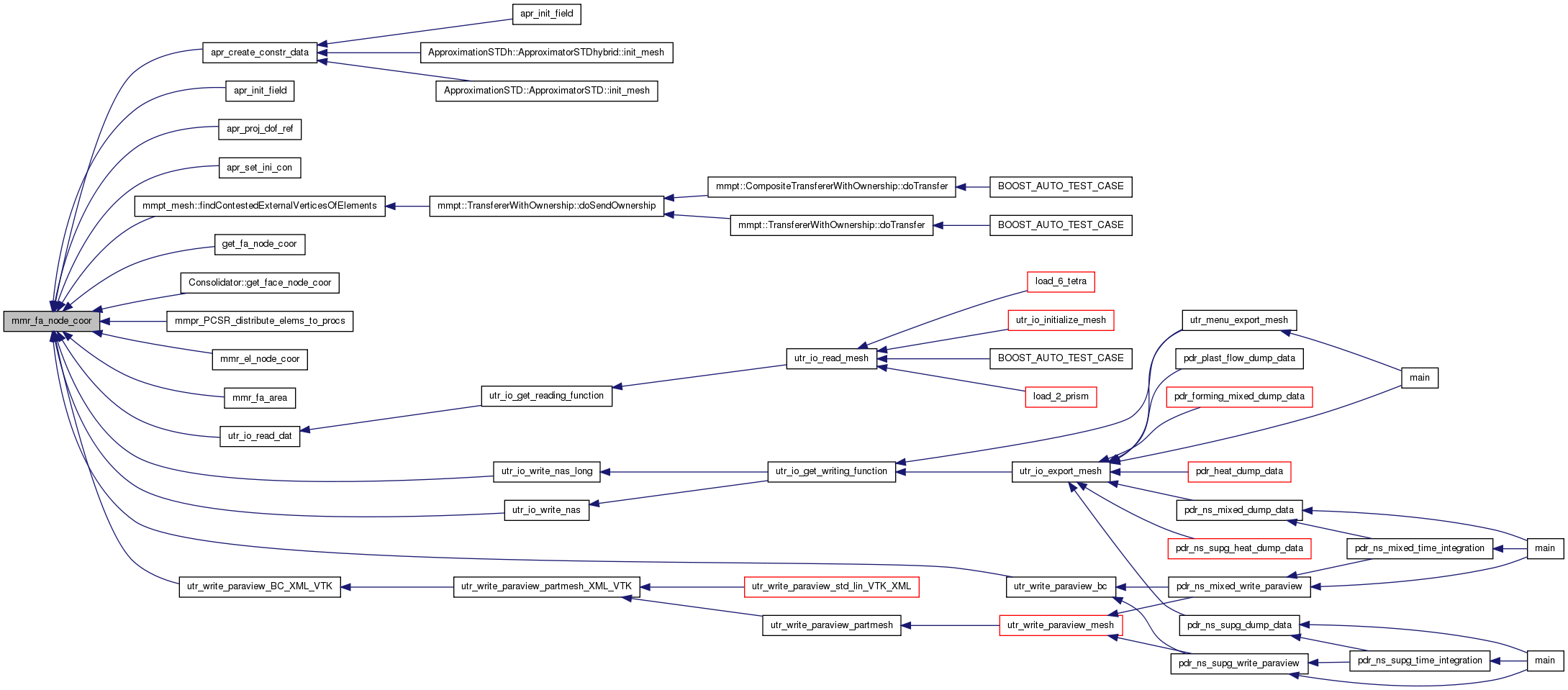

Here is the caller graph for this function:

int mmr_fa_set_bc	(	int	Mesh_id,
		int	Fa,
		int	Bc_num
	)

------------------------------------------------------------------------- mmr_fa_bc - to set the boundary condition flag for a face ---------------------------------------------------------------------------

Parameters:

	Mesh_id	returns: bc flag for a face
	Fa	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Bc_num	in: global face ID

Here is the call graph for this function:

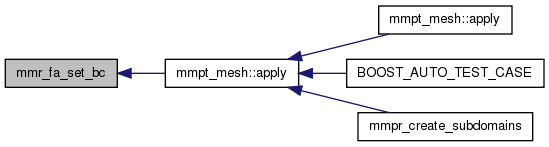

Here is the caller graph for this function:

int mmr_fa_set_sub_bnd	(	int	Mesh_id,
		int	Face_id,
		int	Side_id
	)

-------------------------------------------------------- mmr_fa_set_sub_bnd - to indicate face is on the boundary ---------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	Face_id	in: mesh ID
	Side_id	in: face ID in: side ID ???

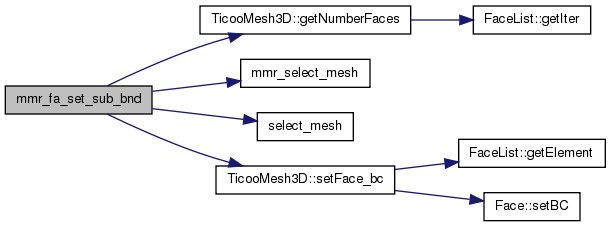

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_fa_status	(	int	Mesh_id,
		int	Fa
	)

-------------------------------------------------------- mmr_fa_status - to return face status (active, inactive, free space) ---------------------------------------------------------

Parameters:

	Mesh_id	returns face status:
	Fa	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh in: face ID

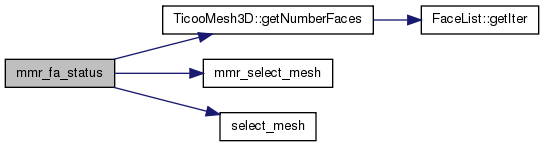

Here is the call graph for this function:

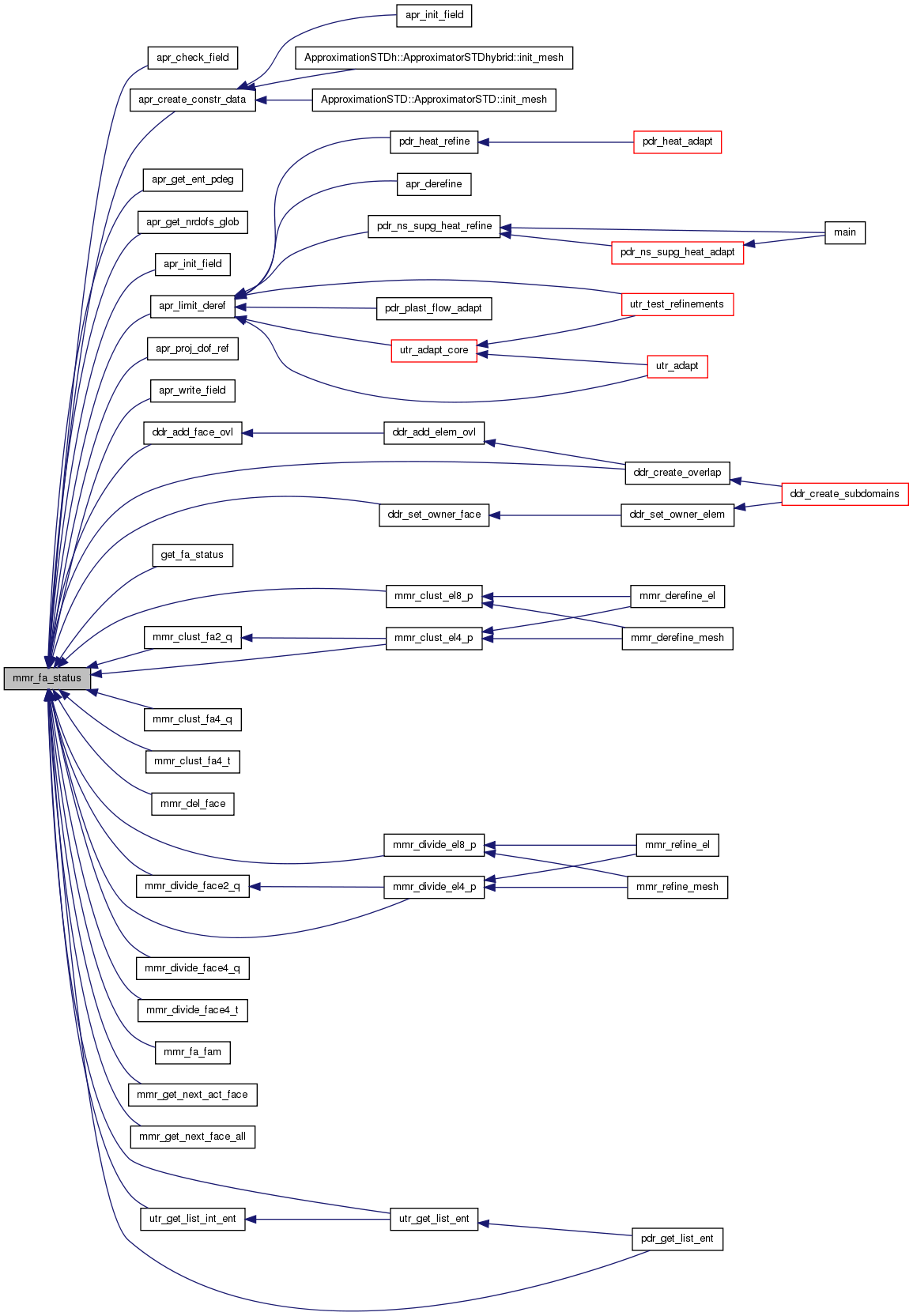

Here is the caller graph for this function:

int mmr_fa_sub_bnd	(	int	Mesh_id,
		int	Face_id
	)

-------------------------------------------------------- mmr_fa_sub_bnd - to indicate face is on the boundary ---------------------------------------------------------

Parameters:

	Mesh_id	returns: 1 - true, 0 - false
	Face_id	in: mesh ID in: face ID

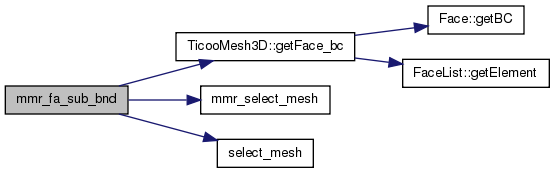

Here is the call graph for this function:

Here is the caller graph for this function:

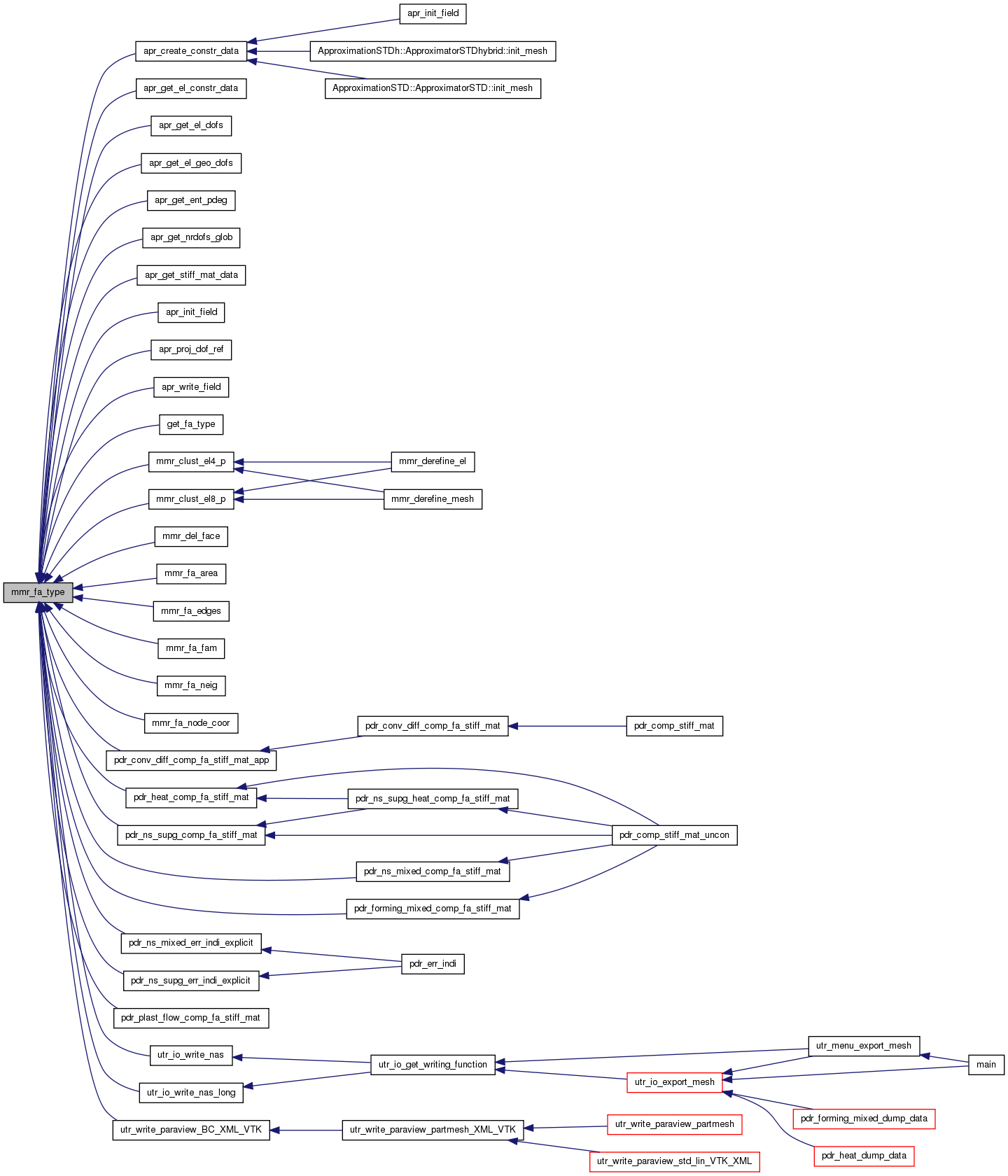

int mmr_fa_type	(	int	Mesh_id,
		int	Fa
	)

-------------------------------------------------------- mmr_fa_type - to return face type (triangle, quad, free space) ---------------------------------------------------------

Parameters:

	Mesh_id	returns face type:
	Fa	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh in: face ID

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_face_structure	(	int	Mesh_id,
		int	Fa,
		int *	Face_struct
	)

-------------------------------------------------------- mmr_face_structure - to return face structure (e.g. for sending) ---------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	Fa	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Face_struct	in: face ID out: face structure in the form of integer array

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_final_ref ( int Mesh_id )

----------------------------------------------------------- mmr_final_ref - to finalize the process of refinement after rewriting DOFs ------------------------------------------------------------

Parameters:

Mesh_id

returns: >=0 - success code, <0 - error code in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh

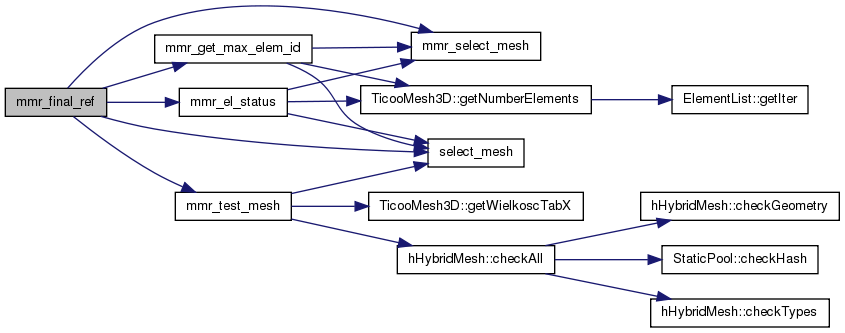

Here is the call graph for this function:

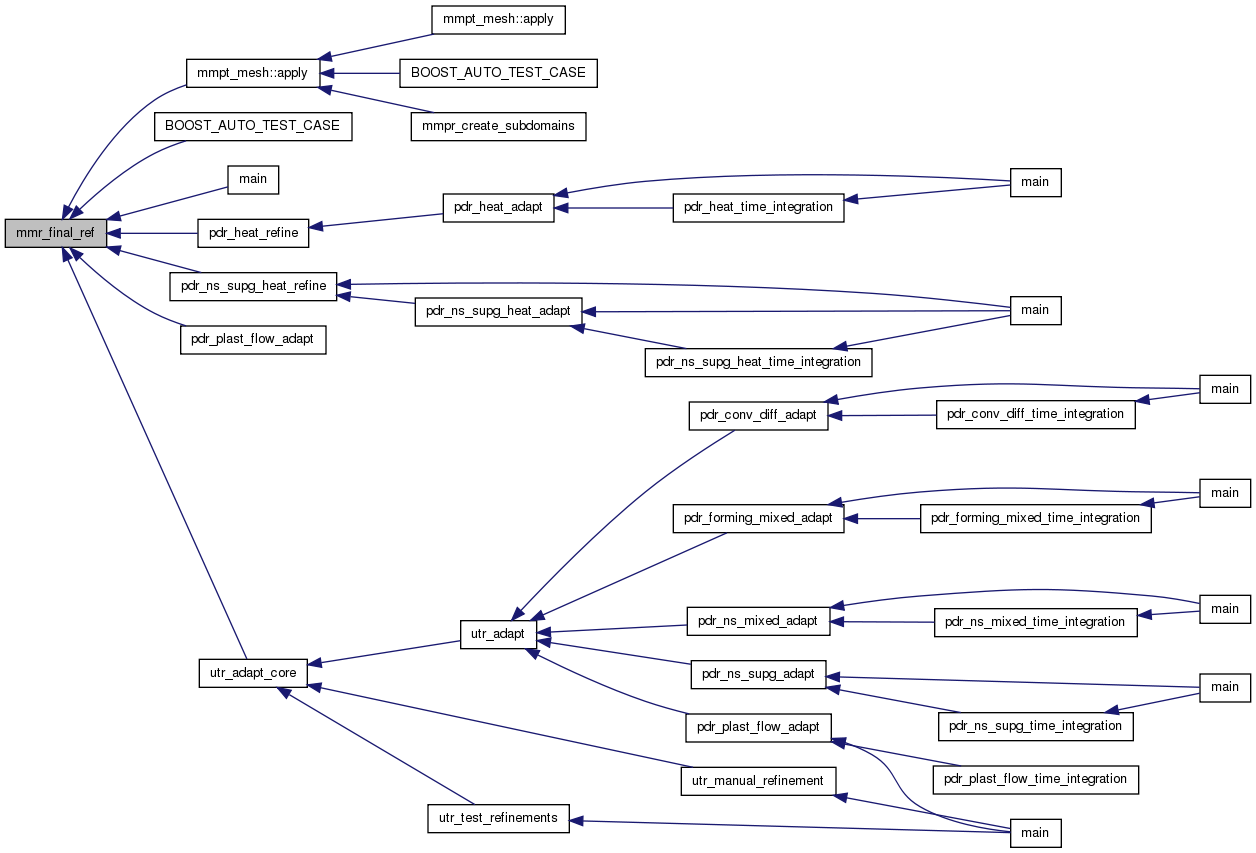

Here is the caller graph for this function:

int mmr_finish_read ( const int Mesh_id )

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_free_mesh ( int Mesh_id )

-------------------------------------------------------- mmr_free_mesh - to free space allocated for mesh data structure ---------------------------------------------------------

Parameters:

Mesh_id

returns: >=0 - success code, <0 - error code in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh

Here is the call graph for this function:

Here is the caller graph for this function:

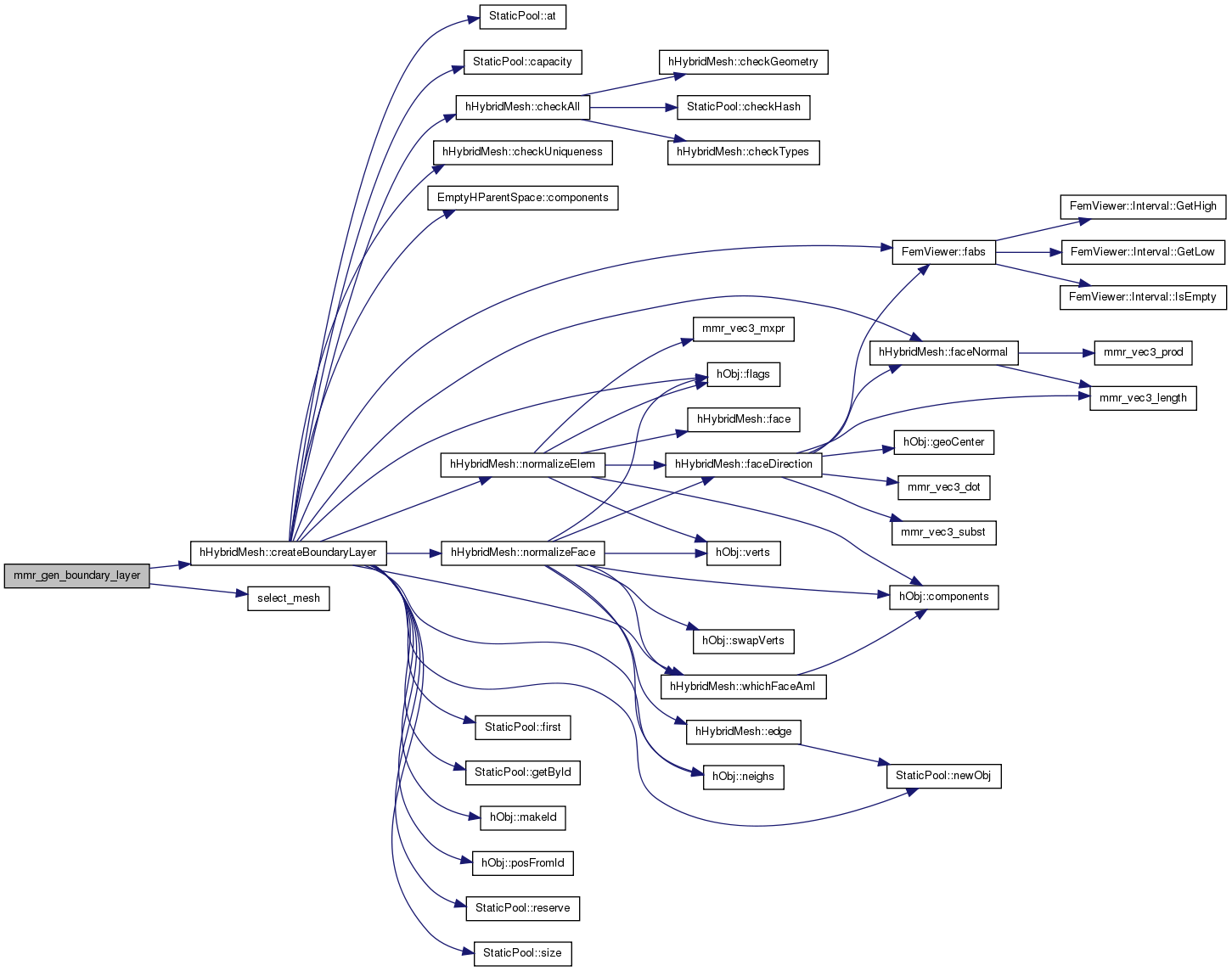

int mmr_gen_boundary_layer	(	int	Mesh_id,
		int	Bc,
		int	thicknessProc,
		int	noLayers,
		int	distribuiton,
		double *	ignoreVect
	)

----------------------------------------------------------- mmr_gen_boundary_layer - to generate boundary layer (for tetrahedral meshes only) ------------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	Bc	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	thicknessProc	in: boundary conditon ID or -1 (MMC_DO_UNI_REF) for uniform refinement

Here is the call graph for this function:

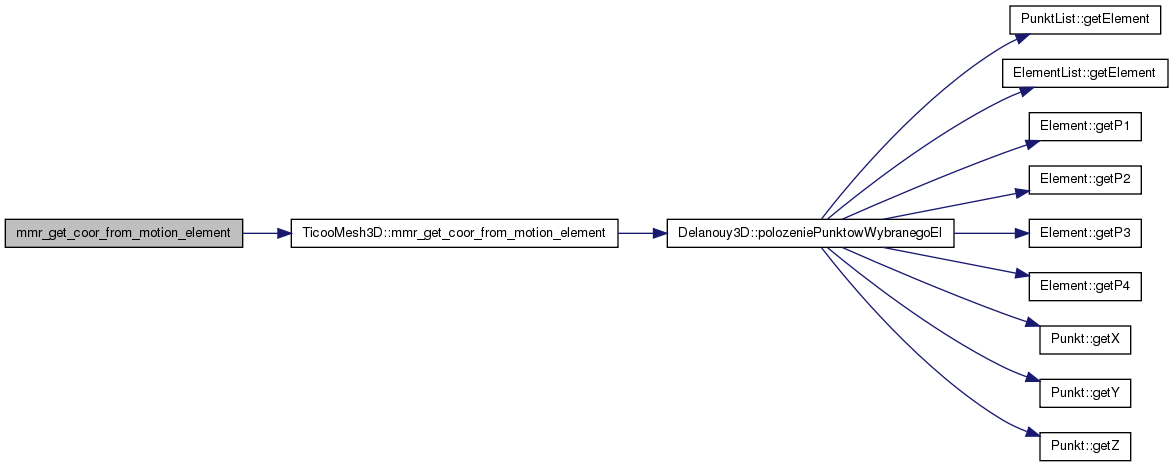

void mmr_get_coor_from_motion_element	(	const int	Mesh_id,
		int	idEl,
		int	idLP,
		double *	coor,
		int	flagaSiatki
	)

Here is the call graph for this function:

double mmr_get_el_dist2boundary	(	const int	Mesh_id,
		const int	El_id,
		const double *	Coord
	)

-------------------------------------------------------- mmr_get_el_dist2boundary - to return approx distance from point within element to nearst boundary ---------------------------------------------------------

Parameters:

Mesh_id

returns: dist>=0.0 <0 - "far far away from boundary" code

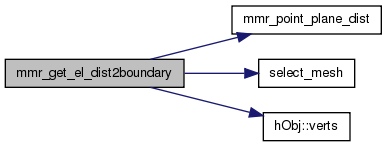

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_get_fa_el_bc_connect	(	const int	Mesh_id,
		int	face_id,
		int *	el_id
	)

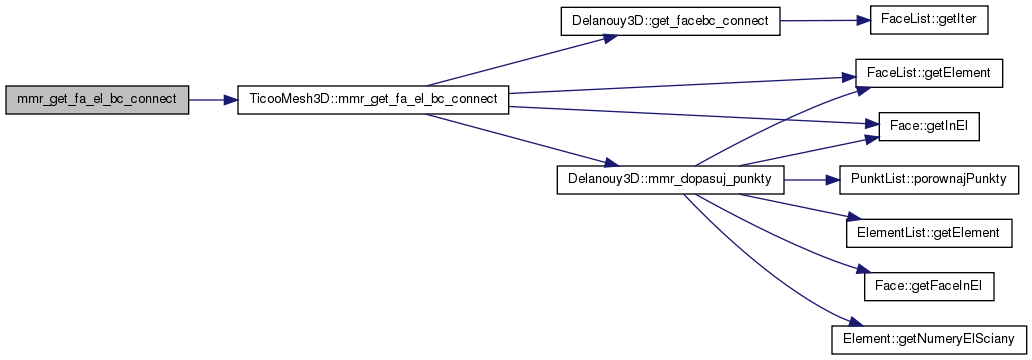

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_get_max_edge_id ( int Mesh_id )

-------------------------------------------------------- mmr_get_max_edge_id - to return the maximal edge id ---------------------------------------------------------

Parameters:

Mesh_id

returns: >=0 - maximal edge id <0 - error code in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_get_max_edge_max ( int Mesh_id )

-------------------------------------------------------- mmr_get_max_edge_max - to return the maximal possible edge id ---------------------------------------------------------

Parameters:

Mesh_id

returns: >=0 - maximal possible edge id <0 - error code in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh

Here is the call graph for this function:

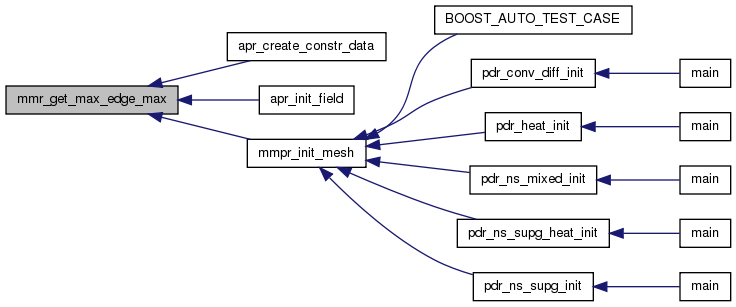

Here is the caller graph for this function:

int mmr_get_max_elem_id ( int Mesh_id )

-------------------------------------------------------- mmr_get_max_elem_id - to return the maximal element id ---------------------------------------------------------

Parameters:

Mesh_id

returns: >=0 - maximal element id <0 - error code in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh

Here is the call graph for this function:

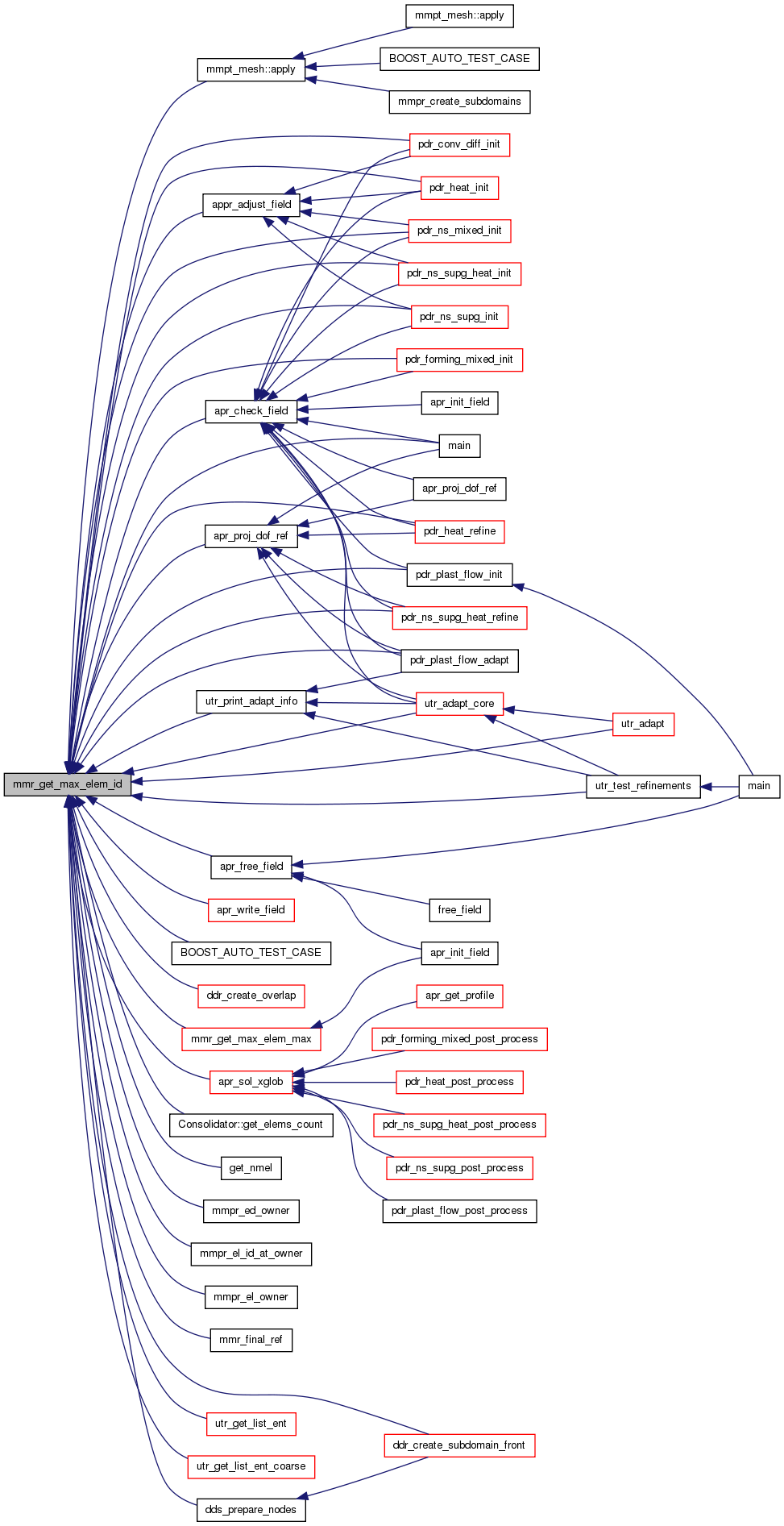

Here is the caller graph for this function:

int mmr_get_max_elem_max ( int Mesh_id )

-------------------------------------------------------- mmr_get_max_elem_max - to return the maximal possible elem id ---------------------------------------------------------

Parameters:

Mesh_id

returns: >=0 - maximal possible elem id <0 - error code in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_get_max_face_id ( int Mesh_id )

-------------------------------------------------------- mmr_get_max_face_id - to return the maximal face id ---------------------------------------------------------

Parameters:

Mesh_id

returns: >=0 - maximal face id <0 - error code in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh

Here is the call graph for this function:

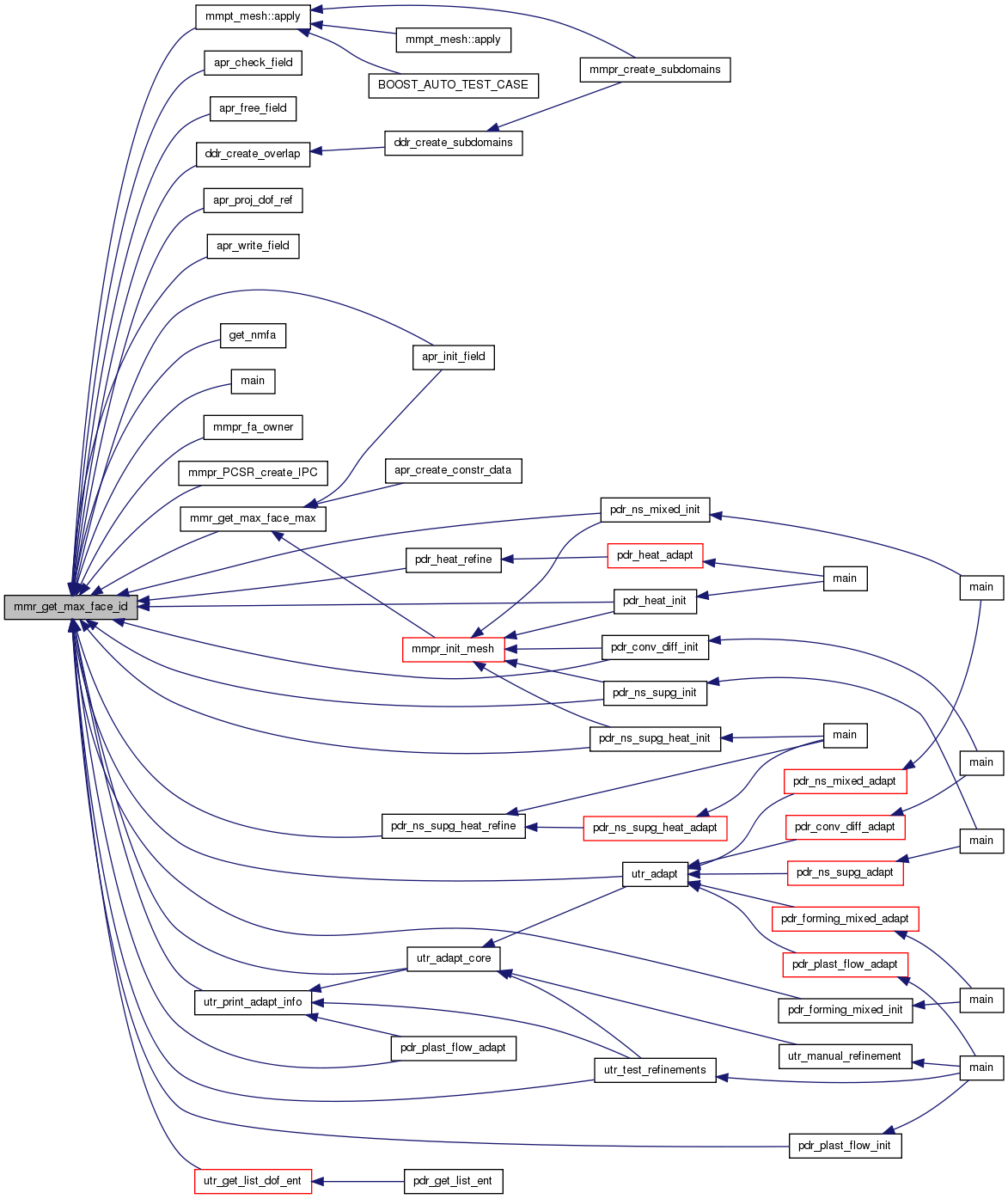

Here is the caller graph for this function:

int mmr_get_max_face_max ( int Mesh_id )

-------------------------------------------------------- mmr_get_max_face_max - to return the maximal possible face id ---------------------------------------------------------

Parameters:

Mesh_id

returns: >=0 - maximal possible face id <0 - error code in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_get_max_gen ( int Mesh_id )

-------------------------------------------------------- mmr_get_max_gen - to get maximal allowed generation level for elements ------------------------------------------------------------

Parameters:

Mesh_id

returns: >=0 - maximal generation, <0-error code in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh

Here is the call graph for this function:

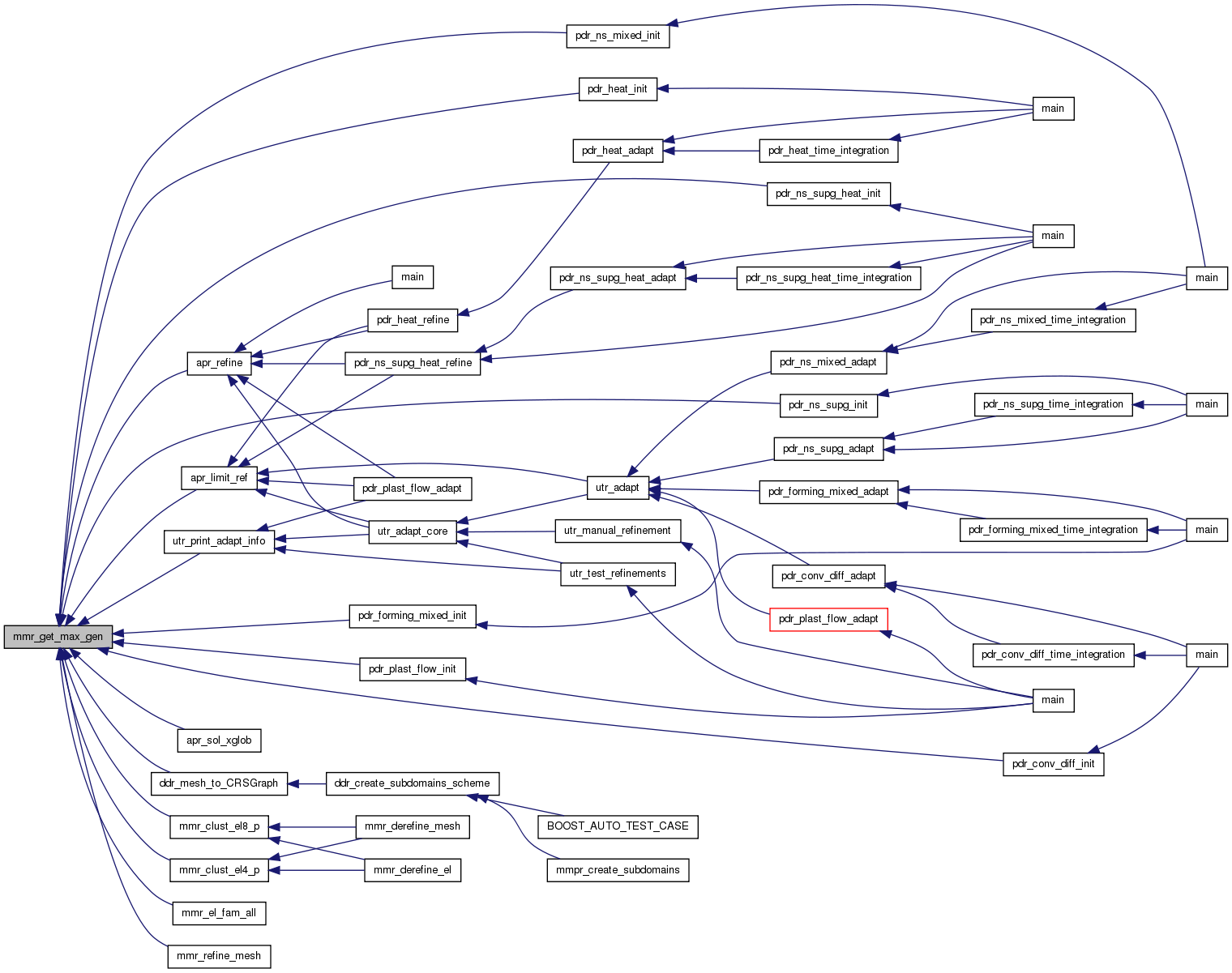

Here is the caller graph for this function:

int mmr_get_max_gen_diff ( int Mesh_id )

-------------------------------------------------------- mmr_get_max_gen_diff - to get maximal allowed generation difference between neighboring elements ------------------------------------------------------------

Parameters:

Mesh_id

returns: >=0 - maximal generation difference, <0 - error code in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_get_max_node_id ( int Mesh_id )

-------------------------------------------------------- mmr_get_max_node_id - to return the maximal node id ---------------------------------------------------------

Parameters:

Mesh_id

returns: >=0 - maximal node id <0 - error code in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_get_max_node_max ( int Mesh_id )

-------------------------------------------------------- mmr_get_max_node_max - to return the maximal possible vertex id ---------------------------------------------------------

Parameters:

Mesh_id

returns: >=0 - maximal possible vertex id <0 - error code in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh

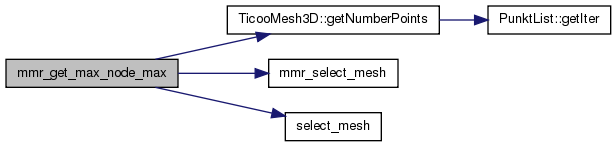

Here is the call graph for this function:

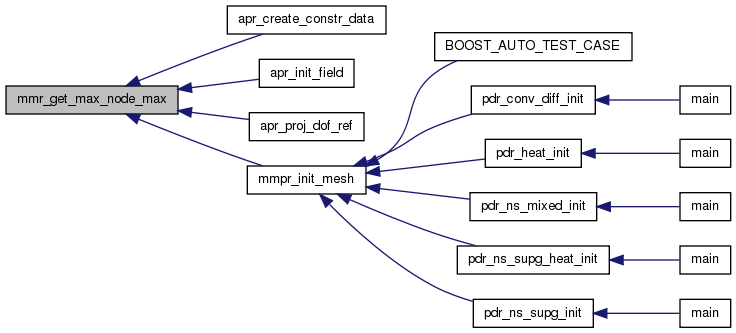

Here is the caller graph for this function:

int mmr_get_next_act_elem	(	int	Mesh_id,
		int	Nel
	)

-------------------------------------------------------- mmr_get_next_act_elem - to return the next active element id ---------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - the next active element ID (0 - input is the last element) <0 - error code
	Nel	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh in: input element (0 - return first active element)

Here is the call graph for this function:

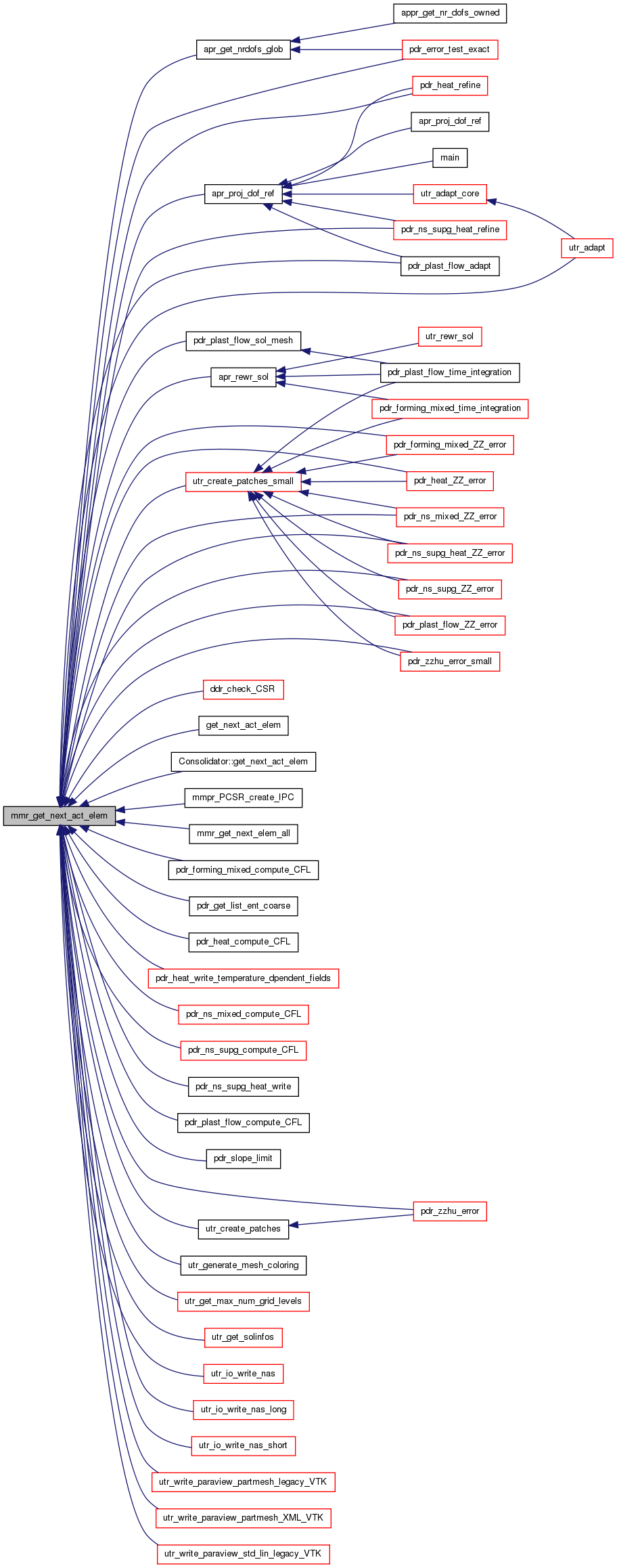

Here is the caller graph for this function:

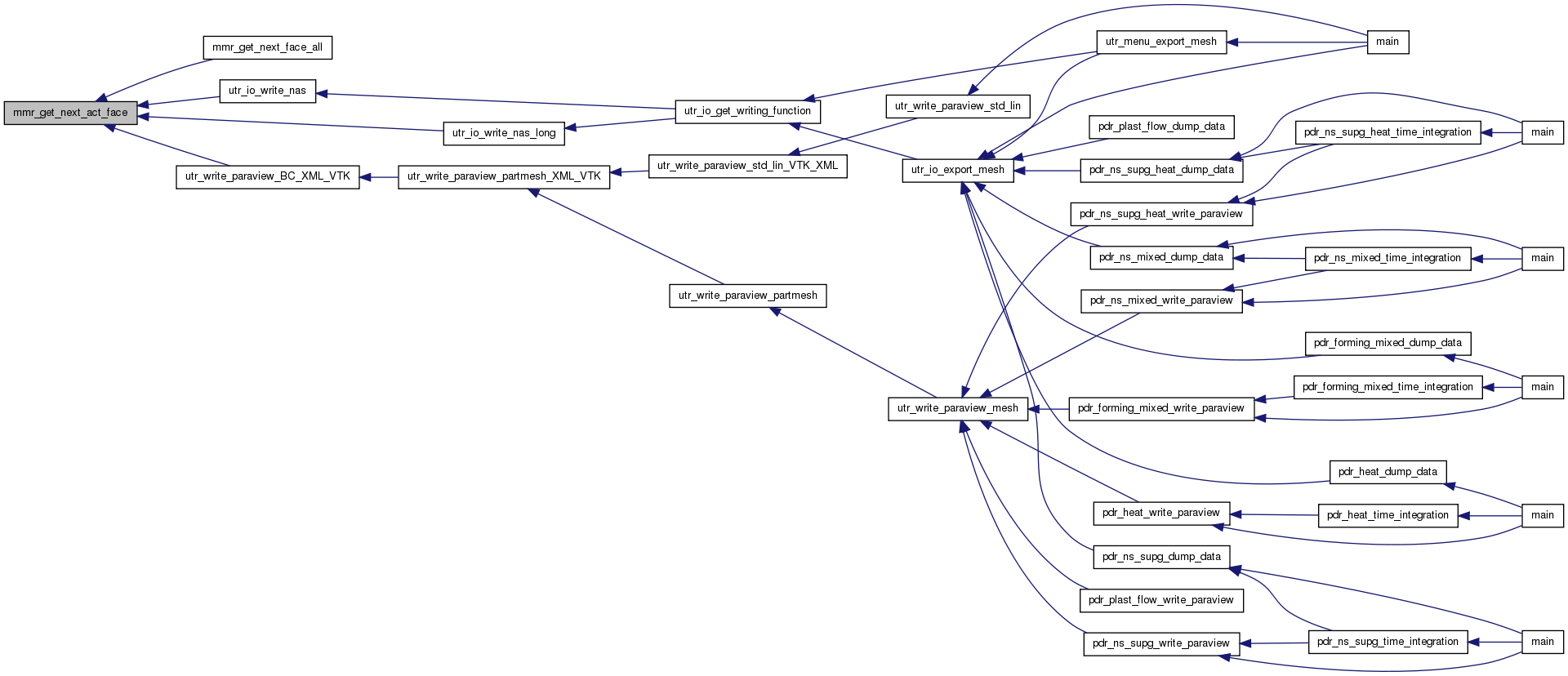

int mmr_get_next_act_face	(	int	Mesh_id,
		int	Nfa
	)

-------------------------------------------------------- mmr_get_next_act_face - to return the next active face id ---------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - ID of the next active face (0 - input is the last face) <0 - error code
	Nfa	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh in: input face (0 - return first active face)

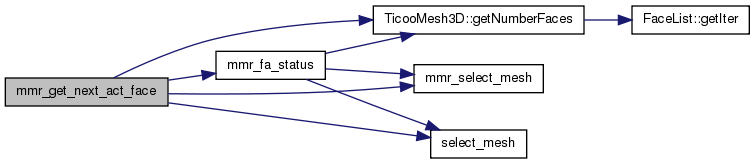

Here is the call graph for this function:

Here is the caller graph for this function:

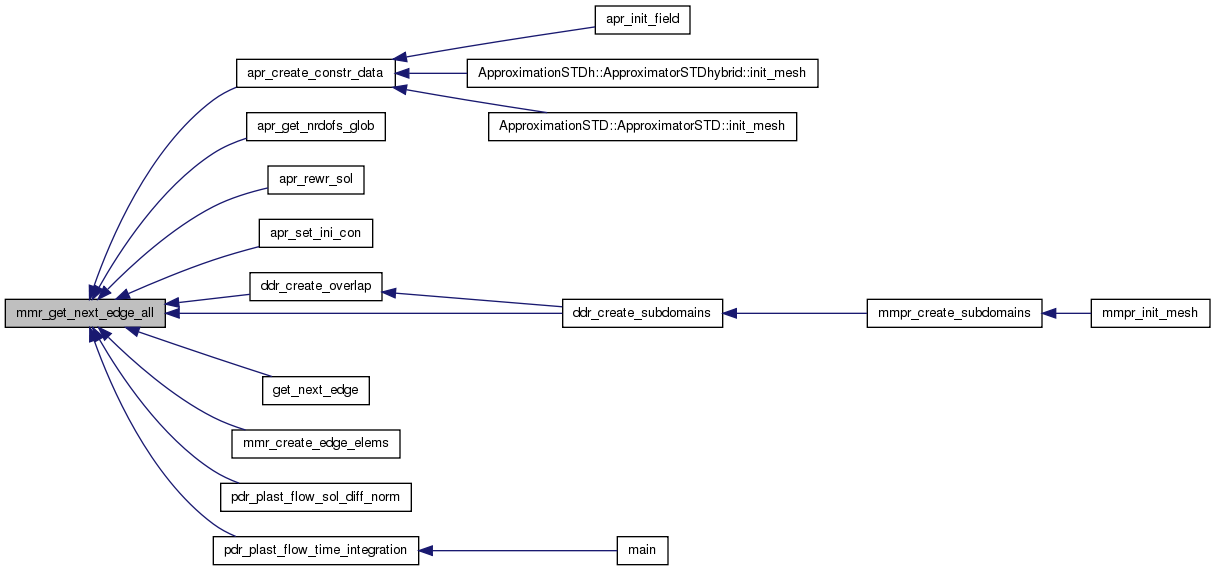

int mmr_get_next_edge_all	(	int	Mesh_id,
		int	Ned
	)

-------------------------------------------------------- mmr_get_next_edge_all - to return the next edgeent id (active or inactive) ---------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - ID of the next edge (0 - input is the last edge) <0 - error code
	Ned	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh in: input edge (0 - return first edge)

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_get_next_elem_all	(	int	Mesh_id,
		int	Nel
	)

-------------------------------------------------------- mmr_get_next_elem_all - to return the next element id (active or inactive) ---------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - ID of the next element (0 - input is the last element) <0 - error code
	Nel	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh in: input element (0 - return first element)

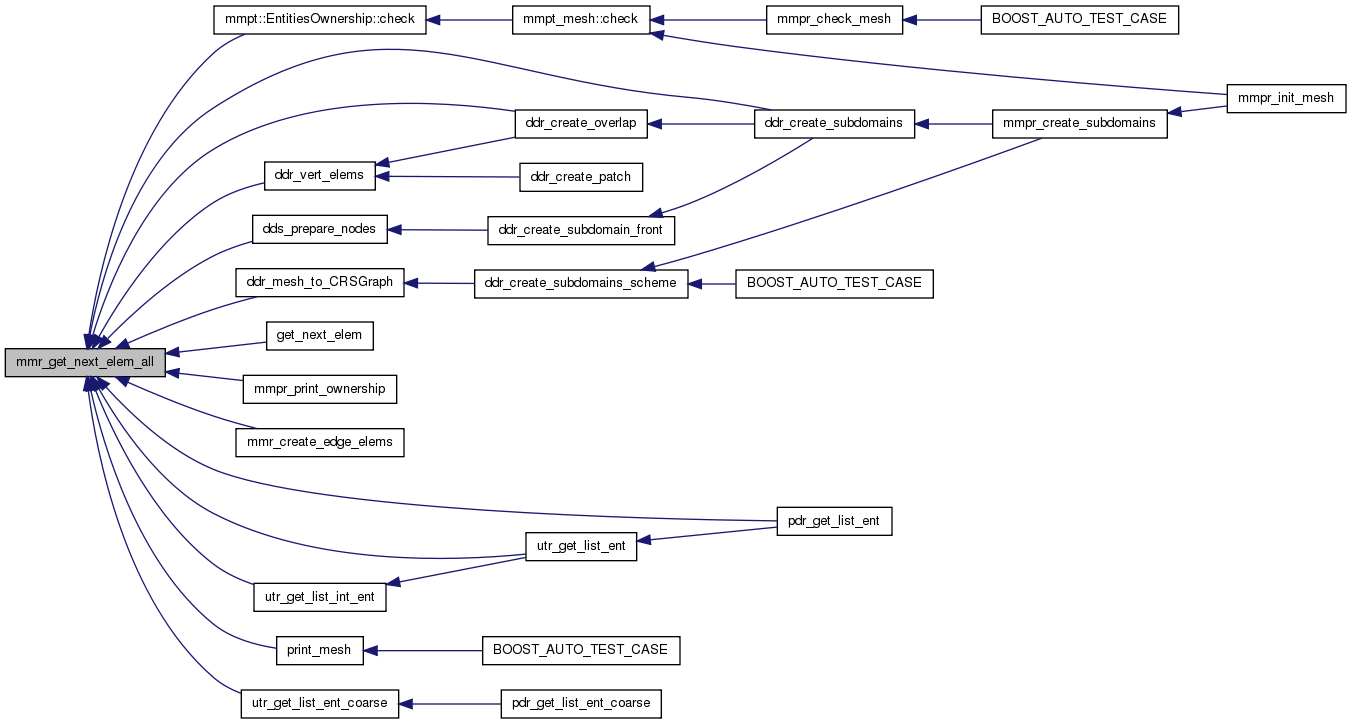

Here is the call graph for this function:

Here is the caller graph for this function:

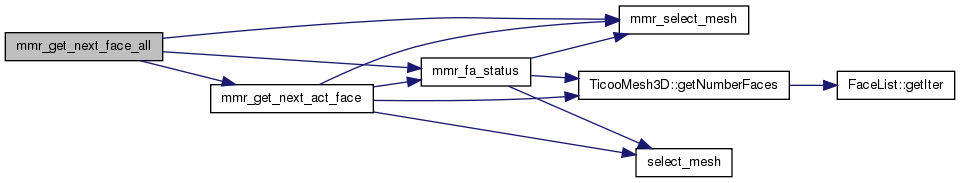

int mmr_get_next_face_all	(	int	Mesh_id,
		int	Nfa
	)

-------------------------------------------------------- mmr_get_next_face_all - to return the next face id (active or inactive) ---------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - ID of the next face (0 - input is the last face) <0 - error code
	Nfa	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh in: input face (0 - return first face)

Here is the call graph for this function:

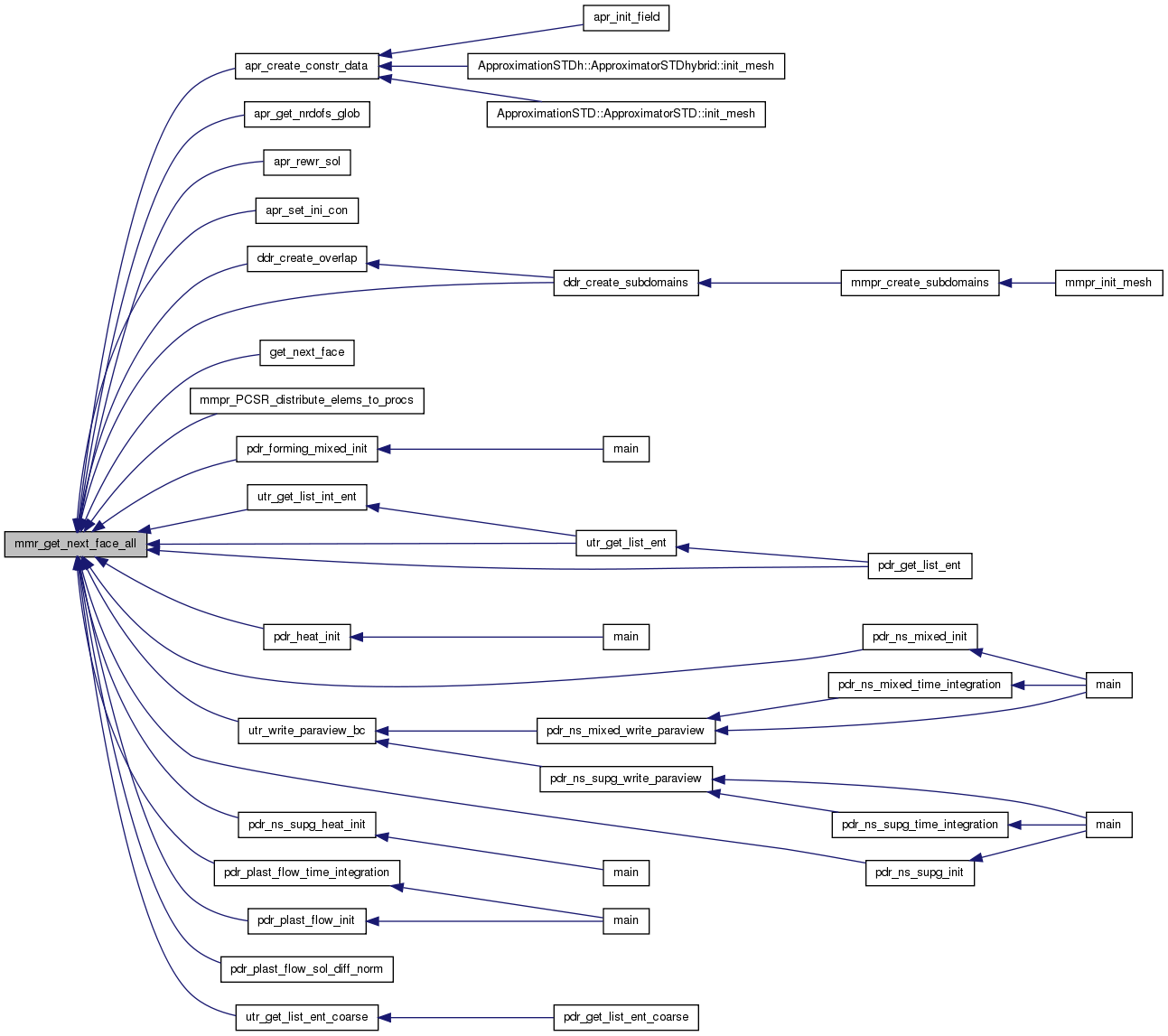

Here is the caller graph for this function:

int mmr_get_next_node_all	(	int	Mesh_id,
		int	Nno
	)

-------------------------------------------------------- mmr_get_next_node_all - to return the next node id (active or inactive) ---------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - ID of the next node (0 - input is the last node) <0 - error code
	Nno	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh in: input node (0 - return first node)

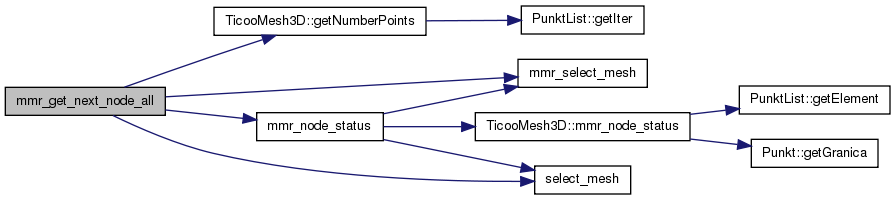

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_get_nr_edge ( int Mesh_id )

-------------------------------------------------------- mmr_get_nr_edge - to return the number of active edges ---------------------------------------------------------

Parameters:

Mesh_id

returns: >=0 - number of active edges, <0 - error code in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh

Here is the call graph for this function:

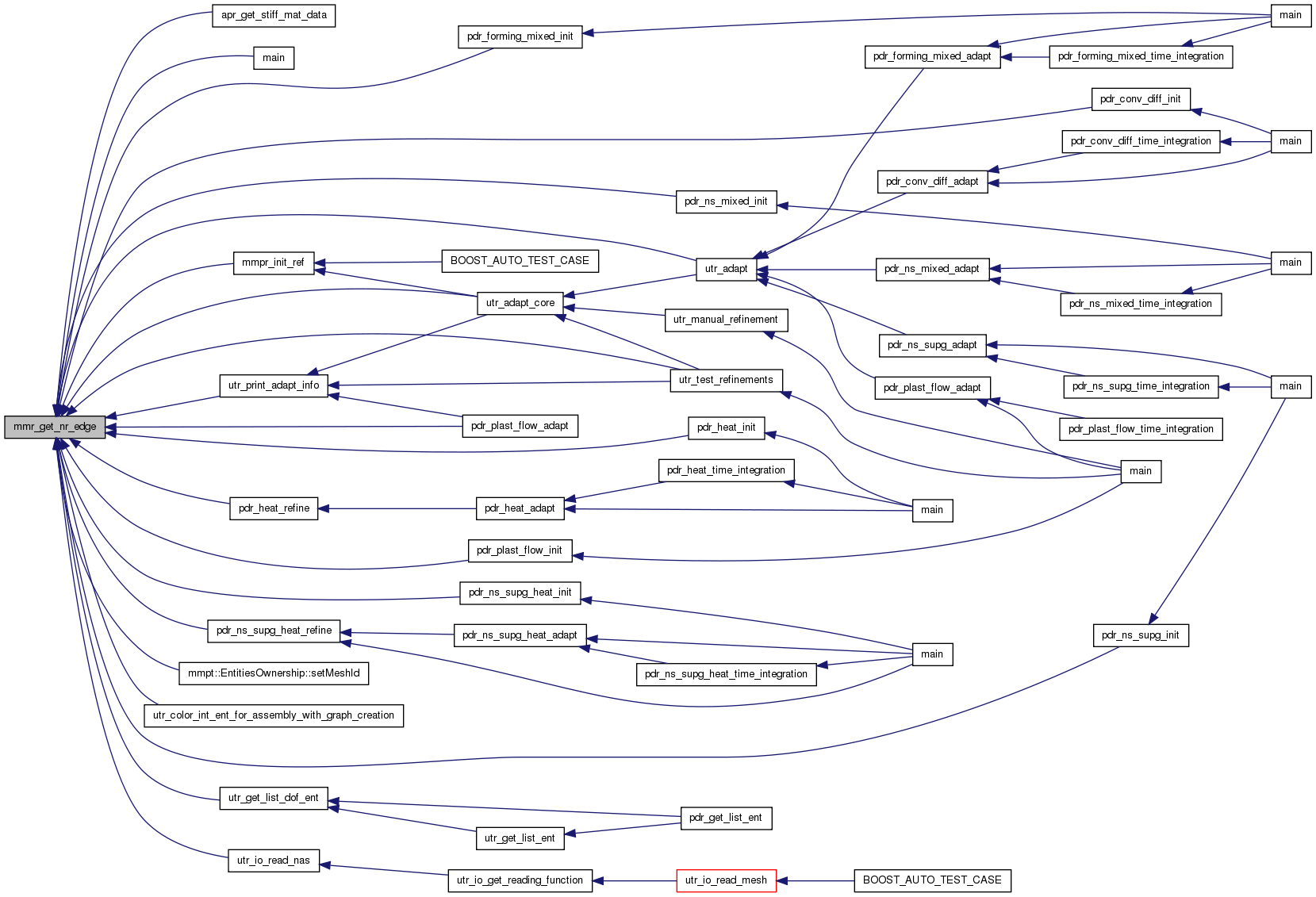

Here is the caller graph for this function:

int mmr_get_nr_elem ( int Mesh_id )

-------------------------------------------------------- mmr_get_nr_elem - to return the number of active elements ---------------------------------------------------------

Parameters:

Mesh_id

returns: >=0 - number of active elements, <0 - error code in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_get_nr_face ( int Mesh_id )

-------------------------------------------------------- mmr_get_nr_face - to return the number of active faces ---------------------------------------------------------

Parameters:

Mesh_id

returns: >=0 - number of active faces, <0 - error code in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_get_nr_node ( int Mesh_id )

-------------------------------------------------------- mmr_get_nr_node - to return the number of active nodes ---------------------------------------------------------

Parameters:

Mesh_id

returns: >=0 - number of active nodes, <0 - error code in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh

Here is the call graph for this function:

Here is the caller graph for this function:

void mmr_get_vec_norm_at_node	(	const int	Mesh_id,
		int	node_id,
		double *	vec_norm
	)

mmr_get_fa_el_bc_connect

Parameters:

	face_id
	el_id	out: [0][1][2] - number of correspoding gauss points on the other (contact) 'connected face' [3] - id of neighbouring element with face 'face_id' [4] - id of the other element on the other side of 'connected face'

Returns:: 0 if normal bc else return 'connected face_id'

Here is the call graph for this function:

int mmr_groups_ids	(	const int	Mesh_id,
		int *	tab,
		int	l_tab
	)

Here is the call graph for this function:

int mmr_groups_number ( const int Mesh_id )

*------------------------------------------------------------

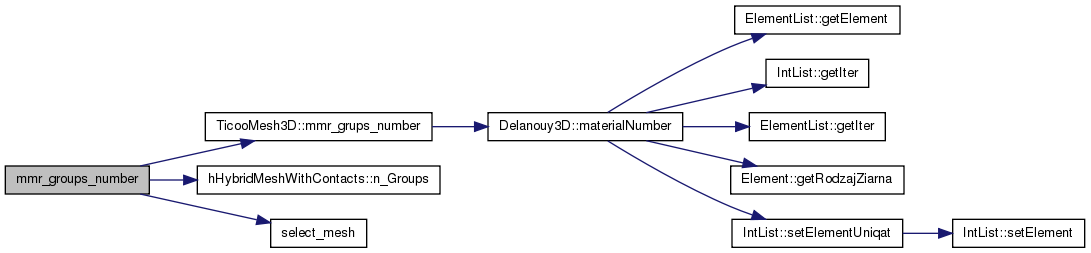

Here is the call graph for this function:

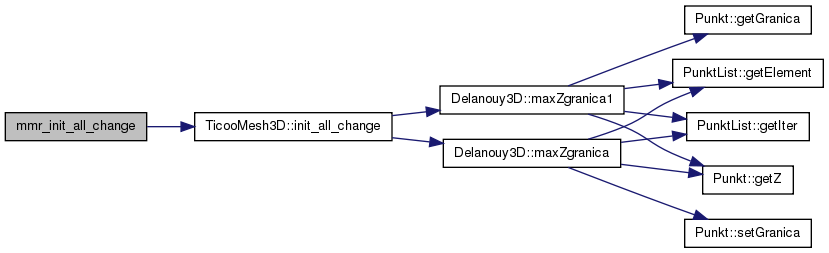

void mmr_init_all_change	(	const int	Mesh_id,
		int	a
	)

----------------------------------------------------------- mmr_test_mesh_motion - test movement mesh ------------------------------------------------------------

Here is the call graph for this function:

int mmr_init_dist2bound	(	const int	Mesh_id,
		const int *	BCs,
		const int	nBCs
	)

-------------------------------------------------------- mmr_init_dist2boundary - to return distance from given vertex to nearst boundary ---------------------------------------------------------

Here is the call graph for this function:

Here is the caller graph for this function:

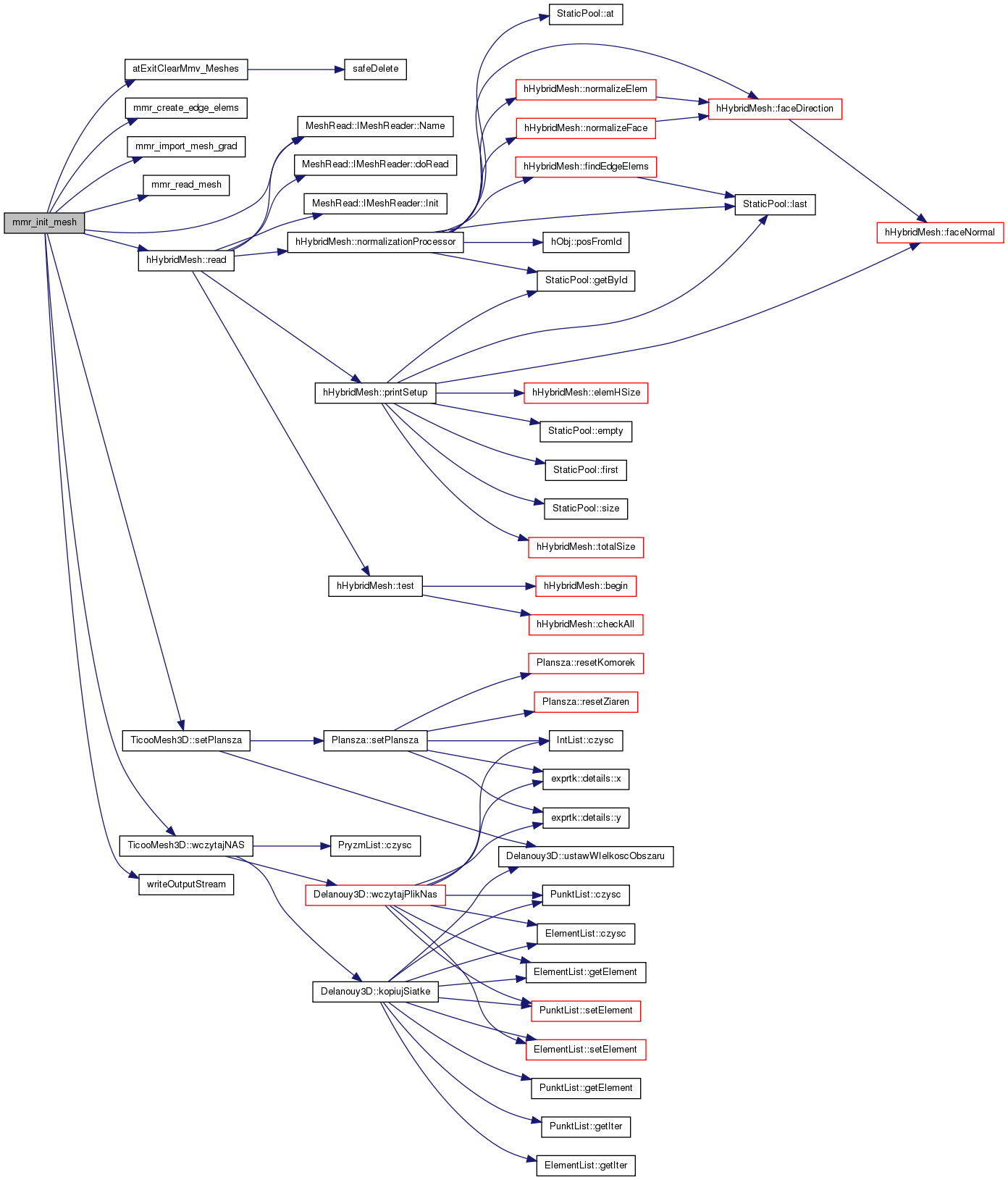

int mmr_init_mesh	(	int	Control,
		char *	Filename,
		FILE *	interactive_output
	)

----------------------------------------------------------- mmr_init_mesh - to initialize the mesh data structure (and read data) ------------------------------------------------------------

switch(Control)

Parameters:

	Control	returns: >0 - Mesh ID, <0 - error code
	Filename	in: control variable to choose data format MMC_MOD_FEM_MESH_DATA = 1 - mesh read from dump files MMC_GRADMESH_DATA = 2 - mesh produced by 2D GRADMESH mesh generator
	interactive_output	in: name of the file to read mesh data

Here is the call graph for this function:

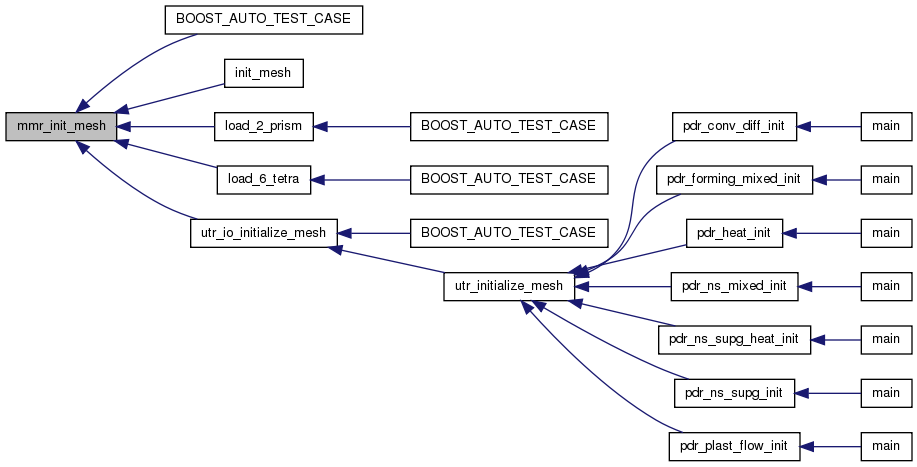

Here is the caller graph for this function:

int mmr_init_mesh2	(	FILE *	Interactive_output,
		const int	N_nodes,
		const int	N_edges,
		const int	N_faces,
		const int	N_elems
	)

Parameters:

Interactive_output

returns: >0 - Mesh ID, <0 - error code

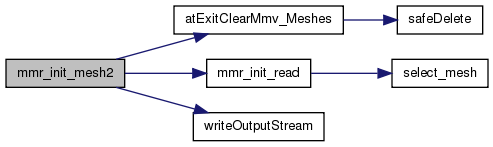

Here is the call graph for this function:

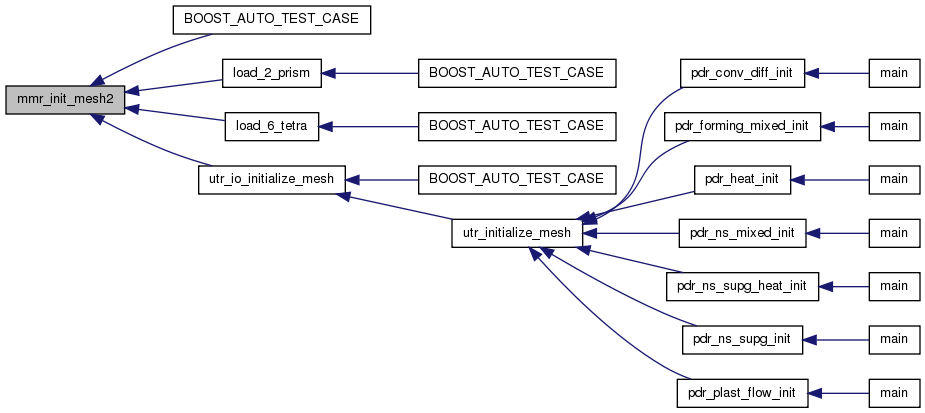

Here is the caller graph for this function:

int mmr_init_read	(	const int	Mesh_id,
		const int	N_nodes,
		const int	N_edges,
		const int	N_faces,
		const int	N_elems
	)

--------------------------------------------------------- mmr_init_read - to inform mesh module about new target number of elems,faces,edges and nodes ------------------------------------------------------------ NOTE: this is NOT a resize function. It does NOT ADD/REMOVE any elements. It only reserves resources. To add mesh entities use mmr_add_* functions. ---------------------------------------------------------

Parameters:

	N_nodes	IN: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	N_edges	IN: target count of nodes
	N_faces	IN: target count of edges
	N_elems	IN: target count of facesIN: target count of elements

Here is the call graph for this function:

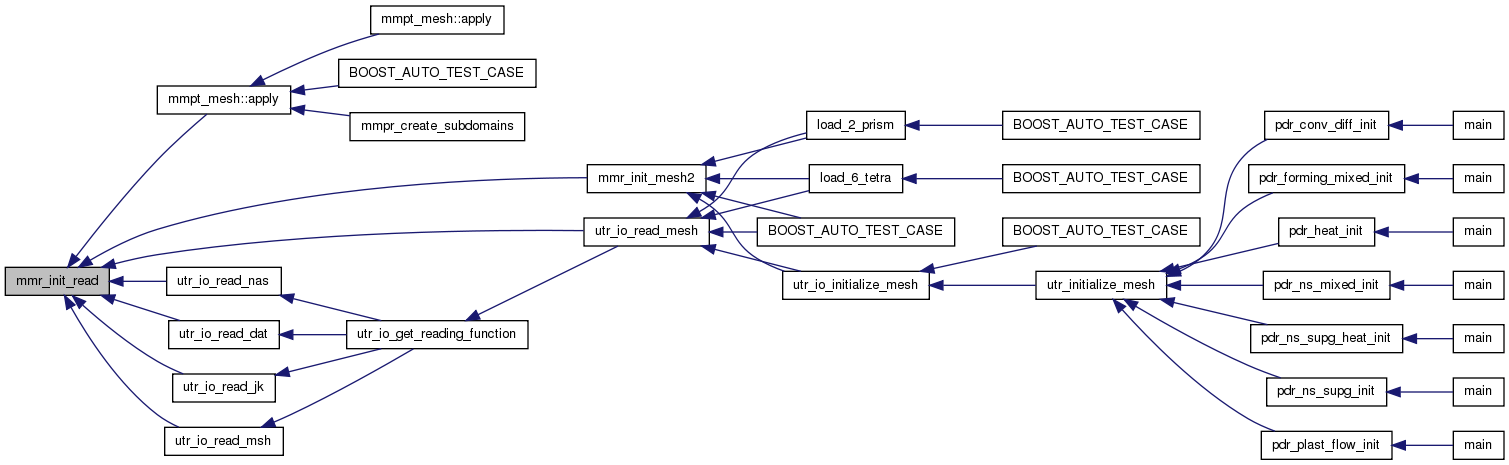

Here is the caller graph for this function:

int mmr_init_ref ( int Mesh_id )

----------------------------------------------------------- mmr_init_ref - to initialize the process of refinement ------------------------------------------------------------

Parameters:

Mesh_id

returns: >=0 - success code, <0 - error code in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_is_ready_for_proj_dof_ref ( int Mesh_id )

----------------------------------------------------------- mmr_is_ready_for_proj_dof_ref - to check if mesh module is ready for dofs projection ------------------------------------------------------------

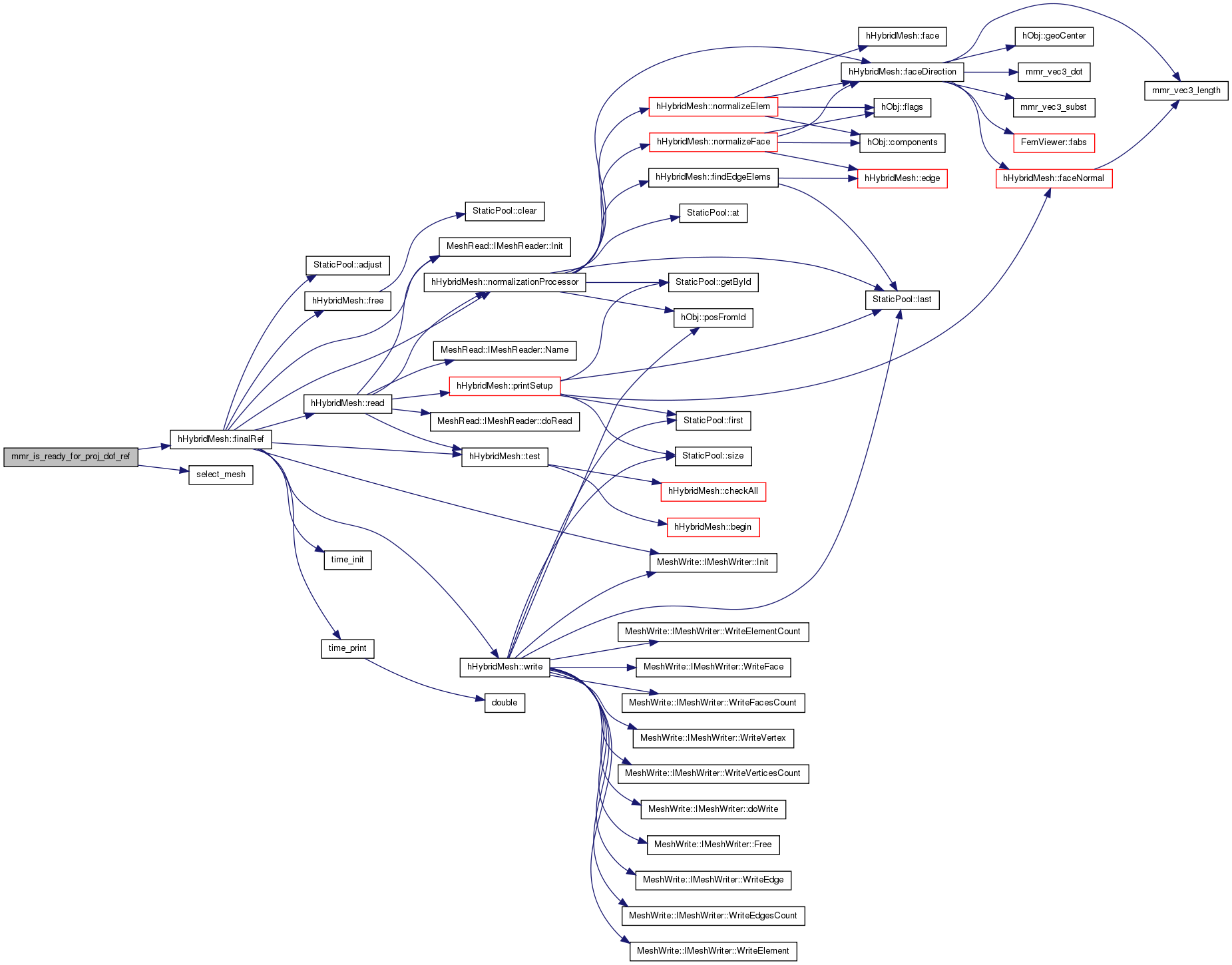

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_loc_loc	(	int	Mesh_id,
		int	El_from,
		double *	X_from,
		int	El_to,
		double *	X_to
	)

-------------------------------------------------------- mmr_loc_loc - to compute local coordinates within an element, given local coordinates within an element of the same family ---------------------------------------------------------

Parameters:

	Mesh_id	returns: 1 - success, 0 - failure
	El_from	in: field ID
	X_from	in: element number
	El_to	in: local element coordinates
	X_to	in: another element number out: local another element coordinates

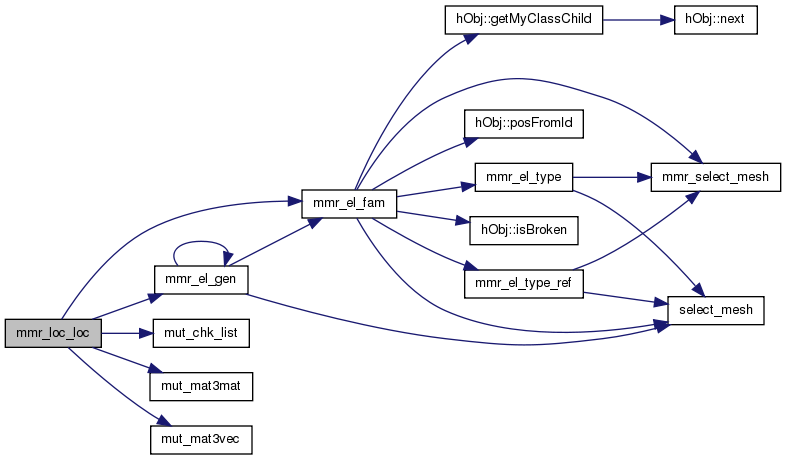

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_mesh_i_params	(	int	Mesh_id,
		int	Num
	)

-------------------------------------------------------- mmr_mesh_i_params - to return mesh parameters ---------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - integer mesh parameter, <0 - error code
	Num	in: pointer to the mesh data structure in: parameter number in control structure

Here is the call graph for this function:

void* mmr_module_internals ( int Mesh_id )

----------------------------------------------------------- mmr_module_internals - to return the mesh internal structures ------------------------------------------------------------

Parameters:

Mesh_id

returns: >=0 - success code, <0 - error code out: the name of the mesh

Here is the caller graph for this function:

int mmr_module_introduce ( char * Mesh_name )

Declarations of interface routines: ----------------------------------------------------------- mmr_module_introduce - to return the mesh name ------------------------------------------------------------

Parameters:

Mesh_name

returns: >=0 - success code, <0 - error code out: the name of the mesh

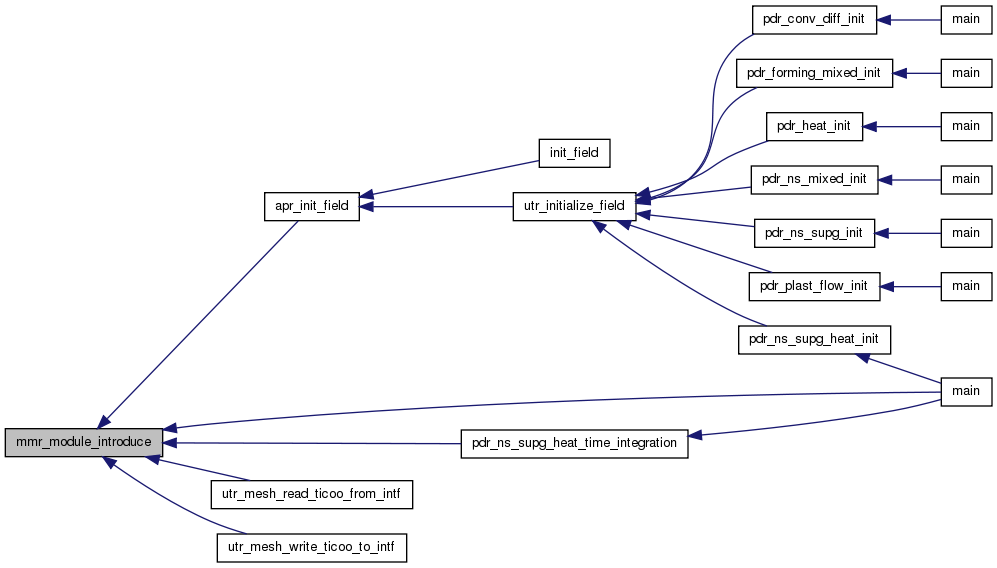

Here is the caller graph for this function:

int mmr_move_node	(	int	Mesh_id,
		int	Node,
		double *	Dx
	)

Here is the call graph for this function:

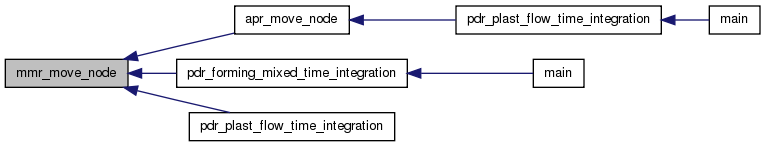

Here is the caller graph for this function:

int mmr_node_coor	(	int	Mesh_id,
		int	Node,
		double *	Coor
	)

-------------------------------------------------------- mmr_node_coor - to return node coordinates ---------------------------------------------------------

Parameters:

	Mesh_id	returns success (>=0) or error (<0) code
	Node	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Coor	in: node ID out: coordinates

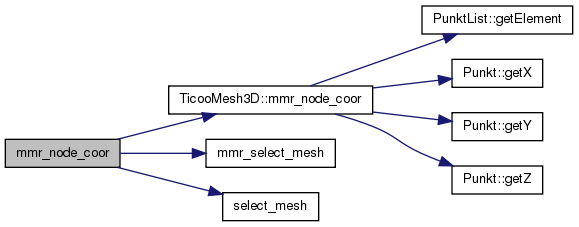

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_node_status	(	int	Mesh_id,
		int	Node
	)

-------------------------------------------------------- mmr_node_status - to return node status (active, inactive, free space) ---------------------------------------------------------

Parameters:

	Mesh_id	returns node status: +1 (MMC_ACTIVE) - active node 0 (MMC_FREE) - free space
	Node	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh in: node ID

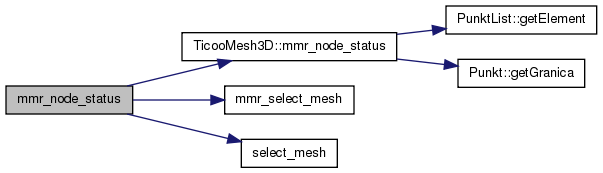

Here is the call graph for this function:

Here is the caller graph for this function:

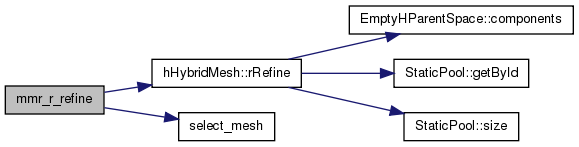

int mmr_r_refine	(	int	Mesh_id,
		int	Bc,
		void()(double x, double y, double z)	reallocation_func
	)

----------------------------------------------------------- mmr_r_refine - to r-refine an elements with given boundary condition ------------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	Bc	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	reallocation_func	in: boundary conditon ID or -1 (MMC_DO_UNI_REF) for uniform refinement function moving to new position

Here is the call graph for this function:

int mmr_refine_el	(	int	Mesh_id,
		int	El
	)

----------------------------------------------------------- mmr_refine_el - to refine an element WITHOUT IRREGULARITY CHECK ------------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	El	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh in: element ID

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_refine_mesh ( int Mesh_id )

----------------------------------------------------------- mmr_refine_mesh - to refine the WHOLE mesh WITHOUT IRREGULARITY CHECK ------------------------------------------------------------

Parameters:

Mesh_id

returns: >=0 - success code, <0 - error code in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_set_edge_fam	(	int	Mesh_id,
		int	Edge_id,
		int	Son1,
		int	Son2
	)

-------------------------------------------------------- mmr_set_edge_fam - to set family data for an edge ---------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	Edge_id	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Son1	in: edge ID
	Son2	in: first son ID in: second son ID

Here is the call graph for this function:

int mmr_set_edge_type	(	int	Mesh_id,
		int	Edge_id,
		int	Type
	)

-------------------------------------------------------- mmr_set_edge_type - to set type for an edge ---------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	Edge_id	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Type	in: edge ID in: edge type (the number of attempted subdivisions !!!)

Here is the call graph for this function:

int mmr_set_elem_fam	(	int	Mesh_id,
		int	Elem_id,
		int	Fath,
		int *	Sons
	)

-------------------------------------------------------- mmr_set_elem_fam - to set family data for an elem ---------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	Elem_id	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Fath	in: elem ID
	Sons	in: father ID in: sons IDs

Here is the call graph for this function:

int mmr_set_elem_fath	(	int	Mesh_id,
		int	Elem_id,
		int	Fath
	)

-------------------------------------------------------- mmr_set_elem_fath - to set family data for an elem ---------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	Elem_id	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Fath	in: elem ID in: father ID

Here is the call graph for this function:

int mmr_set_face_fam	(	int	Mesh_id,
		int	Face_id,
		int *	Sons
	)

-------------------------------------------------------- mmr_set_face_fam - to set family data for an face ---------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	Face_id	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Sons	in: face ID in: sons IDs

Here is the call graph for this function:

int mmr_set_face_neig	(	int	Mesh_id,
		int	Face_id,
		int	Neig1,
		int	Neig2,
		int	Neig1Type,
		int	Neig2Type
	)

-------------------------------------------------------- mmr_set_face_neig - to set neighbors data for a face ---------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0 - success code, <0 - error code
	Face_id	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh
	Neig1	in: face ID
	Neig2	in: first neig ID
	Neig1Type	in: second neig ID
	Neig2Type	in: first neig type in: second neig type

Here is the call graph for this function:

int mmr_set_max_gen	(	int	Mesh_id,
		int	Max_gen
	)

-------------------------------------------------------- mmr_set_max_gen - to set maximal allowed generation level for elements ------------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0-success code, <0-error code
	Max_gen	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh in: maximal generation difference

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_set_max_gen_diff	(	int	Mesh_id,
		int	Max_gen_diff
	)

-------------------------------------------------------- mmr_set_max_gen_diff - to set maximal allowed generation difference between neighboring elements ------------------------------------------------------------

Parameters:

	Mesh_id	returns: >=0-success code, <0-error code
	Max_gen_diff	in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh in: maximal generation difference

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_set_node_coor	(	int	Mesh_id,
		int	Node,
		double *	Xcoor
	)

Here is the call graph for this function:

Here is the caller graph for this function:

int mmr_test_mesh ( int Mesh_id )

-------------------------------------------------------- mmr_test_mesh - to test the integrity of mesh data ---------------------------------------------------------

Parameters:

Mesh_id

returns: >=0 - success code, <0 - error code in: mesh ID or 0 (MMC_CUR_MESH_ID) for the current mesh

Here is the call graph for this function:

Here is the caller graph for this function:

void mmr_test_mesh_motion	(	const int	Mesh_id,
		int	ileWarstw,
		int	obecny_krok,
		int	od_krok,
		int	ileKrok,
		double	minPoprawy,
		double	px0,
		double	py0,
		double	pz0,
		double	px1,
		double	py1,
		double	pz1,
		double	endX,
		double	endY,
		double	endZ
	)

Here is the call graph for this function:

double mmr_test_weldpool	(	const int	Mesh_id,
		double	obecnyKrok,
		double	krok_start,
		double	minPoprawy,
		double	doX,
		double	doY,
		double	dl,
		double	zmiejszaPrzes,
		double	limit,
		double	szerokosc
	)
