Materials Utilities
[Utilities]

Collaboration diagram for Materials Utilities:

Classes
struct	utt_material_data
struct	utt_material_query_params
struct	utt_material_query_result
	Result of the utr_material_query . NOTE: if parameter is required, it have to be set to UTC_MAT_QUERY_RESULT_REQUIRED before executing utr_material_query !. By default all parameters are set to UTC_MAT_QUERY_RESULT_NOT_NEEDED. More...
Defines
#define	UTC_MAT_QUERY_RESULT_NOT_NEEDED   -1.0
	Used to indicate not needed parameters in utt_material_query_result .
#define	UTC_MAT_QUERY_RESULT_REQUIRED   -3.0
	Used to indicate required parameters in utt_material_query_result .
Enumerations
enum	utt_query_type { QUERY_NODE, QUERY_POINT }
enum	utt_is_fluid { NOT_FLUID = 0, FLUID = 1 }
enum	ute_mat_groupID_flag { UTE_GROUP_ID_NOT_ASSIGNED = -1, UTE_GROUP_ID_DEFAULT_BLOCK = 1 }
	For the purpose of backward-compatibility and support of auto-assigning to groups, a few additional flags are provided. More...
enum	ute_mat_read_result { UTE_SUCCESS = EXIT_SUCCESS, UTE_FAIL = -1, UTE_REF_TEMP_MUST_BE_GEQ_ZERO = -2, UTE_NOT_NEED_MATERIAL_DATABASE = 1 }
Functions
ute_mat_read_result	utr_mat_read (const char *Work_dir, const char *Filename, FILE *Interactive_output)
void	utr_mat_init_query_result (utt_material_query_result *result)
int	utr_material_query (const utt_material_query_params *Params, utt_material_query_result *Result)
	Main function for queering for material data.
int	utr_mat_get_matID (int groupID)
	To get material number associated with given element group number.
int	utr_mat_get_n_materials ()
	To get total number of materials in current database.
int	utr_mat_get_materials_IDs (int *materialIDs)
	utr_mat_get_materials_IDs To get array of all known materialIDs
void	utr_mat_clear_material (utt_material_data *mat)
	To permanently delete stored material and free resources.
void	utr_mat_clear_all ()
	To permanently delete all stored materials.
const utt_material_data *	utr_mat_get_material (const int groupID)
	To gain access to raw material data. NOTE: this is NOT the same as calling utr_material_query !
const utt_material_data *	utr_mat_get_material_by_matID (int matID)
	To gain access to raw material data. NOTE: this is NOT the same as calling utr_material_query !
Variables
const char *	utc_mat_database_filename

---

Detailed Description

The materials in ModFEM are defined as stucture of different material properties . The materials submodule of the utilities module is responsible for reading the material file(s) and providing access to the exisiting database . The default and preferred way of accessing the materials is to make use of material query function with groupID as a parameter.

The correct way of using the material database is as follows:

At program initialisation: 1. Read the material file(s) at least once.

• the main material base will be automaticly read
• provided material file should contain information about group-to-material and group-to-block information. example blocks with those informations could look like this:

group_to_materials_assignment: ( { material_number = 10; groups = (15,11); }, { material_number = 5; groups = ( 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 ); });

During computations: 2. Get the groupID of the element you are analysing. 3. Create structure with params of the material query.

• obligatory paramteres are: + groupID of the element you are querying + current temperature if you want to use material properties depending on temperature
• Additional parameters are: + type of query + coordinates of point of interest 4. Create query result and initialize it with utr_mat_init_query_result. 5. Select material properties that you want to obtain:
  • for each desired field of initialized query result structure set it to the value UTC_MAT_QUERY_RESULT_REQUIRED. 6. Finally call utr_material_query providing query parameters from step 3 and query result from step 4-5 as arguments. 7. As function successfully returns fields from the result previously assigned with UTC_MAT_QUERY_RESULT_REQUIRED will store information about selected material properties.

Examples of the material query usage can be found in heat module , ns_supg module and ns_supg-heat-vof supermodule .

NOTE: The materials submodule provides also direct access to the raw material data , but it is intended to be an additional feature for special purposes, and using this other way is much more cumbersome during computations.

---

Define Documentation

#define UTC_MAT_QUERY_RESULT_NOT_NEEDED   -1.0

Used to indicate not needed parameters in utt_material_query_result .

#define UTC_MAT_QUERY_RESULT_REQUIRED   -3.0

Used to indicate required parameters in utt_material_query_result .

---

Enumeration Type Documentation

enum ute_mat_groupID_flag

For the purpose of backward-compatibility and support of auto-assigning to groups, a few additional flags are provided.

Enumerator:

UTE_GROUP_ID_NOT_ASSIGNED	to indicate, that given group ID is not connected with any material or block
UTE_GROUP_ID_DEFAULT_BLOCK	to indicate auto-assignment for so-called "default block" which is created when no blocks have been defined

enum ute_mat_read_result

Enumerator:

UTE_SUCCESS
UTE_FAIL
UTE_REF_TEMP_MUST_BE_GEQ_ZERO
UTE_NOT_NEED_MATERIAL_DATABASE

enum utt_is_fluid

Enumerator:

NOT_FLUID
FLUID

enum utt_query_type

Enumerator:

QUERY_NODE	if query concerns exact mesh node (vertex) of element
QUERY_POINT	if query concerns any arbitrary selected point within given element

---

Function Documentation

void utr_mat_clear_all

(

)

To permanently delete all stored materials.

Returns:

void

Here is the call graph for this function:

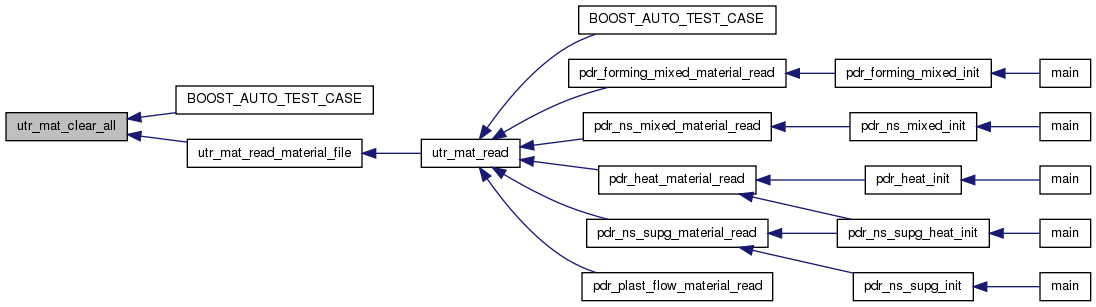

Here is the caller graph for this function:

void utr_mat_clear_material

(

utt_material_data *

mat

)

To permanently delete stored material and free resources.

Returns:

void

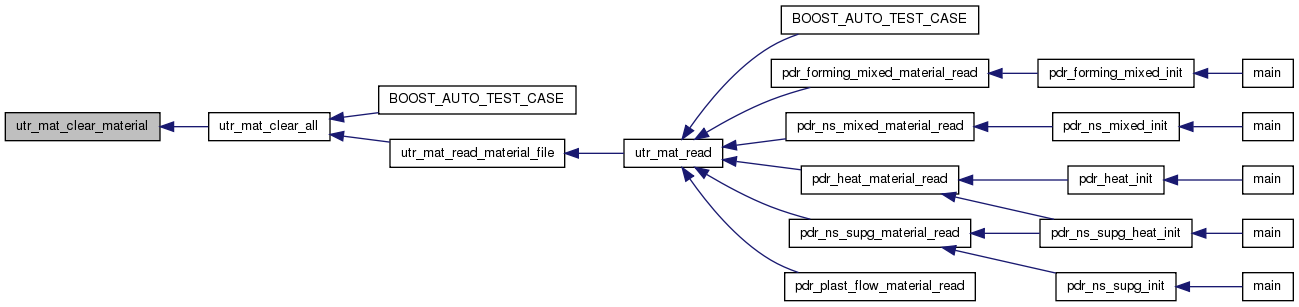

Here is the caller graph for this function:

const utt_material_data* utr_mat_get_material

(

const int

groupID

)

To gain access to raw material data. NOTE: this is NOT the same as calling utr_material_query !

Parameters:

groupID

const int see mmr_el_groupID

Returns:

const utt_material_data*

Here is the call graph for this function:

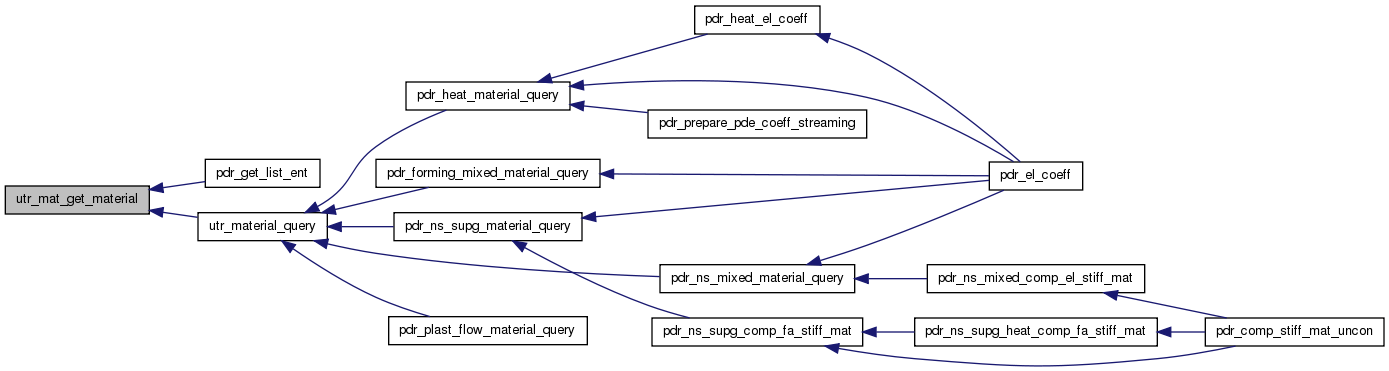

Here is the caller graph for this function:

const utt_material_data* utr_mat_get_material_by_matID

(

int

matID

)

To gain access to raw material data. NOTE: this is NOT the same as calling utr_material_query !

Parameters:

matID

int see see utr_mat_get_matID

Returns:

const utt_material_data*

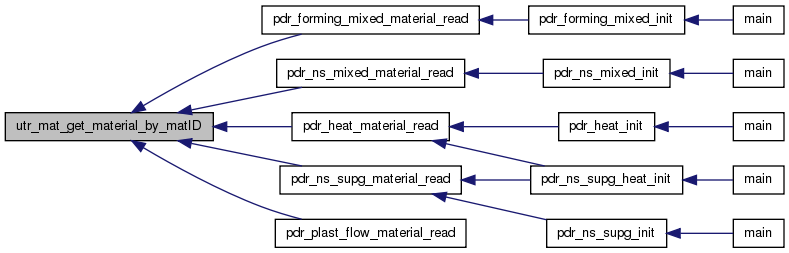

Here is the caller graph for this function:

int utr_mat_get_materials_IDs

(

int *

materialIDs

)

utr_mat_get_materials_IDs To get array of all known materialIDs

Parameters:

materialIDs

array of size returned by utr_mat_get_n_materials

Returns:

number of written material IDs into array

Parameters:

	materialIDs	or UTE_FAIL.
	materialIDs	array of size returned by utr_mat_get_n_materials

Returns:

number of written material IDs into array

Parameters:

materialIDs

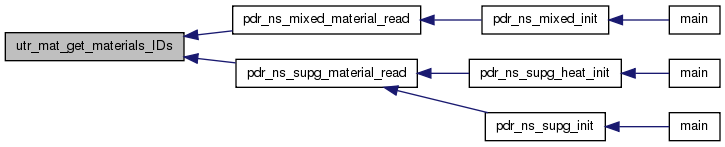

Here is the caller graph for this function:

int utr_mat_get_matID

(

int

groupID

)

To get material number associated with given element group number.

Parameters:

groupID

int see mmr_el_groupID

Returns:

int material number (ID)

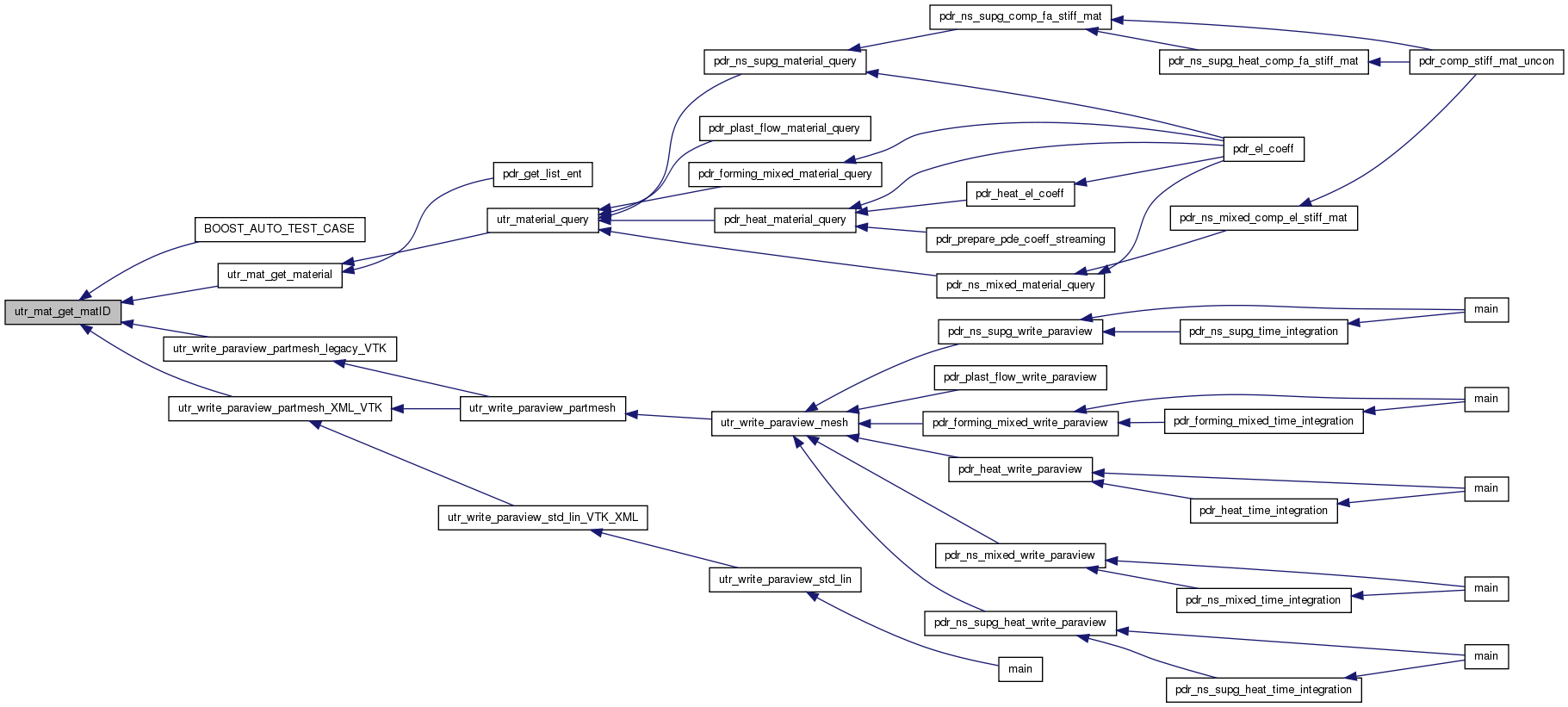

Here is the caller graph for this function:

int utr_mat_get_n_materials

(

)

To get total number of materials in current database.

Returns:

int

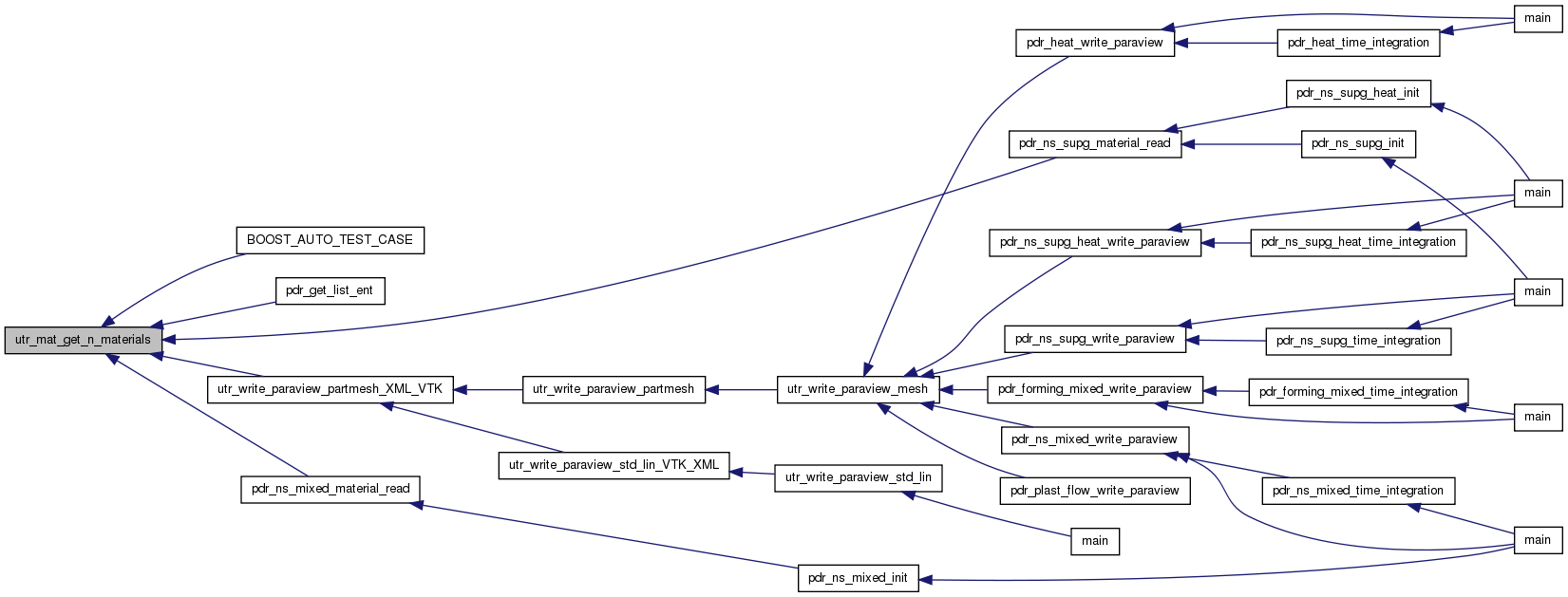

Here is the caller graph for this function:

void utr_mat_init_query_result

(

utt_material_query_result *

result

)

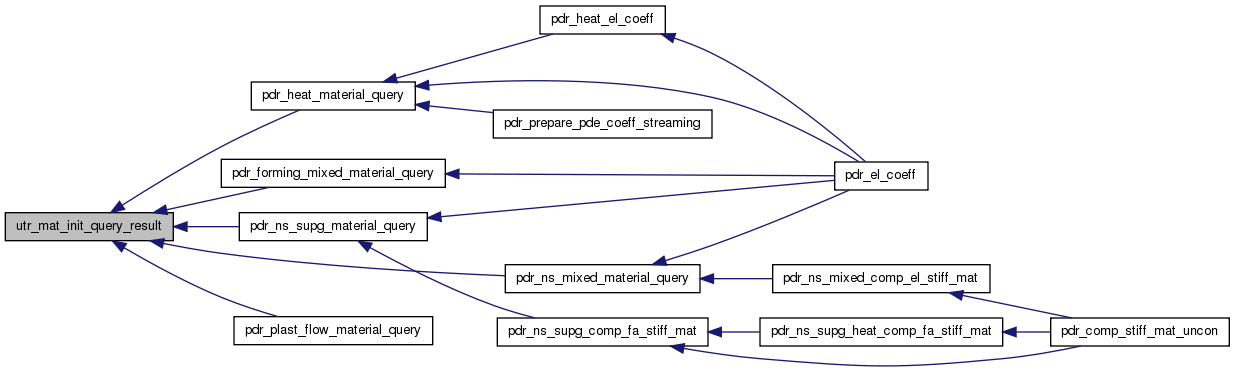

Here is the caller graph for this function:

ute_mat_read_result utr_mat_read	(	const char *	Work_dir,
		const char *	Filename,
		FILE *	Interactive_output
	)

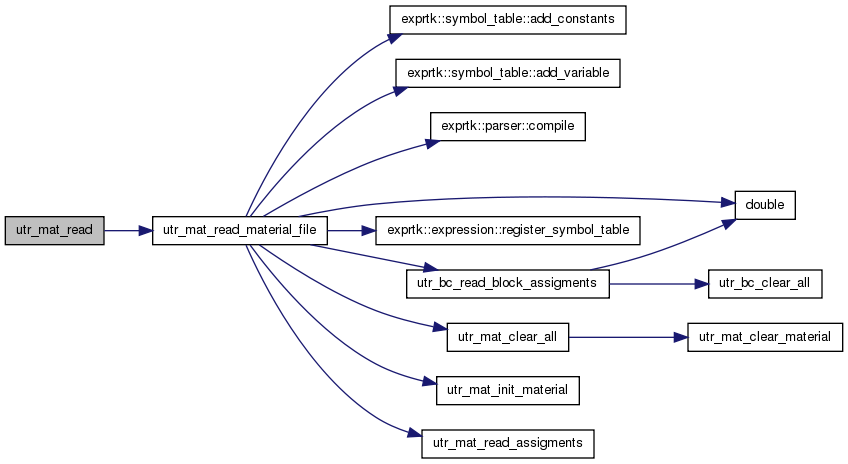

Here is the call graph for this function:

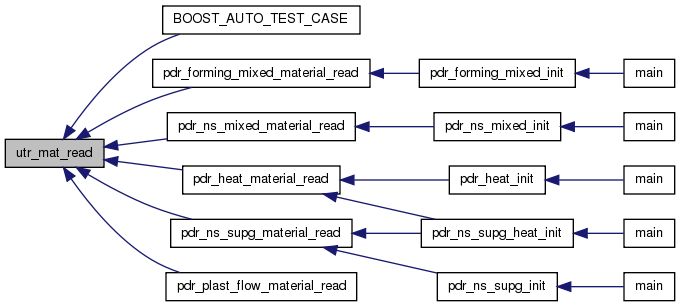

Here is the caller graph for this function:

int utr_material_query	(	const utt_material_query_params *	Params,
		utt_material_query_result *	Result
	)

Main function for queering for material data.

Parameters:

	Params
	Result

Returns:

success code

Here is the call graph for this function:

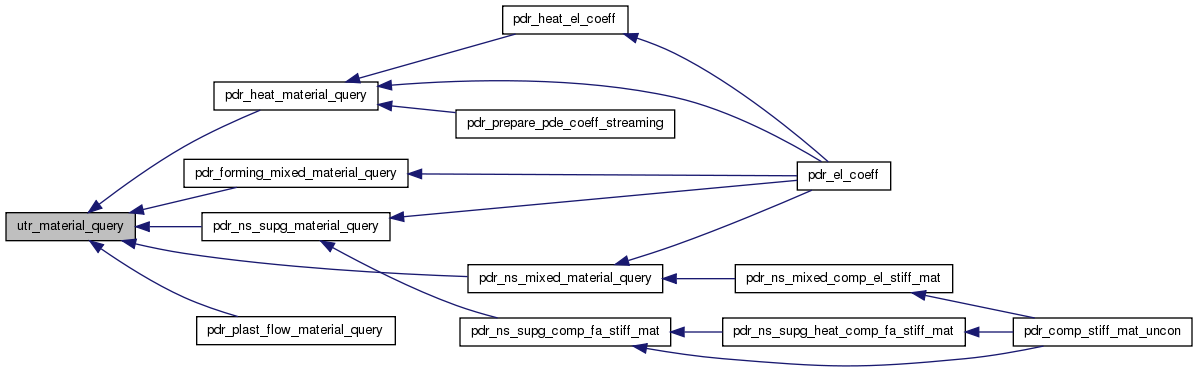

Here is the caller graph for this function:

---

Variable Documentation

const char* utc_mat_database_filename

Filename of the default built-in material database linked with executable. The default location of this file is the directory of the executable. If given problem require to provide additional materials, then the material file given in problem file should be modyfied.
