lsd_mkb/lsd_mkb_superlu/superlu_seq/ilu_dcolumn_dfs.c File Reference

Performs a symbolic factorization. More...

#include "slu_ddefs.h"

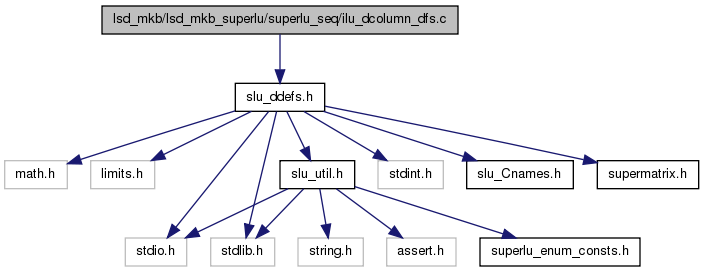

Include dependency graph for ilu_dcolumn_dfs.c:

Functions
int	ilu_dcolumn_dfs (const int m, const int jcol, int *perm_r, int *nseg, int *lsub_col, int *segrep, int *repfnz, int *marker, int *parent, int *xplore, GlobalLU_t *Glu)

---

Detailed Description

Performs a symbolic factorization.

 -- SuperLU routine (version 4.0) --
 Lawrence Berkeley National Laboratory
 June 30, 2009


---

Function Documentation

int ilu_dcolumn_dfs	(	const int	m,
		const int	jcol,
		int *	perm_r,
		int *	nseg,
		int *	lsub_col,
		int *	segrep,
		int *	repfnz,
		int *	marker,
		int *	parent,
		int *	xplore,
		GlobalLU_t *	Glu
	)

 Purpose
 =======
   ILU_DCOLUMN_DFS performs a symbolic factorization on column jcol, and
   decide the supernode boundary.

   This routine does not use numeric values, but only use the RHS
   row indices to start the dfs.

   A supernode representative is the last column of a supernode.
   The nonzeros in U[*,j] are segments that end at supernodal
   representatives. The routine returns a list of such supernodal
   representatives in topological order of the dfs that generates them.
   The location of the first nonzero in each such supernodal segment
   (supernodal entry location) is also returned.

 Local parameters
 ================
   nseg: no of segments in current U[*,j]
   jsuper: jsuper=EMPTY if column j does not belong to the same
	supernode as j-1. Otherwise, jsuper=nsuper.

   marker2: A-row --> A-row/col (0/1)
   repfnz: SuperA-col --> PA-row
   parent: SuperA-col --> SuperA-col
   xplore: SuperA-col --> index to L-structure

 Return value
 ============
     0  success;
   > 0  number of bytes allocated when run out of space.

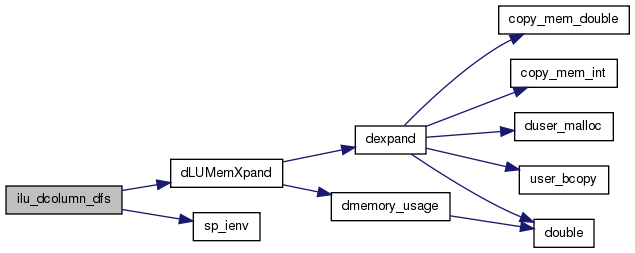

Here is the call graph for this function:

Here is the caller graph for this function:
