lsd_mkb/lsd_mkb_superlu/superlu_seq/scolumn_bmod.c File Reference

performs numeric block updates More...

#include <stdio.h>
#include <stdlib.h>
#include "slu_sdefs.h"

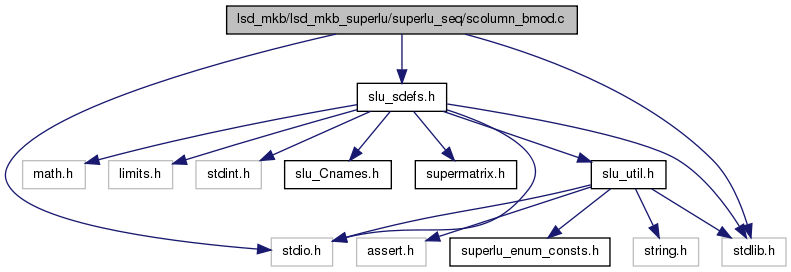

Include dependency graph for scolumn_bmod.c:

Functions
void	susolve (int, int, float *, float *)
	Solves a dense upper triangular system.
void	slsolve (int, int, float *, float *)
	Solves a dense UNIT lower triangular system.
void	smatvec (int, int, int, float *, float *, float *)
	Performs a dense matrix-vector multiply: Mxvec = Mxvec + M * vec.
int	scolumn_bmod (const int jcol, const int nseg, float *dense, float *tempv, int *segrep, int *repfnz, int fpanelc, GlobalLU_t *Glu, SuperLUStat_t *stat)

---

Detailed Description

performs numeric block updates

 -- SuperLU routine (version 3.0) --
 Univ. of California Berkeley, Xerox Palo Alto Research Center,
 and Lawrence Berkeley National Lab.
 October 15, 2003

 Copyright (c) 1994 by Xerox Corporation.  All rights reserved.

 THIS MATERIAL IS PROVIDED AS IS, WITH ABSOLUTELY NO WARRANTY
 EXPRESSED OR IMPLIED.  ANY USE IS AT YOUR OWN RISK.

  Permission is hereby granted to use or copy this program for any
  purpose, provided the above notices are retained on all copies.
  Permission to modify the code and to distribute modified code is
  granted, provided the above notices are retained, and a notice that
  the code was modified is included with the above copyright notice.


---

Function Documentation

int scolumn_bmod	(	const int	jcol,
		const int	nseg,
		float *	dense,
		float *	tempv,
		int *	segrep,
		int *	repfnz,
		int	fpanelc,
		GlobalLU_t *	Glu,
		SuperLUStat_t *	stat
	)

 Purpose:
 ========
 Performs numeric block updates (sup-col) in topological order.
 It features: col-col, 2cols-col, 3cols-col, and sup-col updates.
 Special processing on the supernodal portion of L[*,j]
 Return value:   0 - successful return
               > 0 - number of bytes allocated when run out of space

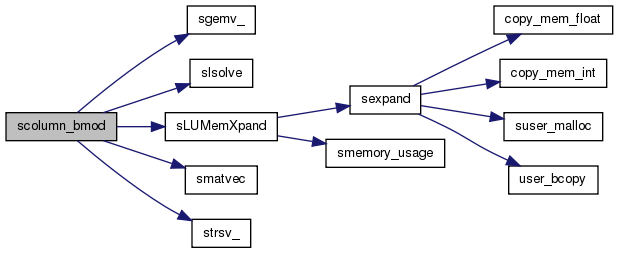

Here is the call graph for this function:

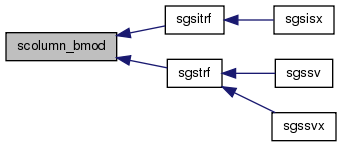

Here is the caller graph for this function:

void slsolve	(	int	ldm,
		int	ncol,
		float *	M,
		float *	rhs
	)

Solves a dense UNIT lower triangular system.

The unit lower triangular matrix is stored in a 2D array M(1:nrow,1:ncol). The solution will be returned in the rhs vector.

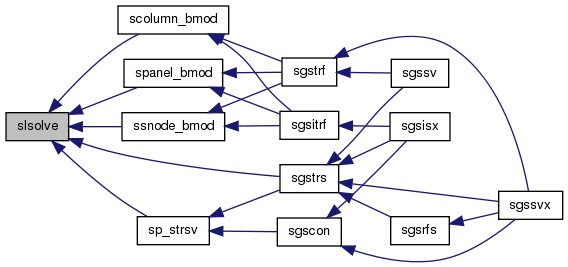

Here is the caller graph for this function:

void smatvec	(	int	ldm,
		int	nrow,
		int	ncol,
		float *	M,
		float *	vec,
		float *	Mxvec
	)

Performs a dense matrix-vector multiply: Mxvec = Mxvec + M * vec.

The input matrix is M(1:nrow,1:ncol); The product is returned in Mxvec[].

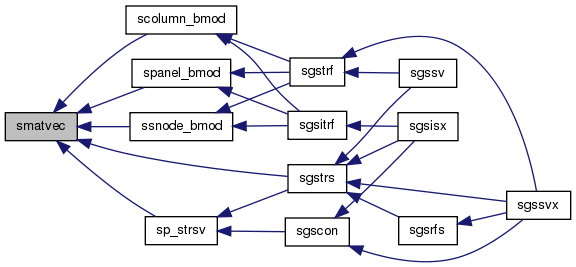

Here is the caller graph for this function:

void susolve	(	int	ldm,
		int	ncol,
		float *	M,
		float *	rhs
	)

Solves a dense upper triangular system.

The upper triangular matrix is stored in a 2-dim array M(1:ldm,1:ncol). The solution will be returned in the rhs vector.

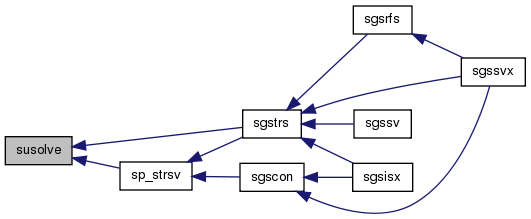

Here is the caller graph for this function:
