lsd_mkb/lsd_mkb_superlu/superlu_seq/slu_util.h File Reference

Utility header file. More...

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <assert.h>
#include "superlu_enum_consts.h"

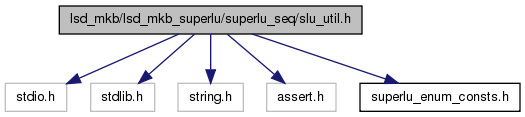

Include dependency graph for slu_util.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	superlu_options_t
struct	e_node
	Headers for 4 types of dynamatically managed memory. More...
struct	LU_stack_t
struct	SuperLUStat_t
struct	mem_usage_t
Defines
#define	FIRSTCOL_OF_SNODE(i) (xsup[i])
#define	NO_MARKER 3
#define	NUM_TEMPV(m, w, t, b) ( SUPERLU_MAX(m, (t + b)*w) )
#define	USER_ABORT(msg) superlu_abort_and_exit(msg)
#define	ABORT(err_msg)
#define	USER_MALLOC(size) superlu_malloc(size)
#define	SUPERLU_MALLOC(size) USER_MALLOC(size)
#define	USER_FREE(addr) superlu_free(addr)
#define	SUPERLU_FREE(addr) USER_FREE(addr)
#define	CHECK_MALLOC(where)
#define	SUPERLU_MAX(x, y) ( (x) > (y) ? (x) : (y) )
#define	SUPERLU_MIN(x, y) ( (x) < (y) ? (x) : (y) )
#define	L_SUB_START(col) ( Lstore->rowind_colptr[col] )
#define	L_SUB(ptr) ( Lstore->rowind[ptr] )
#define	L_NZ_START(col) ( Lstore->nzval_colptr[col] )
#define	L_FST_SUPC(superno) ( Lstore->sup_to_col[superno] )
#define	U_NZ_START(col) ( Ustore->colptr[col] )
#define	U_SUB(ptr) ( Ustore->rowind[ptr] )
#define	EMPTY (-1)
#define	FALSE 0
#define	TRUE 1
#define	NO_MEMTYPE 4
#define	GluIntArray(n) (5 * (n) + 5)
#define	NODROP ( 0x0000 )
#define	DROP_BASIC ( 0x0001 )
#define	DROP_PROWS ( 0x0002 )
#define	DROP_COLUMN ( 0x0004 )
#define	DROP_AREA ( 0x0008 )
#define	DROP_SECONDARY ( 0x000E )
#define	DROP_DYNAMIC ( 0x0010 )
#define	DROP_INTERP ( 0x0100 )
#define	MILU_ALPHA (1.0e-2)
Typedefs
typedef float	flops_t
typedef unsigned char	Logical
typedef struct e_node	ExpHeader
	Headers for 4 types of dynamatically managed memory.
Functions
int	input_error (char , int )
void	Destroy_SuperMatrix_Store (SuperMatrix *)
	Deallocate the structure pointing to the actual storage of the matrix.
void	Destroy_CompCol_Matrix (SuperMatrix *)
void	Destroy_CompRow_Matrix (SuperMatrix *)
void	Destroy_SuperNode_Matrix (SuperMatrix *)
void	Destroy_CompCol_Permuted (SuperMatrix *)
	A is of type Stype==NCP.
void	Destroy_Dense_Matrix (SuperMatrix *)
	A is of type Stype==DN.
void	get_perm_c (int, SuperMatrix , int )
void	set_default_options (superlu_options_t *options)
	Set the default values for the options argument.
void	ilu_set_default_options (superlu_options_t *options)
	Set the default values for the options argument for ILU.

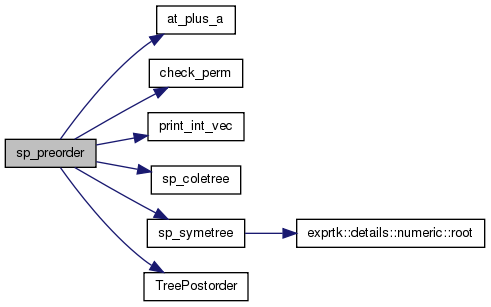

void	sp_preorder (superlu_options_t , SuperMatrix , int , int , SuperMatrix *)
void	superlu_abort_and_exit (char *)
	Global statistics variale.
void *	superlu_malloc (size_t)
int *	intMalloc (int)
int *	intCalloc (int)
void	superlu_free (void *)
void	SetIWork (int, int, int, int , int , int , int , int , int , int , int *)
	Set up pointers for integer working arrays.
int	sp_coletree (int , int , int , int, int, int )
void	relax_snode (const int, int , const int, int , int *)
void	heap_relax_snode (const int, int , const int, int , int *)
int	mark_relax (int, int , int , int , int , int , int )
void	ilu_relax_snode (const int, int , const int, int , int , int )
void	ilu_heap_relax_snode (const int, int , const int, int , int , int )
void	resetrep_col (const int, const int , int )
	Reset repfnz[] for the current column.
int	spcoletree (int , int , int , int, int, int )
int *	TreePostorder (int, int *)

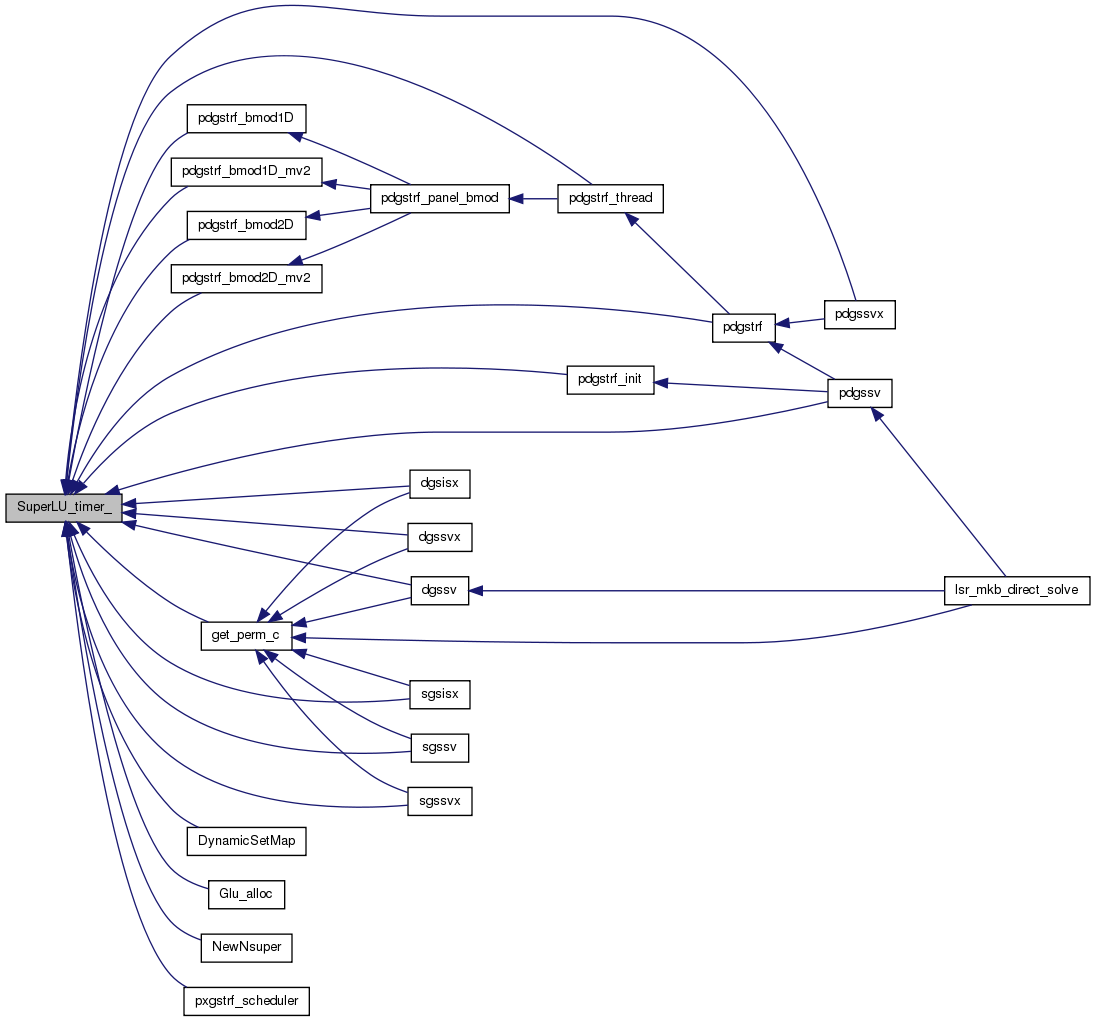

double	SuperLU_timer_ ()
	Timer function.
int	sp_ienv (int)
int	lsame_ (char , char )
int	xerbla_ (char , int )
void	ifill (int *, int, int)
	Fills an integer array with a given value.
void	snode_profile (int, int *)
void	super_stats (int, int *)
void	check_repfnz (int, int, int, int *)
	Check whether repfnz[] == EMPTY after reset.
void	PrintSumm (char *, int, int, int)
	Print a summary of the testing results.

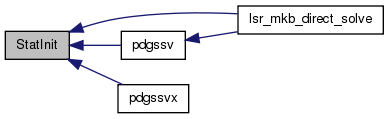

void	StatInit (SuperLUStat_t *)
void	StatPrint (SuperLUStat_t *)
void	StatFree (SuperLUStat_t *)
void	print_panel_seg (int, int, int, int, int , int )
	Diagnostic print of segment info after panel_dfs().
int	print_int_vec (char , int, int )
int	slu_PrintInt10 (char , int, int )

Detailed Description

Utility header file.

-- SuperLU routine (version 4.1) -- Univ. of California Berkeley, Xerox Palo Alto Research Center, and Lawrence Berkeley National Lab. November, 2010

Define Documentation

#define ABORT ( err_msg )

Value:

{ char msg[256];\
   sprintf(msg,"%s at line %d in file %s\n",err_msg,__LINE__, __FILE__);\
   USER_ABORT(msg); }

#define CHECK_MALLOC ( where )

Value:

{                 \
    extern int superlu_malloc_total;        \
    printf("%s: malloc_total %d Bytes\n",     \
       where, superlu_malloc_total); \
}

#define DROP_AREA ( 0x0008 )

#define DROP_BASIC ( 0x0001 )

#define DROP_COLUMN ( 0x0004 )

#define DROP_DYNAMIC ( 0x0010 )

#define DROP_INTERP ( 0x0100 )

#define DROP_PROWS ( 0x0002 )

#define DROP_SECONDARY ( 0x000E )

#define EMPTY (-1)

#define FALSE 0

#define FIRSTCOL_OF_SNODE ( i ) (xsup[i])

#define GluIntArray ( n ) (5 * (n) + 5)

#define L_FST_SUPC ( superno ) ( Lstore->sup_to_col[superno] )

#define L_NZ_START ( col ) ( Lstore->nzval_colptr[col] )

#define L_SUB ( ptr ) ( Lstore->rowind[ptr] )

#define L_SUB_START ( col ) ( Lstore->rowind_colptr[col] )

#define MILU_ALPHA (1.0e-2)

#define NO_MARKER 3

#define NO_MEMTYPE 4

#define NODROP ( 0x0000 )

#define NUM_TEMPV	(	m,
		w,
		t,
		b	)	( SUPERLU_MAX(m, (t + b)*w) )

#define SUPERLU_FREE ( addr ) USER_FREE(addr)

#define SUPERLU_MALLOC ( size ) USER_MALLOC(size)

#define SUPERLU_MAX	(	x,
		y		)	( (x) > (y) ? (x) : (y) )

#define SUPERLU_MIN	(	x,
		y		)	( (x) < (y) ? (x) : (y) )

#define TRUE 1

#define U_NZ_START ( col ) ( Ustore->colptr[col] )

#define U_SUB ( ptr ) ( Ustore->rowind[ptr] )

#define USER_ABORT ( msg ) superlu_abort_and_exit(msg)

#define USER_FREE ( addr ) superlu_free(addr)

#define USER_MALLOC ( size ) superlu_malloc(size)

Typedef Documentation

typedef struct e_node ExpHeader

Headers for 4 types of dynamatically managed memory.

typedef float flops_t

typedef unsigned char Logical

Function Documentation

void check_repfnz	(	int	,
		int	,
		int	,
		int *
	)

Check whether repfnz[] == EMPTY after reset.

void Destroy_CompCol_Matrix ( SuperMatrix * )

Here is the caller graph for this function:

void Destroy_CompCol_Permuted ( SuperMatrix * )

A is of type Stype==NCP.

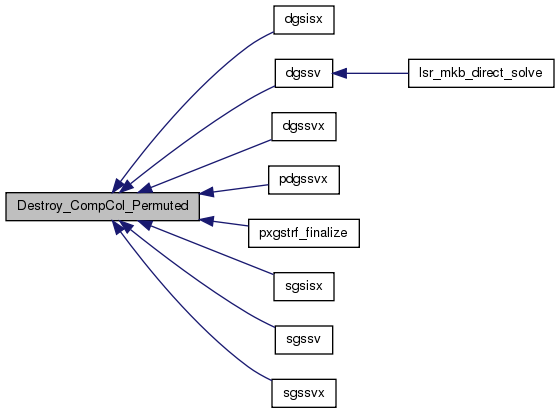

Here is the caller graph for this function:

void Destroy_CompRow_Matrix ( SuperMatrix * )

void Destroy_Dense_Matrix ( SuperMatrix * )

A is of type Stype==DN.

void Destroy_SuperMatrix_Store ( SuperMatrix * )

Deallocate the structure pointing to the actual storage of the matrix.

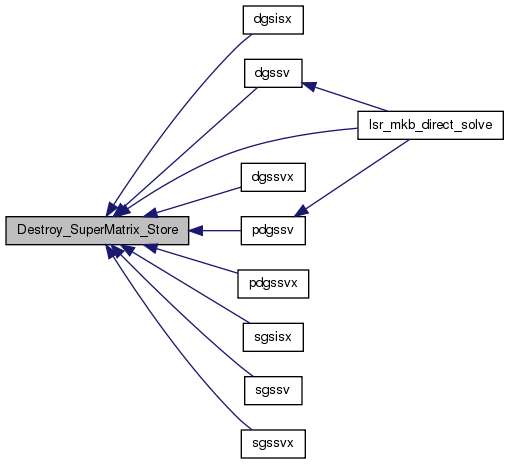

Here is the caller graph for this function:

void Destroy_SuperNode_Matrix ( SuperMatrix * )

Here is the caller graph for this function:

void get_perm_c	(	int	ispec,
		SuperMatrix *	A,
		int *	perm_c
	)

 Purpose
 =======

 GET_PERM_C obtains a permutation matrix Pc, by applying the multiple
 minimum degree ordering code by Joseph Liu to matrix A'*A or A+A'.
 or using approximate minimum degree column ordering by Davis et. al.
 The LU factorization of A*Pc tends to have less fill than the LU
 factorization of A.

 Arguments
 =========

 ispec   (input) int
         Specifies the type of column ordering to reduce fill:
         = 1: minimum degree on the structure of A^T * A
         = 2: minimum degree on the structure of A^T + A
         = 3: approximate minimum degree for unsymmetric matrices
         If ispec == 0, the natural ordering (i.e., Pc = I) is returned.

 A       (input) SuperMatrix*
         Matrix A in A*X=B, of dimension (A->nrow, A->ncol). The number
         of the linear equations is A->nrow. Currently, the type of A
         can be: Stype = NC; Dtype = _D; Mtype = GE. In the future,
         more general A can be handled.

 perm_c  (output) int*
	   Column permutation vector of size A->ncol, which defines the
         permutation matrix Pc; perm_c[i] = j means column i of A is
         in position j in A*Pc.

void heap_relax_snode	(	const int	n,
		int *	et,
		const int	relax_columns,
		int *	descendants,
		int *	relax_end
	)

 Purpose
 =======
    relax_snode() - Identify the initial relaxed supernodes, assuming that
    the matrix has been reordered according to the postorder of the etree.

Here is the call graph for this function:

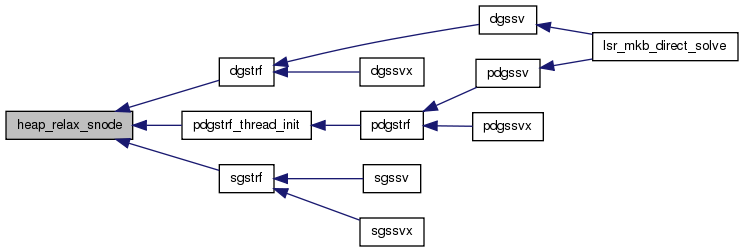

Here is the caller graph for this function:

void ifill	(	int *	,
		int	,
		int
	)

Fills an integer array with a given value.

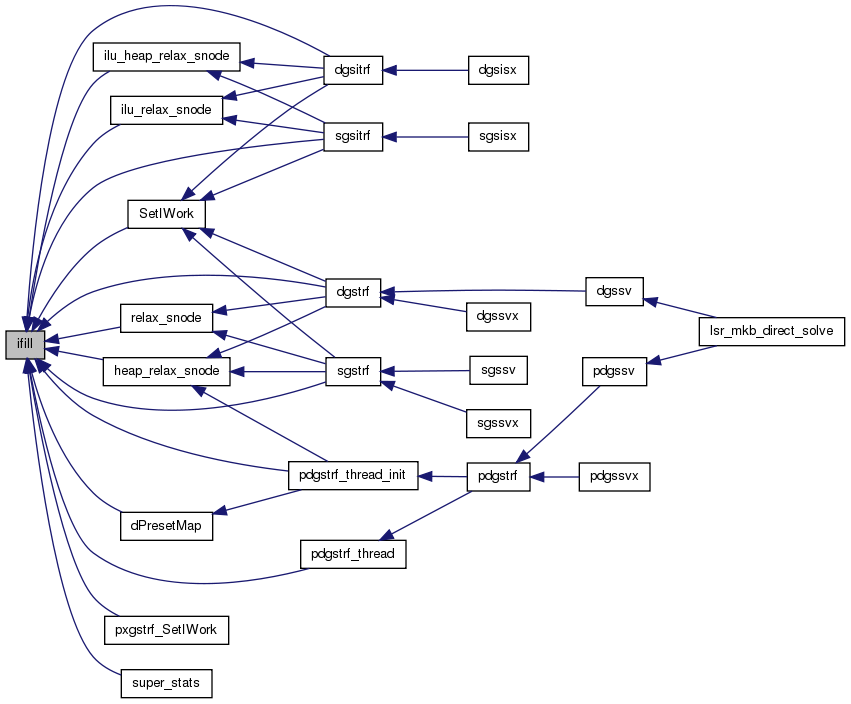

Here is the caller graph for this function:

void ilu_heap_relax_snode	(	const int	n,
		int *	et,
		const int	relax_columns,
		int *	descendants,
		int *	relax_end,
		int *	relax_fsupc
	)

 Purpose
 =======
    ilu_heap_relax_snode() - Identify the initial relaxed supernodes,
    assuming that the matrix has been reordered according to the postorder
    of the etree.

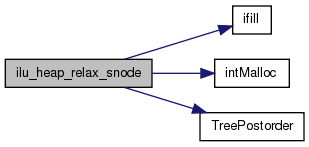

Here is the call graph for this function:

Here is the caller graph for this function:

void ilu_relax_snode	(	const int	n,
		int *	et,
		const int	relax_columns,
		int *	descendants,
		int *	relax_end,
		int *	relax_fsupc
	)

 Purpose
 =======
    ilu_relax_snode() - Identify the initial relaxed supernodes, assuming
    that the matrix has been reordered according to the postorder of the
    etree.

Here is the call graph for this function:

Here is the caller graph for this function:

void ilu_set_default_options ( superlu_options_t * options )

Set the default values for the options argument for ILU.

Here is the call graph for this function:

int input_error	(	char *	srname,
		int *	info
	)

 Purpose
 =======

 INPUT_ERROR is called if an input parameter has an
 invalid value.  A message is printed and execution stops.

 Arguments
 =========

 srname  (input) character*6
         The name of the routine which called INPUT_ERROR.

 info    (input) int
         The position of the invalid parameter in the parameter list
         of the calling routine.

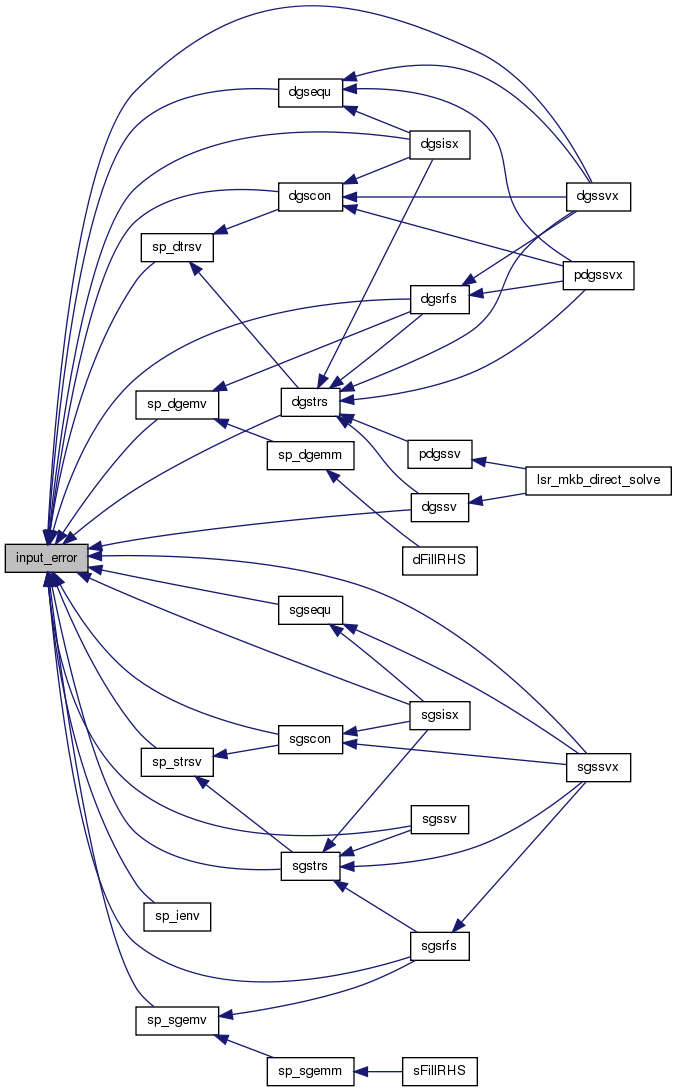

Here is the caller graph for this function:

int* intCalloc ( int )

int* intMalloc ( int )

int lsame_	(	char *	ca,
		char *	cb
	)

    Purpose
    =======

    LSAME returns .TRUE. if CA is the same letter as CB regardless of case.

    Arguments
    =========

    CA      (input) CHARACTER*1
    CB      (input) CHARACTER*1
            CA and CB specify the single characters to be compared.

   =====================================================================

int mark_relax	(	int	n,
		int *	relax_end,
		int *	relax_fsupc,
		int *	xa_begin,
		int *	xa_end,
		int *	asub,
		int *	marker
	)

 Purpose
 =======
    mark_relax() - record the rows used by the relaxed supernodes.

Here is the caller graph for this function:

int print_int_vec	(	char *	,
		int	,
		int *
	)

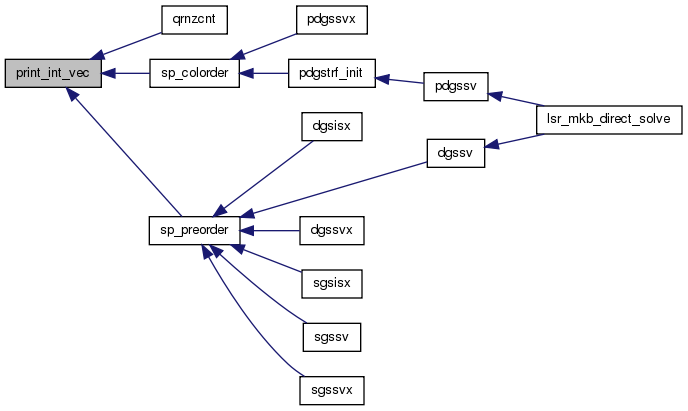

Here is the caller graph for this function:

void print_panel_seg	(	int	,
		int	,
		int	,
		int	,
		int *	,
		int *
	)

Diagnostic print of segment info after panel_dfs().

void PrintSumm	(	char *	,
		int	,
		int	,
		int
	)

Print a summary of the testing results.

void relax_snode	(	const int	n,
		int *	et,
		const int	relax_columns,
		int *	descendants,
		int *	relax_end
	)

 Purpose
 =======
    relax_snode() - Identify the initial relaxed supernodes, assuming that
    the matrix has been reordered according to the postorder of the etree.

Here is the call graph for this function:

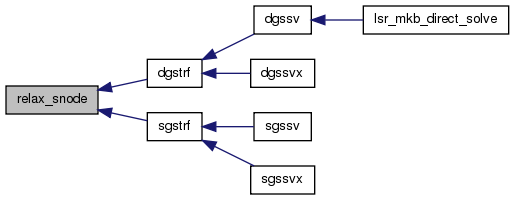

Here is the caller graph for this function:

void resetrep_col	(	const	int,
		const int *	,
		int *
	)

Reset repfnz[] for the current column.

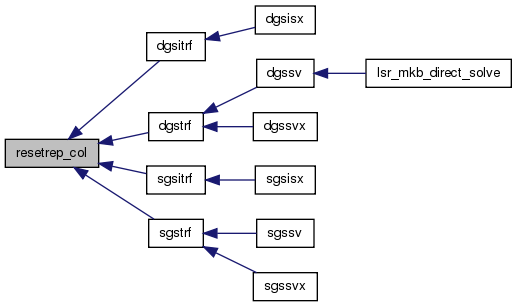

Here is the caller graph for this function:

void set_default_options ( superlu_options_t * options )

Set the default values for the options argument.

Here is the caller graph for this function:

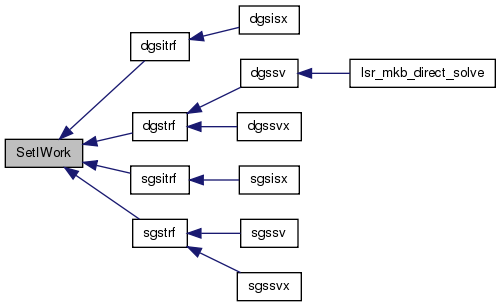

void SetIWork	(	int	,
		int	,
		int	,
		int *	,
		int **	,
		int **	,
		int **	,
		int **	,
		int **	,
		int **	,
		int **
	)

Set up pointers for integer working arrays.

Here is the call graph for this function:

Here is the caller graph for this function:

int slu_PrintInt10	(	char *	,
		int	,
		int *
	)

Here is the caller graph for this function:

void snode_profile	(	int	,
		int *
	)

int sp_coletree	(	int *	,
		int *	,
		int *	,
		int	,
		int	,
		int *
	)

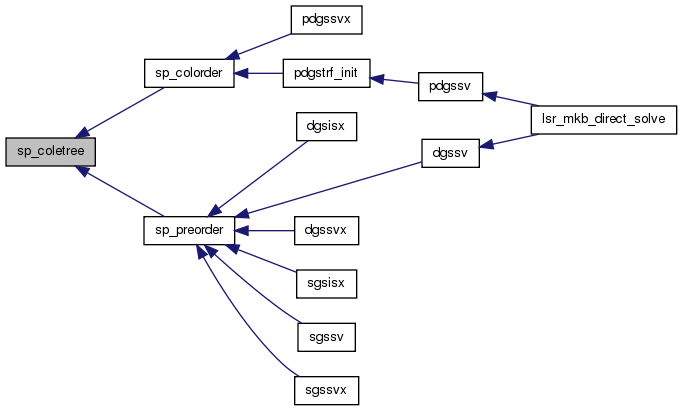

Here is the caller graph for this function:

int sp_ienv ( int ispec )

    Purpose
    =======

    sp_ienv() is inquired to choose machine-dependent parameters for the
    local environment. See ISPEC for a description of the parameters.

    This version provides a set of parameters which should give good,
    but not optimal, performance on many of the currently available
    computers.  Users are encouraged to modify this subroutine to set
    the tuning parameters for their particular machine using the option
    and problem size information in the arguments.

    Arguments
    =========

    ISPEC   (input) int
            Specifies the parameter to be returned as the value of SP_IENV.
            = 1: the panel size w; a panel consists of w consecutive
	         columns of matrix A in the process of Gaussian elimination.
		 The best value depends on machine's cache characters.
            = 2: the relaxation parameter relax; if the number of
	         nodes (columns) in a subtree of the elimination tree is less
		 than relax, this subtree is considered as one supernode,
		 regardless of their row structures.
            = 3: the maximum size for a supernode in complete LU;
	    = 4: the minimum row dimension for 2-D blocking to be used;
	    = 5: the minimum column dimension for 2-D blocking to be used;
	    = 6: the estimated fills factor for L and U, compared with A;
	    = 7: the maximum size for a supernode in ILU.

   (SP_IENV) (output) int
            >= 0: the value of the parameter specified by ISPEC
            < 0:  if SP_IENV = -k, the k-th argument had an illegal value.

    =====================================================================

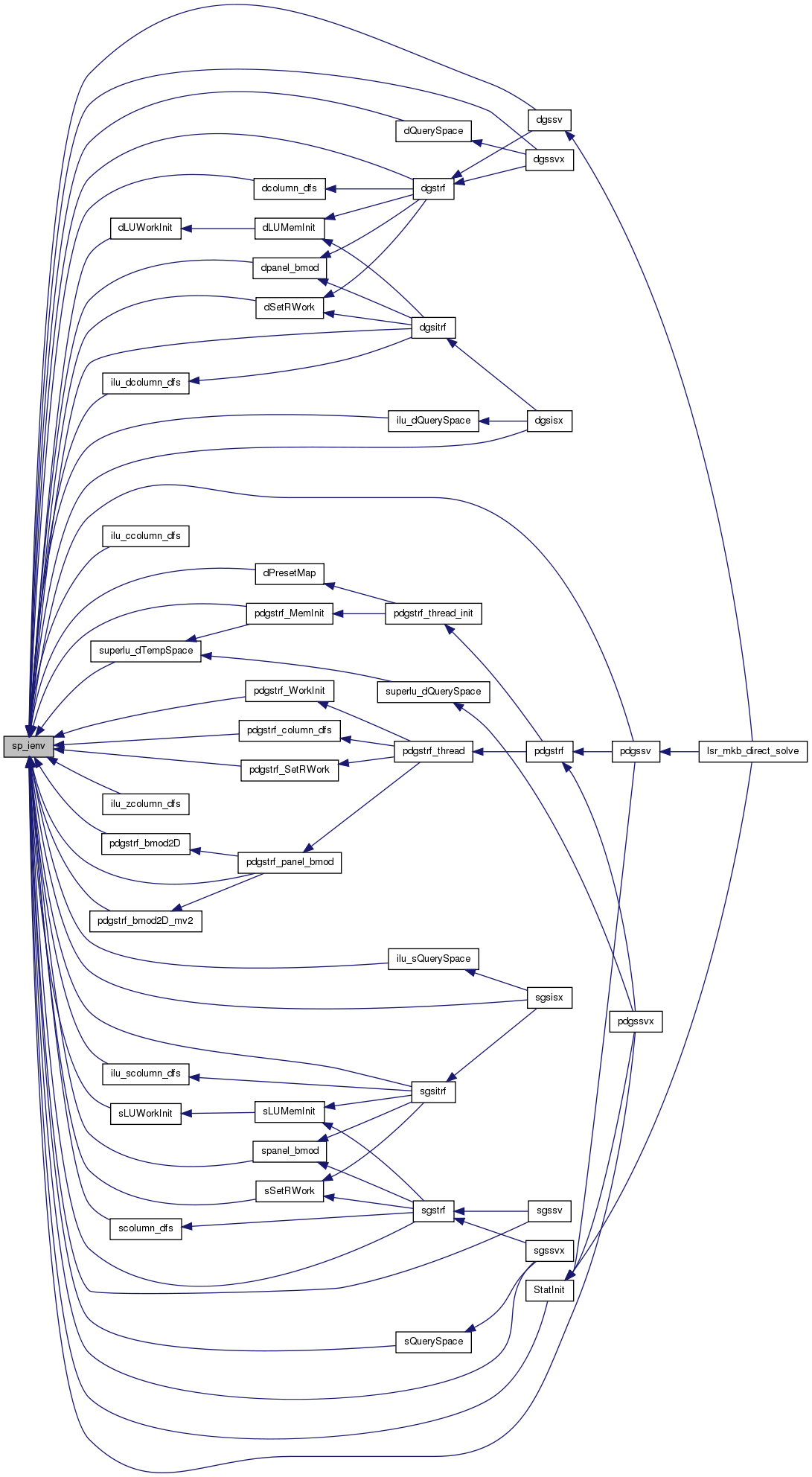

Here is the caller graph for this function:

void sp_preorder	(	superlu_options_t *	options,
		SuperMatrix *	A,
		int *	perm_c,
		int *	etree,
		SuperMatrix *	AC
	)

 Purpose
 =======

 sp_preorder() permutes the columns of the original matrix. It performs
 the following steps:

    1. Apply column permutation perm_c[] to A's column pointers to form AC;

    2. If options->Fact = DOFACT, then
       (1) Compute column elimination tree etree[] of AC'AC;
       (2) Post order etree[] to get a postordered elimination tree etree[],
           and a postorder permutation post[];
       (3) Apply post[] permutation to columns of AC;
       (4) Overwrite perm_c[] with the product perm_c * post.

 Arguments
 =========

 options (input) superlu_options_t*
         Specifies whether or not the elimination tree will be re-used.
         If options->Fact == DOFACT, this means first time factor A,
         etree is computed, postered, and output.
         Otherwise, re-factor A, etree is input, unchanged on exit.

 A       (input) SuperMatrix*
         Matrix A in A*X=B, of dimension (A->nrow, A->ncol). The number
         of the linear equations is A->nrow. Currently, the type of A can be:
         Stype = NC or SLU_NCP; Mtype = SLU_GE.
         In the future, more general A may be handled.

 perm_c  (input/output) int*
	   Column permutation vector of size A->ncol, which defines the
         permutation matrix Pc; perm_c[i] = j means column i of A is
         in position j in A*Pc.
         If options->Fact == DOFACT, perm_c is both input and output.
         On output, it is changed according to a postorder of etree.
         Otherwise, perm_c is input.

 etree   (input/output) int*
         Elimination tree of Pc'*A'*A*Pc, dimension A->ncol.
         If options->Fact == DOFACT, etree is an output argument,
         otherwise it is an input argument.
         Note: etree is a vector of parent pointers for a forest whose
         vertices are the integers 0 to A->ncol-1; etree[root]==A->ncol.

 AC      (output) SuperMatrix*
         The resulting matrix after applied the column permutation
         perm_c[] to matrix A. The type of AC can be:
         Stype = SLU_NCP; Dtype = A->Dtype; Mtype = SLU_GE.

Here is the call graph for this function:
