mod_fem_viewer/FemViewer/ocl/cl.hpp File Reference

C++ bindings for OpenCL 1.0 (rev 48) and OpenCL 1.1 (rev 33). More...

#include <GL/gl.h>
#include <CL/opencl.h>
#include <utility>
#include <vector>
#include <string>
#include <cstring>

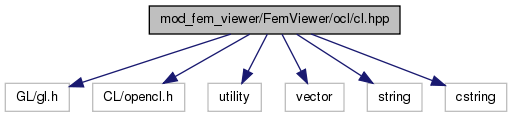

Include dependency graph for cl.hpp:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	cl::string
	Simple string class, that provides a limited subset of std::string functionality but avoids many of the issues that come with that class. More...
class	cl::vector< T, N >
	Fixed sized vector implementation that mirroring std::vector functionality. More...
class	cl::vector< T, N >::iterator
	Iterator class for vectors. More...
struct	cl::size_t< N >
	size_t class used to interface between C++ and OpenCL C calls that require arrays of size_t values, who's size is known statically. More...
struct	cl::detail::GetInfoHelper< Functor, T >
struct	cl::detail::GetInfoHelper< Func, VECTOR_CLASS< T > >
struct	cl::detail::GetInfoHelper< Func, VECTOR_CLASS< char * > >
struct	cl::detail::GetInfoHelper< Func, STRING_CLASS >
struct	cl::detail::param_traits< enum_type, Name >
struct	cl::detail::GetInfoFunctor0< Func, Arg0 >
struct	cl::detail::GetInfoFunctor1< Func, Arg0, Arg1 >
struct	cl::detail::ReferenceHandler< T >
struct	cl::detail::ReferenceHandler< cl_device_id >
struct	cl::detail::ReferenceHandler< cl_platform_id >
struct	cl::detail::ReferenceHandler< cl_context >
struct	cl::detail::ReferenceHandler< cl_command_queue >
struct	cl::detail::ReferenceHandler< cl_mem >
struct	cl::detail::ReferenceHandler< cl_sampler >
struct	cl::detail::ReferenceHandler< cl_program >
struct	cl::detail::ReferenceHandler< cl_kernel >
struct	cl::detail::ReferenceHandler< cl_event >
class	cl::detail::Wrapper< T >
struct	cl::ImageFormat
	ImageFormat interface fro cl_image_format. More...
class	cl::Device
	Device interface for cl_device_id. More...
class	cl::Platform
	Platform interface. More...
class	cl::Context
class	cl::Event
	Event interface for cl_event. More...
class	cl::Memory
	Memory interface for cl_mem. More...
class	cl::Buffer
	Memory buffer interface. More...
class	cl::BufferGL
	Memory buffer interface for GL interop. More...
class	cl::BufferRenderGL
	Memory buffer interface for GL interop with renderbuffer. More...
class	cl::Image
	Base class interface for all images. More...
class	cl::Image2D
	Image interface for 2D images. More...
class	cl::Image2DGL
	2D image interface for GL interop. More...
class	cl::Image3D
	Image interface for 3D images. More...
class	cl::Image3DGL
class	cl::Sampler
	Sampler interface for cl_sampler. More...
class	cl::NDRange
	NDRange interface. More...
struct	cl::LocalSpaceArg
	Local address raper for use with Kernel::setArg. More...
struct	cl::detail::KernelArgumentHandler< T >
struct	cl::detail::KernelArgumentHandler< LocalSpaceArg >
class	cl::Kernel
	Kernel interface that implements cl_kernel. More...
class	cl::Program
	Program interface that implements cl_program. More...
class	cl::CommandQueue
	CommandQueue interface for cl_command_queue. More...
class	cl::KernelFunctor
	Kernel functor interface. More...
Namespaces
namespace	cl
	The OpenCL C++ bindings are defined within this namespace.
namespace	cl::detail
Defines
#define	CL_CALLBACK
#define	__INIT_CL_EXT_FCN_PTR(name)
#define	__ERR_STR(x)   NULL
#define	VECTOR_CLASS   std::vector
#define	__MAX_DEFAULT_VECTOR_SIZE   10
#define	__GET_INFO_HELPER_WITH_RETAIN(CPP_TYPE)
#define	__PARAM_NAME_INFO_1_0(F)
#define	__DECLARE_PARAM_TRAITS(token, param_name, T)
Typedefs
typedef std::string	cl::STRING_CLASS
Functions
	cl::detail::__PARAM_NAME_INFO_1_0 (__DECLARE_PARAM_TRAITS)
template<typename Func , typename T >
cl_int	cl::detail::getInfo (Func f, cl_uint name, T *param)
template<typename Func , typename Arg0 , typename T >
cl_int	cl::detail::getInfo (Func f, const Arg0 &arg0, cl_uint name, T *param)
template<typename Func , typename Arg0 , typename Arg1 , typename T >
cl_int	cl::detail::getInfo (Func f, const Arg0 &arg0, const Arg1 &arg1, cl_uint name, T *param)
LocalSpaceArg	cl::__local (::size_t size)

---

Detailed Description

C++ bindings for OpenCL 1.0 (rev 48) and OpenCL 1.1 (rev 33).

Author:

Benedict R. Gaster and Laurent Morichetti

Additions and fixes from Brian Cole, March 3rd 2010.

Version:

1.1

Date:

June 2010

Optional extension support

cl cl_ext_device_fission define USE_CL_DEVICE_FISSION

---

Define Documentation

#define __DECLARE_PARAM_TRAITS	(	token,
		param_name,
		T		)

Value:

struct token;                                        \
template<>                                           \
struct param_traits<detail:: token,param_name>       \
{                                                    \
    enum { value = param_name };                     \
    typedef T param_type;                            \
};

#define __ERR_STR

(

x

)

NULL

#define __GET_INFO_HELPER_WITH_RETAIN

(

CPP_TYPE

)

Value:

namespace detail { \
template <typename Func> \
struct GetInfoHelper<Func, CPP_TYPE> \
{ \
    static cl_int get(Func f, cl_uint name, CPP_TYPE* param) \
    { \
      cl_uint err = f(name, sizeof(CPP_TYPE), param, NULL); \
      if (err != CL_SUCCESS) { \
        return err; \
      } \
      \
      return ReferenceHandler<CPP_TYPE::cl_type>::retain((*param)()); \
    } \
}; \
}

#define __INIT_CL_EXT_FCN_PTR

(

name

)

Value:

if(!pfn_##name) { \
        pfn_##name = (PFN_##name) \
            clGetExtensionFunctionAddress(#name); \
        if(!pfn_##name) { \
        } \
    }

#define __MAX_DEFAULT_VECTOR_SIZE   10

#define __PARAM_NAME_INFO_1_0

(

F

)

#define CL_CALLBACK

#define VECTOR_CLASS   std::vector
