mod_fem_viewer/FemViewer/inc/elem_tables.h File Reference

#include "MathHelper.h"
#include "CutPlane.h"
#include "GraphicElem.hpp"

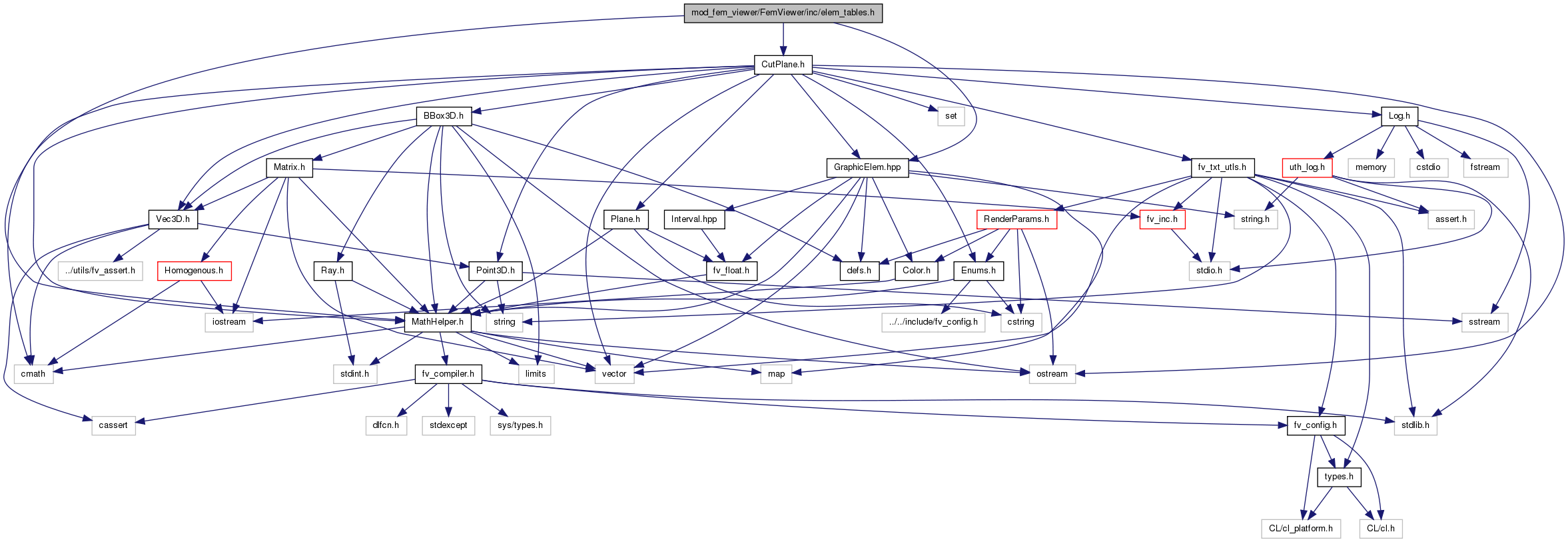

Include dependency graph for elem_tables.h:

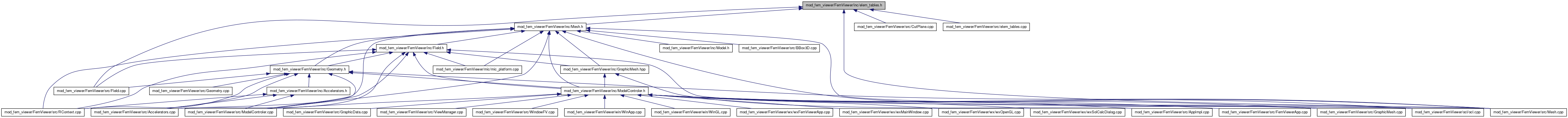

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	comp
Typedefs
typedef FemViewer::fvmath::CVec3d	myVec3d
	* Square Edge Flags Table*/
typedef FemViewer::Node_t	myVertex
typedef FemViewer::Vertex	Vertex
typedef FemViewer::CutPlane	myPlane
Functions
int	IsPrismSelected (const double coords[6 *4], const double *plane)
int	IsTetraSelected (const double coords[4 *4], const double *plane)
unsigned int	CutElement (const double vertices[18], const int nodes[7], const myPlane *cut_plane, std::vector< myVertex > &out_vertices)
void	indexVBO (std::vector< Vertex > &inout_vertices, std::vector< unsigned int > &inout_indices)
unsigned	TessellateTriangle (const myVertex *a, const myVertex *b, const myVertex *c, int ndiv, std::vector< myVertex > &vertices, std::vector< unsigned > &indices)
Variables
int	iQuadEdgesIds [4][2]
int	iQuadFlags [16]
int	iQuadEdges [16][7]
const int	iPrizmEdges [9][2]

---

Typedef Documentation

typedef FemViewer::CutPlane myPlane

typedef FemViewer::fvmath::CVec3d myVec3d

* Square Edge Flags Table*/

typedef FemViewer::Node_t myVertex

typedef FemViewer::Vertex Vertex

---

Function Documentation

unsigned int CutElement	(	const double	vertices[18],
		const int	nodes[7],
		const myPlane *	cut_plane,
		std::vector< myVertex > &	out_vertices
	)

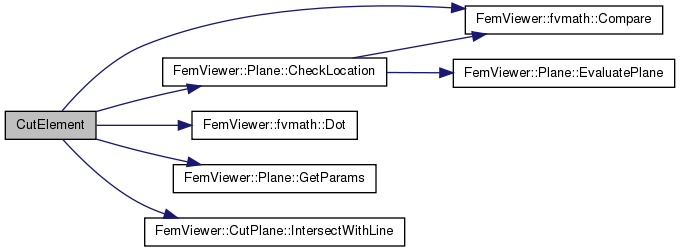

Here is the call graph for this function:

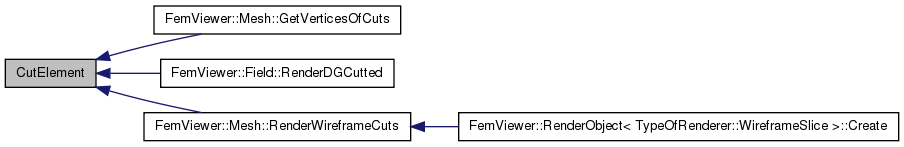

Here is the caller graph for this function:

void indexVBO	(	std::vector< Vertex > &	inout_vertices,
		std::vector< unsigned int > &	inout_indices
	)

Here is the caller graph for this function:

int IsPrismSelected	(	const double	coords[6 *4],
		const double *	plane
	)

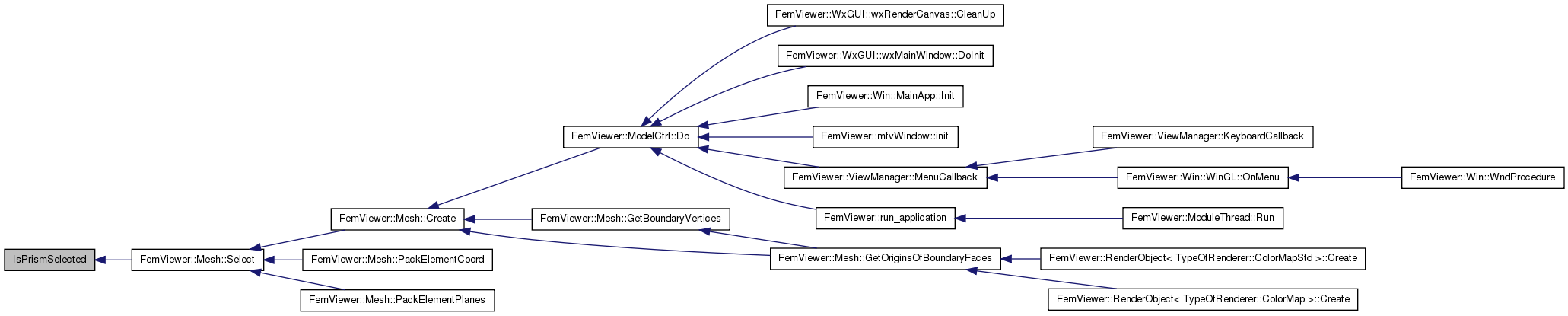

Here is the caller graph for this function:

int IsTetraSelected	(	const double	coords[4 *4],
		const double *	plane
	)

Here is the caller graph for this function:

unsigned TessellateTriangle	(	const myVertex *	a,
		const myVertex *	b,
		const myVertex *	c,
		int	ndiv,
		std::vector< myVertex > &	vertices,
		std::vector< unsigned > &	indices
	)

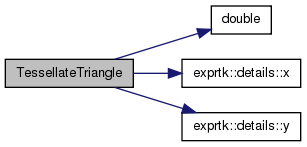

Here is the call graph for this function:

Here is the caller graph for this function:

---

Variable Documentation

const int iPrizmEdges[9][2]

int iQuadEdges[16][7]

int iQuadEdgesIds[4][2]

int iQuadFlags[16]
