Domain decomposition

Enumerations
enum	ddt_mesh_handling { DDC_LOCAL_MESH = 0, DDC_GLOBAL_MESH = 1, DDC_DEFAULT = 2 }
Functions
int	ddr_create_subdomains_scheme (const int Mesh_id, ddt_mesh_handling Mesh_handling, int N_subdomains, int *N_subdomains_elems, int *Subdomains_elems, int *Overlap_sizes, int *Subdomains_elems_overlap, int **Part_ptr)
	ddr_create_subdomains to create partitioning scheme with (or without) overlap Depending on the param Mesh_handling partitioning is done locally or globally
int	ddr_balance_subdomains (const int Mesh_id, int *N_subdomains_elems, int *Subdomains_elems, int **Subdomains_elems_overlap)
	ddr_balance_load to improve existing partitioning created by ddr_create_subdomains according to changes in mesh structures.

---

Enumeration Type Documentation

enum ddt_mesh_handling

Enumerator:

DDC_LOCAL_MESH
DDC_GLOBAL_MESH
DDC_DEFAULT

---

Function Documentation

int ddr_balance_subdomains	(	const int	Mesh_id,
		int *	N_subdomains_elems,
		int *	Subdomains_elems,
		int **	Subdomains_elems_overlap
	)

ddr_balance_load to improve existing partitioning created by ddr_create_subdomains according to changes in mesh structures.

Parameters:

	IN	Mesh_id
	OUT	N_subdomains
	OUT	N_subdomains_elems
	OUT	Subdomains_elems
	OUT	Subdomains_elems_overlap

Returns:

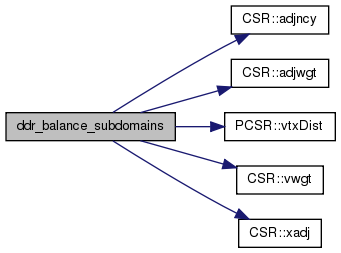

Here is the call graph for this function:

int ddr_create_subdomains_scheme	(	const int	Mesh_id,
		ddt_mesh_handling	Mesh_handling,
		int	N_subdomains,
		int *	N_subdomains_elems,
		int *	Subdomains_elems,
		int *	Overlap_sizes,
		int *	Subdomains_elems_overlap,
		int **	Part_ptr
	)

ddr_create_subdomains to create partitioning scheme with (or without) overlap Depending on the param Mesh_handling partitioning is done locally or globally

Parameters:

	IN	Mesh_id
	IN	Mesh_handling DDC_LOCAL_MESH - creates subdomains only from local mesh DDC_GLOBAL_MESH - creates subdomains from all procs' meshes
	IN	N_subdomains
	OUT	N_subdomains_elems - sizes (in core elements) for each subdomain preferred size: N_subdomains
	OUT	Subdomains_elems - core elements stored in continogus manner for each subdomain preferred size: number of all elements (LOCAL or GLOBAL)
	OUT	Overlap_sizes - number of overlap element for each subdomain preferred size: N_subdomains
	OUT	Subdomains_elems_overlap - elements creating overlap for each subdomain preferred size: same as Subdomains_elems

Returns:

number of created subdomains

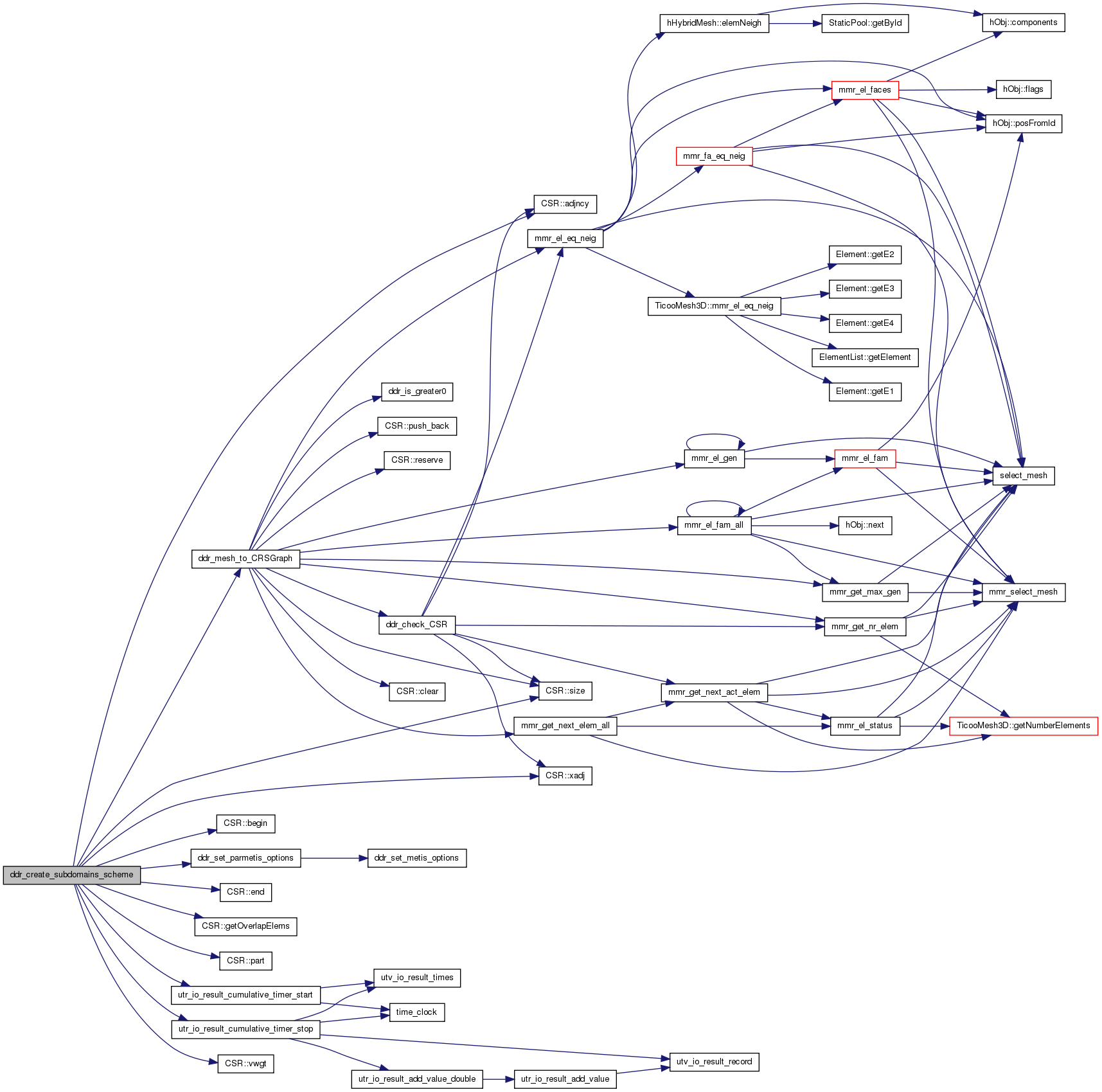

Here is the call graph for this function:

Here is the caller graph for this function:
