Solver

Defines
#define	SIC_SEQUENTIAL   0
#define	SIC_PARALLEL   1
#define	SIC_SOLVE   0
#define	SIC_RESOLVE   1
#define	SIC_SOLVER_ASSEMBLE   0
#define	SIC_PROBLEM_ASSEMBLE   1
#define	SIC_PRINT_NOT   0
#define	SIC_PRINT_ERRORS   1
#define	SIC_PRINT_INFO   2
#define	SIC_PRINT_ALLINFO   3
#define	SIC_MAX_NUM_SOLV   10
#define	SIC_MAX_DOF_PER_INT   70
#define	SIC_MAX_INT_PER_DOF   100
#define	SIC_MAX_DOF_STR_NGB   296
#define	SIC_LIST_END_MARK   -1
Functions
int	sir_module_introduce (char *Solver_name)
int	sir_solve_lin_sys (int Problem_id, int Solver_type, int Parallel, int Nr_levels, char *Filename, int Max_iter, int Error_type, double Error_tolerance, int Monitoring_level)
int	sir_init (int Solver_type, int Parallel, int Nr_levels, char *Filename, int Max_iter, int Error_type, double Error_tolerance, int Monitoring_level)
int	sir_create (int Solver_id, int Problem_id)
int	sir_solve (int Solver_id, int Comp_type, int Ini_guess, int Monitor, int *Nr_iter, double *Conv_meas, double *Conv_rate)
int	sir_free (int Solver_id)
int	sir_destroy (int Solver_id)
int	sir_direct_solve_lin_sys (int Problem_id, int Parallel, char *Filename)
int	sir_assemble_local_stiff_mat_with_table (int Solver_id, int Level_id, int Comp_type, int Nr_dof_ent, int *Assembly_table_int_ent, int *Local_to_global_int_ent, double *Stiff_mat, double *Rhs_vect, char *Rewr_dofs)
int	sir_assemble_local_stiff_mat (int Solver_id, int Level_id, int Comp_type, int Nr_dof_ent, int *L_dof_ent_type, int *L_dof_ent_id, int *L_dof_ent_nrdofs, double *Stiff_mat, double *Rhs_vect, char *Rewr_dofs)

---

Define Documentation

#define SIC_LIST_END_MARK   -1

#define SIC_MAX_DOF_PER_INT   70

#define SIC_MAX_DOF_STR_NGB   296

#define SIC_MAX_INT_PER_DOF   100

#define SIC_MAX_NUM_SOLV   10

#define SIC_PARALLEL   1

#define SIC_PRINT_ALLINFO   3

#define SIC_PRINT_ERRORS   1

#define SIC_PRINT_INFO   2

#define SIC_PRINT_NOT   0

Monitoring options

#define SIC_PROBLEM_ASSEMBLE   1

#define SIC_RESOLVE   1

#define SIC_SEQUENTIAL   0

Options for parallel execution

#define SIC_SOLVE   0

Options for solution procedure

#define SIC_SOLVER_ASSEMBLE   0

---

Function Documentation

int sir_assemble_local_stiff_mat	(	int	Solver_id,
		int	Level_id,
		int	Comp_type,
		int	Nr_dof_ent,
		int *	L_dof_ent_type,
		int *	L_dof_ent_id,
		int *	L_dof_ent_nrdofs,
		double *	Stiff_mat,
		double *	Rhs_vect,
		char *	Rewr_dofs
	)

----------------------------------------------------------- sir_assemble_local_stiff_mat - to assemble an element stiffness matrix to the global SM ------------------------------------------------------------

Parameters:

	Solver_id	returns: >=0 - success code, <0 - error code
	Level_id	in: solver ID (used to identify the subproblem)
	Comp_type	in: level ID
	Rhs_vect	in: stiffness matrix stored columnwise
	Rewr_dofs	in: rhs vector in: flag to rewrite or sum up entries 'T' - true, rewrite entries when assembling 'F' - false, sum up entries when assembling

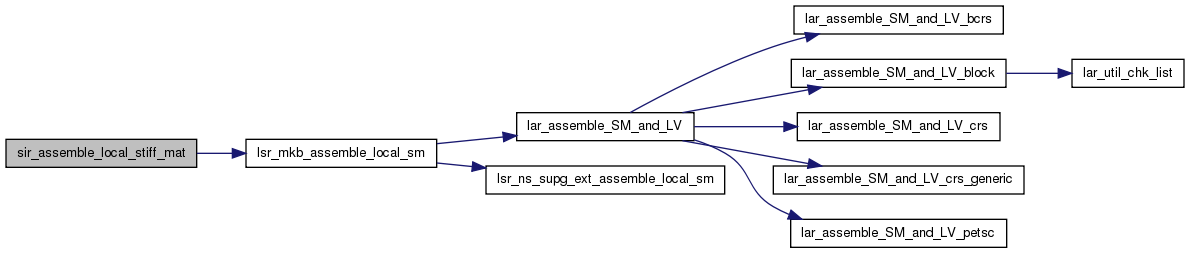

Here is the call graph for this function:

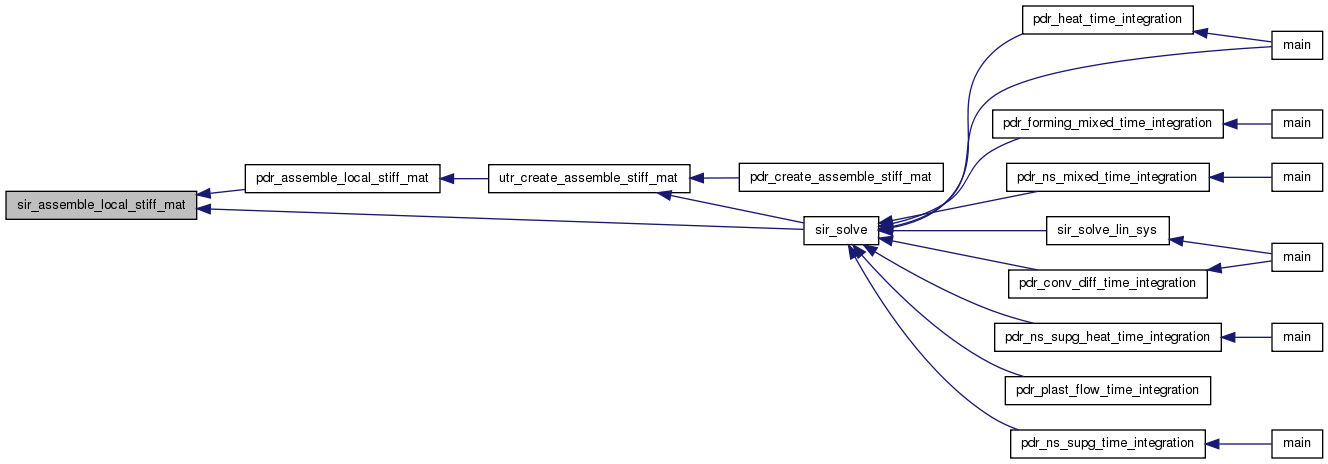

Here is the caller graph for this function:

int sir_assemble_local_stiff_mat_with_table	(	int	Solver_id,
		int	Level_id,
		int	Comp_type,
		int	Nr_dof_ent,
		int *	Assembly_table_int_ent,
		int *	Local_to_global_int_ent,
		double *	Stiff_mat,
		double *	Rhs_vect,
		char *	Rewr_dofs
	)

----------------------------------------------------------- sir_assemble_local_stiff_mat_with_table - to assemble an element stiffness matrix to the global SM using assembly table ------------------------------------------------------------

Parameters:

	Solver_id	returns: >=0 - success code, <0 - error code
	Level_id	in: solver ID (used to identify the subproblem)
	Comp_type	in: level ID
	Rhs_vect	in: stiffness matrix stored columnwise
	Rewr_dofs	in: rhs vector in: flag to rewrite or sum up entries 'T' - true, rewrite entries when assembling 'F' - false, sum up entries when assembling

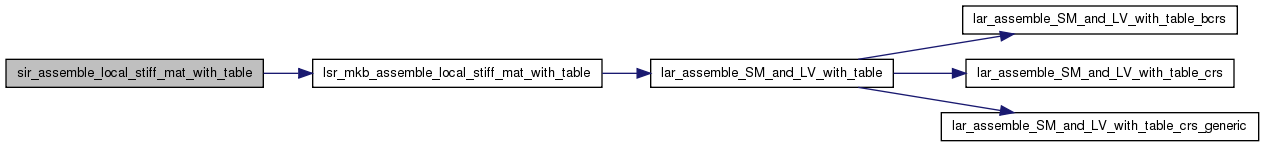

Here is the call graph for this function:

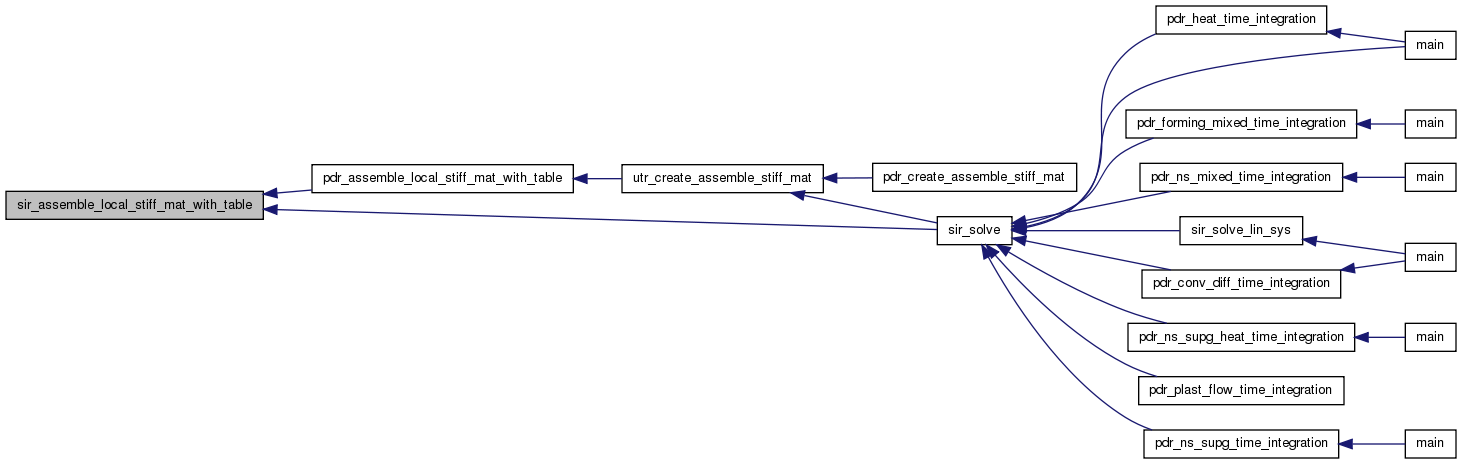

Here is the caller graph for this function:

int sir_create	(	int	Solver_id,
		int	Problem_id
	)

----------------------------------------------------------- sir_create - to create and initialize solver data structure ------------------------------------------------------------

!! If renumbering not used, the order in pdr_ and sir_ routines the same and !! the order in dof_struct table the same as returned by pdr_get_list_ent!!!

!!!!!!!!!*********?????????? FOR DEBUGGING ??????????**********!!!!!!!!!!

Parameters:

	Solver_id	returns: >=0 - success code, <0 - error code
	Problem_id	in: solver identification ID of the problem associated with the solver

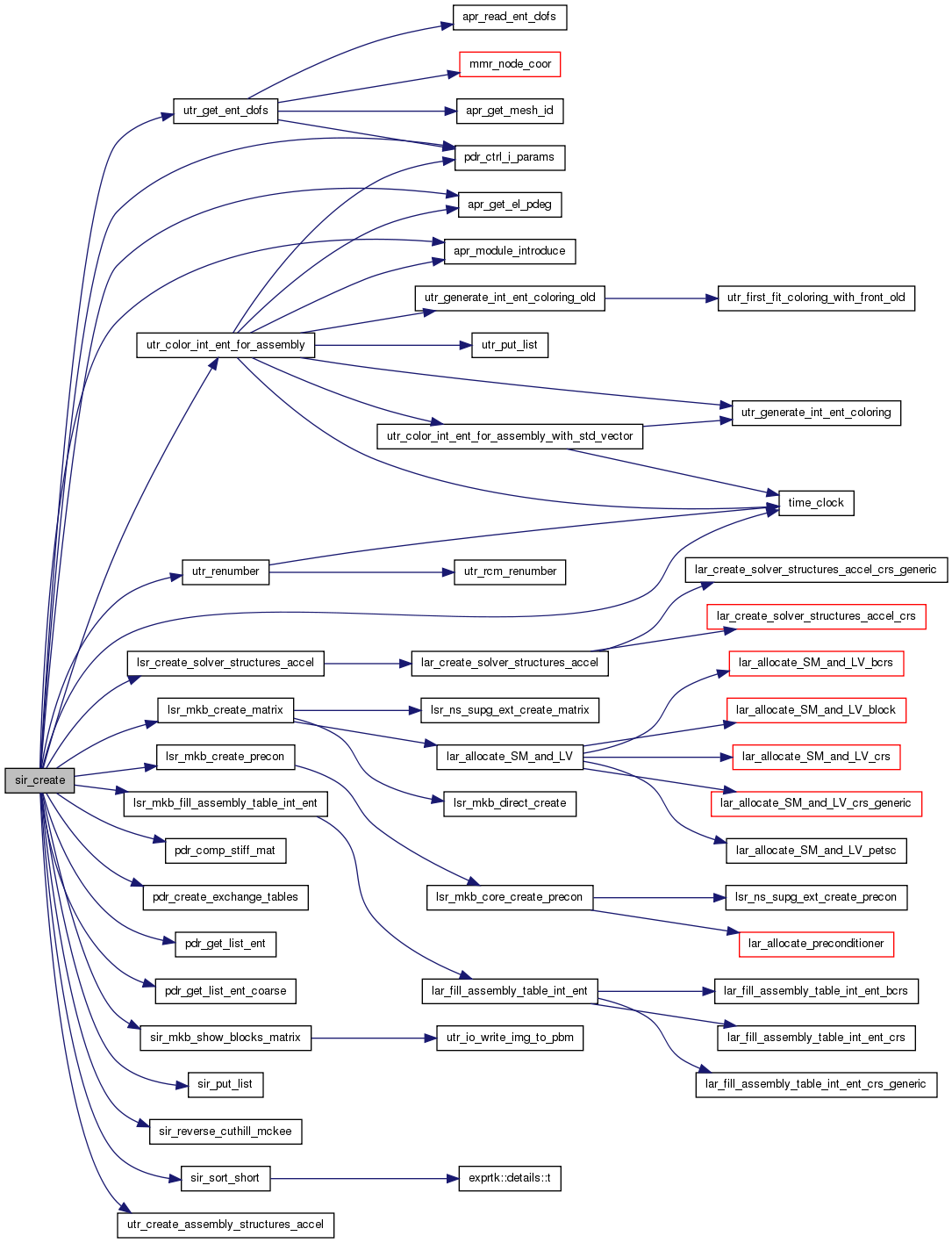

Here is the call graph for this function:

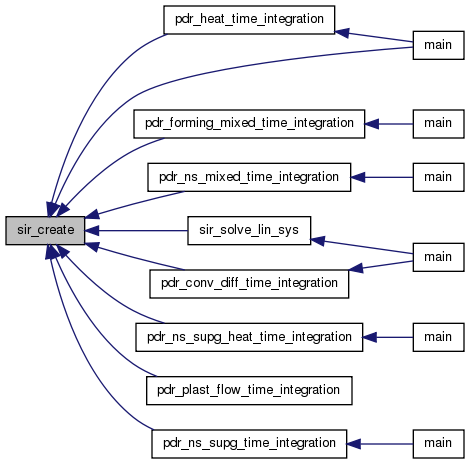

Here is the caller graph for this function:

int sir_destroy

(

int

Solver_id

)

----------------------------------------------------------- sir destroy - to destroy a solver instance and make room for next solvers ------------------------------------------------------------

Parameters:

Solver_id

returns: >=0 - success code, <0 - error code in: solver identification

Here is the call graph for this function:

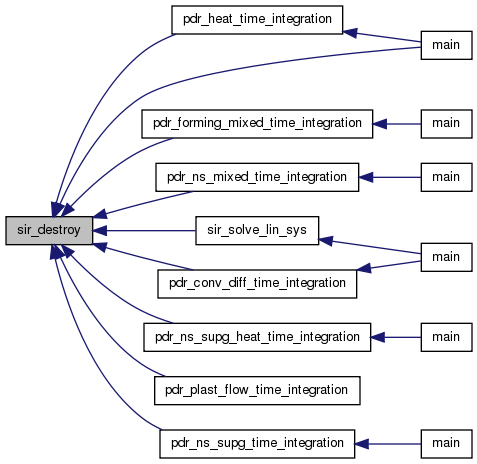

Here is the caller graph for this function:

int sir_direct_solve_lin_sys	(	int	Problem_id,
		int	Parallel,
		char *	Filename
	)

----------------------------------------------------------- sir_direct_solve_lin_sys - to solve the system of linear equations using a direct solver for the current setting of parameters (with initialization and finalization phases) ------------------------------------------------------------

Parameters:

	Parallel	ID of the problem associated with the solver
	Filename	parameter specifying sequential (SIC_SEQUENTIAL) or parallel (SIC_PARALLEL) execution in: name of the file with control parameters

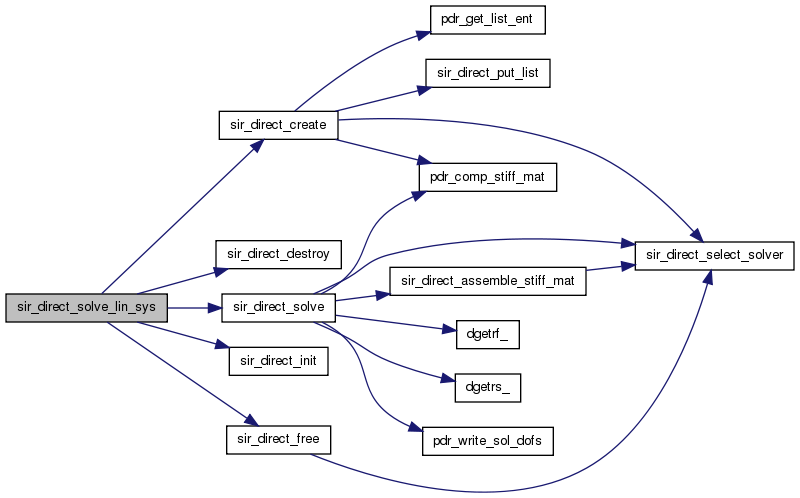

Here is the call graph for this function:

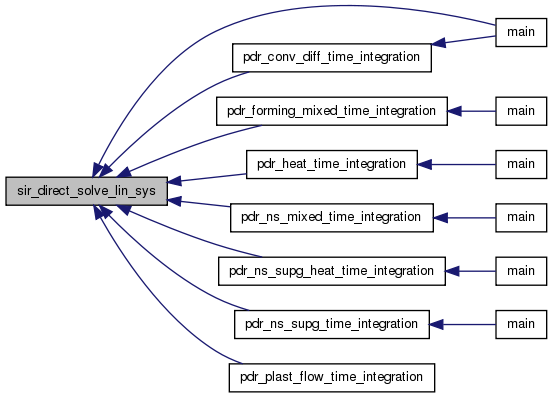

Here is the caller graph for this function:

int sir_free

(

int

Solver_id

)

----------------------------------------------------------- sir_free - to free memory for stiffness and preconditioner matrices ------------------------------------------------------------

Parameters:

Solver_id

returns: >=0 - success code, <0 - error code in: solver identification

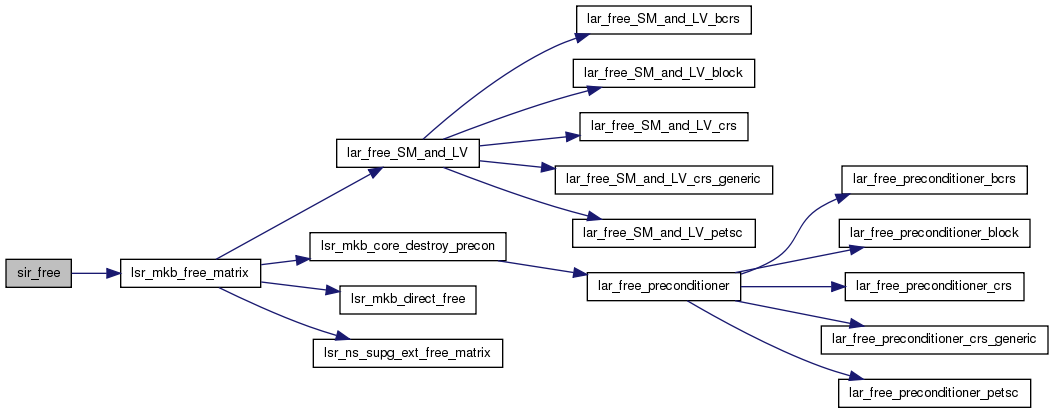

Here is the call graph for this function:

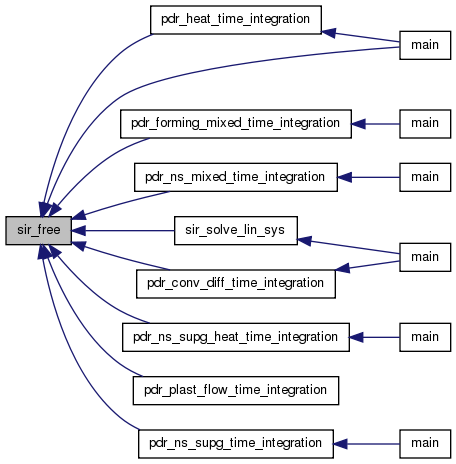

Here is the caller graph for this function:

int sir_init	(	int	Solver_type,
		int	Parallel,
		int	Nr_levels,
		char *	Filename,
		int	Max_iter,
		int	Error_type,
		double	Error_tolerance,
		int	Monitoring_level
	)

----------------------------------------------------------- sir_init - to create a new iterative solver, read its control parameters and initialize its data structure ------------------------------------------------------------

Parameters:

	Solver_type	returns: >0 - solver ID, <0 - error code
	Nr_levels	parameter specifying sequential (SIC_SEQUENTIAL) or parallel (SIC_PARALLEL) execution
	Max_iter	in: name of the file with control parameters
	Error_type	maximal number of iterations, -1 for values from Filename
	Error_tolerance	type of error norm (stopping criterion), -1 for Filename
	Monitoring_level	value for stopping criterion, -1.0 for Filename Level of output, -1 for Filename

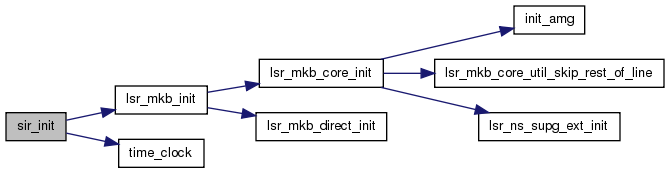

Here is the call graph for this function:

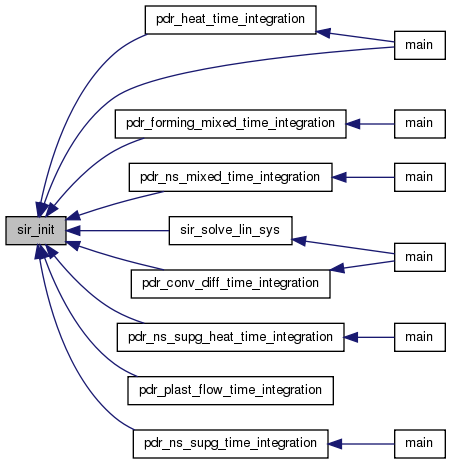

Here is the caller graph for this function:

int sir_module_introduce

(

char *

Solver_name

)

----------------------------------------------------------- sir_module_introduce - to return the solver name ------------------------------------------------------------

Parameters:

Solver_name

returns: >=0 - success code, <0 - error code out: the name of the solver

int sir_solve	(	int	Solver_id,
		int	Comp_type,
		int	Ini_guess,
		int	Monitor,
		int *	Nr_iter,
		double *	Conv_meas,
		double *	Conv_rate
	)

----------------------------------------------------------- sir_solve - to solve the system for a given data ------------------------------------------------------------

Parameters:

	Solver_id	returns: >=0 - success code, <0 - error code
	Comp_type	in: solver identification
	Ini_guess	in: indicator for the scope of computations: SIC_SOLVE - solve the system SIC_RESOLVE - resolve for the new right hand side
	Monitor	in: indicator whether to set initial guess (1), or to initialize it to zero (0)
	Nr_iter	in: monitoring flag with options: SIC_PRINT_NOT - do not print anything SIC_PRINT_ERRORS - print error messages only SIC_PRINT_INFO - print most important information SIC_PRINT_ALLINFO - print all available information
	Conv_meas	in: the maximum iterations to be performed out: actual number of iterations performed
	Conv_rate	in: tolerance level for chosen measure out: the final value of convergence measure out (optional): the total convergence rate

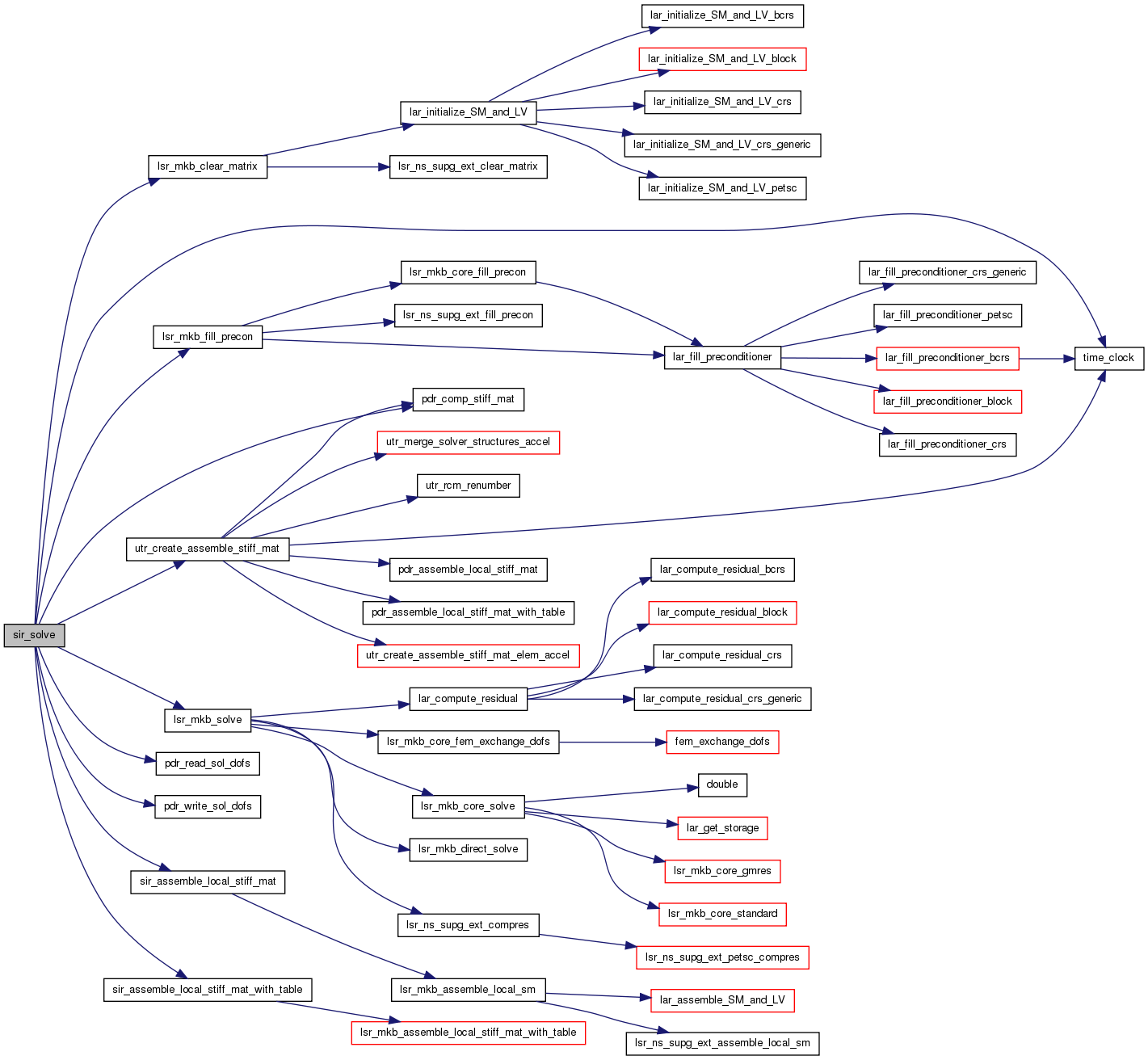

Here is the call graph for this function:

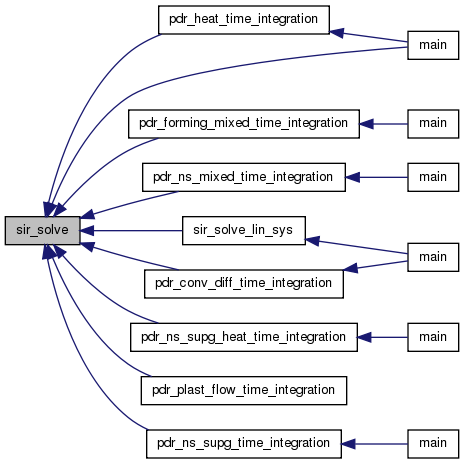

Here is the caller graph for this function:

int sir_solve_lin_sys	(	int	Problem_id,
		int	Solver_type,
		int	Parallel,
		int	Nr_levels,
		char *	Filename,
		int	Max_iter,
		int	Error_type,
		double	Error_tolerance,
		int	Monitoring_level
	)

----------------------------------------------------------- sir_solve_lin_sys - to solve the system of linear equations for the current setting of parameters (with initialization and finalization phases) ------------------------------------------------------------

Parameters:

	Problem_id	returns: >=0 - success code, <0 - error code
	Solver_type	ID of the problem associated with the solver
	Nr_levels	parameter specifying sequential (SIC_SEQUENTIAL) or parallel (SIC_PARALLEL) execution
	Max_iter	in: name of the file with control parameters
	Error_type	maximal number of iterations, -1 for values from Filename
	Error_tolerance	type of error norm (stopping criterion), -1 for Filename
	Monitoring_level	value for stopping criterion, -1.0 for Filename Level of output, -1 for Filename

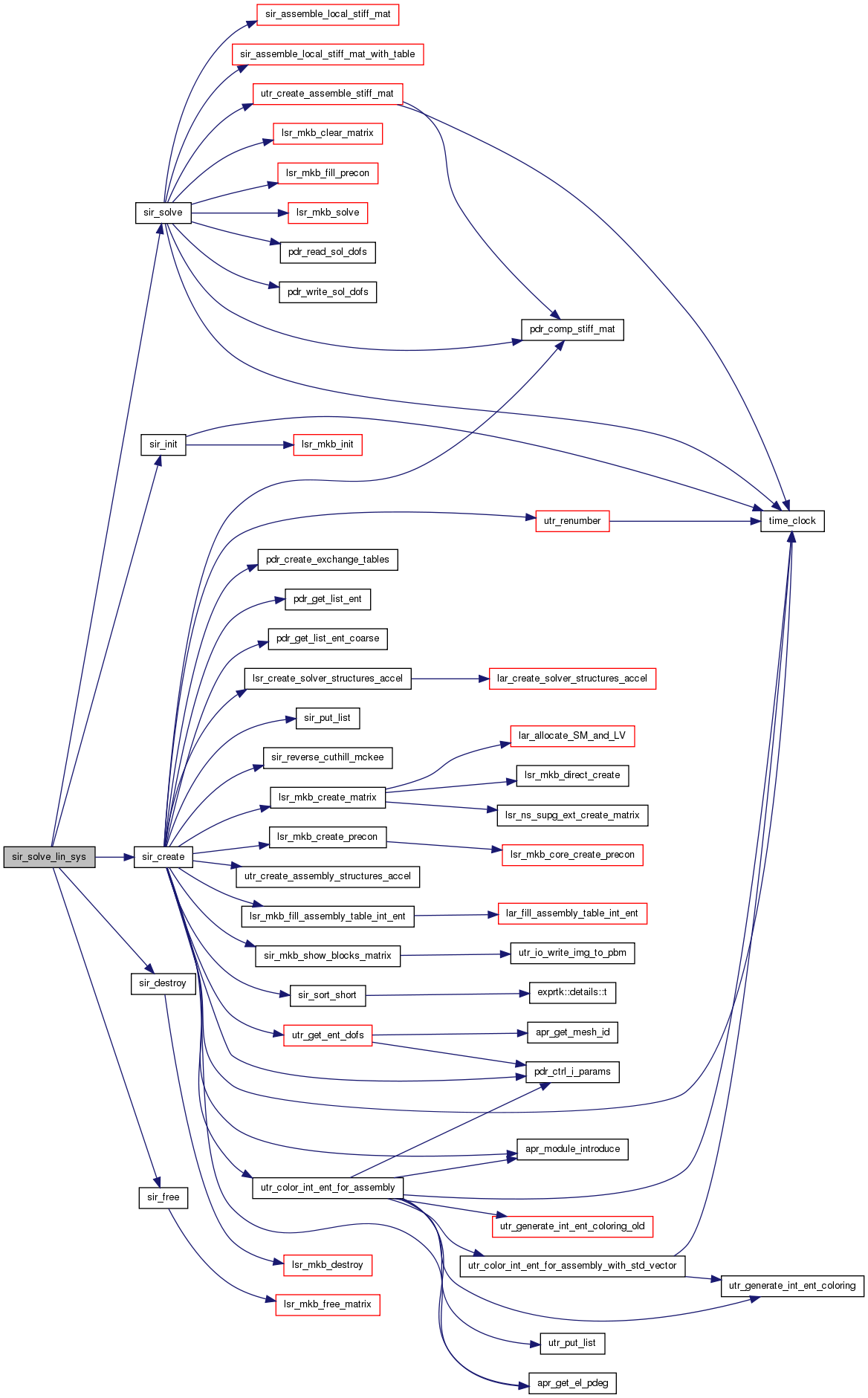

Here is the call graph for this function:

Here is the caller graph for this function:
