FemViewer::ModelCtrl Class Reference

#include <ModelControler.h>

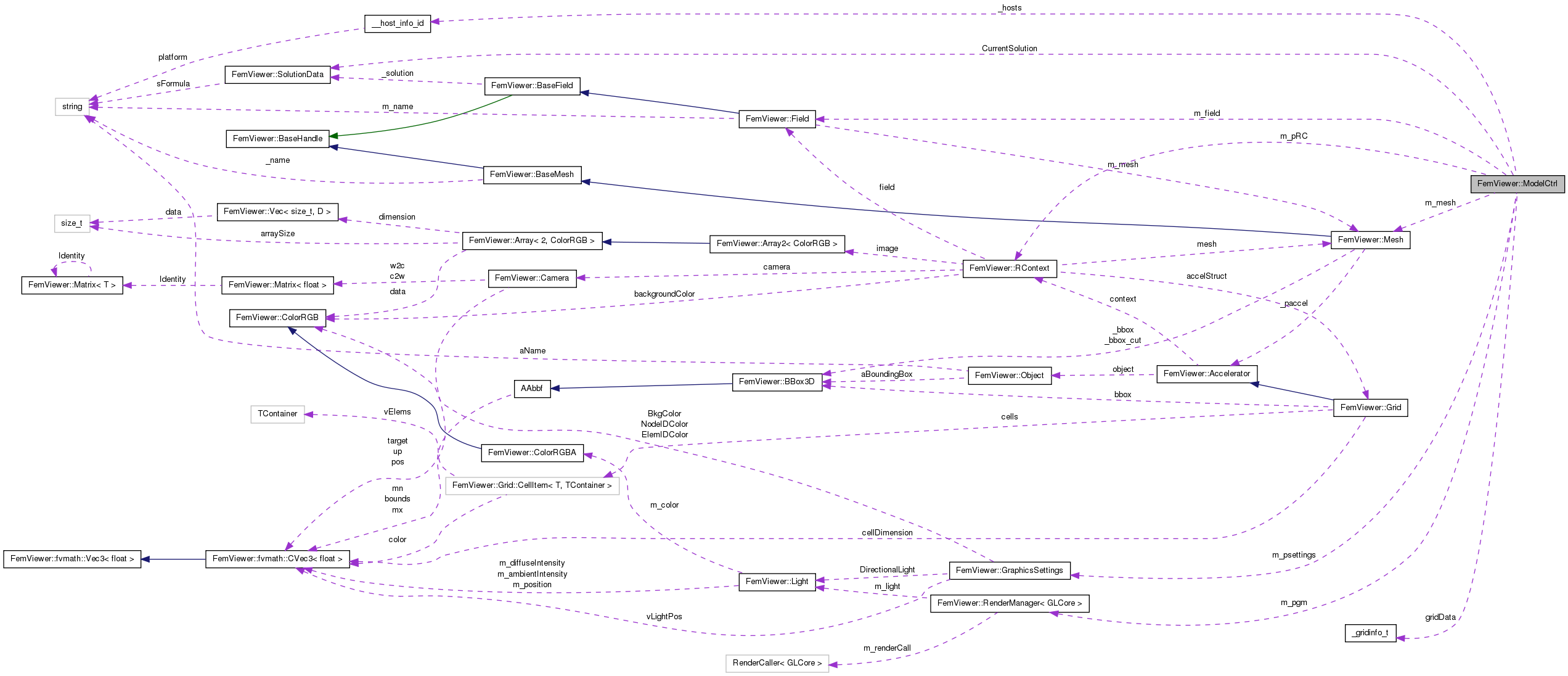

Collaboration diagram for FemViewer::ModelCtrl:

Public Types
enum	eCommnad { INIT = 0, CLEAR = 1, UPDATE = 2, INIT_MESH = (UPDATE << 1), INIT_FIELD = (UPDATE << 2), INIT_ACCEL = (UPDATE << 3), INIT_GL = (UPDATE << 4), INIT_LEGEND = (UPDATE << 5), INIT_SOL = (UPDATE << 6), INIT_PLANE = (UPDATE << 7), INIT_DISPLAY = (UPDATE << 8) }
enum	eItem { enumAll = 0, enumMesh = 0, enumField, enumLegend, enumAccelerator, enumGL, enumGLParams, enumCutPlane, enumSolution, enumDrawMethod, enumNumItems }
enum	notify_status_t { MESH_STATE = 0, FIELD_STATE, COLORMAP_STATE, CUT_PLANE_STATE, ACCELERATOR_STATE, GLPARAMS_STATE, DISPLAY_STATE, ALL_ITEM_STATES, NUM_STATES = ALL_ITEM_STATES }
Public Member Functions
	~ModelCtrl ()
bool	Do (const int oper=INIT, const char *path_=NULL)
void	Reset (bool eraseall=false)
void	Clear ()
void	Destroy ()
void	Draw (RenderParams &pParams)
void	SetMeshChange ()
void	SetFieldChange ()
void	SetLegendChange ()
void	SetCutPlaneChange ()
void	SetCutPlaneDisplay ()
void	SetRenderParamsChange ()
void	NotifyChange (notify_status_t item)
std::shared_ptr< Legend >	LoadColorMap (const char *path)
int	InitData ()
int	InitData2 ()
SolutionData &	GetCurrentSolution ()
Field *	GetCurrentField ()
Mesh *	GetCurrentMesh ()
std::vector< CutPlane > &	GetCutPlanes ()
const std::vector< CutPlane > &	GetCutPlanes () const
RContext *	RenderingContext ()
const RContext *	RenderingContext () const
int	GetMeshModuleType () const
int	GetApproximationType () const
const BBox3D &	Boundary () const
Public Attributes
std::vector< prism_info < mfvFloat_t > >	elData
std::vector< coeffs_info < mfvFloat_t > >	coeffsData
grid_t	gridData
int *	C_ptr
int *	L_ptr
Protected Member Functions
	ModelCtrl ()
Protected Attributes
GraphicsSettings *	m_psettings
SolutionData	CurrentSolution
Mesh	m_mesh
Field	m_field
RContext *	m_pRC
bool	m_meshChange
bool	m_fieldChange
bool	m_legendChange
bool	m_solutionChange
bool	m_accelChange
bool	m_glChange
bool	m_glParamsChange
bool	m_cutPlaneChange
bool	m_displayChange
std::vector< CutPlane >	m_currPlanes
host_info_id	_hosts
RenderManager< GLCore > *	m_pgm
std::map< std::string, Legend >	m_colorMaps
std::bitset< NUM_STATES >	m_status
Friends
ModelCtrl &	ModelCtrlInst (void)

Member Enumeration Documentation

enum FemViewer::ModelCtrl::eCommnad

Enumerator:

INIT
CLEAR
UPDATE
INIT_MESH
INIT_FIELD
INIT_ACCEL
INIT_GL
INIT_LEGEND
INIT_SOL
INIT_PLANE
INIT_DISPLAY

enum FemViewer::ModelCtrl::eItem

Enumerator:

enumAll
enumMesh
enumField
enumLegend
enumAccelerator
enumGL
enumGLParams
enumCutPlane
enumSolution
enumDrawMethod
enumNumItems

enum FemViewer::ModelCtrl::notify_status_t

Enumerator:

MESH_STATE
FIELD_STATE
COLORMAP_STATE
CUT_PLANE_STATE
ACCELERATOR_STATE
GLPARAMS_STATE
DISPLAY_STATE
ALL_ITEM_STATES
NUM_STATES

Constructor & Destructor Documentation

FemViewer::ModelCtrl::~ModelCtrl ( )

Here is the call graph for this function:

FemViewer::ModelCtrl::ModelCtrl ( ) [protected]

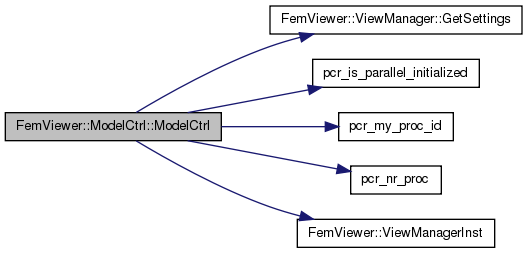

Here is the call graph for this function:

Member Function Documentation

const BBox3D& FemViewer::ModelCtrl::Boundary ( ) const [inline]

Here is the call graph for this function:

void FemViewer::ModelCtrl::Clear ( )

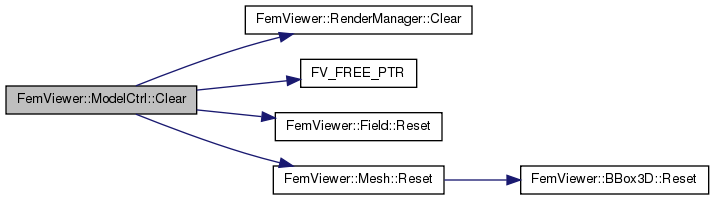

Here is the call graph for this function:

Here is the caller graph for this function:

void FemViewer::ModelCtrl::Destroy ( void )

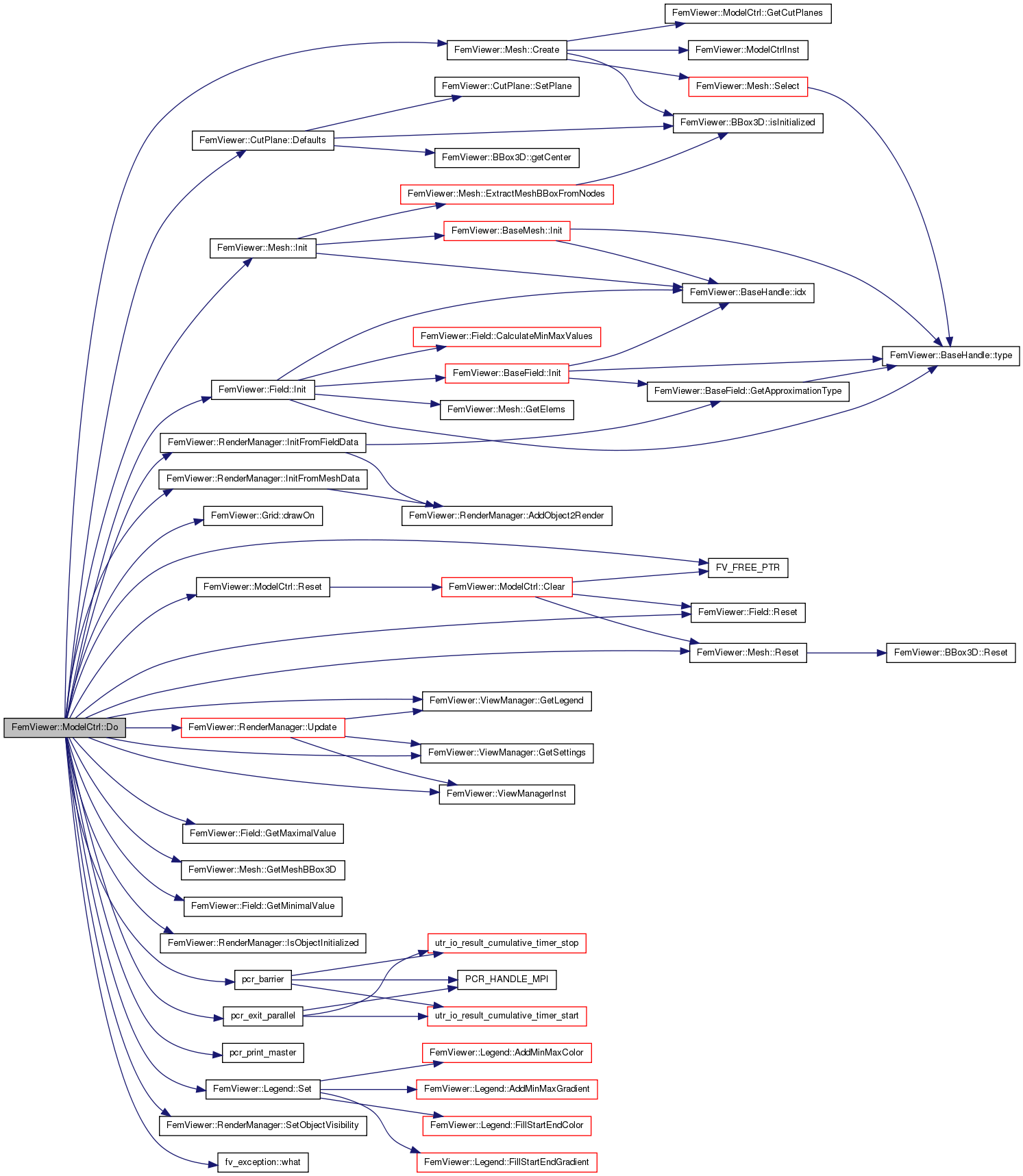

bool FemViewer::ModelCtrl::Do	(	const int	oper = `INIT`,
		const char *	path_ = `NULL`
	)

Here is the call graph for this function:

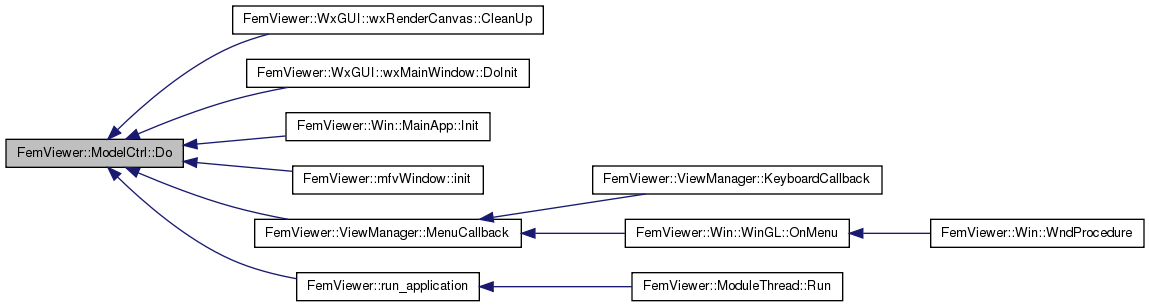

Here is the caller graph for this function:

void FemViewer::ModelCtrl::Draw ( RenderParams & pParams )

int FemViewer::ModelCtrl::GetApproximationType ( ) const [inline]

Here is the caller graph for this function:

Field* FemViewer::ModelCtrl::GetCurrentField ( ) [inline]

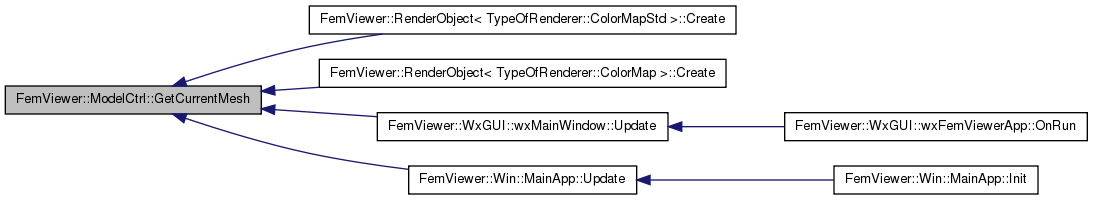

Mesh* FemViewer::ModelCtrl::GetCurrentMesh ( ) [inline]

Here is the caller graph for this function:

SolutionData& FemViewer::ModelCtrl::GetCurrentSolution ( ) [inline]

const std::vector<CutPlane>& FemViewer::ModelCtrl::GetCutPlanes ( ) const [inline]

std::vector<CutPlane>& FemViewer::ModelCtrl::GetCutPlanes ( ) [inline]

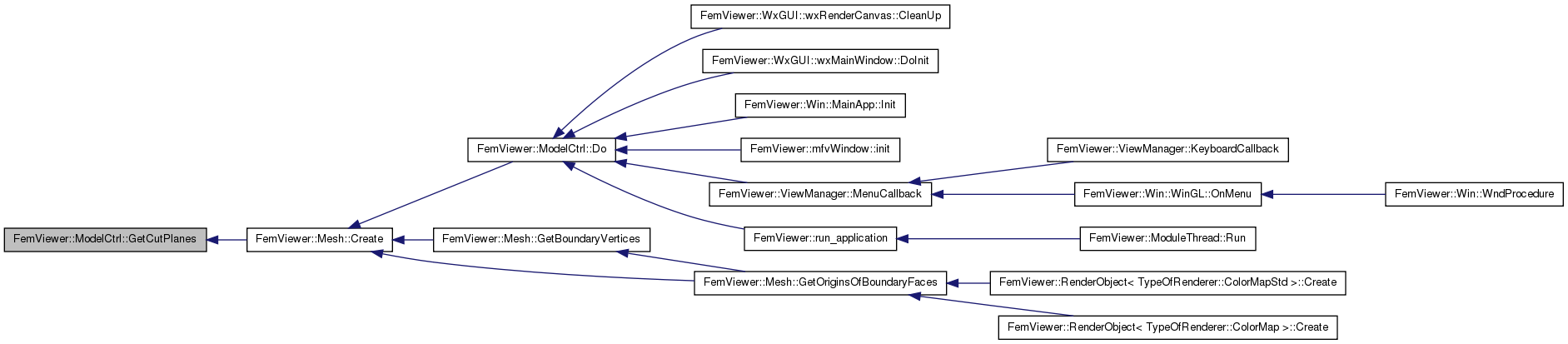

Here is the caller graph for this function:

int FemViewer::ModelCtrl::GetMeshModuleType ( ) const [inline]

Here is the caller graph for this function:

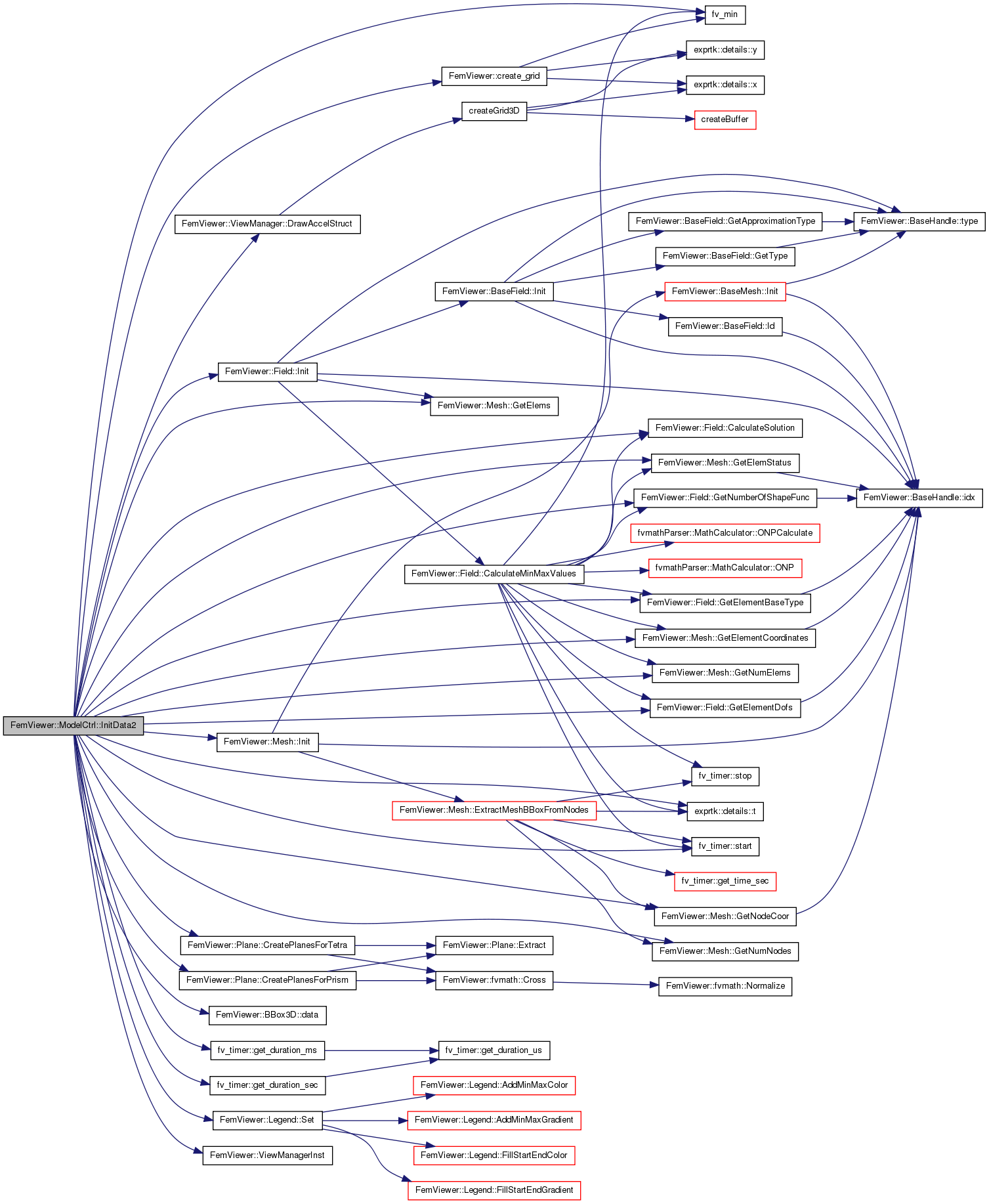

int FemViewer::ModelCtrl::InitData ( )

TO DO: conversion between double and float

Here is the call graph for this function:

Here is the caller graph for this function:

int FemViewer::ModelCtrl::InitData2 ( )

ModelCtrl* mctrl_ptr = &ModelCtrlInst();

TO DO: conversion between double and float

Here is the call graph for this function:

std::shared_ptr< Legend > FemViewer::ModelCtrl::LoadColorMap ( const char * path )

void FemViewer::ModelCtrl::NotifyChange ( notify_status_t item )

const RContext* FemViewer::ModelCtrl::RenderingContext ( ) const [inline]

RContext* FemViewer::ModelCtrl::RenderingContext ( ) [inline]

Here is the caller graph for this function:

void FemViewer::ModelCtrl::Reset ( bool eraseall = false )

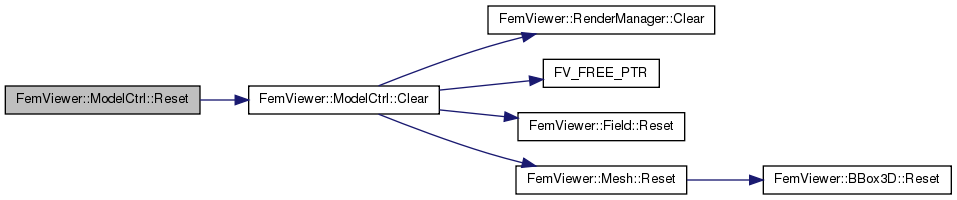

Here is the call graph for this function:

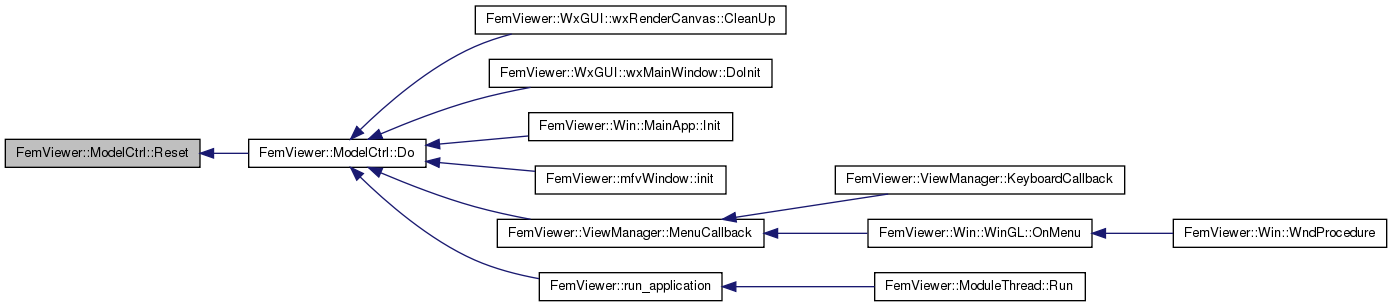

Here is the caller graph for this function:

void FemViewer::ModelCtrl::SetCutPlaneChange ( ) [inline]

void FemViewer::ModelCtrl::SetCutPlaneDisplay ( ) [inline]

void FemViewer::ModelCtrl::SetFieldChange ( ) [inline]

void FemViewer::ModelCtrl::SetLegendChange ( ) [inline]

void FemViewer::ModelCtrl::SetMeshChange ( ) [inline]

void FemViewer::ModelCtrl::SetRenderParamsChange ( ) [inline]

Friends And Related Function Documentation

ModelCtrl& ModelCtrlInst ( void ) [friend]

Member Data Documentation

host_info_id FemViewer::ModelCtrl::_hosts [protected]

int* FemViewer::ModelCtrl::C_ptr

std::vector<coeffs_info<mfvFloat_t> > FemViewer::ModelCtrl::coeffsData

SolutionData FemViewer::ModelCtrl::CurrentSolution [protected]

std::vector<prism_info<mfvFloat_t> > FemViewer::ModelCtrl::elData

grid_t FemViewer::ModelCtrl::gridData

int* FemViewer::ModelCtrl::L_ptr

bool FemViewer::ModelCtrl::m_accelChange [protected]

std::map<std::string,Legend> FemViewer::ModelCtrl::m_colorMaps [protected]

std::vector<CutPlane> FemViewer::ModelCtrl::m_currPlanes [protected]

bool FemViewer::ModelCtrl::m_cutPlaneChange [protected]

bool FemViewer::ModelCtrl::m_displayChange [protected]

Field FemViewer::ModelCtrl::m_field [protected]

bool FemViewer::ModelCtrl::m_fieldChange [protected]

bool FemViewer::ModelCtrl::m_glChange [protected]

bool FemViewer::ModelCtrl::m_glParamsChange [protected]

bool FemViewer::ModelCtrl::m_legendChange [protected]

Mesh FemViewer::ModelCtrl::m_mesh [protected]

bool FemViewer::ModelCtrl::m_meshChange [protected]

RenderManager<GLCore>* FemViewer::ModelCtrl::m_pgm [protected]

RContext* FemViewer::ModelCtrl::m_pRC [protected]

GraphicsSettings* FemViewer::ModelCtrl::m_psettings [protected]

bool FemViewer::ModelCtrl::m_solutionChange [protected]

std::bitset<NUM_STATES> FemViewer::ModelCtrl::m_status [protected]

The documentation for this class was generated from the following files:

mod_fem_viewer/FemViewer/inc/ModelControler.h
mod_fem_viewer/FemViewer/src/ModelControler.cpp
