MeshRead::KazFileImporter Class Reference

#include <KazFileImporter.h>

Inheritance diagram for MeshRead::KazFileImporter:

Collaboration diagram for MeshRead::KazFileImporter:

Public Member Functions
	KazFileImporter (const std::string &fileName)
	KazFileImporter ()
	~KazFileImporter ()
bool	Init ()
bool	doRead (hHybridMesh *mesh)
int	GetVerticesCount ()
bool	GetNextVertex (double coords[])
void	GetElementCount (int type_count[])
bool	GetNextElement (Tind vertices[], Tind neighbours[], Tind faces[], Tind &element_type, Tind &father, int8_t &material, int8_t &ref)
int	GetCoordinatesDimension () const
bool	GetBoundaryConditions (double **, int &)
int	GetEdgesCount ()
void	GetFacesCount (int type_count[])
bool	GetNextFace (Tind edges[], Tind &face_type, int8_t &bc, Tind neigh[])
bool	GetNextEdge (Tind vertices[], Tind &edge_type)
Protected Attributes
int	_face_count
int	_face_readed
int	_edge_count
int	_edge_readed

Constructor & Destructor Documentation

KazFileImporter::KazFileImporter ( const std::string & fileName )

KazFileImporter::KazFileImporter ( )

KazFileImporter::~KazFileImporter ( )

Member Function Documentation

bool KazFileImporter::doRead ( hHybridMesh * mesh ) [virtual]

switch(element_type)

Implements MeshRead::MeshFileImporter.

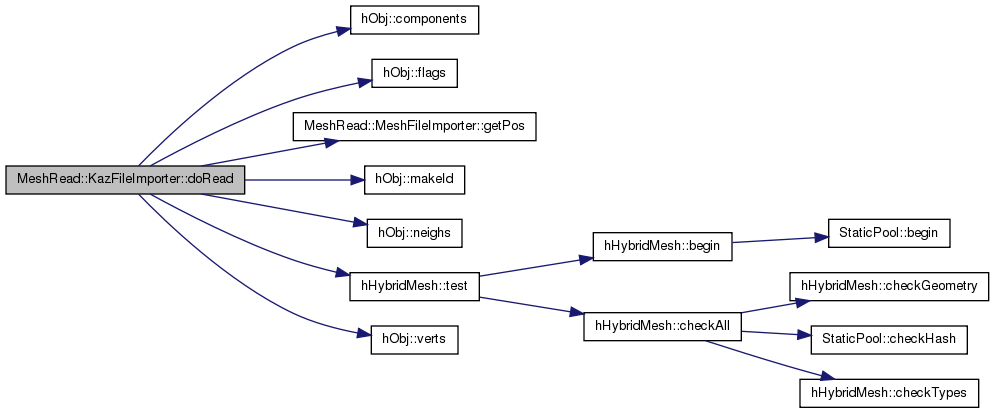

Here is the call graph for this function:

bool MeshRead::KazFileImporter::GetBoundaryConditions	(	double **	bc,
		int &	bcCount
	)			`[inline, virtual]`

/param bc array for boundary condition parameters bc[0] - Dirichlet BC bc[1] - Neumann BC bc[2] - Cauchy BC par1 bc[3] - Cauchy BC par2

Reimplemented from MeshRead::MeshFileImporter.

int MeshRead::KazFileImporter::GetCoordinatesDimension ( ) const [inline, virtual]

/param bc array for boundary condition parameters bc[0] - Dirichlet BC bc[1] - Neumann BC bc[2] - Cauchy BC par1 bc[3] - Cauchy BC par2

Reimplemented from MeshRead::MeshFileImporter.

int KazFileImporter::GetEdgesCount ( ) [virtual]

Reimplemented from MeshRead::IMeshReader.

void KazFileImporter::GetElementCount ( int type_count[] ) [virtual]

/return no. of elements in inintial mesh

Reimplemented from MeshRead::MeshFileImporter.

Here is the call graph for this function:

void KazFileImporter::GetFacesCount ( int type_count[] ) [virtual]

Reimplemented from MeshRead::IMeshReader.

Here is the call graph for this function:

bool KazFileImporter::GetNextEdge	(	Tind	vertices[],
		Tind &	edge_type
	)			`[virtual]`

/param edge_type OUT type of edge (no. of vertices) /param vertices OUT

Reimplemented from MeshRead::IMeshReader.

bool KazFileImporter::GetNextElement	(	Tind	vertices[],
		Tind	neighbours[],
		Tind	faces[],
		Tind &	element_type,
		Tind &	father,
		int8_t &	material,
		int8_t &	ref
	)			`[virtual]`

/param vertices array for current element vertices numbers /param neighbours array for current element neighoubrs(other elements) numbers. /param bc number of boundary condition at this element /return true if there is next element and false if this is last element.

Reimplemented from MeshRead::MeshFileImporter.
