MeshRead::MeshFileImporter Class Reference

#include <MeshFileImporter.h>

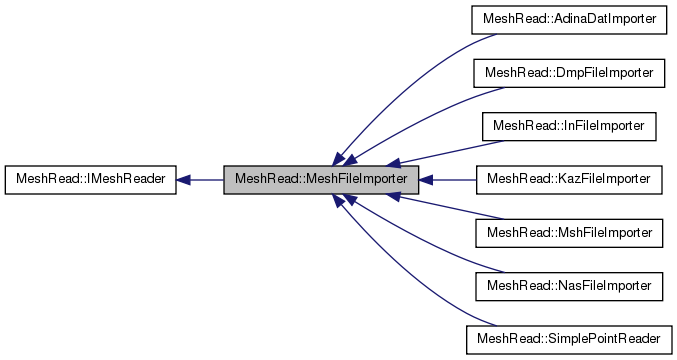

Inheritance diagram for MeshRead::MeshFileImporter:

Collaboration diagram for MeshRead::MeshFileImporter:

Public Member Functions
	MeshFileImporter (void)
	MeshFileImporter (const std::string &file_name)
virtual	~MeshFileImporter (void)
bool	Init (const std::string &file_name)
bool	Init ()
std::string	Name () const
void	Free ()
bool	doRead (hHybridMesh *mesh)=0
int	GetCoordinatesDimension () const
int	GetVerticesCount ()
bool	GetNextVertex (double coords[])
void	GetElementCount (int element_type[])
bool	GetNextElement (Tind vertices[], Tind neighbours[], Tind faces[], Tind &element_type, Tind &father, int8_t &material, int8_t &ref)
bool	GetBoundaryConditions (double **bc, int &bcCount)
Protected Member Functions
int	getPos ()
void	setPos (const int newPos)
Protected Attributes
std::string	_file_name
std::fstream	_file
int	_vert_count
int	_vert_readed
int	_elem_count
int	_elem_readed
int	gridPos_
int	elemPos_
int	facePos_

Constructor & Destructor Documentation

MeshRead::MeshFileImporter::MeshFileImporter ( void )

MeshRead::MeshFileImporter::MeshFileImporter ( const std::string & file_name )

MeshRead::MeshFileImporter::~MeshFileImporter ( void ) [virtual]

Here is the call graph for this function:

Member Function Documentation

bool MeshRead::MeshFileImporter::doRead ( hHybridMesh * mesh ) [pure virtual]

Implements MeshRead::IMeshReader.

Implemented in MeshRead::DmpFileImporter, MeshRead::InFileImporter, MeshRead::KazFileImporter, MeshRead::MshFileImporter, MeshRead::NasFileImporter, and MeshRead::SimplePointReader.

void MeshRead::MeshFileImporter::Free ( ) [virtual]

Frees resources used by builder.

Implements MeshRead::IMeshReader.

Reimplemented in MeshRead::InFileImporter, and MeshRead::MshFileImporter.

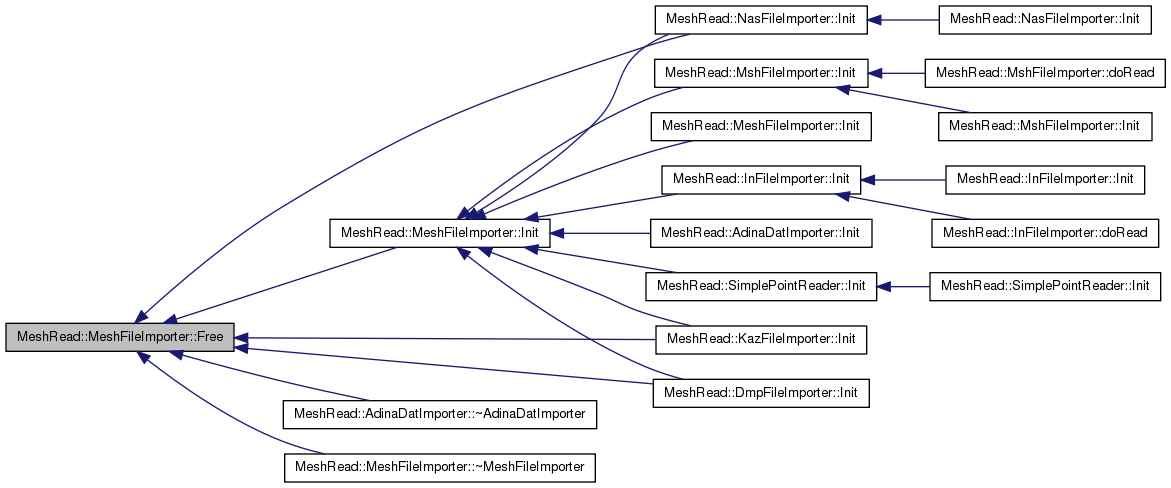

Here is the caller graph for this function:

bool MeshRead::MeshFileImporter::GetBoundaryConditions	(	double **	bc,
		int &	bcCount
	)			`[virtual]`

/param bc array for boundary condition parameters bc[0] - Dirichlet BC bc[1] - Neumann BC bc[2] - Cauchy BC par1 bc[3] - Cauchy BC par2

Reimplemented from MeshRead::IMeshReader.

Reimplemented in MeshRead::AdinaDatImporter, MeshRead::DmpFileImporter, MeshRead::KazFileImporter, MeshRead::NasFileImporter, and MeshRead::SimplePointReader.

int MeshRead::MeshFileImporter::GetCoordinatesDimension ( ) const [virtual]

returns number of mesh dimensions: 1D/2D/3D

Reimplemented from MeshRead::IMeshReader.

Reimplemented in MeshRead::AdinaDatImporter, MeshRead::DmpFileImporter, MeshRead::KazFileImporter, MeshRead::NasFileImporter, and MeshRead::SimplePointReader.

void MeshRead::MeshFileImporter::GetElementCount ( int element_type[] ) [virtual]

/return no. of elements in inintial mesh

Reimplemented from MeshRead::IMeshReader.

Reimplemented in MeshRead::DmpFileImporter, MeshRead::KazFileImporter, MeshRead::NasFileImporter, and MeshRead::SimplePointReader.

bool MeshRead::MeshFileImporter::GetNextElement	(	Tind	vertices[],
		Tind	neighbours[],
		Tind	faces[],
		Tind &	element_type,
		Tind &	father,
		int8_t &	material,
		int8_t &	ref
	)			`[virtual]`

/param vertices array for current element vertices numbers /param neighbours array for current element neighoubrs(other elements) numbers. /param bc number of boundary condition at this element /return true if there is next element and false if this is last element.

Reimplemented from MeshRead::IMeshReader.

Reimplemented in MeshRead::DmpFileImporter, MeshRead::KazFileImporter, MeshRead::NasFileImporter, and MeshRead::SimplePointReader.

bool MeshRead::MeshFileImporter::GetNextVertex ( double coords[] ) [virtual]

/param coords array for coordinates of vertex /return true if there is next vertex and false if there isn't.

Reimplemented from MeshRead::IMeshReader.

Reimplemented in MeshRead::AdinaDatImporter, MeshRead::DmpFileImporter, MeshRead::KazFileImporter, MeshRead::NasFileImporter, and MeshRead::SimplePointReader.

int MeshRead::MeshFileImporter::getPos ( ) [protected]

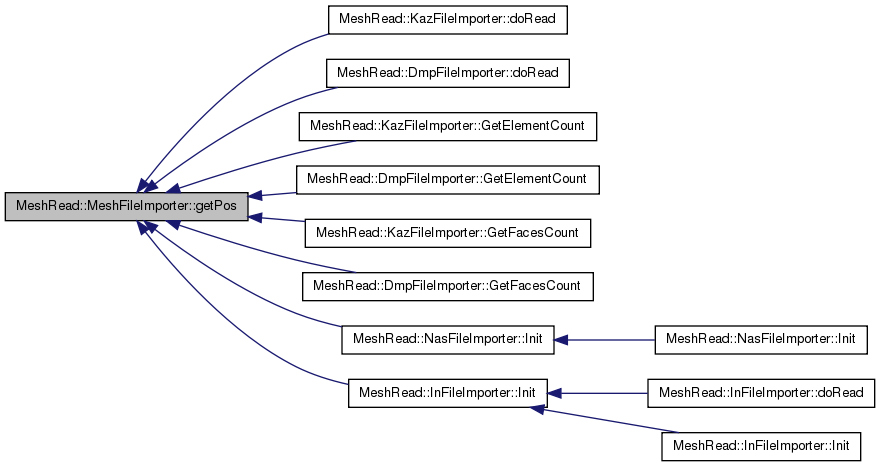

Here is the caller graph for this function:
