MeshRead::NasFileImporter Class Reference

#include <NasFileImporter.h>

Inheritance diagram for MeshRead::NasFileImporter:

Collaboration diagram for MeshRead::NasFileImporter:

Public Member Functions
	NasFileImporter ()
	NasFileImporter (const std::string &file_name)
bool	Init (const std::string &file_name)
bool	Init ()
bool	doRead (hHybridMesh *mesh)
int	GetCoordinatesDimension () const
int	GetVerticesCount ()
bool	GetNextVertex (double coords[])
void	GetElementCount (int element_type[])
bool	GetNextElement (Tind vertices[], Tind neighbours[], Tind faces[], Tind &element_type, Tind &father, int8_t &material, int8_t &ref)
bool	GetBoundaryConditions (double **bc, int &bcCount)
bool	LineParse (char const *str, std::vector< double > &v)
bool	VertexLineParse (char const *str, std::vector< double > &v)
void	GetFacesCount (int type_count[])
bool	GetNextFace (Tind edges[], Tind &face_type, int8_t &bc, Tind neigh[])
Protected Attributes
int	_face_count
int	_face_readed
int	_edge_count
int	_edge_readed
int	_quads
int	_prisms

Constructor & Destructor Documentation

MeshRead::NasFileImporter::NasFileImporter ( )

MeshRead::NasFileImporter::NasFileImporter ( const std::string & file_name )

Member Function Documentation

bool MeshRead::NasFileImporter::doRead ( hHybridMesh * mesh ) [virtual]

Implements MeshRead::MeshFileImporter.

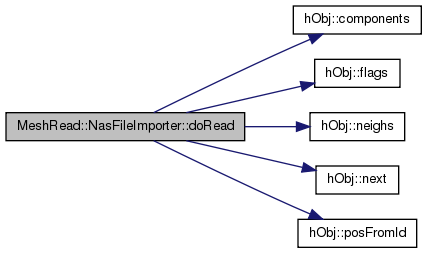

Here is the call graph for this function:

bool MeshRead::NasFileImporter::GetBoundaryConditions	(	double **	bc,
		int &	bcCount
	)			`[virtual]`

/param bc array for boundary condition parameters bc[0] - Dirichlet BC bc[1] - Neumann BC bc[2] - Cauchy BC par1 bc[3] - Cauchy BC par2

Reimplemented from MeshRead::MeshFileImporter.

int MeshRead::NasFileImporter::GetCoordinatesDimension ( ) const [virtual]

returns number of mesh dimensions: 1D/2D/3D

Reimplemented from MeshRead::MeshFileImporter.

void MeshRead::NasFileImporter::GetElementCount ( int type_count[] ) [virtual]

/return no. of elements in inintial mehs

/return no. of elements in inintial mesh

Reimplemented from MeshRead::MeshFileImporter.

void MeshRead::NasFileImporter::GetFacesCount ( int type_count[] ) [virtual]

Reimplemented from MeshRead::IMeshReader.

bool MeshRead::NasFileImporter::GetNextElement	(	Tind	vertices[],
		Tind	neighbours[],
		Tind	faces[],
		Tind &	element_type,
		Tind &	father,
		int8_t &	material,
		int8_t &	ref
	)			`[virtual]`

/param vertices array for current element vertices numbers /param neighbours array for current element neighoubrs(other elements) numbers. /param bc number of boundary condition at this element /return true if there is next element and false if this is last element.

Reimplemented from MeshRead::MeshFileImporter.
